vtkInteractorStyleUser Class Reference

#include <vtkInteractorStyleUser.h>

Inheritance diagram for vtkInteractorStyleUser:

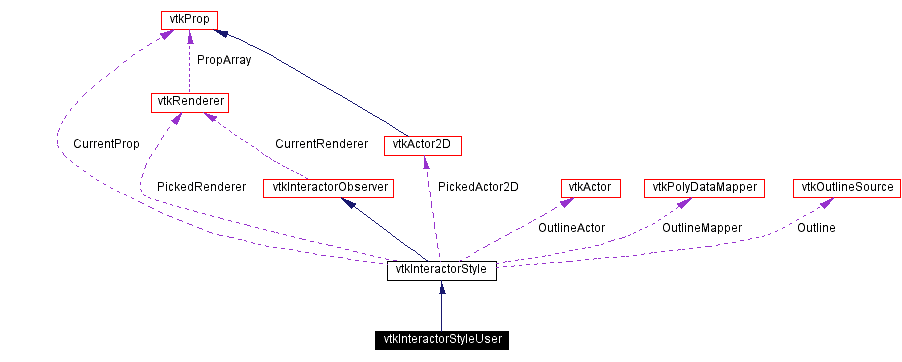

[legend]Collaboration diagram for vtkInteractorStyleUser:

[legend]List of all members.

---

Detailed Description

provides customizable interaction routines

Date:

2002/11/22 16:27:05

Revision:

1.30

The most common way to customize user interaction is to write a subclass of vtkInteractorStyle: vtkInteractorStyleUser allows you to customize the interaction to without subclassing vtkInteractorStyle. This is particularly useful for setting up custom interaction modes in scripting languages such as Tcl and Python. This class allows you to hook into the MouseMove, ButtonPress/Release, KeyPress/Release, etc. events. If you want to hook into just a single mouse button, but leave the interaction modes for the others unchanged, you must use e.g. SetMiddleButtonPressMethod() instead of the more general SetButtonPressMethod().

Events:

vtkCommand::RightButtonPressEvent vtkCommand::UserEvent vtkCommand::MiddleButtonReleaseEvent vtkCommand::ExposeEvent vtkCommand::EnterEvent vtkCommand::ConfigureEvent vtkCommand::KeyPressEvent vtkCommand::RightButtonReleaseEvent vtkCommand::CharEvent vtkCommand::LeaveEvent vtkCommand::LeftButtonPressEvent vtkCommand::KeyReleaseEvent vtkCommand::LeftButtonReleaseEvent vtkCommand::MouseMoveEvent vtkCommand::TimerEvent vtkCommand::MiddleButtonPressEvent

Created by:

• Gobbi, David

CVS contributions (if > 5%):

• Gobbi, David (55%)
• King, Brad (18%)
• Barre, Sebastien (12%)
• Martin, Ken (11%)

CVS logs (CVSweb):

• .cxx (/Rendering/vtkInteractorStyleUser.cxx)
• .h (/Rendering/vtkInteractorStyleUser.h)

Examples:

vtkInteractorStyleUser (Examples)

Definition at line 63 of file vtkInteractorStyleUser.h.

Public Types
typedef vtkInteractorStyle	Superclass
Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	OnTimer ()
void	SetMouseMoveMethod (void(*f)(void *), void *arg)
void	SetMouseMoveMethodArgDelete (void(*f)(void *))
void	SetButtonPressMethod (void(*f)(void *), void *arg)
void	SetButtonPressMethodArgDelete (void(*f)(void *))
void	SetButtonReleaseMethod (void(*f)(void *), void *arg)
void	SetButtonReleaseMethodArgDelete (void(*f)(void *))
void	SetKeyPressMethod (void(*f)(void *), void *arg)
void	SetKeyPressMethodArgDelete (void(*f)(void *))
void	SetKeyReleaseMethod (void(*f)(void *), void *arg)
void	SetKeyReleaseMethodArgDelete (void(*f)(void *))
void	SetCharMethod (void(*f)(void *), void *arg)
void	SetCharMethodArgDelete (void(*f)(void *))
void	SetConfigureMethod (void(*f)(void *), void *arg)
void	SetConfigureMethodArgDelete (void(*f)(void *))
void	SetExposeMethod (void(*f)(void *), void *arg)
void	SetExposeMethodArgDelete (void(*f)(void *))
void	SetEnterMethod (void(*f)(void *), void *arg)
void	SetEnterMethodArgDelete (void(*f)(void *))
void	SetLeaveMethod (void(*f)(void *), void *arg)
void	SetLeaveMethodArgDelete (void(*f)(void *))
void	SetTimerMethod (void(*f)(void *), void *arg)
void	SetTimerMethodArgDelete (void(*f)(void *))
void	SetUserInteractionMethod (void(*f)(void *), void *arg)
void	SetUserInteractionMethodArgDelete (void(*f)(void *))
void	StartUserInteraction ()
void	EndUserInteraction ()
virtual int *	GetLastPos ()
virtual void	GetLastPos (int &, int &)
virtual void	GetLastPos (int[2])
virtual int *	GetOldPos ()
virtual void	GetOldPos (int &, int &)
virtual void	GetOldPos (int[2])
virtual int	GetShiftKey ()
virtual int	GetCtrlKey ()
virtual int	GetChar ()
virtual char *	GetKeySym ()
virtual int	GetButton ()
virtual void	OnMouseMove ()
virtual void	OnLeftButtonDown ()
virtual void	OnLeftButtonUp ()
virtual void	OnMiddleButtonDown ()
virtual void	OnMiddleButtonUp ()
virtual void	OnRightButtonDown ()
virtual void	OnRightButtonUp ()
virtual void	OnChar ()
virtual void	OnKeyPress ()
virtual void	OnKeyRelease ()
virtual void	OnExpose ()
virtual void	OnConfigure ()
virtual void	OnEnter ()
virtual void	OnLeave ()
Static Public Methods
vtkInteractorStyleUser *	New ()
int	IsTypeOf (const char *type)
vtkInteractorStyleUser *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkInteractorStyleUser ()
	~vtkInteractorStyleUser ()
void	vtkSetOldCallback (unsigned long &tag, unsigned long event, void(*f)(void *), void *arg)
void	vtkSetOldDelete (unsigned long tag, void(*f)(void *))
Protected Attributes
int	LastPos [2]
int	OldPos [2]
int	ShiftKey
int	CtrlKey
int	Char
char *	KeySym
int	Button
unsigned long	MouseMoveTag
unsigned long	KeyPressTag
unsigned long	KeyReleaseTag
unsigned long	CharTag
unsigned long	EnterTag
unsigned long	LeaveTag
unsigned long	ExposeTag
unsigned long	ConfigureTag
unsigned long	TimerTag
unsigned long	UserTag

---

Member Typedef Documentation

typedef vtkInteractorStyle vtkInteractorStyleUser::Superclass

Reimplemented from vtkInteractorStyle. Definition at line 67 of file vtkInteractorStyleUser.h.

---

Constructor & Destructor Documentation

vtkInteractorStyleUser::vtkInteractorStyleUser (    )  [protected]

vtkInteractorStyleUser::~vtkInteractorStyleUser (    )  [protected]

---

Member Function Documentation

vtkInteractorStyleUser* vtkInteractorStyleUser::New (    )  [static]

This class must be supplied with a vtkRenderWindowInteractor wrapper or parent. This class should not normally be instantiated by application programmers. Reimplemented from vtkInteractorStyle.

virtual const char* vtkInteractorStyleUser::GetClassName (    )  [virtual]

Reimplemented from vtkInteractorStyle.

int vtkInteractorStyleUser::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkInteractorStyle.

virtual int vtkInteractorStyleUser::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkInteractorStyle.

vtkInteractorStyleUser* vtkInteractorStyleUser::SafeDownCast (  vtkObject *    o )  [static]

Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleUser::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleUser::SetMouseMoveMethod (  void(*    f)(void *), void *    arg )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetMouseMoveMethodArgDelete (  void(*    f)(void *) )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetButtonPressMethod (  void(*    f)(void *), void *    arg )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetButtonPressMethodArgDelete (  void(*    f)(void *) )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetButtonReleaseMethod (  void(*    f)(void *), void *    arg )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetButtonReleaseMethodArgDelete (  void(*    f)(void *) )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetKeyPressMethod (  void(*    f)(void *), void *    arg )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetKeyPressMethodArgDelete (  void(*    f)(void *) )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetKeyReleaseMethod (  void(*    f)(void *), void *    arg )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetKeyReleaseMethodArgDelete (  void(*    f)(void *) )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetCharMethod (  void(*    f)(void *), void *    arg )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetCharMethodArgDelete (  void(*    f)(void *) )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetConfigureMethod (  void(*    f)(void *), void *    arg )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetConfigureMethodArgDelete (  void(*    f)(void *) )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetExposeMethod (  void(*    f)(void *), void *    arg )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetExposeMethodArgDelete (  void(*    f)(void *) )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetEnterMethod (  void(*    f)(void *), void *    arg )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetEnterMethodArgDelete (  void(*    f)(void *) )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetLeaveMethod (  void(*    f)(void *), void *    arg )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetLeaveMethodArgDelete (  void(*    f)(void *) )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetTimerMethod (  void(*    f)(void *), void *    arg )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetTimerMethodArgDelete (  void(*    f)(void *) )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetUserInteractionMethod (  void(*    f)(void *), void *    arg )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::SetUserInteractionMethodArgDelete (  void(*    f)(void *) )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::StartUserInteraction (    )

For legacy compatibility. Do not use.

void vtkInteractorStyleUser::EndUserInteraction (    )

For legacy compatibility. Do not use.

virtual int* vtkInteractorStyleUser::GetLastPos (    )  [virtual]

Get the most recent mouse position during mouse motion. In your user interaction method, you must use this to track the mouse movement. Do not use GetEventPosition(), which records the last position where a mouse button was pressed.

virtual void vtkInteractorStyleUser::GetLastPos (  int &   , int &    )  [virtual]

Get the most recent mouse position during mouse motion. In your user interaction method, you must use this to track the mouse movement. Do not use GetEventPosition(), which records the last position where a mouse button was pressed.

virtual void vtkInteractorStyleUser::GetLastPos (  int   [2] )  [virtual]

Get the most recent mouse position during mouse motion. In your user interaction method, you must use this to track the mouse movement. Do not use GetEventPosition(), which records the last position where a mouse button was pressed.

virtual int* vtkInteractorStyleUser::GetOldPos (    )  [virtual]

Get the previous mouse position during mouse motion, or after a key press. This can be used to calculate the relative displacement of the mouse.

virtual void vtkInteractorStyleUser::GetOldPos (  int &   , int &    )  [virtual]

Get the previous mouse position during mouse motion, or after a key press. This can be used to calculate the relative displacement of the mouse.

virtual void vtkInteractorStyleUser::GetOldPos (  int   [2] )  [virtual]

Get the previous mouse position during mouse motion, or after a key press. This can be used to calculate the relative displacement of the mouse.

virtual int vtkInteractorStyleUser::GetShiftKey (    )  [virtual]

Test whether modifiers were held down when mouse button or key was pressed

virtual int vtkInteractorStyleUser::GetCtrlKey (    )  [virtual]

Test whether modifiers were held down when mouse button or key was pressed

virtual int vtkInteractorStyleUser::GetChar (    )  [virtual]

Get the character for a Char event.

virtual char* vtkInteractorStyleUser::GetKeySym (    )  [virtual]

Get the KeySym (in the same format as Tk KeySyms) for a KeyPress or KeyRelease method.

virtual int vtkInteractorStyleUser::GetButton (    )  [virtual]

Get the mouse button that was last pressed inside the window (returns zero when the button is released).

virtual void vtkInteractorStyleUser::OnMouseMove (    )  [virtual]

Generic event bindings Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnLeftButtonDown (    )  [virtual]

Generic event bindings Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnLeftButtonUp (    )  [virtual]

Generic event bindings Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnMiddleButtonDown (    )  [virtual]

Generic event bindings Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnMiddleButtonUp (    )  [virtual]

Generic event bindings Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnRightButtonDown (    )  [virtual]

Generic event bindings Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnRightButtonUp (    )  [virtual]

Generic event bindings Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnChar (    )  [virtual]

Keyboard functions Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnKeyPress (    )  [virtual]

Keyboard functions Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnKeyRelease (    )  [virtual]

Keyboard functions Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnExpose (    )  [virtual]

These are more esoteric events, but are useful in some cases. Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnConfigure (    )  [virtual]

These are more esoteric events, but are useful in some cases. Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnEnter (    )  [virtual]

These are more esoteric events, but are useful in some cases. Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnLeave (    )  [virtual]

These are more esoteric events, but are useful in some cases. Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleUser::OnTimer (    )  [virtual]

OnTimer calls Rotate, Rotate etc which should be overridden by style subclasses. Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleUser::vtkSetOldCallback (  unsigned long &    tag, unsigned long    event, void(*    f)(void *), void *    arg )  [protected]

void vtkInteractorStyleUser::vtkSetOldDelete (  unsigned long    tag, void(*    f)(void *) )  [protected]

---

Member Data Documentation

int vtkInteractorStyleUser::LastPos[2] [protected]

Definition at line 174 of file vtkInteractorStyleUser.h.

int vtkInteractorStyleUser::OldPos[2] [protected]

Definition at line 175 of file vtkInteractorStyleUser.h.

int vtkInteractorStyleUser::ShiftKey [protected]

Definition at line 177 of file vtkInteractorStyleUser.h.

int vtkInteractorStyleUser::CtrlKey [protected]

Definition at line 178 of file vtkInteractorStyleUser.h.

int vtkInteractorStyleUser::Char [protected]

Definition at line 179 of file vtkInteractorStyleUser.h.

char* vtkInteractorStyleUser::KeySym [protected]

Definition at line 180 of file vtkInteractorStyleUser.h.

int vtkInteractorStyleUser::Button [protected]

Definition at line 181 of file vtkInteractorStyleUser.h.

unsigned long vtkInteractorStyleUser::MouseMoveTag [protected]

Definition at line 183 of file vtkInteractorStyleUser.h.

unsigned long vtkInteractorStyleUser::KeyPressTag [protected]

Definition at line 184 of file vtkInteractorStyleUser.h.

unsigned long vtkInteractorStyleUser::KeyReleaseTag [protected]

Definition at line 185 of file vtkInteractorStyleUser.h.

unsigned long vtkInteractorStyleUser::CharTag [protected]

Definition at line 186 of file vtkInteractorStyleUser.h.

unsigned long vtkInteractorStyleUser::EnterTag [protected]

Definition at line 187 of file vtkInteractorStyleUser.h.

unsigned long vtkInteractorStyleUser::LeaveTag [protected]

Definition at line 188 of file vtkInteractorStyleUser.h.

unsigned long vtkInteractorStyleUser::ExposeTag [protected]

Definition at line 189 of file vtkInteractorStyleUser.h.

unsigned long vtkInteractorStyleUser::ConfigureTag [protected]

Definition at line 190 of file vtkInteractorStyleUser.h.

unsigned long vtkInteractorStyleUser::TimerTag [protected]

Definition at line 191 of file vtkInteractorStyleUser.h.

unsigned long vtkInteractorStyleUser::UserTag [protected]

Definition at line 192 of file vtkInteractorStyleUser.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkInteractorStyleUser.h

Generated on Fri Mar 7 15:52:04 2003 for VTK by Doxygen 1.2.18
