vtkShrinkFilter Class Reference
#include <vtkShrinkFilter.h>

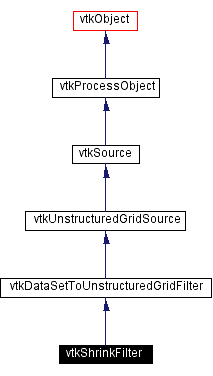

Inheritance diagram for vtkShrinkFilter:
Detailed Description
shrink cells composing an arbitrary data set
- Date:
- 2002/01/22 15:29:44
- Revision:
- 1.44
vtkShrinkFilter shrinks cells composing an arbitrary data set towards their centroid. The centroid of a cell is computed as the average position of the cell points. Shrinking results in disconnecting the cells from one another. The output of this filter is of general dataset type vtkUnstructuredGrid.
- Warning:
- It is possible to turn cells inside out or cause self intersection in special cases.
- See also:
- vtkShrinkPolyData
- Created by:
-
- Martin, Ken
- CVS contributions (if > 5%):
-
- Schroeder, Will (56%)
- Martin, Ken (21%)
- Lee, Jeff (6%)
- Lorensen, Bill (5%)
- Examples:
- vtkShrinkFilter (Examples)
- Tests:
- vtkShrinkFilter (Tests)
Definition at line 60 of file vtkShrinkFilter.h.
Public Types | |
| typedef vtkDataSetToUnstructuredGridFilter | Superclass |
Public Methods | |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
| void | PrintSelf (ostream &os, vtkIndent indent) |
| virtual void | SetShrinkFactor (float) |
| virtual float | GetShrinkFactor () |
Static Public Methods | |
| vtkShrinkFilter * | New () |
| int | IsTypeOf (const char *type) |
| vtkShrinkFilter * | SafeDownCast (vtkObject *o) |
Protected Methods | |
| vtkShrinkFilter (float sf=0.5) | |
| ~vtkShrinkFilter () | |
| void | Execute () |
Protected Attributes | |
| float | ShrinkFactor |
Member Typedef Documentation
|
|
Reimplemented from vtkDataSetToUnstructuredGridFilter. Definition at line 64 of file vtkShrinkFilter.h. |
Constructor & Destructor Documentation
|
|
|
|
|
Definition at line 79 of file vtkShrinkFilter.h. |
Member Function Documentation
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject. |
|
|
Reimplemented from vtkDataSetToUnstructuredGridFilter. |
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToUnstructuredGridFilter. |
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToUnstructuredGridFilter. |
|
|
Reimplemented from vtkDataSetToUnstructuredGridFilter. |
|
||||||||||||
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkDataSetToUnstructuredGridFilter. |
|
|
Set the fraction of shrink for each cell. |
|
|
Get the fraction of shrink for each cell. |
|
|
This method is the old style execute method Reimplemented from vtkSource. |
Member Data Documentation
|
|
Definition at line 82 of file vtkShrinkFilter.h. |
The documentation for this class was generated from the following file:
- Graphics/vtkShrinkFilter.h
