#include <vtkStructuredPointsReader.h>

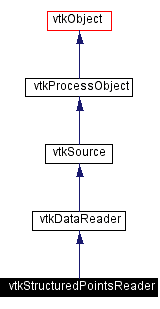

Inheritance diagram for vtkStructuredPointsReader:
vtkStructuredPointsReader is a source object that reads ASCII or binary structured points data files in vtk format (see text for format details). The output of this reader is a single vtkStructuredPoints data object. The superclass of this class, vtkDataReader, provides many methods for controlling the reading of the data file, see vtkDataReader for more information.
Definition at line 59 of file vtkStructuredPointsReader.h.
Public Types | |
typedef vtkDataReader | Superclass |
Public Methods | |
virtual const char * | GetClassName () |
virtual int | IsA (const char *type) |
void | PrintSelf (ostream &os, vtkIndent indent) |
void | SetOutput (vtkStructuredPoints *output) |
vtkStructuredPoints * | GetOutput (int idx) |
vtkStructuredPoints * | GetOutput () |
Static Public Methods | |
vtkStructuredPointsReader * | New () |
int | IsTypeOf (const char *type) |
vtkStructuredPointsReader * | SafeDownCast (vtkObject *o) |
Protected Methods | |
vtkStructuredPointsReader () | |
~vtkStructuredPointsReader () | |
void | Execute () |
void | ExecuteInformation () |
|
Reimplemented from vtkDataReader. Definition at line 63 of file vtkStructuredPointsReader.h. |
|
|
|
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkDataReader. |
|
Reimplemented from vtkDataReader. |
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkDataReader. |
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkDataReader. |
|
Reimplemented from vtkDataReader. |
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkDataReader. |
|
Set/Get the output of this reader. |
|
Set/Get the output of this reader. Reimplemented from vtkSource. Definition at line 69 of file vtkStructuredPointsReader.h. References vtkSource::GetOutput(). |
|
Set/Get the output of this reader. |
|
This method is the old style execute method Reimplemented from vtkSource. |
|
Reimplemented from vtkSource. |
