vtkThinPlateSplineTransform Class Reference
#include <vtkThinPlateSplineTransform.h>
Inheritance diagram for vtkThinPlateSplineTransform:

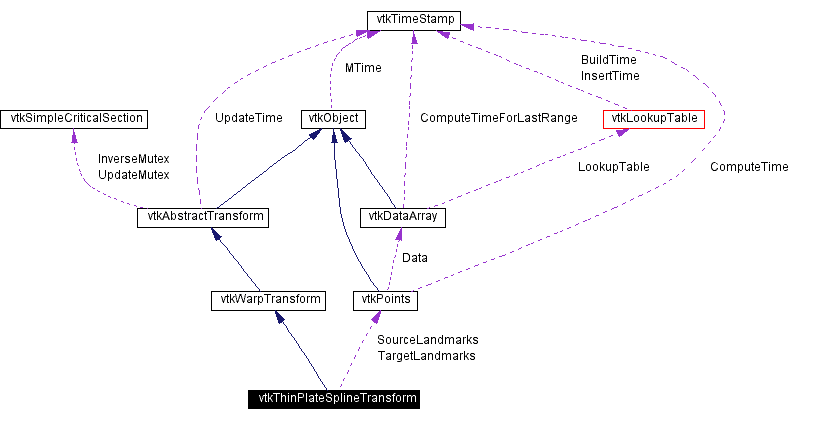

[legend]Collaboration diagram for vtkThinPlateSplineTransform:
[legend]List of all members.
Detailed Description
a nonlinear warp transformation
- Date:
-
2002/01/22 15:30:39
- Revision:
-
1.22
vtkThinPlateSplineTransform describes a nonlinear warp transform defined by a set of source and target landmarks. Any point on the mesh close to a source landmark will be moved to a place close to the corresponding target landmark. The points in between are interpolated smoothly using Bookstein's Thin Plate Spline algorithm.
- Warning:
-
1) The inverse transform is calculated using an iterative method, and is several times more expensive than the forward transform. 2) Whenever you add, subtract, or set points you must call Modified() on the vtkPoints object, or the transformation might not update. 3) Collinear point configurations (except those that lie in the XY plane) result in an unstable transformation.
- See also:
-
vtkGridTransform vtkGeneralTransform
- Created by:
-
- CVS contributions (if > 5%):
-
- CVS logs (CVSweb):
-
- .
cxx (/Hybrid/vtkThinPlateSplineTransform.cxx) - .
h (/Hybrid/vtkThinPlateSplineTransform.h)
- Tests:
-
vtkThinPlateSplineTransform (Tests)
Definition at line 60 of file vtkThinPlateSplineTransform.h.
Member Typedef Documentation
Constructor & Destructor Documentation
| vtkThinPlateSplineTransform::vtkThinPlateSplineTransform |
( |
|
) |
[protected] |
|
| vtkThinPlateSplineTransform::~vtkThinPlateSplineTransform |
( |
|
) |
[protected] |
|
Member Function Documentation
| virtual const char* vtkThinPlateSplineTransform::GetClassName |
( |
|
) |
[virtual] |
|
| int vtkThinPlateSplineTransform::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkWarpTransform. |
| virtual int vtkThinPlateSplineTransform::IsA |
( |
const char * |
type |
) |
[virtual] |
|
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkWarpTransform. |
| vtkThinPlateSplineTransform* vtkThinPlateSplineTransform::SafeDownCast |
( |
vtkObject * |
o |
) |
[static] |
|
| void vtkThinPlateSplineTransform::PrintSelf |
( |
ostream & |
os, |
|
|
vtkIndent |
indent |
|
) |
[virtual] |
|
|
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkWarpTransform. |
| vtkThinPlateSplineTransform* vtkThinPlateSplineTransform::New |
( |
|
) |
[static] |
|
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject. |
| virtual double vtkThinPlateSplineTransform::GetSigma |
( |
|
) |
[virtual] |
|
|
|
Specify the 'stiffness' of the spline. The default is 1.0. |
| virtual void vtkThinPlateSplineTransform::SetSigma |
( |
double |
|
) |
[virtual] |
|
|
|
Specify the 'stiffness' of the spline. The default is 1.0. |
| void vtkThinPlateSplineTransform::SetBasis |
( |
int |
basis |
) |
|
|
|
|
Specify the radial basis function to use. The default is R2LogR which is what most people use as the thin plate spline. |
| virtual int vtkThinPlateSplineTransform::GetBasis |
( |
|
) |
[virtual] |
|
|
|
Specify the radial basis function to use. The default is R2LogR which is what most people use as the thin plate spline. |
| void vtkThinPlateSplineTransform::SetBasisToR |
( |
|
) |
[inline] |
|
|
|
Specify the radial basis function to use. The default is R2LogR which is what most people use as the thin plate spline.
Definition at line 78 of file vtkThinPlateSplineTransform.h.
References VTK_RBF_R. |
| void vtkThinPlateSplineTransform::SetBasisToR2LogR |
( |
|
) |
[inline] |
|
| const char* vtkThinPlateSplineTransform::GetBasisAsString |
( |
|
) |
|
|
|
|
Specify the radial basis function to use. The default is R2LogR which is what most people use as the thin plate spline. |
| void vtkThinPlateSplineTransform::SetBasisFunction |
( |
double(* |
U)(double r) |
) |
[inline] |
|
| void vtkThinPlateSplineTransform::SetBasisDerivative |
( |
double(* |
dUdr)(double r, double &dU) |
) |
[inline] |
|
| void vtkThinPlateSplineTransform::SetSourceLandmarks |
( |
vtkPoints * |
source |
) |
|
|
|
|
Set the source landmarks for the warp. If you add or change the vtkPoints object, you must call Modified() on it or the transformation might not update. |
| virtual vtkPoints* vtkThinPlateSplineTransform::GetSourceLandmarks |
( |
|
) |
[virtual] |
|
|
|
Set the source landmarks for the warp. If you add or change the vtkPoints object, you must call Modified() on it or the transformation might not update. |
| void vtkThinPlateSplineTransform::SetTargetLandmarks |
( |
vtkPoints * |
target |
) |
|
|
|
|
Set the target landmarks for the warp. If you add or change the vtkPoints object, you must call Modified() on it or the transformation might not update. |
| virtual vtkPoints* vtkThinPlateSplineTransform::GetTargetLandmarks |
( |
|
) |
[virtual] |
|
|
|
Set the target landmarks for the warp. If you add or change the vtkPoints object, you must call Modified() on it or the transformation might not update. |
| unsigned long vtkThinPlateSplineTransform::GetMTime |
( |
|
) |
[virtual] |
|
| void vtkThinPlateSplineTransform::InternalUpdate |
( |
|
) |
[protected, virtual] |
|
| void vtkThinPlateSplineTransform::InternalDeepCopy |
( |
vtkAbstractTransform * |
transform |
) |
[protected, virtual] |
|
| void vtkThinPlateSplineTransform::ForwardTransformPoint |
( |
const float |
in[3], |
|
|
float |
out[3] |
|
) |
[protected, virtual] |
|
|
|
If the InverseFlag is set to 0, then a call to InternalTransformPoint results in a call to ForwardTransformPoint.
Implements vtkWarpTransform. |
| void vtkThinPlateSplineTransform::ForwardTransformPoint |
( |
const double |
in[3], |
|
|
double |
out[3] |
|
) |
[protected, virtual] |
|
|
|
If the InverseFlag is set to 0, then a call to InternalTransformPoint results in a call to ForwardTransformPoint.
Implements vtkWarpTransform. |
| void vtkThinPlateSplineTransform::ForwardTransformDerivative |
( |
const float |
in[3], |
|
|
float |
out[3], |
|
|
float |
derivative[3][3] |
|
) |
[protected, virtual] |
|
|
|
Calculate the forward transform as well as the derivative.
Implements vtkWarpTransform. |
| void vtkThinPlateSplineTransform::ForwardTransformDerivative |
( |
const double |
in[3], |
|
|
double |
out[3], |
|
|
double |
derivative[3][3] |
|
) |
[protected, virtual] |
|
|
|
Calculate the forward transform as well as the derivative.
Implements vtkWarpTransform. |
Member Data Documentation
double vtkThinPlateSplineTransform::Sigma [protected]
|
|
vtkPoints* vtkThinPlateSplineTransform::SourceLandmarks [protected]
|
|
vtkPoints* vtkThinPlateSplineTransform::TargetLandmarks [protected]
|
|
double(* vtkThinPlateSplineTransform::BasisFunction)(double r) [protected]
|
|
double(* vtkThinPlateSplineTransform::BasisDerivative)(double r, double& dUdr) [protected]
|
|
int vtkThinPlateSplineTransform::Basis [protected]
|
|
int vtkThinPlateSplineTransform::NumberOfPoints [protected]
|
|
double** vtkThinPlateSplineTransform::MatrixW [protected]
|
|
The documentation for this class was generated from the following file:
