vtkUGFacetReader Class Reference

#include <vtkUGFacetReader.h>

Inheritance diagram for vtkUGFacetReader:

Inheritance graph
[legend]

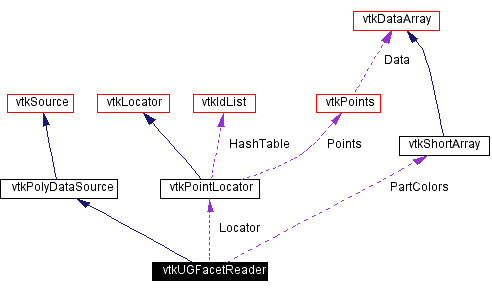

Collaboration diagram for vtkUGFacetReader:

Collaboration graph
[legend]
List of all members.

Detailed Description

read EDS Unigraphics facet files

Date:
2002/09/01 13:03:05
Revision:
1.39

vtkUGFacetReader is a source object that reads Unigraphics facet files. Unigraphics is a solid modeling system; facet files are the polygonal plot files it uses to create 3D plots.

Created by:
  • Schroeder, Will
CVS contributions (if > 5%):
  • Schroeder, Will (62%)
  • Law, Charles (9%)
  • Martin, Ken (9%)
CVS logs (CVSweb):
  • .h (/IO/vtkUGFacetReader.h)
  • .cxx (/IO/vtkUGFacetReader.cxx)
Tests:
vtkUGFacetReader (Tests)

Definition at line 50 of file vtkUGFacetReader.h.

Public Types

typedef vtkPolyDataSource Superclass

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
unsigned long GetMTime ()
int GetNumberOfParts ()
short GetPartColorIndex (int partId)
void CreateDefaultLocator ()
virtual void SetFileName (const char *)
virtual char * GetFileName ()
virtual void SetPartNumber (int)
virtual int GetPartNumber ()
virtual void SetMerging (int)
virtual int GetMerging ()
virtual void MergingOn ()
virtual void MergingOff ()
void SetLocator (vtkPointLocator *locator)
virtual vtkPointLocatorGetLocator ()

Static Public Methods

int IsTypeOf (const char *type)
vtkUGFacetReader * SafeDownCast (vtkObject *o)
vtkUGFacetReader * New ()

Protected Methods

 vtkUGFacetReader ()
 ~vtkUGFacetReader ()
void Execute ()

Protected Attributes

char * FileName
vtkShortArrayPartColors
int PartNumber
int Merging
vtkPointLocatorLocator


Member Typedef Documentation

typedef vtkPolyDataSource vtkUGFacetReader::Superclass


Reimplemented from vtkPolyDataSource.

Definition at line 53 of file vtkUGFacetReader.h.


Constructor & Destructor Documentation

vtkUGFacetReader::vtkUGFacetReader   [protected]


vtkUGFacetReader::~vtkUGFacetReader   [protected]



Member Function Documentation

virtual const char* vtkUGFacetReader::GetClassName   [virtual]


Reimplemented from vtkPolyDataSource.

int vtkUGFacetReader::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSource.

virtual int vtkUGFacetReader::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataSource.

vtkUGFacetReader* vtkUGFacetReader::SafeDownCast vtkObject   o [static]


Reimplemented from vtkPolyDataSource.

void vtkUGFacetReader::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataSource.

vtkUGFacetReader* vtkUGFacetReader::New   [static]


Construct object to extract all parts, and with point merging turned on.

Reimplemented from vtkObject.

unsigned long vtkUGFacetReader::GetMTime   [virtual]


Overload standard modified time function. If locator is modified, then this object is modified as well.

Reimplemented from vtkObject.

virtual void vtkUGFacetReader::SetFileName const char *    [virtual]


Specify Unigraphics file name.

virtual char* vtkUGFacetReader::GetFileName   [virtual]


Specify Unigraphics file name.

int vtkUGFacetReader::GetNumberOfParts


Special methods for interrogating the data file.

short vtkUGFacetReader::GetPartColorIndex int    partId


Retrieve color index for the parts in the file.

virtual void vtkUGFacetReader::SetPartNumber int    [virtual]


Specify the desired part to extract. The part number must range between [0,NumberOfParts-1]. If the value is =(-1), then all parts will be extracted. If the value is <(-1), then no parts will be extracted but the part colors will be updated.

virtual int vtkUGFacetReader::GetPartNumber   [virtual]


Specify the desired part to extract. The part number must range between [0,NumberOfParts-1]. If the value is =(-1), then all parts will be extracted. If the value is <(-1), then no parts will be extracted but the part colors will be updated.

virtual void vtkUGFacetReader::SetMerging int    [virtual]


Turn on/off merging of points/triangles.

virtual int vtkUGFacetReader::GetMerging   [virtual]


Turn on/off merging of points/triangles.

virtual void vtkUGFacetReader::MergingOn   [virtual]


Turn on/off merging of points/triangles.

virtual void vtkUGFacetReader::MergingOff   [virtual]


Turn on/off merging of points/triangles.

void vtkUGFacetReader::SetLocator vtkPointLocator   locator


Specify a spatial locator for merging points. By default an instance of vtkMergePoints is used.

virtual vtkPointLocator* vtkUGFacetReader::GetLocator   [virtual]


Specify a spatial locator for merging points. By default an instance of vtkMergePoints is used.

void vtkUGFacetReader::CreateDefaultLocator


Create default locator. Used to create one when none is specified.

void vtkUGFacetReader::Execute   [protected, virtual]


This method is the old style execute method

Reimplemented from vtkSource.


Member Data Documentation

char* vtkUGFacetReader::FileName [protected]


Definition at line 108 of file vtkUGFacetReader.h.

vtkShortArray* vtkUGFacetReader::PartColors [protected]


Definition at line 109 of file vtkUGFacetReader.h.

int vtkUGFacetReader::PartNumber [protected]


Definition at line 110 of file vtkUGFacetReader.h.

int vtkUGFacetReader::Merging [protected]


Definition at line 111 of file vtkUGFacetReader.h.

vtkPointLocator* vtkUGFacetReader::Locator [protected]


Definition at line 112 of file vtkUGFacetReader.h.


The documentation for this class was generated from the following file:
