vtkWinCEOpenGLRenderWindow Class Reference

#include <vtkWinCEOpenGLRenderWindow.h>

Inheritance diagram for vtkWinCEOpenGLRenderWindow:

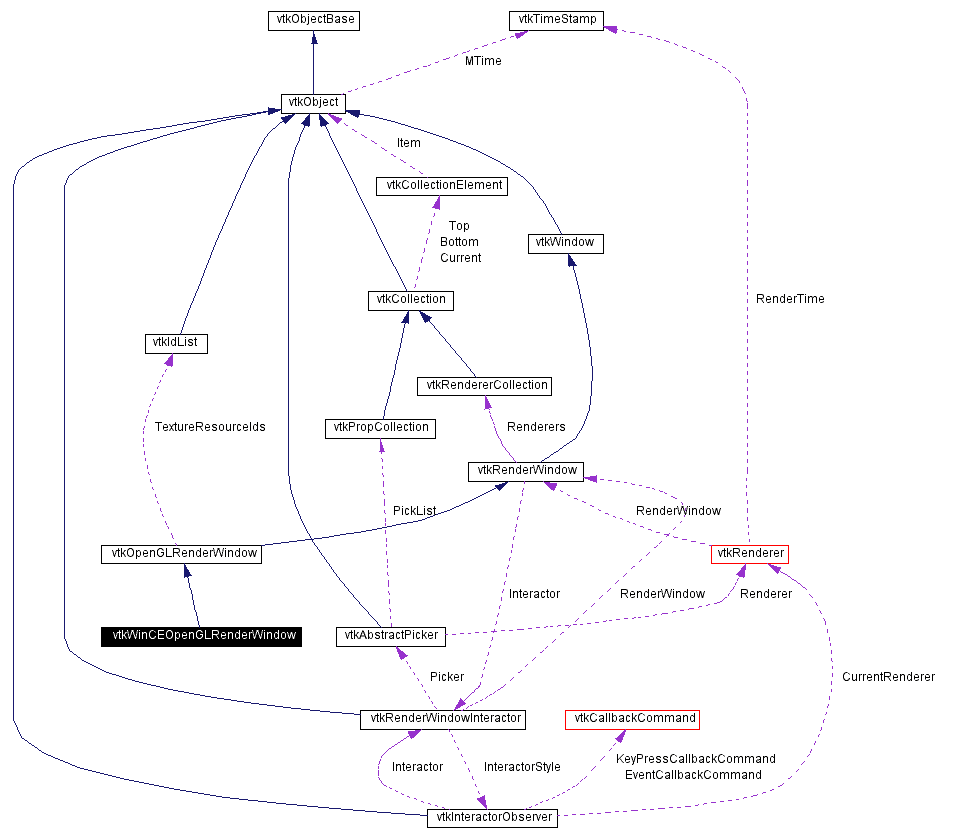

[legend]Collaboration diagram for vtkWinCEOpenGLRenderWindow:

[legend]List of all members.

Detailed Description

OpenGL rendering window.

Date:: 2002/10/24 15:27:55

Revision:: 1.7

vtkWinCEOpenGLRenderWindow is a concrete implementation of the abstract class vtkRenderWindow. vtkWinCEOpenGLRenderer interfaces to the standard OpenGL graphics library in the Windows/NT environment..

Created by:

Martin, Ken

CVS contributions (if > 5%):

Martin, Ken (95%)

CVS logs (CVSweb):

.cxx (/Rendering/vtkWinCEOpenGLRenderWindow.cxx)
.h (/Rendering/vtkWinCEOpenGLRenderWindow.h)

Definition at line 46 of file vtkWinCEOpenGLRenderWindow.h.

Public Types

typedef vtkOpenGLRenderWindow Superclass

Public Methods

virtual const char * GetClassName ()

virtual int IsA (const char *type)

void PrintSelf (ostream &os, vtkIndent indent)

virtual void Start (void)

void Frame (void)

virtual void WindowInitialize (void)

virtual void Initialize (void)

virtual void SetFullScreen (int)

virtual void WindowRemap (void)

virtual void PrefFullScreen (void)

virtual void SetSize (int, int)

virtual int * GetSize ()

virtual void SetPosition (int, int)

virtual int * GetScreenSize ()

virtual int * GetPosition ()

virtual void SetWindowName (char *)

void SetWindowInfo (char *)

void SetParentInfo (char *)

virtual void * GetGenericDisplayId ()

virtual void * GetGenericWindowId ()

virtual void * GetGenericParentId ()

virtual void * GetGenericContext ()

virtual void SetDisplayId (void *)

virtual void SetWindowId (HWND)

virtual void SetStereoCapableWindow (int capable)

void MakeCurrent ()

void SetForceMakeCurrent ()

virtual int GetEventPending ()

void Clean ()

virtual HWND GetWindowId ()

void SetWindowId (void *foo)

virtual void SetParentId (HWND)

void SetParentId (void *foo)

virtual void SetNextWindowId (HWND)

void HideCursor ()

void ShowCursor ()

Static Public Methods

vtkWinCEOpenGLRenderWindow * New ()

int IsTypeOf (const char *type)

vtkWinCEOpenGLRenderWindow * SafeDownCast (vtkObject *o)

Protected Methods

vtkWinCEOpenGLRenderWindow ()

~vtkWinCEOpenGLRenderWindow ()

virtual LRESULT MessageProc (HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)

void ResizeWhileOffscreen (int xsize, int ysize)

void CreateAWindow (int x, int y, int width, int height)

void InitializeApplication ()

Static Protected Methods

LRESULT APIENTRY WndProc (HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)

Protected Attributes

HINSTANCE ApplicationInstance

OSMesaContext OffScreenContextId

void * OffScreenWindow

HDC DeviceContext

HWND WindowId

HWND ParentId

HWND NextWindowId

int OwnWindow

int ScreenSize [2]

int CursorHidden

int ForceMakeCurrent

Member Typedef Documentation

typedef vtkOpenGLRenderWindow vtkWinCEOpenGLRenderWindow::Superclass

Reimplemented from vtkOpenGLRenderWindow.
Definition at line 50 of file vtkWinCEOpenGLRenderWindow.h.

Constructor & Destructor Documentation

vtkWinCEOpenGLRenderWindow::vtkWinCEOpenGLRenderWindow ( ) [protected]

vtkWinCEOpenGLRenderWindow::~vtkWinCEOpenGLRenderWindow ( ) [protected]

Member Function Documentation

vtkWinCEOpenGLRenderWindow* vtkWinCEOpenGLRenderWindow::New ( ) [static]

Construct an instance of vtkRenderWindow with its screen size set to 300x300, borders turned on, positioned at (0,0), double buffering turned on.
Reimplemented from vtkRenderWindow.

virtual const char* vtkWinCEOpenGLRenderWindow::GetClassName ( ) [virtual]

Reimplemented from vtkOpenGLRenderWindow.

int vtkWinCEOpenGLRenderWindow::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkOpenGLRenderWindow.

virtual int vtkWinCEOpenGLRenderWindow::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkOpenGLRenderWindow.

vtkWinCEOpenGLRenderWindow* vtkWinCEOpenGLRenderWindow::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkOpenGLRenderWindow.

void vtkWinCEOpenGLRenderWindow::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkOpenGLRenderWindow.

virtual void vtkWinCEOpenGLRenderWindow::Start ( void ) [virtual]

Begin the rendering process.
Implements vtkRenderWindow.

void vtkWinCEOpenGLRenderWindow::Frame ( void ) [virtual]

End the rendering process and display the image.
Implements vtkRenderWindow.

virtual void vtkWinCEOpenGLRenderWindow::WindowInitialize ( void ) [virtual]

Create the window

virtual void vtkWinCEOpenGLRenderWindow::Initialize ( void ) [virtual]

Initialize the rendering window.

virtual void vtkWinCEOpenGLRenderWindow::SetFullScreen ( int ) [virtual]

Change the window to fill the entire screen.
Implements vtkRenderWindow.

virtual void vtkWinCEOpenGLRenderWindow::WindowRemap ( void ) [virtual]

Remap the window.
Implements vtkRenderWindow.

virtual void vtkWinCEOpenGLRenderWindow::PrefFullScreen ( void ) [virtual]

Set the preferred window size to full screen.

virtual void vtkWinCEOpenGLRenderWindow::SetSize ( int ,

int

) [virtual]

Set the size of the window.
Reimplemented from vtkWindow.

virtual int* vtkWinCEOpenGLRenderWindow::GetSize ( ) [virtual]

Get the current size of the window.
Reimplemented from vtkWindow.

virtual void vtkWinCEOpenGLRenderWindow::SetPosition ( int ,

int

) [virtual]

Set the position of the window.
Reimplemented from vtkWindow.

virtual int* vtkWinCEOpenGLRenderWindow::GetScreenSize ( ) [virtual]

Return the screen size.

virtual int* vtkWinCEOpenGLRenderWindow::GetPosition ( ) [virtual]

Get the position in screen coordinates of the window.
Reimplemented from vtkWindow.

virtual void vtkWinCEOpenGLRenderWindow::SetWindowName ( char * ) [virtual]

Set the name of the window. This appears at the top of the window normally.

void vtkWinCEOpenGLRenderWindow::SetWindowInfo ( char * ) [virtual]

Set this RenderWindow's window id to a pre-existing window.
Implements vtkRenderWindow.

void vtkWinCEOpenGLRenderWindow::SetParentInfo ( char * ) [virtual]

Sets the HWND id of the window that WILL BE created.
Implements vtkRenderWindow.

virtual void* vtkWinCEOpenGLRenderWindow::GetGenericDisplayId ( ) [inline, virtual]

Dummy stubs for vtkWindow API.
Implements vtkRenderWindow.
Definition at line 100 of file vtkWinCEOpenGLRenderWindow.h.

virtual void* vtkWinCEOpenGLRenderWindow::GetGenericWindowId ( ) [inline, virtual]

Dummy stubs for vtkWindow API.
Implements vtkRenderWindow.
Definition at line 101 of file vtkWinCEOpenGLRenderWindow.h.

virtual void* vtkWinCEOpenGLRenderWindow::GetGenericParentId ( ) [inline, virtual]

Dummy stubs for vtkWindow API.
Implements vtkRenderWindow.
Definition at line 102 of file vtkWinCEOpenGLRenderWindow.h.

virtual void* vtkWinCEOpenGLRenderWindow::GetGenericContext ( ) [inline, virtual]

Dummy stubs for vtkWindow API.
Implements vtkRenderWindow.
Definition at line 103 of file vtkWinCEOpenGLRenderWindow.h.

virtual void vtkWinCEOpenGLRenderWindow::SetDisplayId ( void * ) [inline, virtual]

Dummy stubs for vtkWindow API.
Implements vtkRenderWindow.
Definition at line 104 of file vtkWinCEOpenGLRenderWindow.h.

virtual HWND vtkWinCEOpenGLRenderWindow::GetWindowId ( ) [virtual]

Get the window id.

void vtkWinCEOpenGLRenderWindow::SetWindowId ( void * foo ) [inline, virtual]

Get the window id.
Implements vtkRenderWindow.
Definition at line 109 of file vtkWinCEOpenGLRenderWindow.h.
References vtkRenderWindow::SetWindowId().

virtual void vtkWinCEOpenGLRenderWindow::SetWindowId ( HWND ) [virtual]

Set the window id to a pre-existing window.

virtual void vtkWinCEOpenGLRenderWindow::SetParentId ( HWND ) [virtual]

Set the window's parent id to a pre-existing window.

void vtkWinCEOpenGLRenderWindow::SetParentId ( void * foo ) [inline, virtual]

Set the window's parent id to a pre-existing window.
Implements vtkRenderWindow.
Definition at line 118 of file vtkWinCEOpenGLRenderWindow.h.
References vtkRenderWindow::SetParentId().

virtual void vtkWinCEOpenGLRenderWindow::SetNextWindowId ( HWND ) [virtual]

Set the window id of the new window once a WindowRemap is done.

virtual void vtkWinCEOpenGLRenderWindow::SetStereoCapableWindow ( int capable ) [virtual]

Prescribe that the window be created in a stereo-capable mode. This method must be called before the window is realized. This method overrides the superclass method since this class can actually check whether the window has been realized yet.
Reimplemented from vtkRenderWindow.

void vtkWinCEOpenGLRenderWindow::MakeCurrent ( ) [virtual]

Make this windows OpenGL context the current context.
Implements vtkOpenGLRenderWindow.

void vtkWinCEOpenGLRenderWindow::SetForceMakeCurrent ( ) [virtual]

If called, allow MakeCurrent() to skip cache-check when called. MakeCurrent() reverts to original behavior of cache-checking on the next render.
Reimplemented from vtkRenderWindow.

virtual int vtkWinCEOpenGLRenderWindow::GetEventPending ( ) [virtual]

Check to see if an event is pending for this window. This is a useful check to abort a long render.
Implements vtkRenderWindow.

void vtkWinCEOpenGLRenderWindow::Clean ( )

Clean up device contexts, rendering contexts, etc.

void vtkWinCEOpenGLRenderWindow::HideCursor ( ) [virtual]

Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.
Implements vtkRenderWindow.

void vtkWinCEOpenGLRenderWindow::ShowCursor ( ) [virtual]

Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.
Implements vtkRenderWindow.

virtual LRESULT vtkWinCEOpenGLRenderWindow::MessageProc ( HWND hWnd,

UINT message,

WPARAM wParam,

LPARAM lParam

) [protected, virtual]

LRESULT APIENTRY vtkWinCEOpenGLRenderWindow::WndProc ( HWND hWnd,

UINT message,

WPARAM wParam,

LPARAM lParam

) [static, protected]

void vtkWinCEOpenGLRenderWindow::ResizeWhileOffscreen ( int xsize,

int ysize

) [protected]

void vtkWinCEOpenGLRenderWindow::CreateAWindow ( int x,

int y,

int width,

int height

) [protected]

void vtkWinCEOpenGLRenderWindow::InitializeApplication ( ) [protected]

Member Data Documentation

HINSTANCE vtkWinCEOpenGLRenderWindow::ApplicationInstance [protected]

Definition at line 159 of file vtkWinCEOpenGLRenderWindow.h.

OSMesaContext vtkWinCEOpenGLRenderWindow::OffScreenContextId [protected]

Definition at line 161 of file vtkWinCEOpenGLRenderWindow.h.

void* vtkWinCEOpenGLRenderWindow::OffScreenWindow [protected]

Definition at line 162 of file vtkWinCEOpenGLRenderWindow.h.

HDC vtkWinCEOpenGLRenderWindow::DeviceContext [protected]

Definition at line 164 of file vtkWinCEOpenGLRenderWindow.h.

HWND vtkWinCEOpenGLRenderWindow::WindowId [protected]

Definition at line 165 of file vtkWinCEOpenGLRenderWindow.h.

HWND vtkWinCEOpenGLRenderWindow::ParentId [protected]

Definition at line 166 of file vtkWinCEOpenGLRenderWindow.h.

HWND vtkWinCEOpenGLRenderWindow::NextWindowId [protected]

Definition at line 167 of file vtkWinCEOpenGLRenderWindow.h.

int vtkWinCEOpenGLRenderWindow::OwnWindow [protected]

Definition at line 168 of file vtkWinCEOpenGLRenderWindow.h.

int vtkWinCEOpenGLRenderWindow::ScreenSize[2] [protected]

Definition at line 169 of file vtkWinCEOpenGLRenderWindow.h.

int vtkWinCEOpenGLRenderWindow::CursorHidden [protected]

Definition at line 179 of file vtkWinCEOpenGLRenderWindow.h.

int vtkWinCEOpenGLRenderWindow::ForceMakeCurrent [protected]

Definition at line 180 of file vtkWinCEOpenGLRenderWindow.h.

The documentation for this class was generated from the following file:

Rendering/vtkWinCEOpenGLRenderWindow.h


Public Types
typedef vtkOpenGLRenderWindow	Superclass
Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Start (void)
void	Frame (void)
virtual void	WindowInitialize (void)
virtual void	Initialize (void)
virtual void	SetFullScreen (int)
virtual void	WindowRemap (void)
virtual void	PrefFullScreen (void)
virtual void	SetSize (int, int)
virtual int *	GetSize ()
virtual void	SetPosition (int, int)
virtual int *	GetScreenSize ()
virtual int *	GetPosition ()
virtual void	SetWindowName (char *)
void	SetWindowInfo (char *)
void	SetParentInfo (char *)
virtual void *	GetGenericDisplayId ()
virtual void *	GetGenericWindowId ()
virtual void *	GetGenericParentId ()
virtual void *	GetGenericContext ()
virtual void	SetDisplayId (void *)
virtual void	SetWindowId (HWND)
virtual void	SetStereoCapableWindow (int capable)
void	MakeCurrent ()
void	SetForceMakeCurrent ()
virtual int	GetEventPending ()
void	Clean ()

virtual HWND	GetWindowId ()
void	SetWindowId (void *foo)

virtual void	SetParentId (HWND)
void	SetParentId (void *foo)

virtual void	SetNextWindowId (HWND)

void	HideCursor ()
void	ShowCursor ()
Static Public Methods
vtkWinCEOpenGLRenderWindow *	New ()
int	IsTypeOf (const char *type)
vtkWinCEOpenGLRenderWindow *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkWinCEOpenGLRenderWindow ()
	~vtkWinCEOpenGLRenderWindow ()
virtual LRESULT	MessageProc (HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
void	ResizeWhileOffscreen (int xsize, int ysize)
void	CreateAWindow (int x, int y, int width, int height)
void	InitializeApplication ()
Static Protected Methods
LRESULT APIENTRY	WndProc (HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
Protected Attributes
HINSTANCE	ApplicationInstance
OSMesaContext	OffScreenContextId
void *	OffScreenWindow
HDC	DeviceContext
HWND	WindowId
HWND	ParentId
HWND	NextWindowId
int	OwnWindow
int	ScreenSize [2]
int	CursorHidden
int	ForceMakeCurrent
