vtkXMLPUnstructuredGridReader Class Reference

#include <vtkXMLPUnstructuredGridReader.h>

Inheritance diagram for vtkXMLPUnstructuredGridReader:

Inheritance graph
[legend]

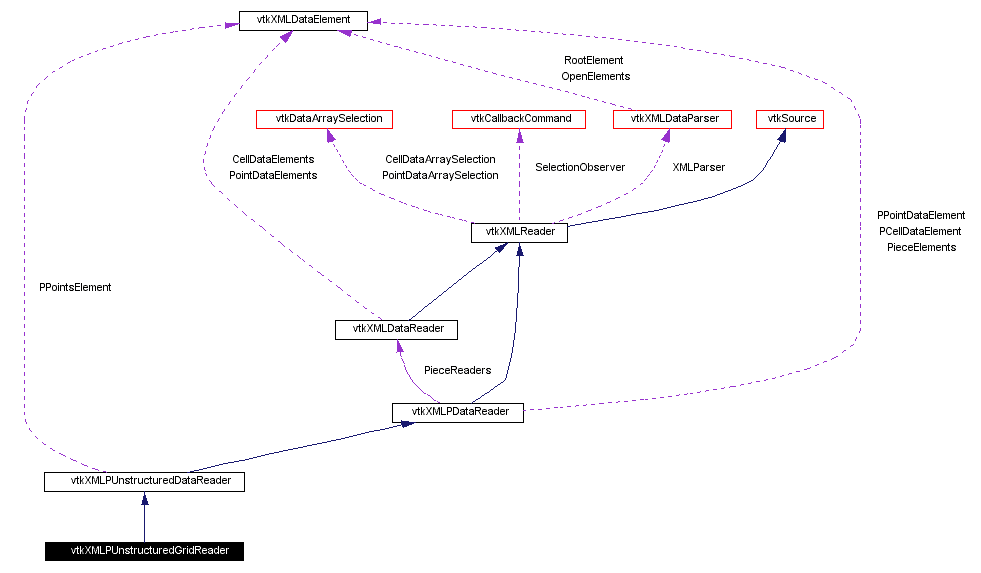

Collaboration diagram for vtkXMLPUnstructuredGridReader:

Collaboration graph
[legend]
List of all members.

Detailed Description

Read PVTK XML UnstructuredGrid files.

Date:
2002/10/16 18:23:07
Revision:
1.1

vtkXMLPUnstructuredGridReader reads the PVTK XML UnstructuredGrid file format. This reads the parallel format's summary file and then uses vtkXMLUnstructuredGridReader to read data from the individual UnstructuredGrid piece files. Streaming is supported. The standard extension for this reader's file format is "pvtu".

See also:
vtkXMLUnstructuredGridReader
Created by:
  • King, Brad
CVS contributions (if > 5%):
  • King, Brad (96%)
CVS logs (CVSweb):
  • .h (/IO/vtkXMLPUnstructuredGridReader.h)
  • .cxx (/IO/vtkXMLPUnstructuredGridReader.cxx)

Definition at line 49 of file vtkXMLPUnstructuredGridReader.h.

Public Types

typedef vtkXMLPUnstructuredDataReader Superclass

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetOutput (vtkUnstructuredGrid *output)
vtkUnstructuredGridGetOutput ()

Static Public Methods

int IsTypeOf (const char *type)
vtkXMLPUnstructuredGridReader * SafeDownCast (vtkObject *o)
vtkXMLPUnstructuredGridReader * New ()

Protected Methods

 vtkXMLPUnstructuredGridReader ()
 ~vtkXMLPUnstructuredGridReader ()
const char * GetDataSetName ()
void GetOutputUpdateExtent (int &piece, int &numberOfPieces, int &ghostLevel)
void SetupOutputTotals ()
void SetupOutputData ()
void SetupNextPiece ()
int ReadPieceData ()
void CopyArrayForCells (vtkDataArray *inArray, vtkDataArray *outArray)
vtkXMLDataReaderCreatePieceReader ()

Protected Attributes

vtkIdType StartCell


Member Typedef Documentation

typedef vtkXMLPUnstructuredDataReader vtkXMLPUnstructuredGridReader::Superclass


Reimplemented from vtkXMLPUnstructuredDataReader.

Definition at line 52 of file vtkXMLPUnstructuredGridReader.h.


Constructor & Destructor Documentation

vtkXMLPUnstructuredGridReader::vtkXMLPUnstructuredGridReader   [protected]


vtkXMLPUnstructuredGridReader::~vtkXMLPUnstructuredGridReader   [protected]



Member Function Documentation

virtual const char* vtkXMLPUnstructuredGridReader::GetClassName   [virtual]


Reimplemented from vtkXMLPUnstructuredDataReader.

int vtkXMLPUnstructuredGridReader::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPUnstructuredDataReader.

virtual int vtkXMLPUnstructuredGridReader::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPUnstructuredDataReader.

vtkXMLPUnstructuredGridReader* vtkXMLPUnstructuredGridReader::SafeDownCast vtkObject   o [static]


Reimplemented from vtkXMLPUnstructuredDataReader.

void vtkXMLPUnstructuredGridReader::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLPUnstructuredDataReader.

vtkXMLPUnstructuredGridReader* vtkXMLPUnstructuredGridReader::New   [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

void vtkXMLPUnstructuredGridReader::SetOutput vtkUnstructuredGrid   output


Get/Set the reader's output.

vtkUnstructuredGrid* vtkXMLPUnstructuredGridReader::GetOutput


Get/Set the reader's output.

const char* vtkXMLPUnstructuredGridReader::GetDataSetName   [protected, virtual]


Implements vtkXMLReader.

void vtkXMLPUnstructuredGridReader::GetOutputUpdateExtent int &    piece,
int &    numberOfPieces,
int &    ghostLevel
[protected, virtual]


Implements vtkXMLPUnstructuredDataReader.

void vtkXMLPUnstructuredGridReader::SetupOutputTotals   [protected, virtual]


Reimplemented from vtkXMLPUnstructuredDataReader.

void vtkXMLPUnstructuredGridReader::SetupOutputData   [protected, virtual]


Reimplemented from vtkXMLPUnstructuredDataReader.

void vtkXMLPUnstructuredGridReader::SetupNextPiece   [protected, virtual]


Reimplemented from vtkXMLPUnstructuredDataReader.

int vtkXMLPUnstructuredGridReader::ReadPieceData   [protected, virtual]


Reimplemented from vtkXMLPUnstructuredDataReader.

void vtkXMLPUnstructuredGridReader::CopyArrayForCells vtkDataArray   inArray,
vtkDataArray   outArray
[protected, virtual]


Implements vtkXMLPDataReader.

vtkXMLDataReader* vtkXMLPUnstructuredGridReader::CreatePieceReader   [protected, virtual]


Implements vtkXMLPDataReader.


Member Data Documentation

vtkIdType vtkXMLPUnstructuredGridReader::StartCell [protected]


Definition at line 79 of file vtkXMLPUnstructuredGridReader.h.
