vtkAVIWriter Class Reference

#include <vtkAVIWriter.h>

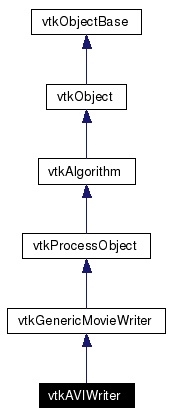

Inheritance diagram for vtkAVIWriter:

[legend]Collaboration diagram for vtkAVIWriter:

[legend]List of all members.

---

Detailed Description

Writes Windows AVI files.

vtkAVIWriter writes AVI files. The data type of the file is unsigned char regardless of the input type.

See also:

vtkGenericMovieWriter vtkMPEG2Writer

Tests:

vtkAVIWriter (Tests)

Definition at line 34 of file vtkAVIWriter.h.

Public Types
typedef vtkGenericMovieWriter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Start ()
void	Write ()
void	End ()
Static Public Member Functions
static vtkAVIWriter *	New ()
static int	IsTypeOf (const char *type)
static vtkAVIWriter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkAVIWriter ()
	~vtkAVIWriter ()
Protected Attributes
vtkAVIWriterInternal *	Internals
int	Rate
int	Time

---

Member Typedef Documentation

typedef vtkGenericMovieWriter vtkAVIWriter::Superclass

Reimplemented from vtkGenericMovieWriter. Definition at line 38 of file vtkAVIWriter.h.

---

Constructor & Destructor Documentation

vtkAVIWriter::vtkAVIWriter (   )  [protected]

vtkAVIWriter::~vtkAVIWriter (   )  [protected]

---

Member Function Documentation

static vtkAVIWriter* vtkAVIWriter::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkAlgorithm.

virtual const char* vtkAVIWriter::GetClassName (   )  [virtual]

Reimplemented from vtkGenericMovieWriter.

static int vtkAVIWriter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkGenericMovieWriter.

virtual int vtkAVIWriter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkGenericMovieWriter.

static vtkAVIWriter* vtkAVIWriter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkGenericMovieWriter.

void vtkAVIWriter::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkGenericMovieWriter.

void vtkAVIWriter::Start (   )  [virtual]

These methods start writing an AVI file, write a frame to the file and then end the writing process. Implements vtkGenericMovieWriter.

void vtkAVIWriter::Write (   )  [virtual]

These methods start writing an Movie file, write a frame to the file and then end the writing process. Implements vtkGenericMovieWriter.

void vtkAVIWriter::End (   )  [virtual]

These methods start writing an Movie file, write a frame to the file and then end the writing process. Implements vtkGenericMovieWriter.

---

Member Data Documentation

vtkAVIWriterInternal* vtkAVIWriter::Internals [protected]

Definition at line 53 of file vtkAVIWriter.h.

int vtkAVIWriter::Rate [protected]

Definition at line 55 of file vtkAVIWriter.h.

int vtkAVIWriter::Time [protected]

Definition at line 56 of file vtkAVIWriter.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkAVIWriter.h

---
