vtkGenericMovieWriter Class Reference

#include <vtkGenericMovieWriter.h>

Inheritance diagram for vtkGenericMovieWriter:

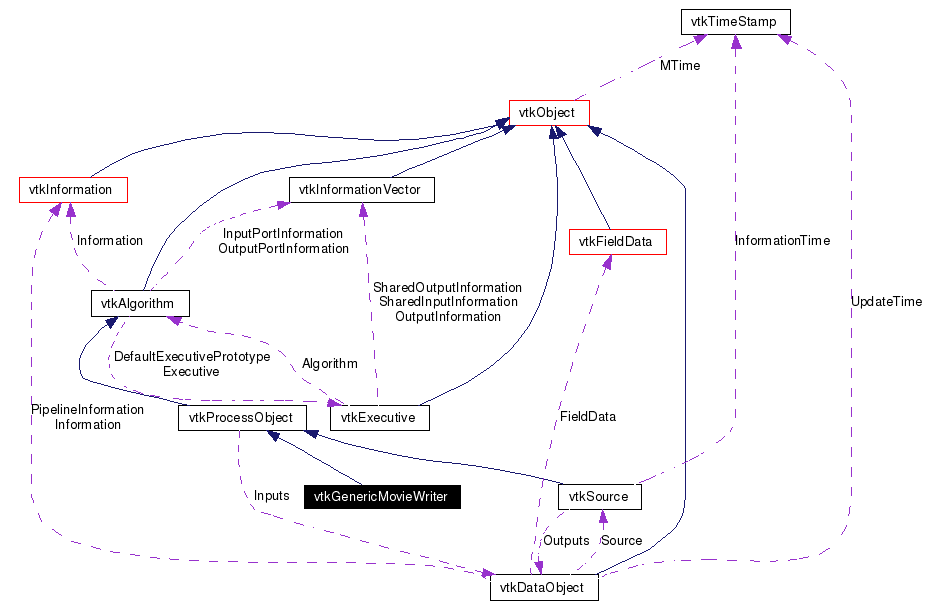

[legend]Collaboration diagram for vtkGenericMovieWriter:

[legend]List of all members.

---

Detailed Description

an abstract movie writer class.

vtkGenericMovieWriter is the abstract base class for several movie writers. The input type is a vtkImageData. The Start() method will open and create the file, the Write() method will output a frame to the file (i.e. the contents of the vtkImageData), End() will finalize and close the file.

See also:

vtkAVIWriter vtkMPEG2Writer

Definition at line 34 of file vtkGenericMovieWriter.h.

Public Types
typedef vtkProcessObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetInput (vtkImageData *input)
virtual vtkImageData *	GetInput ()
virtual void	SetFileName (const char *)
virtual char *	GetFileName ()
virtual void	Start ()=0
virtual void	Write ()=0
virtual void	End ()=0
virtual int	GetError ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkGenericMovieWriter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkGenericMovieWriter ()
	~vtkGenericMovieWriter ()
Protected Attributes
char *	FileName
int	Error

---

Member Typedef Documentation

typedef vtkProcessObject vtkGenericMovieWriter::Superclass

Reimplemented from vtkProcessObject. Reimplemented in vtkAVIWriter, and vtkMPEG2Writer. Definition at line 37 of file vtkGenericMovieWriter.h.

---

Constructor & Destructor Documentation

vtkGenericMovieWriter::vtkGenericMovieWriter (   )  [protected]

vtkGenericMovieWriter::~vtkGenericMovieWriter (   )  [protected]

---

Member Function Documentation

virtual const char* vtkGenericMovieWriter::GetClassName (   )  [virtual]

Reimplemented from vtkProcessObject. Reimplemented in vtkAVIWriter, and vtkMPEG2Writer.

static int vtkGenericMovieWriter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject. Reimplemented in vtkAVIWriter, and vtkMPEG2Writer.

virtual int vtkGenericMovieWriter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject. Reimplemented in vtkAVIWriter, and vtkMPEG2Writer.

static vtkGenericMovieWriter* vtkGenericMovieWriter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkProcessObject. Reimplemented in vtkAVIWriter, and vtkMPEG2Writer.

void vtkGenericMovieWriter::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkProcessObject. Reimplemented in vtkAVIWriter, and vtkMPEG2Writer.

virtual void vtkGenericMovieWriter::SetInput (  vtkImageData *  input  )  [virtual]

Set/Get the input object from the image pipeline.

virtual vtkImageData* vtkGenericMovieWriter::GetInput (   )  [virtual]

virtual void vtkGenericMovieWriter::SetFileName (  const char *   )  [virtual]

Specify file name of avi file.

virtual char* vtkGenericMovieWriter::GetFileName (   )  [virtual]

Specify file name of avi file.

virtual void vtkGenericMovieWriter::Start (   )  [pure virtual]

These methods start writing an Movie file, write a frame to the file and then end the writing process. Implemented in vtkAVIWriter, and vtkMPEG2Writer.

virtual void vtkGenericMovieWriter::Write (   )  [pure virtual]

These methods start writing an Movie file, write a frame to the file and then end the writing process. Implemented in vtkAVIWriter, and vtkMPEG2Writer.

virtual void vtkGenericMovieWriter::End (   )  [pure virtual]

These methods start writing an Movie file, write a frame to the file and then end the writing process. Implemented in vtkAVIWriter, and vtkMPEG2Writer.

virtual int vtkGenericMovieWriter::GetError (   )  [virtual]

Was there an error on the last read performed?

---

Member Data Documentation

char* vtkGenericMovieWriter::FileName [protected]

Definition at line 69 of file vtkGenericMovieWriter.h.

int vtkGenericMovieWriter::Error [protected]

Definition at line 70 of file vtkGenericMovieWriter.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkGenericMovieWriter.h

---
