vtkClipDataSet Class Reference

#include <vtkClipDataSet.h>

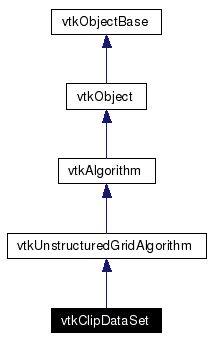

Inheritance diagram for vtkClipDataSet:

Inheritance graph
[legend]

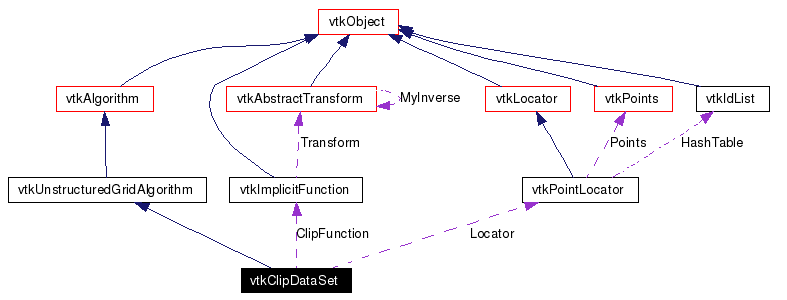

Collaboration diagram for vtkClipDataSet:

Collaboration graph
[legend]
List of all members.

Detailed Description

clip any dataset with user-specified implicit function or input scalar data

vtkClipDataSet is a filter that clips any type of dataset using either any subclass of vtkImplicitFunction, or the input scalar data. Clipping means that it actually "cuts" through the cells of the dataset, returning everything inside of the specified implicit function (or greater than the scalar value) including "pieces" of a cell. (Compare this with vtkExtractGeometry, which pulls out entire, uncut cells.) The output of this filter is an unstructured grid.

To use this filter, you must decide if you will be clipping with an implicit function, or whether you will be using the input scalar data. If you want to clip with an implicit function, you must: 1) define an implicit function 2) set it with the SetClipFunction method 3) apply the GenerateClipScalarsOn method If a ClipFunction is not specified, or GenerateClipScalars is off (the default), then the input's scalar data will be used to clip the polydata.

You can also specify a scalar value, which is used to decide what is inside and outside of the implicit function. You can also reverse the sense of what inside/outside is by setting the InsideOut instance variable. (The clipping algorithm proceeds by computing an implicit function value or using the input scalar data for each point in the dataset. This is compared to the scalar value to determine inside/outside.)

This filter can be configured to compute a second output. The second output is the part of the cell that is clipped away. Set the GenerateClippedData boolean on if you wish to access this output data.

Warning:
vtkClipDataSet will triangulate all types of 3D cells (i.e., create tetrahedra). This is true even if the cell is not actually cut. This is necessary to preserve compatibility across face neighbors. 2D cells will only be triangulated if the cutting function passes through them.
See also:
vtkImplicitFunction vtkCutter vtkClipVolume vtkClipPolyData
Tests:
vtkClipDataSet (Tests)

Definition at line 71 of file vtkClipDataSet.h.
virtual void SetValue (double)
virtual double GetValue ()
static vtkClipDataSetNew ()

Public Types

typedef vtkUnstructuredGridAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void CreateDefaultLocator ()
unsigned long GetMTime ()
virtual void SetInsideOut (int)
virtual int GetInsideOut ()
virtual void InsideOutOn ()
virtual void InsideOutOff ()
virtual void SetClipFunction (vtkImplicitFunction *)
virtual vtkImplicitFunctionGetClipFunction ()
virtual void SetGenerateClipScalars (int)
virtual int GetGenerateClipScalars ()
virtual void GenerateClipScalarsOn ()
virtual void GenerateClipScalarsOff ()
virtual void SetGenerateClippedOutput (int)
virtual int GetGenerateClippedOutput ()
virtual void GenerateClippedOutputOn ()
virtual void GenerateClippedOutputOff ()
virtual void SetMergeTolerance (double)
virtual double GetMergeTolerance ()
vtkUnstructuredGridGetClippedOutput ()
void SetLocator (vtkPointLocator *locator)
virtual vtkPointLocatorGetLocator ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkClipDataSetSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkClipDataSet (vtkImplicitFunction *cf=NULL)
 ~vtkClipDataSet ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)
void ClipVolume (vtkDataSet *input, vtkUnstructuredGrid *output)

Protected Attributes

vtkImplicitFunctionClipFunction
vtkPointLocatorLocator
int InsideOut
double Value
int GenerateClipScalars
int GenerateClippedOutput
double MergeTolerance


Member Typedef Documentation

typedef vtkUnstructuredGridAlgorithm vtkClipDataSet::Superclass


Reimplemented from vtkUnstructuredGridAlgorithm.

Definition at line 74 of file vtkClipDataSet.h.


Constructor & Destructor Documentation

vtkClipDataSet::vtkClipDataSet vtkImplicitFunction cf = NULL  )  [protected]


vtkClipDataSet::~vtkClipDataSet  )  [protected]



Member Function Documentation

virtual const char* vtkClipDataSet::GetClassName  )  [virtual]


Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkClipDataSet::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkClipDataSet::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkClipDataSet* vtkClipDataSet::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkClipDataSet::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkClipDataSet* vtkClipDataSet::New  )  [static]


Construct with user-specified implicit function; InsideOut turned off; value set to 0.0; and generate clip scalars turned off.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual void vtkClipDataSet::SetValue double   )  [virtual]


Set the clipping value of the implicit function (if clipping with implicit function) or scalar value (if clipping with scalars). The default value is 0.0.

virtual double vtkClipDataSet::GetValue  )  [virtual]


Set the clipping value of the implicit function (if clipping with implicit function) or scalar value (if clipping with scalars). The default value is 0.0.

virtual void vtkClipDataSet::SetInsideOut int   )  [virtual]


Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual int vtkClipDataSet::GetInsideOut  )  [virtual]


Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual void vtkClipDataSet::InsideOutOn  )  [virtual]


Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual void vtkClipDataSet::InsideOutOff  )  [virtual]


Set/Get the InsideOut flag. When off, a vertex is considered inside the implicit function if its value is greater than the Value ivar. When InsideOutside is turned on, a vertex is considered inside the implicit function if its implicit function value is less than or equal to the Value ivar. InsideOut is off by default.

virtual void vtkClipDataSet::SetClipFunction vtkImplicitFunction  )  [virtual]


Specify the implicit function with which to perform the clipping. If you do not define an implicit function, then the selected input scalar data will be used for clipping.

virtual vtkImplicitFunction* vtkClipDataSet::GetClipFunction  )  [virtual]


Specify the implicit function with which to perform the clipping. If you do not define an implicit function, then the selected input scalar data will be used for clipping.

virtual void vtkClipDataSet::SetGenerateClipScalars int   )  [virtual]


If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual int vtkClipDataSet::GetGenerateClipScalars  )  [virtual]


If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual void vtkClipDataSet::GenerateClipScalarsOn  )  [virtual]


If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual void vtkClipDataSet::GenerateClipScalarsOff  )  [virtual]


If this flag is enabled, then the output scalar values will be interpolated from the implicit function values, and not the input scalar data. If you enable this flag but do not provide an implicit function an error will be reported.

virtual void vtkClipDataSet::SetGenerateClippedOutput int   )  [virtual]


Control whether a second output is generated. The second output contains the polygonal data that's been clipped away.

virtual int vtkClipDataSet::GetGenerateClippedOutput  )  [virtual]


Control whether a second output is generated. The second output contains the polygonal data that's been clipped away.

virtual void vtkClipDataSet::GenerateClippedOutputOn  )  [virtual]


Control whether a second output is generated. The second output contains the polygonal data that's been clipped away.

virtual void vtkClipDataSet::GenerateClippedOutputOff  )  [virtual]


Control whether a second output is generated. The second output contains the polygonal data that's been clipped away.

virtual void vtkClipDataSet::SetMergeTolerance double   )  [virtual]


Set the tolerance for merging clip intersection points that are near the vertices of cells. This tolerance is used to prevent the generation of degenerate primitives. Note that only 3D cells actually use this instance variable.

virtual double vtkClipDataSet::GetMergeTolerance  )  [virtual]


Set the tolerance for merging clip intersection points that are near the vertices of cells. This tolerance is used to prevent the generation of degenerate primitives. Note that only 3D cells actually use this instance variable.

vtkUnstructuredGrid* vtkClipDataSet::GetClippedOutput  )


Return the Clipped output.

void vtkClipDataSet::SetLocator vtkPointLocator locator  )


Specify a spatial locator for merging points. By default, an instance of vtkMergePoints is used.

virtual vtkPointLocator* vtkClipDataSet::GetLocator  )  [virtual]


Return the Clipped output.

void vtkClipDataSet::CreateDefaultLocator  )


Create default locator. Used to create one when none is specified. The locator is used to merge coincident points.

unsigned long vtkClipDataSet::GetMTime  )  [virtual]


Return the mtime also considering the locator and clip function.

Reimplemented from vtkObject.

virtual int vtkClipDataSet::RequestData vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
[protected, virtual]


This is called by the superclass. This is the method you should override.

Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkClipDataSet::FillInputPortInformation int  port,
vtkInformation info
[protected, virtual]


Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkClipDataSet::ClipVolume vtkDataSet input,
vtkUnstructuredGrid output
[protected]



Member Data Documentation

vtkImplicitFunction* vtkClipDataSet::ClipFunction [protected]


Definition at line 158 of file vtkClipDataSet.h.

vtkPointLocator* vtkClipDataSet::Locator [protected]


Definition at line 160 of file vtkClipDataSet.h.

int vtkClipDataSet::InsideOut [protected]


Definition at line 161 of file vtkClipDataSet.h.

double vtkClipDataSet::Value [protected]


Definition at line 162 of file vtkClipDataSet.h.

int vtkClipDataSet::GenerateClipScalars [protected]


Definition at line 163 of file vtkClipDataSet.h.

int vtkClipDataSet::GenerateClippedOutput [protected]


Definition at line 165 of file vtkClipDataSet.h.

double vtkClipDataSet::MergeTolerance [protected]


Definition at line 166 of file vtkClipDataSet.h.


The documentation for this class was generated from the following file:
