vtkDataSet Class Reference

#include <vtkDataSet.h>

Inheritance diagram for vtkDataSet:

Inheritance graph
[legend]

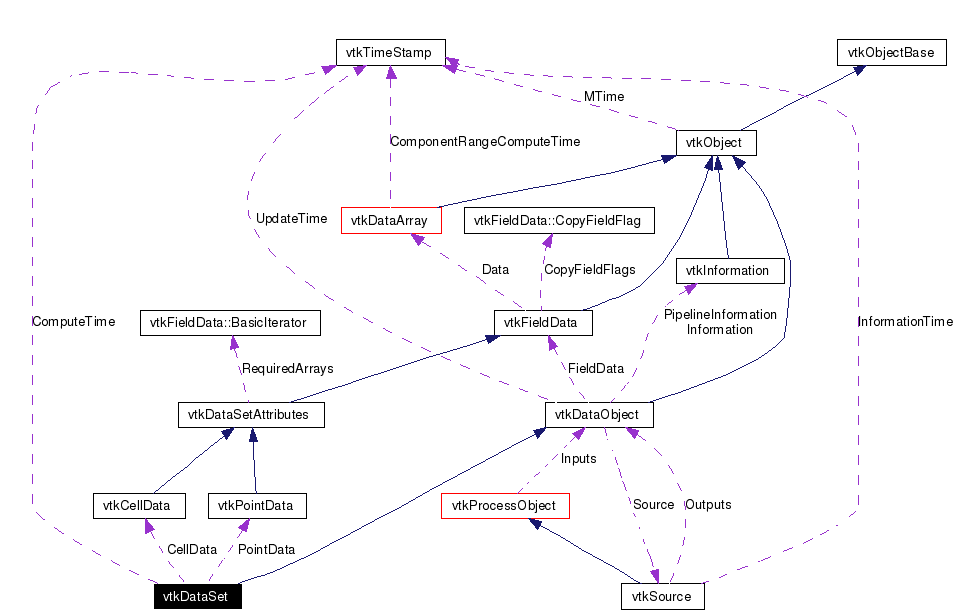

Collaboration diagram for vtkDataSet:

Collaboration graph
[legend]
List of all members.

Detailed Description

abstract class to specify dataset behavior

vtkDataSet is an abstract class that specifies an interface for dataset objects. vtkDataSet also provides methods to provide informations about the data, such as center, bounding box, and representative length.

In vtk a dataset consists of a structure (geometry and topology) and attribute data. The structure is defined implicitly or explicitly as a collection of cells. The geometry of the structure is contained in point coordinates plus the cell interpolation functions. The topology of the dataset structure is defined by cell types and how the cells share their defining points.

Attribute data in vtk is either point data (data at points) or cell data (data at cells). Typically filters operate on point data, but some may operate on cell data, both cell and point data, either one, or none.

See also:
vtkPointSet vtkStructuredPoints vtkStructuredGrid vtkUnstructuredGrid vtkRectilinearGrid vtkPolyData vtkPointData vtkCellData vtkDataObject vtkFieldData
Examples:
vtkDataSet (Examples)
Tests:
vtkDataSet (Tests)

Definition at line 58 of file vtkDataSet.h.
virtual void GenerateGhostLevelArray ()
static vtkDataSet * GetData (vtkInformation *info)
static vtkDataSet * GetData (vtkInformationVector *v, int i=0)

Public Types

typedef vtkDataObject Superclass
enum  FieldDataType { DATA_OBJECT_FIELD = 0, POINT_DATA_FIELD = 1, CELL_DATA_FIELD = 2 }

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void CopyStructure (vtkDataSet *ds)=0
virtual vtkIdType GetNumberOfPoints ()=0
virtual vtkIdType GetNumberOfCells ()=0
virtual double * GetPoint (vtkIdType ptId)=0
virtual void GetPoint (vtkIdType id, double x[3])
virtual vtkCell * GetCell (vtkIdType cellId)=0
virtual void GetCell (vtkIdType cellId, vtkGenericCell *cell)=0
virtual void GetCellBounds (vtkIdType cellId, double bounds[6])
virtual int GetCellType (vtkIdType cellId)=0
virtual void GetCellTypes (vtkCellTypes *types)
virtual void GetCellPoints (vtkIdType cellId, vtkIdList *ptIds)=0
unsigned long int GetMTime ()
vtkCellData * GetCellData ()
vtkPointData * GetPointData ()
virtual void Squeeze ()
virtual void ComputeBounds ()
double * GetBounds ()
void GetBounds (double bounds[6])
double * GetCenter ()
void GetCenter (double center[3])
double GetLength ()
void Initialize ()
virtual void GetScalarRange (double range[2])
double * GetScalarRange ()
virtual int GetMaxCellSize ()=0
int CheckAttributes ()
virtual void GetPointCells (vtkIdType ptId, vtkIdList *cellIds)=0
virtual void GetCellNeighbors (vtkIdType cellId, vtkIdList *ptIds, vtkIdList *cellIds)
vtkIdType FindPoint (double x, double y, double z)
virtual vtkIdType FindPoint (double x[3])=0
virtual vtkIdType FindCell (double x[3], vtkCell *cell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)=0
virtual vtkIdType FindCell (double x[3], vtkCell *cell, vtkGenericCell *gencell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)=0
virtual vtkCell * FindAndGetCell (double x[3], vtkCell *cell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)
unsigned long GetActualMemorySize ()
int GetDataObjectType ()
void ShallowCopy (vtkDataObject *src)
void DeepCopy (vtkDataObject *src)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkDataSet * SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkDataSet ()
 ~vtkDataSet ()

Protected Attributes

vtkCellData * CellData
vtkPointData * PointData
vtkTimeStamp ComputeTime
double Bounds [6]
double ScalarRange [2]
double Center [3]

Friends

class vtkSourceToDataSetFriendship
class vtkImageAlgorithmToDataSetFriendship

Member Typedef Documentation

typedef vtkDataObject vtkDataSet::Superclass


Reimplemented from vtkDataObject.

Reimplemented in vtkImageData, vtkPointSet, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkStructuredPoints, vtkUniformGrid, and vtkUnstructuredGrid.

Definition at line 61 of file vtkDataSet.h.

Member Enumeration Documentation

enum vtkDataSet::FieldDataType


Enumerator:
DATA_OBJECT_FIELD
POINT_DATA_FIELD
CELL_DATA_FIELD

Definition at line 272 of file vtkDataSet.h.

Constructor & Destructor Documentation

vtkDataSet::vtkDataSet (   )  [protected]


vtkDataSet::~vtkDataSet (   )  [protected]


Member Function Documentation

virtual const char* vtkDataSet::GetClassName (   )  [virtual]


Reimplemented from vtkDataObject.

Reimplemented in vtkImageData, vtkPointSet, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkStructuredPoints, vtkUniformGrid, and vtkUnstructuredGrid.

static int vtkDataSet::IsTypeOf (  const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObject.

Reimplemented in vtkImageData, vtkPointSet, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkStructuredPoints, vtkUniformGrid, and vtkUnstructuredGrid.

virtual int vtkDataSet::IsA (  const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObject.

Reimplemented in vtkImageData, vtkPointSet, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkStructuredPoints, vtkUniformGrid, and vtkUnstructuredGrid.

static vtkDataSet* vtkDataSet::SafeDownCast (  vtkObject *  o  )  [static]


Reimplemented from vtkDataObject.

Reimplemented in vtkImageData, vtkPointSet, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkStructuredPoints, vtkUniformGrid, and vtkUnstructuredGrid.

void vtkDataSet::PrintSelf (  ostream &  os,
vtkIndent  indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataObject.

Reimplemented in vtkImageData, vtkPointSet, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkUniformGrid, and vtkUnstructuredGrid.

virtual void vtkDataSet::CopyStructure (  vtkDataSet *  ds  )  [pure virtual]


Copy the geometric and topological structure of an object. Note that the invoking object and the object pointed to by the parameter ds must be of the same type. THIS METHOD IS NOT THREAD SAFE.

Implemented in vtkImageData, vtkPointSet, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkUniformGrid, and vtkUnstructuredGrid.

virtual vtkIdType vtkDataSet::GetNumberOfPoints (   )  [pure virtual]


Determine the number of points composing the dataset. THIS METHOD IS THREAD SAFE

Implemented in vtkImageData, vtkPointSet, vtkRectilinearGrid, and vtkStructuredGrid.

virtual vtkIdType vtkDataSet::GetNumberOfCells (   )  [pure virtual]


Determine the number of cells composing the dataset. THIS METHOD IS THREAD SAFE

Implemented in vtkImageData, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, and vtkUnstructuredGrid.

virtual double* vtkDataSet::GetPoint (  vtkIdType  ptId  )  [pure virtual]


Get point coordinates with ptId such that: 0 <= ptId < NumberOfPoints. THIS METHOD IS NOT THREAD SAFE.

Implemented in vtkImageData, vtkPointSet, vtkRectilinearGrid, and vtkStructuredGrid.

Referenced by GetPoint().

void vtkDataSet::GetPoint (  vtkIdType  id,
double  x[3]
)  [inline, virtual]


Copy point coordinates into user provided array x[3] for specified point id. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Reimplemented in vtkImageData, vtkPointSet, vtkRectilinearGrid, and vtkStructuredGrid.

Definition at line 323 of file vtkDataSet.h.

References GetPoint().

virtual vtkCell* vtkDataSet::GetCell (  vtkIdType  cellId  )  [pure virtual]


Get cell with cellId such that: 0 <= cellId < NumberOfCells. THIS METHOD IS NOT THREAD SAFE.

Implemented in vtkImageData, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkUniformGrid, and vtkUnstructuredGrid.

virtual void vtkDataSet::GetCell (  vtkIdType  cellId,
vtkGenericCell *  cell
)  [pure virtual]


Get cell with cellId such that: 0 <= cellId < NumberOfCells. This is a thread-safe alternative to the previous GetCell() method. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Implemented in vtkImageData, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkUniformGrid, and vtkUnstructuredGrid.

virtual void vtkDataSet::GetCellBounds (  vtkIdType  cellId,
double  bounds[6]
)  [virtual]


Get the bounds of the cell with cellId such that: 0 <= cellId < NumberOfCells. A subclass may be able to determine the bounds of cell without using an expensive GetCell() method. A default implementation is provided that actually uses a GetCell() call. This is to ensure the method is available to all datasets. Subclasses should override this method to provide an efficient implementation. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Reimplemented in vtkImageData, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, and vtkUnstructuredGrid.

virtual int vtkDataSet::GetCellType (  vtkIdType  cellId  )  [pure virtual]


Get type of cell with cellId such that: 0 <= cellId < NumberOfCells. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Implemented in vtkImageData, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkUniformGrid, and vtkUnstructuredGrid.

virtual void vtkDataSet::GetCellTypes (  vtkCellTypes *  types  )  [virtual]


Get a list of types of cells in a dataset. The list consists of an array of types (not necessarily in any order), with a single entry per type. For example a dataset 5 triangles, 3 lines, and 100 hexahedra would result a list of three entries, corresponding to the types VTK_TRIANGLE, VTK_LINE, and VTK_HEXAHEDRON. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

virtual void vtkDataSet::GetCellPoints (  vtkIdType  cellId,
vtkIdList *  ptIds
)  [pure virtual]


Topological inquiry to get points defining cell. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Implemented in vtkImageData, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkUniformGrid, and vtkUnstructuredGrid.

virtual void vtkDataSet::GetPointCells (  vtkIdType  ptId,
vtkIdList *  cellIds
)  [pure virtual]


Topological inquiry to get cells using point. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Implemented in vtkImageData, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkUniformGrid, and vtkUnstructuredGrid.

virtual void vtkDataSet::GetCellNeighbors (  vtkIdType  cellId,
vtkIdList *  ptIds,
vtkIdList *  cellIds
)  [virtual]


Topological inquiry to get all cells using list of points exclusive of cell specified (e.g., cellId). Note that the list consists of only cells that use ALL the points provided. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Reimplemented in vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, and vtkUnstructuredGrid.

vtkIdType vtkDataSet::FindPoint (  double  x,
double  y,
double  z
)  [inline]


Locate the closest point to the global coordinate x. Return the point id. If point id < 0; then no point found. (This may arise when point is outside of dataset.) THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Reimplemented in vtkImageData, vtkPointSet, and vtkRectilinearGrid.

Definition at line 144 of file vtkDataSet.h.

Referenced by vtkRectilinearGrid::FindPoint(), vtkPointSet::FindPoint(), and vtkImageData::FindPoint().

virtual vtkIdType vtkDataSet::FindPoint (  double  x[3]  )  [pure virtual]


Locate the closest point to the global coordinate x. Return the point id. If point id < 0; then no point found. (This may arise when point is outside of dataset.) THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Implemented in vtkImageData, vtkPointSet, and vtkRectilinearGrid.

virtual vtkIdType vtkDataSet::FindCell (  double  x[3],
vtkCell *  cell,
vtkIdType  cellId,
double  tol2,
int &  subId,
double  pcoords[3],
double *  weights
)  [pure virtual]


Locate cell based on global coordinate x and tolerance squared. If cell and cellId is non-NULL, then search starts from this cell and looks at immediate neighbors. Returns cellId >= 0 if inside, < 0 otherwise. The parametric coordinates are provided in pcoords[3]. The interpolation weights are returned in weights[]. (The number of weights is equal to the number of points in the found cell). Tolerance is used to control how close the point is to be considered "in" the cell. THIS METHOD IS NOT THREAD SAFE.

Implemented in vtkImageData, vtkPointSet, vtkRectilinearGrid, and vtkUniformGrid.

virtual vtkIdType vtkDataSet::FindCell (  double  x[3],
vtkCell *  cell,
vtkGenericCell *  gencell,
vtkIdType  cellId,
double  tol2,
int &  subId,
double  pcoords[3],
double *  weights
)  [pure virtual]


This is a version of the above method that can be used with multithreaded applications. A vtkGenericCell must be passed in to be used in internal calls that might be made to GetCell() THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Implemented in vtkImageData, vtkPointSet, vtkRectilinearGrid, and vtkUniformGrid.

virtual vtkCell* vtkDataSet::FindAndGetCell (  double  x[3],
vtkCell *  cell,
vtkIdType  cellId,
double  tol2,
int &  subId,
double  pcoords[3],
double *  weights
)  [virtual]


Locate the cell that contains a point and return the cell. Also returns the subcell id, parametric coordinates and weights for subsequent interpolation. This method combines the derived class methods int FindCell and vtkCell *GetCell. Derived classes may provide a more efficient implementation. See for example vtkStructuredPoints. THIS METHOD IS NOT THREAD SAFE.

Reimplemented in vtkImageData, vtkRectilinearGrid, and vtkUniformGrid.

unsigned long int vtkDataSet::GetMTime (   )  [virtual]


Datasets are composite objects and need to check each part for MTime THIS METHOD IS THREAD SAFE

Reimplemented from vtkDataObject.

Reimplemented in vtkPointSet.

vtkCellData* vtkDataSet::GetCellData (   )  [inline]


return pointer to this dataset's point data THIS METHOD IS THREAD SAFE

Definition at line 197 of file vtkDataSet.h.

vtkPointData* vtkDataSet::GetPointData (   )  [inline]


return pointer to this dataset's point data THIS METHOD IS THREAD SAFE

Definition at line 201 of file vtkDataSet.h.

virtual void vtkDataSet::Squeeze (   )  [virtual]


Reclaim any extra memory used to store data. THIS METHOD IS NOT THREAD SAFE.

Reimplemented in vtkPointSet, vtkPolyData, and vtkUnstructuredGrid.

virtual void vtkDataSet::ComputeBounds (   )  [virtual]


Compute the data bounding box from data points. THIS METHOD IS NOT THREAD SAFE.

Reimplemented in vtkImageData, vtkPointSet, vtkPolyData, and vtkRectilinearGrid.

double* vtkDataSet::GetBounds (   )


Return a pointer to the geometry bounding box in the form (xmin,xmax, ymin,ymax, zmin,zmax). THIS METHOD IS NOT THREAD SAFE.

void vtkDataSet::GetBounds (  double  bounds[6]  )


Return a pointer to the geometry bounding box in the form (xmin,xmax, ymin,ymax, zmin,zmax). THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

double* vtkDataSet::GetCenter (   )


Get the center of the bounding box. THIS METHOD IS NOT THREAD SAFE.

void vtkDataSet::GetCenter (  double  center[3]  )


Get the center of the bounding box. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

double vtkDataSet::GetLength (   )


Return the length of the diagonal of the bounding box. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

void vtkDataSet::Initialize (   )  [virtual]


Restore data object to initial state, THIS METHOD IS NOT THREAD SAFE.

Reimplemented from vtkDataObject.

Reimplemented in vtkImageData, vtkPointSet, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkUniformGrid, and vtkUnstructuredGrid.

virtual void vtkDataSet::GetScalarRange (  double  range[2]  )  [virtual]


Convenience method to get the range of the scalar data (if there is any scalar data). Returns the (min/max) range of combined point and cell data. If there are no point or cell scalars the method will return (0,1). Note: Update needs to be called to create the scalars. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Reimplemented in vtkStructuredGrid, and vtkUniformGrid.

double* vtkDataSet::GetScalarRange (   )


Convenience method to get the range of the scalar data (if there is any scalar data). THIS METHOD IS NOT THREAD SAFE.

Reimplemented in vtkStructuredGrid.

virtual int vtkDataSet::GetMaxCellSize (   )  [pure virtual]


Convenience method returns largest cell size in dataset. This is generally used to allocate memory for supporting data structures. THIS METHOD IS THREAD SAFE

Implemented in vtkImageData, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkUniformGrid, and vtkUnstructuredGrid.

unsigned long vtkDataSet::GetActualMemorySize (   )  [virtual]


Return the actual size of the data in kilobytes. This number is valid only after the pipeline has updated. The memory size returned is guaranteed to be greater than or equal to the memory required to represent the data (e.g., extra space in arrays, etc. are not included in the return value). THIS METHOD IS THREAD SAFE.

Reimplemented from vtkDataObject.

Reimplemented in vtkImageData, vtkPointSet, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, and vtkUnstructuredGrid.

int vtkDataSet::GetDataObjectType (   )  [inline, virtual]


Return the type of data object.

Reimplemented from vtkDataObject.

Reimplemented in vtkImageData, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkStructuredPoints, vtkUniformGrid, and vtkUnstructuredGrid.

Definition at line 261 of file vtkDataSet.h.

References VTK_DATA_SET.

void vtkDataSet::ShallowCopy (  vtkDataObject *  src  )  [virtual]


Shallow and Deep copy.

Reimplemented from vtkDataObject.

Reimplemented in vtkImageData, vtkPointSet, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkUniformGrid, and vtkUnstructuredGrid.

void vtkDataSet::DeepCopy (  vtkDataObject *  src  )  [virtual]


Shallow and Deep copy.

Reimplemented from vtkDataObject.

Reimplemented in vtkImageData, vtkPointSet, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkUniformGrid, and vtkUnstructuredGrid.

int vtkDataSet::CheckAttributes (   )


This method checks to see if the cell and point attributes match the geometry. Many filters will crash if the number of tupples in an array is less than the number of points/cells. This method returns 1 if there is a mismatch, and 0 if everything is ok. It prints an error if an array is too short, and a warning if an array is too long.

virtual void vtkDataSet::GenerateGhostLevelArray (   )  [virtual]


Normally called by pipeline executives or algoritgms only. This method computes the ghost arrays for a given dataset.

static vtkDataSet* vtkDataSet::GetData (  vtkInformation *  info  )  [static]


Retrieve an instance of this class from an information object.

Reimplemented from vtkDataObject.

Reimplemented in vtkImageData, vtkPointSet, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkUniformGrid, and vtkUnstructuredGrid.

static vtkDataSet* vtkDataSet::GetData (  vtkInformationVector *  v,
int  i = 0
)  [static]


Normally called by pipeline executives or algoritgms only. This method computes the ghost arrays for a given dataset.

Reimplemented from vtkDataObject.

Reimplemented in vtkImageData, vtkPointSet, vtkPolyData, vtkRectilinearGrid, vtkStructuredGrid, vtkUniformGrid, and vtkUnstructuredGrid.

Friends And Related Function Documentation

friend class vtkSourceToDataSetFriendship [friend]


Definition at line 315 of file vtkDataSet.h.

friend class vtkImageAlgorithmToDataSetFriendship [friend]


Definition at line 316 of file vtkDataSet.h.

Member Data Documentation

vtkCellData* vtkDataSet::CellData [protected]


Definition at line 305 of file vtkDataSet.h.

vtkPointData* vtkDataSet::PointData [protected]


Definition at line 306 of file vtkDataSet.h.

vtkTimeStamp vtkDataSet::ComputeTime [protected]


Definition at line 307 of file vtkDataSet.h.

double vtkDataSet::Bounds[6] [protected]


Definition at line 308 of file vtkDataSet.h.

double vtkDataSet::ScalarRange[2] [protected]


Definition at line 309 of file vtkDataSet.h.

double vtkDataSet::Center[3] [protected]


Definition at line 310 of file vtkDataSet.h.

The documentation for this class was generated from the following file:
Generated on Mon Jan 21 23:40:02 2008 for VTK by  doxygen 1.4.3-20050530
