vtkCompositeDataSet Class Reference

#include <vtkCompositeDataSet.h>

Inheritance diagram for vtkCompositeDataSet:

Inheritance graph
[legend]

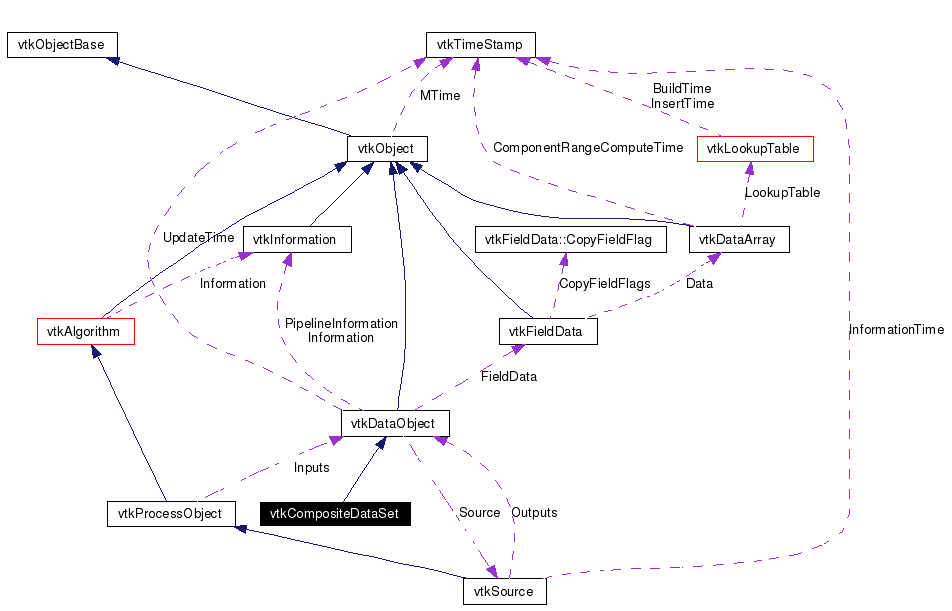

Collaboration diagram for vtkCompositeDataSet:

Collaboration graph
[legend]
List of all members.

Detailed Description

abstact superclass for composite (multi-block or AMR) datasets

vtkCompositeDataSet is an abstract class that represents a collection of datasets (including other composite datasets). This superclass does not implement an actual method for storing datasets. It only provides an interface to access the datasets through iterators.

See also:
vtkCompositeDataIterator
Examples:
vtkCompositeDataSet (Examples)
Tests:
vtkCompositeDataSet (Tests)

Definition at line 42 of file vtkCompositeDataSet.h.

Public Types

typedef vtkDataObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual vtkCompositeDataIteratorNewIterator ()=0
virtual int GetDataObjectType ()
virtual void Initialize ()
virtual void AddDataSet (vtkInformation *index, vtkDataObject *dobj)=0
virtual vtkDataObjectGetDataSet (vtkInformation *index)=0
virtual void SetPipelineInformation (vtkInformation *)
virtual vtkAlgorithmOutputGetProducerPort ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkCompositeDataSetSafeDownCast (vtkObject *o)
static vtkInformationIntegerKeyINDEX ()
static vtkInformationDataObjectKeyCOMPOSITE_DATA_SET ()
static vtkCompositeDataSetGetData (vtkInformation *info)
static vtkCompositeDataSetGetData (vtkInformationVector *v, int i=0)

Protected Member Functions

 vtkCompositeDataSet ()
 ~vtkCompositeDataSet ()


Member Typedef Documentation

typedef vtkDataObject vtkCompositeDataSet::Superclass


Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, and vtkHierarchicalDataSet.

Definition at line 45 of file vtkCompositeDataSet.h.


Constructor & Destructor Documentation

vtkCompositeDataSet::vtkCompositeDataSet  )  [protected]


vtkCompositeDataSet::~vtkCompositeDataSet  )  [protected]



Member Function Documentation

virtual const char* vtkCompositeDataSet::GetClassName  )  [virtual]


Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, and vtkHierarchicalDataSet.

static int vtkCompositeDataSet::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, and vtkHierarchicalDataSet.

virtual int vtkCompositeDataSet::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, and vtkHierarchicalDataSet.

static vtkCompositeDataSet* vtkCompositeDataSet::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, and vtkHierarchicalDataSet.

void vtkCompositeDataSet::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, and vtkHierarchicalDataSet.

virtual vtkCompositeDataIterator* vtkCompositeDataSet::NewIterator  )  [pure virtual]


Return a new (forward) iterator (the iterator has to be deleted by user)

Implemented in vtkHierarchicalDataSet.

virtual int vtkCompositeDataSet::GetDataObjectType  )  [inline, virtual]


Return class name of data type (see vtkSystemIncludes.h for definitions).

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalBoxDataSet, and vtkHierarchicalDataSet.

Definition at line 54 of file vtkCompositeDataSet.h.

References VTK_COMPOSITE_DATA_SET.

virtual void vtkCompositeDataSet::Initialize  )  [virtual]


Restore data object to initial state,

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalDataSet.

virtual void vtkCompositeDataSet::AddDataSet vtkInformation index,
vtkDataObject dobj
[pure virtual]


Adds dobj to the composite dataset. Where the dataset goes is determined by appropriate keys in the index information object. Which keys are used depends on the actual subclass.

Implemented in vtkHierarchicalDataSet.

virtual vtkDataObject* vtkCompositeDataSet::GetDataSet vtkInformation index  )  [pure virtual]


Returns a dataset pointed by appropriate keys in the index information object. Which keys are used depends on the actual subclass.

Implemented in vtkHierarchicalBoxDataSet, and vtkHierarchicalDataSet.

virtual void vtkCompositeDataSet::SetPipelineInformation vtkInformation  )  [virtual]


Set the pipeline information object that owns this data object.

Reimplemented from vtkDataObject.

virtual vtkAlgorithmOutput* vtkCompositeDataSet::GetProducerPort  )  [virtual]


Get the port currently producing this object.

Reimplemented from vtkDataObject.

static vtkInformationIntegerKey* vtkCompositeDataSet::INDEX  )  [static]


static vtkInformationDataObjectKey* vtkCompositeDataSet::COMPOSITE_DATA_SET  )  [static]


static vtkCompositeDataSet* vtkCompositeDataSet::GetData vtkInformation info  )  [static]


Retrieve an instance of this class from an information object.

Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalDataSet.

static vtkCompositeDataSet* vtkCompositeDataSet::GetData vtkInformationVector v,
int  i = 0
[static]


Reimplemented from vtkDataObject.

Reimplemented in vtkHierarchicalDataSet.


The documentation for this class was generated from the following file:
