vtkHierarchicalBoxDataSet Class Reference

#include <vtkHierarchicalBoxDataSet.h>

Inheritance diagram for vtkHierarchicalBoxDataSet:

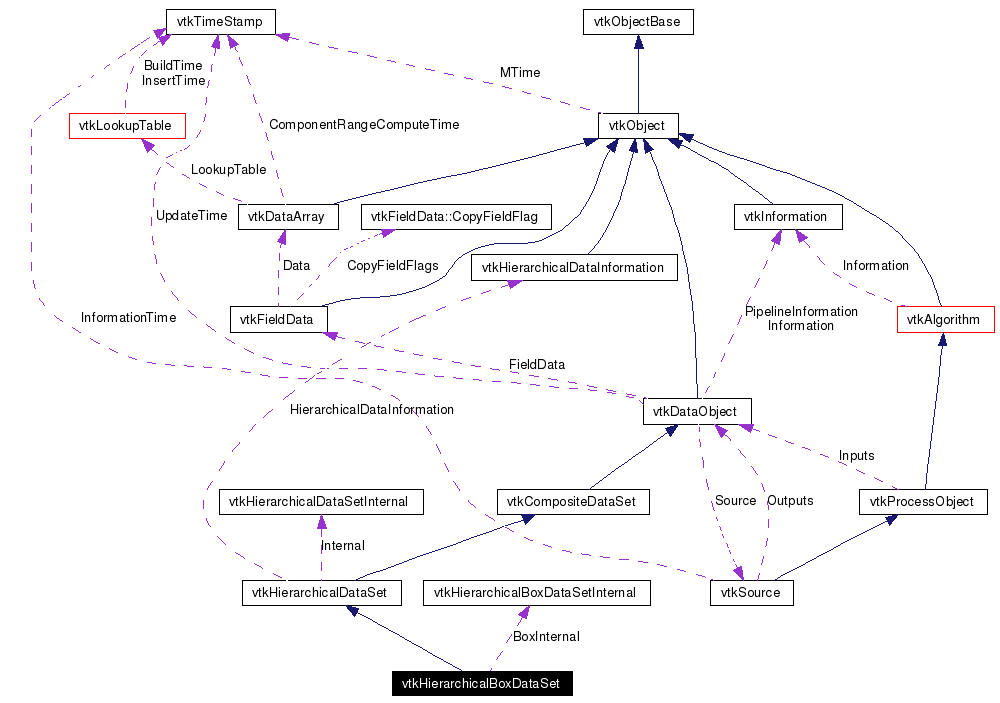

[legend]Collaboration diagram for vtkHierarchicalBoxDataSet:

[legend]List of all members.

---

Detailed Description

hierarchical dataset of vtkUniformGrids

vtkHierarchicalBoxDataSet is a concrete implementation of vtkHierarchicalDataSet. The dataset type is restricted to vtkUniformGrid. Each dataset has an associated vtkAMRBox that represents it's region (similar to extent) in space.

Examples:

vtkHierarchicalBoxDataSet (Examples)

Tests:

vtkHierarchicalBoxDataSet (Tests)

Definition at line 43 of file vtkHierarchicalBoxDataSet.h.

Public Types
typedef vtkHierarchicalDataSet	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkDataObject *	GetDataSet (unsigned int level, unsigned int id)
vtkDataObject *	GetDataSet (vtkInformation *index)
void	SetRefinementRatio (unsigned int level, int refRatio)
int	GetRefinementRatio (unsigned int level)
virtual vtkIdType	GetNumberOfPoints ()
virtual int	GetDataObjectType ()
void	SetDataSet (unsigned int level, unsigned int id, vtkAMRBox &box, vtkUniformGrid *dataSet)
void	SetDataSet (unsigned int level, unsigned int id, vtkDataObject *dataSet)
vtkUniformGrid *	GetDataSet (unsigned int level, unsigned int id, vtkAMRBox &box)
void	GenerateVisibilityArrays ()
virtual void	ShallowCopy (vtkDataObject *src)
virtual void	DeepCopy (vtkDataObject *src)
Static Public Member Functions
static vtkHierarchicalBoxDataSet *	New ()
static int	IsTypeOf (const char *type)
static vtkHierarchicalBoxDataSet *	SafeDownCast (vtkObject *o)
static vtkInformationIntegerVectorKey *	BOX ()
static vtkInformationIdTypeKey *	NUMBER_OF_BLANKED_POINTS ()
Protected Member Functions
	vtkHierarchicalBoxDataSet ()
	~vtkHierarchicalBoxDataSet ()
Protected Attributes
vtkHierarchicalBoxDataSetInternal *	BoxInternal

---

Member Typedef Documentation

typedef vtkHierarchicalDataSet vtkHierarchicalBoxDataSet::Superclass

Reimplemented from vtkHierarchicalDataSet. Definition at line 48 of file vtkHierarchicalBoxDataSet.h.

---

Constructor & Destructor Documentation

vtkHierarchicalBoxDataSet::vtkHierarchicalBoxDataSet (   )  [protected]

vtkHierarchicalBoxDataSet::~vtkHierarchicalBoxDataSet (   )  [protected]

---

Member Function Documentation

static vtkHierarchicalBoxDataSet* vtkHierarchicalBoxDataSet::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkHierarchicalDataSet.

virtual const char* vtkHierarchicalBoxDataSet::GetClassName (   )  [virtual]

Reimplemented from vtkHierarchicalDataSet.

static int vtkHierarchicalBoxDataSet::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkHierarchicalDataSet.

virtual int vtkHierarchicalBoxDataSet::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkHierarchicalDataSet.

static vtkHierarchicalBoxDataSet* vtkHierarchicalBoxDataSet::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkHierarchicalDataSet.

void vtkHierarchicalBoxDataSet::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkHierarchicalDataSet.

virtual int vtkHierarchicalBoxDataSet::GetDataObjectType (   )  [inline, virtual]

Return class name of data type (see vtkSystemIncludes.h for definitions). Reimplemented from vtkHierarchicalDataSet. Definition at line 53 of file vtkHierarchicalBoxDataSet.h. References VTK_HIERARCHICAL_BOX_DATA_SET.

void vtkHierarchicalBoxDataSet::SetDataSet (  unsigned int  level, unsigned int  id, vtkAMRBox &  box, vtkUniformGrid *  dataSet )

Set the dataset pointer for a given node. This method does not remove the existing parent/child links. It only replaces the dataset pointer.

void vtkHierarchicalBoxDataSet::SetDataSet (  unsigned int  level, unsigned int  id, vtkDataObject *  dataSet )  [inline]

Return class name of data type (see vtkSystemIncludes.h for definitions). Reimplemented from vtkHierarchicalDataSet. Definition at line 64 of file vtkHierarchicalBoxDataSet.h.

vtkUniformGrid* vtkHierarchicalBoxDataSet::GetDataSet (  unsigned int  level, unsigned int  id, vtkAMRBox &  box )

Get a dataset give a level and an id.

vtkDataObject* vtkHierarchicalBoxDataSet::GetDataSet (  unsigned int  level, unsigned int  id )  [inline]

Get a dataset give a level and an id. Reimplemented from vtkHierarchicalDataSet. Definition at line 77 of file vtkHierarchicalBoxDataSet.h.

vtkDataObject* vtkHierarchicalBoxDataSet::GetDataSet (  vtkInformation *  index  )  [inline, virtual]

Uses keys LEVEL() and INDEX() to call GetDataSet(LEVEL, INDEX) Reimplemented from vtkHierarchicalDataSet. Definition at line 80 of file vtkHierarchicalBoxDataSet.h.

void vtkHierarchicalBoxDataSet::SetRefinementRatio (  unsigned int  level, int  refRatio )

Sets the refinement of a given level.

int vtkHierarchicalBoxDataSet::GetRefinementRatio (  unsigned int  level  )

Returns the refinement of a given level.

void vtkHierarchicalBoxDataSet::GenerateVisibilityArrays (   )

Blank lower level cells if they are overlapped by higher level ones.

virtual void vtkHierarchicalBoxDataSet::ShallowCopy (  vtkDataObject *  src  )  [virtual]

Shallow and Deep copy. Reimplemented from vtkHierarchicalDataSet.

virtual void vtkHierarchicalBoxDataSet::DeepCopy (  vtkDataObject *  src  )  [virtual]

Blank lower level cells if they are overlapped by higher level ones. Reimplemented from vtkHierarchicalDataSet.

static vtkInformationIntegerVectorKey* vtkHierarchicalBoxDataSet::BOX (   )  [static]

static vtkInformationIdTypeKey* vtkHierarchicalBoxDataSet::NUMBER_OF_BLANKED_POINTS (   )  [static]

virtual vtkIdType vtkHierarchicalBoxDataSet::GetNumberOfPoints (   )  [virtual]

Returns the total number of points of all blocks. This will iterate over all blocks and call GetNumberOfPoints() so it might be expansive. Does not include the number of blanked points. Reimplemented from vtkHierarchicalDataSet.

---

Member Data Documentation

vtkHierarchicalBoxDataSetInternal* vtkHierarchicalBoxDataSet::BoxInternal [protected]

Definition at line 110 of file vtkHierarchicalBoxDataSet.h.

---

The documentation for this class was generated from the following file:

• dox/Filtering/vtkHierarchicalBoxDataSet.h

---
