vtkCutMaterial Class Reference

#include <vtkCutMaterial.h>

Inheritance diagram for vtkCutMaterial:

Inheritance graph
[legend]

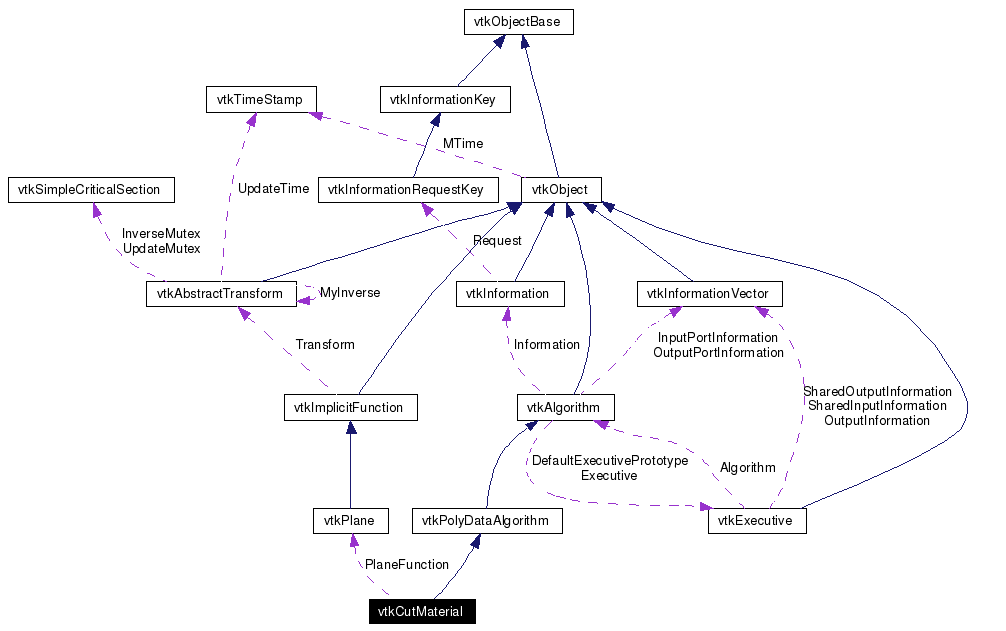

Collaboration diagram for vtkCutMaterial:

Collaboration graph
[legend]
List of all members.

Detailed Description

Automatically computes the cut plane for a material array pair.

vtkCutMaterial computes a cut plane based on an up vector, center of the bounding box and the location of the maximum variable value. These computed values are available so that they can be used to set the camera for the best view of the plane.

Tests:
vtkCutMaterial (Tests)

Definition at line 34 of file vtkCutMaterial.h.
virtual void SetMaterialArrayName (const char *)
virtual char * GetMaterialArrayName ()
static vtkCutMaterialNew ()

Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

void PrintSelf (ostream &os, vtkIndent indent)
virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void SetMaterial (int)
virtual int GetMaterial ()
virtual void SetArrayName (const char *)
virtual char * GetArrayName ()
virtual void SetUpVector (double, double, double)
virtual void SetUpVector (double[3])
virtual double * GetUpVector ()
virtual void GetUpVector (double &, double &, double &)
virtual void GetUpVector (double[3])
virtual double * GetMaximumPoint ()
virtual void GetMaximumPoint (double &, double &, double &)
virtual void GetMaximumPoint (double[3])
virtual double * GetCenterPoint ()
virtual void GetCenterPoint (double &, double &, double &)
virtual void GetCenterPoint (double[3])
virtual double * GetNormal ()
virtual void GetNormal (double &, double &, double &)
virtual void GetNormal (double[3])

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkCutMaterialSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkCutMaterial ()
 ~vtkCutMaterial ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)
void ComputeMaximumPoint (vtkDataSet *input)
void ComputeNormal ()

Protected Attributes

char * MaterialArrayName
int Material
char * ArrayName
double UpVector [3]
double MaximumPoint [3]
double CenterPoint [3]
double Normal [3]
vtkPlanePlaneFunction


Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkCutMaterial::Superclass


Reimplemented from vtkPolyDataAlgorithm.

Definition at line 38 of file vtkCutMaterial.h.


Constructor & Destructor Documentation

vtkCutMaterial::vtkCutMaterial  )  [protected]


vtkCutMaterial::~vtkCutMaterial  )  [protected]



Member Function Documentation

void vtkCutMaterial::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkCutMaterial::GetClassName  )  [virtual]


Reimplemented from vtkPolyDataAlgorithm.

static int vtkCutMaterial::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkCutMaterial::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkCutMaterial* vtkCutMaterial::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkPolyDataAlgorithm.

static vtkCutMaterial* vtkCutMaterial::New  )  [static]


Cell array that contains the material values.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkCutMaterial::SetMaterialArrayName const char *   )  [virtual]


Cell array that contains the material values.

virtual char* vtkCutMaterial::GetMaterialArrayName  )  [virtual]


Cell array that contains the material values.

virtual void vtkCutMaterial::SetMaterial int   )  [virtual]


Material to probe.

virtual int vtkCutMaterial::GetMaterial  )  [virtual]


Material to probe.

virtual void vtkCutMaterial::SetArrayName const char *   )  [virtual]


For now, we just use the cell values. The array name to cut.

virtual char* vtkCutMaterial::GetArrayName  )  [virtual]


For now, we just use the cell values. The array name to cut.

virtual void vtkCutMaterial::SetUpVector double  ,
double  ,
double
[virtual]


The last piece of information that specifies the plane.

virtual void vtkCutMaterial::SetUpVector double  [3]  )  [virtual]


The last piece of information that specifies the plane.

virtual double* vtkCutMaterial::GetUpVector  )  [virtual]


The last piece of information that specifies the plane.

virtual void vtkCutMaterial::GetUpVector double &  ,
double &  ,
double &
[virtual]


The last piece of information that specifies the plane.

virtual void vtkCutMaterial::GetUpVector double  [3]  )  [virtual]


The last piece of information that specifies the plane.

virtual double* vtkCutMaterial::GetMaximumPoint  )  [virtual]


Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane.

virtual void vtkCutMaterial::GetMaximumPoint double &  ,
double &  ,
double &
[virtual]


Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane.

virtual void vtkCutMaterial::GetMaximumPoint double  [3]  )  [virtual]


Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane.

virtual double* vtkCutMaterial::GetCenterPoint  )  [virtual]


Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane.

virtual void vtkCutMaterial::GetCenterPoint double &  ,
double &  ,
double &
[virtual]


Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane.

virtual void vtkCutMaterial::GetCenterPoint double  [3]  )  [virtual]


Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane.

virtual double* vtkCutMaterial::GetNormal  )  [virtual]


Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane.

virtual void vtkCutMaterial::GetNormal double &  ,
double &  ,
double &
[virtual]


Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane.

virtual void vtkCutMaterial::GetNormal double  [3]  )  [virtual]


Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane.

virtual int vtkCutMaterial::RequestData vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
[protected, virtual]


This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkCutMaterial::FillInputPortInformation int  port,
vtkInformation info
[protected, virtual]


Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.

void vtkCutMaterial::ComputeMaximumPoint vtkDataSet input  )  [protected]


void vtkCutMaterial::ComputeNormal  )  [protected]



Member Data Documentation

char* vtkCutMaterial::MaterialArrayName [protected]


Definition at line 82 of file vtkCutMaterial.h.

int vtkCutMaterial::Material [protected]


Definition at line 83 of file vtkCutMaterial.h.

char* vtkCutMaterial::ArrayName [protected]


Definition at line 84 of file vtkCutMaterial.h.

double vtkCutMaterial::UpVector[3] [protected]


Definition at line 85 of file vtkCutMaterial.h.

double vtkCutMaterial::MaximumPoint[3] [protected]


Definition at line 86 of file vtkCutMaterial.h.

double vtkCutMaterial::CenterPoint[3] [protected]


Definition at line 87 of file vtkCutMaterial.h.

double vtkCutMaterial::Normal[3] [protected]


Definition at line 88 of file vtkCutMaterial.h.

vtkPlane* vtkCutMaterial::PlaneFunction [protected]


Definition at line 90 of file vtkCutMaterial.h.


The documentation for this class was generated from the following file:
