vtkDataObjectWriter Class Reference

#include <vtkDataObjectWriter.h>

Inheritance diagram for vtkDataObjectWriter:

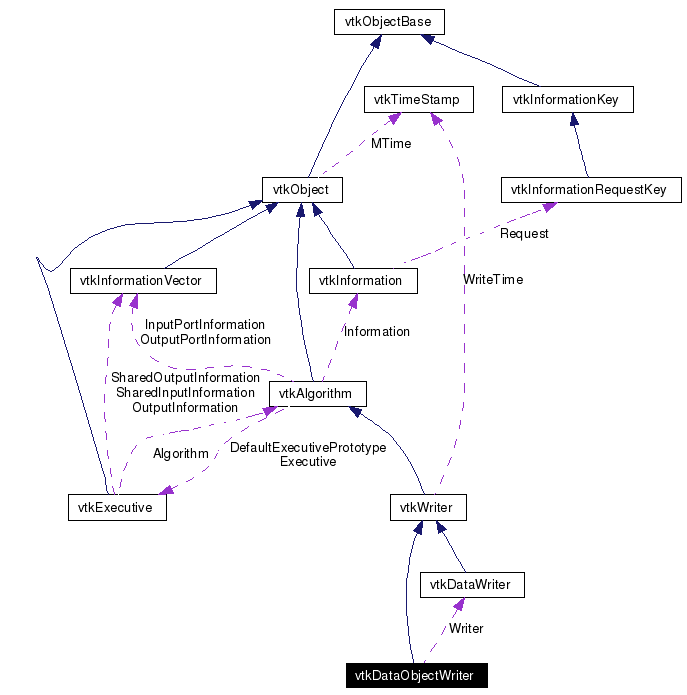

[legend]Collaboration diagram for vtkDataObjectWriter:

[legend]List of all members.

---

Detailed Description

write vtk field data

vtkDataObjectWriter is a source object that writes ASCII or binary field data files in vtk format. Field data is a general form of data in matrix form.

Warning:

Binary files written on one system may not be readable on other systems.

See also:

vtkFieldData vtkFieldDataReader

Tests:

vtkDataObjectWriter (Tests)

Definition at line 38 of file vtkDataObjectWriter.h.

Public Types
typedef vtkWriter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetFileName (const char *filename)
char *	GetFileName ()
void	SetHeader (const char *header)
char *	GetHeader ()
void	SetFileType (int type)
int	GetFileType ()
void	SetFileTypeToASCII ()
void	SetFileTypeToBinary ()
void	SetFieldDataName (const char *fieldname)
char *	GetFieldDataName ()
Static Public Member Functions
static vtkDataObjectWriter *	New ()
static int	IsTypeOf (const char *type)
static vtkDataObjectWriter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkDataObjectWriter ()
	~vtkDataObjectWriter ()
void	WriteData ()
virtual int	FillInputPortInformation (int port, vtkInformation *info)
Protected Attributes
vtkDataWriter *	Writer

---

Member Typedef Documentation

typedef vtkWriter vtkDataObjectWriter::Superclass

Reimplemented from vtkWriter. Definition at line 42 of file vtkDataObjectWriter.h.

---

Constructor & Destructor Documentation

vtkDataObjectWriter::vtkDataObjectWriter (   )  [protected]

vtkDataObjectWriter::~vtkDataObjectWriter (   )  [protected]

---

Member Function Documentation

static vtkDataObjectWriter* vtkDataObjectWriter::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkAlgorithm.

virtual const char* vtkDataObjectWriter::GetClassName (   )  [virtual]

Reimplemented from vtkWriter.

static int vtkDataObjectWriter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkWriter.

virtual int vtkDataObjectWriter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkWriter.

static vtkDataObjectWriter* vtkDataObjectWriter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkWriter.

void vtkDataObjectWriter::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkWriter.

void vtkDataObjectWriter::SetFileName (  const char *  filename  )  [inline]

Methods delegated to vtkDataWriter, see vtkDataWriter. Definition at line 47 of file vtkDataObjectWriter.h.

char* vtkDataObjectWriter::GetFileName (   )  [inline]

Definition at line 48 of file vtkDataObjectWriter.h.

void vtkDataObjectWriter::SetHeader (  const char *  header  )  [inline]

Definition at line 49 of file vtkDataObjectWriter.h.

char* vtkDataObjectWriter::GetHeader (   )  [inline]

Definition at line 50 of file vtkDataObjectWriter.h.

void vtkDataObjectWriter::SetFileType (  int  type  )  [inline]

Definition at line 51 of file vtkDataObjectWriter.h.

int vtkDataObjectWriter::GetFileType (   )  [inline]

Definition at line 52 of file vtkDataObjectWriter.h.

void vtkDataObjectWriter::SetFileTypeToASCII (   )  [inline]

Definition at line 53 of file vtkDataObjectWriter.h. References VTK_ASCII.

void vtkDataObjectWriter::SetFileTypeToBinary (   )  [inline]

Definition at line 54 of file vtkDataObjectWriter.h. References VTK_BINARY.

void vtkDataObjectWriter::SetFieldDataName (  const char *  fieldname  )  [inline]

Definition at line 55 of file vtkDataObjectWriter.h.

char* vtkDataObjectWriter::GetFieldDataName (   )  [inline]

Definition at line 56 of file vtkDataObjectWriter.h.

void vtkDataObjectWriter::WriteData (   )  [protected, virtual]

Implements vtkWriter.

virtual int vtkDataObjectWriter::FillInputPortInformation (  int  port, vtkInformation *  info )  [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkAlgorithm.

---

Member Data Documentation

vtkDataWriter* vtkDataObjectWriter::Writer [protected]

Definition at line 64 of file vtkDataObjectWriter.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkDataObjectWriter.h

---
