vtkDataWriter Class Reference

#include <vtkDataWriter.h>

Inheritance diagram for vtkDataWriter:

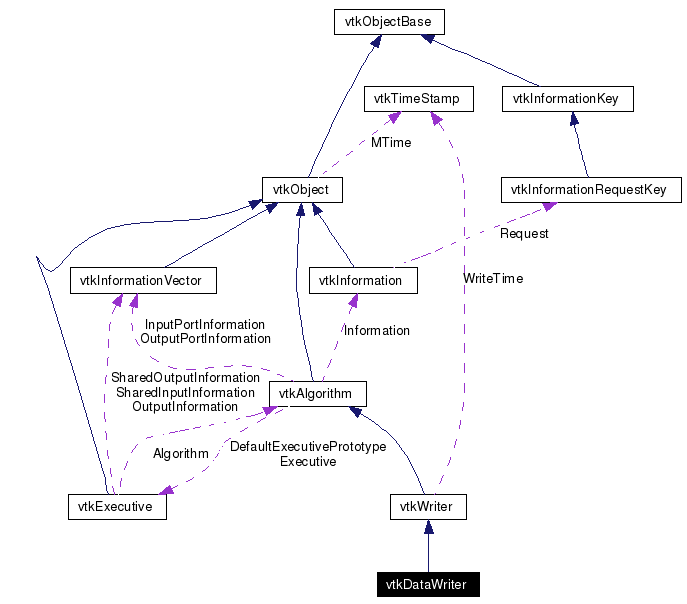

[legend]Collaboration diagram for vtkDataWriter:

[legend]List of all members.

---

Detailed Description

helper class for objects that write vtk data files

vtkDataWriter is a helper class that opens and writes the vtk header and point data (e.g., scalars, vectors, normals, etc.) from a vtk data file. See text for various formats.

See also:

vtkDataSetWriter vtkPolyDataWriter vtkStructuredGridWriter vtkStructuredPointsWriter vtkUnstructuredGridWriter vtkFieldDataWriter vtkRectilinearGridWriter

Definition at line 39 of file vtkDataWriter.h.

virtual void	SetFileName (const char *)
virtual char *	GetFileName ()
static vtkDataWriter *	New ()
Public Types
typedef vtkWriter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual ostream *	OpenVTKFile ()
int	WriteHeader (ostream *fp)
int	WritePoints (ostream *fp, vtkPoints *p)
int	WriteCoordinates (ostream *fp, vtkDataArray *coords, int axes)
int	WriteCells (ostream *fp, vtkCellArray *cells, const char *label)
int	WriteCellData (ostream *fp, vtkDataSet *ds)
int	WritePointData (ostream *fp, vtkDataSet *ds)
int	WriteFieldData (ostream *fp, vtkFieldData *f)
int	WriteDataSetData (ostream *fp, vtkDataSet *ds)
void	CloseVTKFile (ostream *fp)
virtual void	SetWriteToOutputString (int)
virtual int	GetWriteToOutputString ()
virtual void	WriteToOutputStringOn ()
virtual void	WriteToOutputStringOff ()
virtual int	GetOutputStringLength ()
virtual char *	GetOutputString ()
unsigned char *	GetBinaryOutputString ()
char *	RegisterAndGetOutputString ()
virtual void	SetHeader (const char *)
virtual char *	GetHeader ()
virtual void	SetFileType (int)
virtual int	GetFileType ()
void	SetFileTypeToASCII ()
void	SetFileTypeToBinary ()
virtual void	SetScalarsName (const char *)
virtual char *	GetScalarsName ()
virtual void	SetVectorsName (const char *)
virtual char *	GetVectorsName ()
virtual void	SetTensorsName (const char *)
virtual char *	GetTensorsName ()
virtual void	SetNormalsName (const char *)
virtual char *	GetNormalsName ()
virtual void	SetTCoordsName (const char *)
virtual char *	GetTCoordsName ()
virtual void	SetLookupTableName (const char *)
virtual char *	GetLookupTableName ()
virtual void	SetFieldDataName (const char *)
virtual char *	GetFieldDataName ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkDataWriter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkDataWriter ()
	~vtkDataWriter ()
void	WriteData ()
int	WriteArray (ostream *fp, int dataType, vtkDataArray *data, const char *format, int num, int numComp)
int	WriteScalarData (ostream *fp, vtkDataArray *s, int num)
int	WriteVectorData (ostream *fp, vtkDataArray *v, int num)
int	WriteNormalData (ostream *fp, vtkDataArray *n, int num)
int	WriteTCoordData (ostream *fp, vtkDataArray *tc, int num)
int	WriteTensorData (ostream *fp, vtkDataArray *t, int num)
Protected Attributes
int	WriteToOutputString
char *	OutputString
int	OutputStringLength
int	OutputStringAllocatedLength
char *	FileName
char *	Header
int	FileType
char *	ScalarsName
char *	VectorsName
char *	TensorsName
char *	TCoordsName
char *	NormalsName
char *	LookupTableName
char *	FieldDataName

---

Member Typedef Documentation

typedef vtkWriter vtkDataWriter::Superclass

Reimplemented from vtkWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataSetWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkSTLWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, vtkUnstructuredGridWriter, and vtkPDataSetWriter. Definition at line 42 of file vtkDataWriter.h.

---

Constructor & Destructor Documentation

vtkDataWriter::vtkDataWriter (   )  [protected]

vtkDataWriter::~vtkDataWriter (   )  [protected]

---

Member Function Documentation

virtual const char* vtkDataWriter::GetClassName (   )  [virtual]

Reimplemented from vtkWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataSetWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkSTLWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, vtkUnstructuredGridWriter, and vtkPDataSetWriter.

static int vtkDataWriter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataSetWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkSTLWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, vtkUnstructuredGridWriter, and vtkPDataSetWriter.

virtual int vtkDataWriter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataSetWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkSTLWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, vtkUnstructuredGridWriter, and vtkPDataSetWriter.

static vtkDataWriter* vtkDataWriter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataSetWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkSTLWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, vtkUnstructuredGridWriter, and vtkPDataSetWriter.

void vtkDataWriter::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataSetWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkSTLWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, vtkUnstructuredGridWriter, and vtkPDataSetWriter.

static vtkDataWriter* vtkDataWriter::New (   )  [static]

Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates. Reimplemented from vtkAlgorithm. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataSetWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkSTLWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, vtkUnstructuredGridWriter, and vtkPDataSetWriter.

virtual void vtkDataWriter::SetFileName (  const char *   )  [virtual]

Specify file name of vtk polygon data file to write.

virtual char* vtkDataWriter::GetFileName (   )  [virtual]

Specify file name of vtk polygon data file to write.

virtual void vtkDataWriter::SetWriteToOutputString (  int   )  [virtual]

Enable writing to an OutputString instead of the default, a file.

virtual int vtkDataWriter::GetWriteToOutputString (   )  [virtual]

Enable writing to an OutputString instead of the default, a file.

virtual void vtkDataWriter::WriteToOutputStringOn (   )  [virtual]

Enable writing to an OutputString instead of the default, a file.

virtual void vtkDataWriter::WriteToOutputStringOff (   )  [virtual]

Enable writing to an OutputString instead of the default, a file.

virtual int vtkDataWriter::GetOutputStringLength (   )  [virtual]

When WriteToOutputString in on, then a string is allocated, written to, and can be retrieved with these methods. The string is deleted during the next call to write ...

virtual char* vtkDataWriter::GetOutputString (   )  [virtual]

When WriteToOutputString in on, then a string is allocated, written to, and can be retrieved with these methods. The string is deleted during the next call to write ...

unsigned char* vtkDataWriter::GetBinaryOutputString (   )  [inline]

When WriteToOutputString in on, then a string is allocated, written to, and can be retrieved with these methods. The string is deleted during the next call to write ... Definition at line 68 of file vtkDataWriter.h.

char* vtkDataWriter::RegisterAndGetOutputString (   )

This convenience method returns the string, sets the IVAR to NULL, so that the user is responsible for deleting the string. I am not sure what the name should be, so it may change in the future.

virtual void vtkDataWriter::SetHeader (  const char *   )  [virtual]

Specify the header for the vtk data file.

virtual char* vtkDataWriter::GetHeader (   )  [virtual]

This convenience method returns the string, sets the IVAR to NULL, so that the user is responsible for deleting the string. I am not sure what the name should be, so it may change in the future.

virtual void vtkDataWriter::SetFileType (  int   )  [virtual]

Specify file type (ASCII or BINARY) for vtk data file.

virtual int vtkDataWriter::GetFileType (   )  [virtual]

Specify file type (ASCII or BINARY) for vtk data file.

void vtkDataWriter::SetFileTypeToASCII (   )  [inline]

Specify file type (ASCII or BINARY) for vtk data file. Definition at line 87 of file vtkDataWriter.h. References VTK_ASCII.

void vtkDataWriter::SetFileTypeToBinary (   )  [inline]

Specify file type (ASCII or BINARY) for vtk data file. Definition at line 88 of file vtkDataWriter.h. References VTK_BINARY.

virtual void vtkDataWriter::SetScalarsName (  const char *   )  [virtual]

Give a name to the scalar data. If not specified, uses default name "scalars".

virtual char* vtkDataWriter::GetScalarsName (   )  [virtual]

Give a name to the scalar data. If not specified, uses default name "scalars".

virtual void vtkDataWriter::SetVectorsName (  const char *   )  [virtual]

Give a name to the vector data. If not specified, uses default name "vectors".

virtual char* vtkDataWriter::GetVectorsName (   )  [virtual]

Give a name to the vector data. If not specified, uses default name "vectors".

virtual void vtkDataWriter::SetTensorsName (  const char *   )  [virtual]

Give a name to the tensors data. If not specified, uses default name "tensors".

virtual char* vtkDataWriter::GetTensorsName (   )  [virtual]

Give a name to the tensors data. If not specified, uses default name "tensors".

virtual void vtkDataWriter::SetNormalsName (  const char *   )  [virtual]

Give a name to the normals data. If not specified, uses default name "normals".

virtual char* vtkDataWriter::GetNormalsName (   )  [virtual]

Give a name to the normals data. If not specified, uses default name "normals".

virtual void vtkDataWriter::SetTCoordsName (  const char *   )  [virtual]

Give a name to the texture coordinates data. If not specified, uses default name "textureCoords".

virtual char* vtkDataWriter::GetTCoordsName (   )  [virtual]

Give a name to the texture coordinates data. If not specified, uses default name "textureCoords".

virtual void vtkDataWriter::SetLookupTableName (  const char *   )  [virtual]

Give a name to the lookup table. If not specified, uses default name "lookupTable".

virtual char* vtkDataWriter::GetLookupTableName (   )  [virtual]

Give a name to the lookup table. If not specified, uses default name "lookupTable".

virtual void vtkDataWriter::SetFieldDataName (  const char *   )  [virtual]

Give a name to the field data. If not specified, uses default name "field".

virtual char* vtkDataWriter::GetFieldDataName (   )  [virtual]

Give a name to the field data. If not specified, uses default name "field".

virtual ostream* vtkDataWriter::OpenVTKFile (   )  [virtual]

Open a vtk data file. Returns NULL if error.

int vtkDataWriter::WriteHeader (  ostream *  fp  )

Write the header of a vtk data file. Returns 0 if error.

int vtkDataWriter::WritePoints (  ostream *  fp, vtkPoints *  p )

Write out the points of the data set.

int vtkDataWriter::WriteCoordinates (  ostream *  fp, vtkDataArray *  coords, int  axes )

Write out coordinates for rectilinear grids.

int vtkDataWriter::WriteCells (  ostream *  fp, vtkCellArray *  cells, const char *  label )

Write out the cells of the data set.

int vtkDataWriter::WriteCellData (  ostream *  fp, vtkDataSet *  ds )

Write the cell data (e.g., scalars, vectors, ...) of a vtk dataset. Returns 0 if error.

int vtkDataWriter::WritePointData (  ostream *  fp, vtkDataSet *  ds )

Write the point data (e.g., scalars, vectors, ...) of a vtk dataset. Returns 0 if error.

int vtkDataWriter::WriteFieldData (  ostream *  fp, vtkFieldData *  f )

Write out the field data.

int vtkDataWriter::WriteDataSetData (  ostream *  fp, vtkDataSet *  ds )

Write out the data associated with the dataset (i.e. field data owned by the dataset itself - distinct from that owned by the cells or points).

void vtkDataWriter::CloseVTKFile (  ostream *  fp  )

Close a vtk file.

void vtkDataWriter::WriteData (   )  [protected, virtual]

Implements vtkWriter. Reimplemented in vtkBYUWriter, vtkCGMWriter, vtkDataSetWriter, vtkIVWriter, vtkMCubesWriter, vtkPLYWriter, vtkPolyDataWriter, vtkRectilinearGridWriter, vtkSTLWriter, vtkStructuredGridWriter, vtkStructuredPointsWriter, and vtkUnstructuredGridWriter.

int vtkDataWriter::WriteArray (  ostream *  fp, int  dataType, vtkDataArray *  data, const char *  format, int  num, int  numComp )  [protected]

int vtkDataWriter::WriteScalarData (  ostream *  fp, vtkDataArray *  s, int  num )  [protected]

int vtkDataWriter::WriteVectorData (  ostream *  fp, vtkDataArray *  v, int  num )  [protected]

int vtkDataWriter::WriteNormalData (  ostream *  fp, vtkDataArray *  n, int  num )  [protected]

int vtkDataWriter::WriteTCoordData (  ostream *  fp, vtkDataArray *  tc, int  num )  [protected]

int vtkDataWriter::WriteTensorData (  ostream *  fp, vtkDataArray *  t, int  num )  [protected]

---

Member Data Documentation

int vtkDataWriter::WriteToOutputString [protected]

Definition at line 179 of file vtkDataWriter.h.

char* vtkDataWriter::OutputString [protected]

Definition at line 180 of file vtkDataWriter.h.

int vtkDataWriter::OutputStringLength [protected]

Definition at line 181 of file vtkDataWriter.h.

int vtkDataWriter::OutputStringAllocatedLength [protected]

Definition at line 182 of file vtkDataWriter.h.

char* vtkDataWriter::FileName [protected]

Definition at line 186 of file vtkDataWriter.h.

char* vtkDataWriter::Header [protected]

Definition at line 187 of file vtkDataWriter.h.

int vtkDataWriter::FileType [protected]

Definition at line 188 of file vtkDataWriter.h.

char* vtkDataWriter::ScalarsName [protected]

Definition at line 190 of file vtkDataWriter.h.

char* vtkDataWriter::VectorsName [protected]

Definition at line 191 of file vtkDataWriter.h.

char* vtkDataWriter::TensorsName [protected]

Definition at line 192 of file vtkDataWriter.h.

char* vtkDataWriter::TCoordsName [protected]

Definition at line 193 of file vtkDataWriter.h.

char* vtkDataWriter::NormalsName [protected]

Definition at line 194 of file vtkDataWriter.h.

char* vtkDataWriter::LookupTableName [protected]

Definition at line 195 of file vtkDataWriter.h.

char* vtkDataWriter::FieldDataName [protected]

Definition at line 196 of file vtkDataWriter.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkDataWriter.h

---
