vtkRectilinearGrid Class Reference

#include <vtkRectilinearGrid.h>

Inheritance diagram for vtkRectilinearGrid:

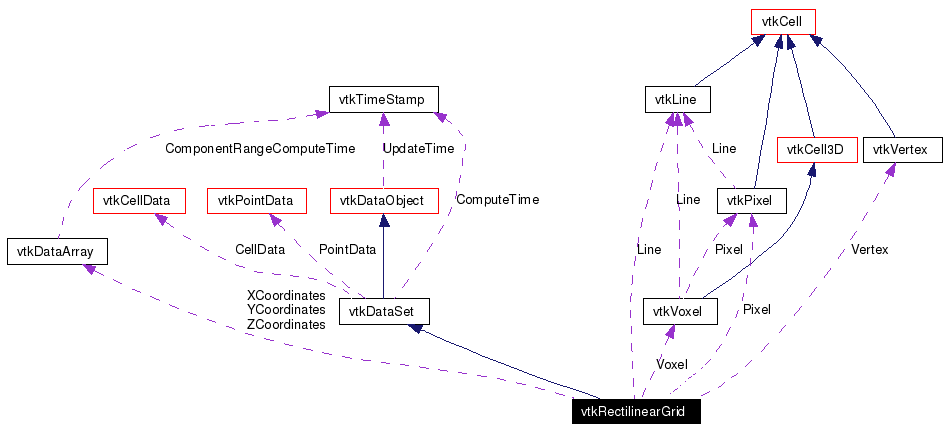

[legend]Collaboration diagram for vtkRectilinearGrid:

[legend]List of all members.

---

Detailed Description

a dataset that is topologically regular with variable spacing in the three coordinate directions

vtkRectilinearGrid is a data object that is a concrete implementation of vtkDataSet. vtkRectilinearGrid represents a geometric structure that is topologically regular with variable spacing in the three coordinate directions x-y-z.

To define a vtkRectilinearGrid, you must specify the dimensions of the data and provide three arrays of values specifying the coordinates along the x-y-z axes. The coordinate arrays are specified using three vtkDataArray objects (one for x, one for y, one for z).

Warning:

Make sure that the dimensions of the grid match the number of coordinates in the x-y-z directions. If not, unpredictable results (including program failure) may result. Also, you must supply coordinates in all three directions, even if the dataset topology is 2D, 1D, or 0D.

Examples:

vtkRectilinearGrid (Examples)

Tests:

vtkRectilinearGrid (Tests)

Definition at line 53 of file vtkRectilinearGrid.h.

virtual void	Crop ()
static vtkRectilinearGrid *	GetData (vtkInformation *info)
static vtkRectilinearGrid *	GetData (vtkInformationVector *v, int i=0)
	~vtkRectilinearGrid ()
Public Types
typedef vtkDataSet	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	GetDataObjectType ()
void	CopyStructure (vtkDataSet *ds)
int	GetDataDimension ()
int	ComputeStructuredCoordinates (double x[3], int ijk[3], double pcoords[3])
vtkIdType	ComputePointId (int ijk[3])
int	GetExtentType ()
void	Initialize ()
vtkIdType	GetNumberOfCells ()
vtkIdType	GetNumberOfPoints ()
double *	GetPoint (vtkIdType ptId)
void	GetPoint (vtkIdType id, double x[3])
vtkCell *	GetCell (vtkIdType cellId)
void	GetCell (vtkIdType cellId, vtkGenericCell *cell)
void	GetCellBounds (vtkIdType cellId, double bounds[6])
int	FindPoint (double x, double y, double z)
vtkIdType	FindPoint (double x[3])
vtkIdType	FindCell (double x[3], vtkCell *cell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)
vtkIdType	FindCell (double x[3], vtkCell *cell, vtkGenericCell *gencell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)
vtkCell *	FindAndGetCell (double x[3], vtkCell *cell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)
int	GetCellType (vtkIdType cellId)
void	GetCellPoints (vtkIdType cellId, vtkIdList *ptIds)
void	GetPointCells (vtkIdType ptId, vtkIdList *cellIds)
void	ComputeBounds ()
int	GetMaxCellSize ()
void	GetCellNeighbors (vtkIdType cellId, vtkIdList *ptIds, vtkIdList *cellIds)
void	SetDimensions (int i, int j, int k)
void	SetDimensions (int dim[3])
virtual int *	GetDimensions ()
virtual void	GetDimensions (int data[3])
vtkIdType	ComputeCellId (int ijk[3])
virtual void	SetXCoordinates (vtkDataArray *)
virtual vtkDataArray *	GetXCoordinates ()
virtual void	SetYCoordinates (vtkDataArray *)
virtual vtkDataArray *	GetYCoordinates ()
virtual void	SetZCoordinates (vtkDataArray *)
virtual vtkDataArray *	GetZCoordinates ()
void	SetExtent (int extent[6])
void	SetExtent (int x1, int x2, int y1, int y2, int z1, int z2)
virtual int *	GetExtent ()
virtual void	GetExtent (int &, int &, int &, int &, int &, int &)
virtual void	GetExtent (int[6])
unsigned long	GetActualMemorySize ()
void	ShallowCopy (vtkDataObject *src)
void	DeepCopy (vtkDataObject *src)
Static Public Member Functions
static vtkRectilinearGrid *	New ()
static int	IsTypeOf (const char *type)
static vtkRectilinearGrid *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkRectilinearGrid ()
Protected Attributes
vtkVertex *	Vertex
vtkLine *	Line
vtkPixel *	Pixel
vtkVoxel *	Voxel
int	Dimensions [3]
int	DataDescription
int	Extent [6]
vtkDataArray *	XCoordinates
vtkDataArray *	YCoordinates
vtkDataArray *	ZCoordinates
double	PointReturn [3]

---

Member Typedef Documentation

typedef vtkDataSet vtkRectilinearGrid::Superclass

Reimplemented from vtkDataSet. Definition at line 58 of file vtkRectilinearGrid.h.

---

Constructor & Destructor Documentation

vtkRectilinearGrid::vtkRectilinearGrid (   )  [protected]

vtkRectilinearGrid::~vtkRectilinearGrid (   )  [protected]

---

Member Function Documentation

static vtkRectilinearGrid* vtkRectilinearGrid::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkDataObject.

virtual const char* vtkRectilinearGrid::GetClassName (   )  [virtual]

Reimplemented from vtkDataSet.

static int vtkRectilinearGrid::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkDataSet.

virtual int vtkRectilinearGrid::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkDataSet.

static vtkRectilinearGrid* vtkRectilinearGrid::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkDataSet.

void vtkRectilinearGrid::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkDataSet.

int vtkRectilinearGrid::GetDataObjectType (   )  [inline, virtual]

Return what type of dataset this is. Reimplemented from vtkDataSet. Definition at line 62 of file vtkRectilinearGrid.h. References VTK_RECTILINEAR_GRID.

void vtkRectilinearGrid::CopyStructure (  vtkDataSet *  ds  )  [virtual]

Copy the geometric and topological structure of an input rectilinear grid object. Implements vtkDataSet.

void vtkRectilinearGrid::Initialize (   )  [virtual]

Restore object to initial state. Release memory back to system. Reimplemented from vtkDataSet.

vtkIdType vtkRectilinearGrid::GetNumberOfCells (   )  [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information. Implements vtkDataSet. Definition at line 224 of file vtkRectilinearGrid.h. References Dimensions.

vtkIdType vtkRectilinearGrid::GetNumberOfPoints (   )  [inline, virtual]

Restore object to initial state. Release memory back to system. Implements vtkDataSet. Definition at line 244 of file vtkRectilinearGrid.h. References Dimensions.

double* vtkRectilinearGrid::GetPoint (  vtkIdType  ptId  )  [virtual]

Restore object to initial state. Release memory back to system. Implements vtkDataSet.

void vtkRectilinearGrid::GetPoint (  vtkIdType  id, double  x[3] )  [virtual]

Restore object to initial state. Release memory back to system. Reimplemented from vtkDataSet.

vtkCell* vtkRectilinearGrid::GetCell (  vtkIdType  cellId  )  [virtual]

Restore object to initial state. Release memory back to system. Implements vtkDataSet.

void vtkRectilinearGrid::GetCell (  vtkIdType  cellId, vtkGenericCell *  cell )  [virtual]

Restore object to initial state. Release memory back to system. Implements vtkDataSet.

void vtkRectilinearGrid::GetCellBounds (  vtkIdType  cellId, double  bounds[6] )  [virtual]

Restore object to initial state. Release memory back to system. Reimplemented from vtkDataSet.

int vtkRectilinearGrid::FindPoint (  double  x, double  y, double  z )  [inline]

Restore object to initial state. Release memory back to system. Reimplemented from vtkDataSet. Definition at line 80 of file vtkRectilinearGrid.h. References vtkDataSet::FindPoint().

vtkIdType vtkRectilinearGrid::FindPoint (  double  x[3]  )  [virtual]

Restore object to initial state. Release memory back to system. Implements vtkDataSet.

vtkIdType vtkRectilinearGrid::FindCell (  double  x[3], vtkCell *  cell, vtkIdType  cellId, double  tol2, int &  subId, double  pcoords[3], double *  weights )  [virtual]

Restore object to initial state. Release memory back to system. Implements vtkDataSet.

vtkIdType vtkRectilinearGrid::FindCell (  double  x[3], vtkCell *  cell, vtkGenericCell *  gencell, vtkIdType  cellId, double  tol2, int &  subId, double  pcoords[3], double *  weights )  [virtual]

Restore object to initial state. Release memory back to system. Implements vtkDataSet.

vtkCell* vtkRectilinearGrid::FindAndGetCell (  double  x[3], vtkCell *  cell, vtkIdType  cellId, double  tol2, int &  subId, double  pcoords[3], double *  weights )  [virtual]

Restore object to initial state. Release memory back to system. Reimplemented from vtkDataSet.

int vtkRectilinearGrid::GetCellType (  vtkIdType  cellId  )  [virtual]

Restore object to initial state. Release memory back to system. Implements vtkDataSet.

void vtkRectilinearGrid::GetCellPoints (  vtkIdType  cellId, vtkIdList *  ptIds )  [inline, virtual]

Restore object to initial state. Release memory back to system. Implements vtkDataSet. Definition at line 91 of file vtkRectilinearGrid.h. References vtkStructuredData::GetCellPoints().

void vtkRectilinearGrid::GetPointCells (  vtkIdType  ptId, vtkIdList *  cellIds )  [inline, virtual]

Restore object to initial state. Release memory back to system. Implements vtkDataSet. Definition at line 94 of file vtkRectilinearGrid.h. References vtkStructuredData::GetPointCells().

void vtkRectilinearGrid::ComputeBounds (   )  [virtual]

Restore object to initial state. Release memory back to system. Reimplemented from vtkDataSet.

int vtkRectilinearGrid::GetMaxCellSize (   )  [inline, virtual]

Restore object to initial state. Release memory back to system. Implements vtkDataSet. Definition at line 97 of file vtkRectilinearGrid.h.

void vtkRectilinearGrid::GetCellNeighbors (  vtkIdType  cellId, vtkIdList *  ptIds, vtkIdList *  cellIds )  [virtual]

Restore object to initial state. Release memory back to system. Reimplemented from vtkDataSet.

void vtkRectilinearGrid::SetDimensions (  int  i, int  j, int  k )

Set dimensions of rectilinear grid dataset. This also sets the extent.

void vtkRectilinearGrid::SetDimensions (  int  dim[3]  )

Set dimensions of rectilinear grid dataset. This also sets the extent.

virtual int* vtkRectilinearGrid::GetDimensions (   )  [virtual]

Get dimensions of this rectilinear grid dataset.

virtual void vtkRectilinearGrid::GetDimensions (  int  data[3]  )  [virtual]

Get dimensions of this rectilinear grid dataset.

int vtkRectilinearGrid::GetDataDimension (   )  [inline]

Return the dimensionality of the data. Definition at line 249 of file vtkRectilinearGrid.h. References vtkStructuredData::GetDataDimension().

int vtkRectilinearGrid::ComputeStructuredCoordinates (  double  x[3], int  ijk[3], double  pcoords[3] )

Convenience function computes the structured coordinates for a point x[3]. The cell is specified by the array ijk[3], and the parametric coordinates in the cell are specified with pcoords[3]. The function returns a 0 if the point x is outside of the grid, and a 1 if inside the grid.

vtkIdType vtkRectilinearGrid::ComputePointId (  int  ijk[3]  )  [inline]

Given a location in structured coordinates (i-j-k), return the point id. Definition at line 254 of file vtkRectilinearGrid.h. References vtkStructuredData::ComputePointId().

vtkIdType vtkRectilinearGrid::ComputeCellId (  int  ijk[3]  )  [inline]

Given a location in structured coordinates (i-j-k), return the cell id. Definition at line 259 of file vtkRectilinearGrid.h. References vtkStructuredData::ComputeCellId().

virtual void vtkRectilinearGrid::SetXCoordinates (  vtkDataArray *   )  [virtual]

Specify the grid coordinates in the x-direction.

virtual vtkDataArray* vtkRectilinearGrid::GetXCoordinates (   )  [virtual]

Given a location in structured coordinates (i-j-k), return the cell id.

virtual void vtkRectilinearGrid::SetYCoordinates (  vtkDataArray *   )  [virtual]

Specify the grid coordinates in the y-direction.

virtual vtkDataArray* vtkRectilinearGrid::GetYCoordinates (   )  [virtual]

Specify the grid coordinates in the y-direction.

virtual void vtkRectilinearGrid::SetZCoordinates (  vtkDataArray *   )  [virtual]

Specify the grid coordinates in the z-direction.

virtual vtkDataArray* vtkRectilinearGrid::GetZCoordinates (   )  [virtual]

Specify the grid coordinates in the z-direction.

void vtkRectilinearGrid::SetExtent (  int  extent[6]  )

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

void vtkRectilinearGrid::SetExtent (  int  x1, int  x2, int  y1, int  y2, int  z1, int  z2 )

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual int* vtkRectilinearGrid::GetExtent (   )  [virtual]

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual void vtkRectilinearGrid::GetExtent (  int &  , int &  , int &  , int &  , int &  , int &  )  [virtual]

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual void vtkRectilinearGrid::GetExtent (  int  [6]  )  [virtual]

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

unsigned long vtkRectilinearGrid::GetActualMemorySize (   )  [virtual]

Return the actual size of the data in kilobytes. This number is valid only after the pipeline has updated. The memory size returned is guaranteed to be greater than or equal to the memory required to represent the data (e.g., extra space in arrays, etc. are not included in the return value). THIS METHOD IS THREAD SAFE. Reimplemented from vtkDataSet.

void vtkRectilinearGrid::ShallowCopy (  vtkDataObject *  src  )  [virtual]

Shallow and Deep copy. Reimplemented from vtkDataSet.

void vtkRectilinearGrid::DeepCopy (  vtkDataObject *  src  )  [virtual]

Return the actual size of the data in kilobytes. This number is valid only after the pipeline has updated. The memory size returned is guaranteed to be greater than or equal to the memory required to represent the data (e.g., extra space in arrays, etc. are not included in the return value). THIS METHOD IS THREAD SAFE. Reimplemented from vtkDataSet.

int vtkRectilinearGrid::GetExtentType (   )  [inline, virtual]

Structured extent. The extent type is a 3D extent Reimplemented from vtkDataObject. Definition at line 173 of file vtkRectilinearGrid.h. References VTK_3D_EXTENT.

virtual void vtkRectilinearGrid::Crop (   )  [virtual]

Reallocates and copies to set the Extent to the UpdateExtent. This is used internally when the exact extent is requested, and the source generated more than the update extent. Reimplemented from vtkDataObject.

static vtkRectilinearGrid* vtkRectilinearGrid::GetData (  vtkInformation *  info  )  [static]

Retrieve an instance of this class from an information object. Reimplemented from vtkDataSet.

static vtkRectilinearGrid* vtkRectilinearGrid::GetData (  vtkInformationVector *  v, int  i = 0 )  [static]

Reallocates and copies to set the Extent to the UpdateExtent. This is used internally when the exact extent is requested, and the source generated more than the update extent. Reimplemented from vtkDataSet.

---

Member Data Documentation

vtkVertex* vtkRectilinearGrid::Vertex [protected]

Definition at line 193 of file vtkRectilinearGrid.h.

vtkLine* vtkRectilinearGrid::Line [protected]

Definition at line 194 of file vtkRectilinearGrid.h.

vtkPixel* vtkRectilinearGrid::Pixel [protected]

Definition at line 195 of file vtkRectilinearGrid.h.

vtkVoxel* vtkRectilinearGrid::Voxel [protected]

Definition at line 196 of file vtkRectilinearGrid.h.

int vtkRectilinearGrid::Dimensions[3] [protected]

Definition at line 198 of file vtkRectilinearGrid.h. Referenced by GetNumberOfCells(), and GetNumberOfPoints().

int vtkRectilinearGrid::DataDescription [protected]

Definition at line 199 of file vtkRectilinearGrid.h.

int vtkRectilinearGrid::Extent[6] [protected]

Definition at line 201 of file vtkRectilinearGrid.h.

vtkDataArray* vtkRectilinearGrid::XCoordinates [protected]

Definition at line 203 of file vtkRectilinearGrid.h.

vtkDataArray* vtkRectilinearGrid::YCoordinates [protected]

Definition at line 204 of file vtkRectilinearGrid.h.

vtkDataArray* vtkRectilinearGrid::ZCoordinates [protected]

Definition at line 205 of file vtkRectilinearGrid.h.

double vtkRectilinearGrid::PointReturn[3] [protected]

Definition at line 208 of file vtkRectilinearGrid.h.

---

The documentation for this class was generated from the following file:

• dox/Filtering/vtkRectilinearGrid.h

---
