vtkDataSetTriangleFilter Class Reference

#include <vtkDataSetTriangleFilter.h>

Inheritance diagram for vtkDataSetTriangleFilter:

[legend]Collaboration diagram for vtkDataSetTriangleFilter:

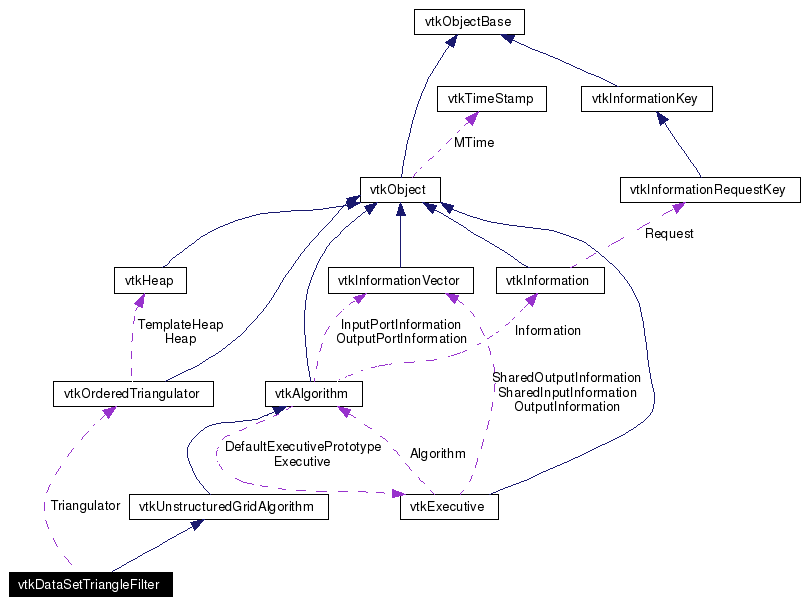

[legend]List of all members.

---

Detailed Description

triangulate any type of dataset

vtkDataSetTriangleFilter generates n-dimensional simplices from any input dataset. That is, 3D cells are converted to tetrahedral meshes, 2D cells to triangles, and so on. The triangulation is guaranteed to be compatible.

This filter uses simple 1D and 2D triangulation techniques for cells that are of topological dimension 2 or less. For 3D cells--due to the issue of face compatibility across quadrilateral faces (which way to orient the diagonal?)--a fancier ordered Delaunay triangulation is used. This approach produces templates on the fly for triangulating the cells. The templates are then used to do the actual triangulation.

See also:

vtkOrderedTriangulator vtkTriangleFilter

Examples:

vtkDataSetTriangleFilter (Examples)

Tests:

vtkDataSetTriangleFilter (Tests)

Definition at line 46 of file vtkDataSetTriangleFilter.h.

Public Types
typedef vtkUnstructuredGridAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static vtkDataSetTriangleFilter *	New ()
static int	IsTypeOf (const char *type)
static vtkDataSetTriangleFilter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkDataSetTriangleFilter ()
	~vtkDataSetTriangleFilter ()
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	FillInputPortInformation (int port, vtkInformation *info)
void	StructuredExecute (vtkDataSet *, vtkUnstructuredGrid *)
void	UnstructuredExecute (vtkDataSet *, vtkUnstructuredGrid *)
Protected Attributes
vtkOrderedTriangulator *	Triangulator

---

Member Typedef Documentation

typedef vtkUnstructuredGridAlgorithm vtkDataSetTriangleFilter::Superclass

Reimplemented from vtkUnstructuredGridAlgorithm. Definition at line 50 of file vtkDataSetTriangleFilter.h.

---

Constructor & Destructor Documentation

vtkDataSetTriangleFilter::vtkDataSetTriangleFilter (   )  [protected]

vtkDataSetTriangleFilter::~vtkDataSetTriangleFilter (   )  [protected]

---

Member Function Documentation

static vtkDataSetTriangleFilter* vtkDataSetTriangleFilter::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkUnstructuredGridAlgorithm.

virtual const char* vtkDataSetTriangleFilter::GetClassName (   )  [virtual]

Reimplemented from vtkUnstructuredGridAlgorithm.

static int vtkDataSetTriangleFilter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkDataSetTriangleFilter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkUnstructuredGridAlgorithm.

static vtkDataSetTriangleFilter* vtkDataSetTriangleFilter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkDataSetTriangleFilter::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkDataSetTriangleFilter::RequestData (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

This is called by the superclass. This is the method you should override. Reimplemented from vtkUnstructuredGridAlgorithm.

virtual int vtkDataSetTriangleFilter::FillInputPortInformation (  int  port, vtkInformation *  info )  [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkUnstructuredGridAlgorithm.

void vtkDataSetTriangleFilter::StructuredExecute (  vtkDataSet *  , vtkUnstructuredGrid *  )  [protected]

void vtkDataSetTriangleFilter::UnstructuredExecute (  vtkDataSet *  , vtkUnstructuredGrid *  )  [protected]

---

Member Data Documentation

vtkOrderedTriangulator* vtkDataSetTriangleFilter::Triangulator [protected]

Definition at line 63 of file vtkDataSetTriangleFilter.h.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkDataSetTriangleFilter.h

---
