vtkEnSight6Reader Class Reference

#include <vtkEnSight6Reader.h>

Inheritance diagram for vtkEnSight6Reader:

[legend]Collaboration diagram for vtkEnSight6Reader:

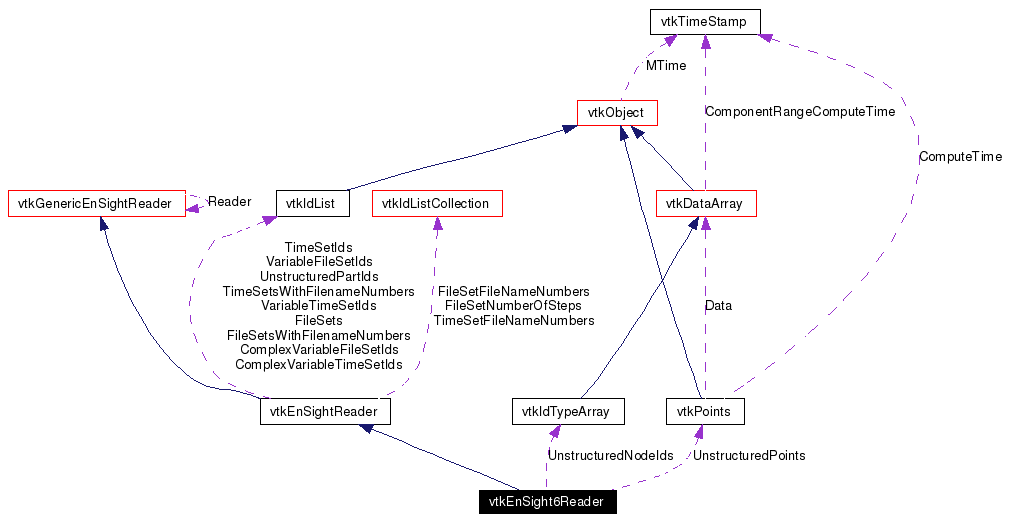

[legend]List of all members.

---

Detailed Description

class to read EnSight6 files

vtkEnSight6Reader is a class to read EnSight6 files into vtk. Because the different parts of the EnSight data can be of various data types, this reader produces multiple outputs, one per part in the input file. All variable information is being stored in field data. The descriptions listed in the case file are used as the array names in the field data. For complex vector variables, the description is appended with _r (for the array of real values) and _i (for the array if imaginary values). Complex scalar variables are stored as a single array with 2 components, real and imaginary, listed in that order.

Warning:

You must manually call Update on this reader and then connect the rest of the pipeline because (due to the nature of the file format) it is not possible to know ahead of time how many outputs you will have or what types they will be. This reader can only handle static EnSight datasets (both static geometry and variables).

Definition at line 45 of file vtkEnSight6Reader.h.

Public Types
typedef vtkEnSightReader	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static vtkEnSight6Reader *	New ()
static int	IsTypeOf (const char *type)
static vtkEnSight6Reader *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkEnSight6Reader ()
	~vtkEnSight6Reader ()
virtual int	ReadGeometryFile (const char *fileName, int timeStep)
virtual int	ReadMeasuredGeometryFile (const char *fileName, int timeStep)
virtual int	ReadScalarsPerNode (const char *fileName, const char *description, int timeStep, int measured=0, int numberOfComponents=1, int component=0)
virtual int	ReadVectorsPerNode (const char *fileName, const char *description, int timeStep, int measured=0)
virtual int	ReadTensorsPerNode (const char *fileName, const char *description, int timeStep)
virtual int	ReadScalarsPerElement (const char *fileName, const char *description, int timeStep, int numberOfComponents=1, int component=0)
virtual int	ReadVectorsPerElement (const char *fileName, const char *description, int timeStep)
virtual int	ReadTensorsPerElement (const char *fileName, const char *description, int timeStep)
virtual int	CreateUnstructuredGridOutput (int partId, char line[256], const char *name)
virtual int	CreateStructuredGridOutput (int partId, char line[256], const char *name)
Protected Attributes
int	NumberOfUnstructuredPoints
vtkPoints *	UnstructuredPoints
vtkIdTypeArray *	UnstructuredNodeIds

---

Member Typedef Documentation

typedef vtkEnSightReader vtkEnSight6Reader::Superclass

Reimplemented from vtkEnSightReader. Definition at line 49 of file vtkEnSight6Reader.h.

---

Constructor & Destructor Documentation

vtkEnSight6Reader::vtkEnSight6Reader (   )  [protected]

vtkEnSight6Reader::~vtkEnSight6Reader (   )  [protected]

---

Member Function Documentation

static vtkEnSight6Reader* vtkEnSight6Reader::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkGenericEnSightReader.

virtual const char* vtkEnSight6Reader::GetClassName (   )  [virtual]

Reimplemented from vtkEnSightReader.

static int vtkEnSight6Reader::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkEnSightReader.

virtual int vtkEnSight6Reader::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkEnSightReader.

static vtkEnSight6Reader* vtkEnSight6Reader::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkEnSightReader.

virtual void vtkEnSight6Reader::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadGeometryFile (  const char *  fileName, int  timeStep )  [protected, virtual]

Read the geometry file. If an error occurred, 0 is returned; otherwise 1. Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadMeasuredGeometryFile (  const char *  fileName, int  timeStep )  [protected, virtual]

Read the measured geometry file. If an error occurred, 0 is returned; otherwise 1. Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadScalarsPerNode (  const char *  fileName, const char *  description, int  timeStep, int  measured = 0, int  numberOfComponents = 1, int  component = 0 )  [protected, virtual]

Read scalars per node for this dataset. If an error occurred, 0 is returned; otherwise 1. If there will be more than one component in the scalars array, we assume that 0 is the first component added to the array. Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadVectorsPerNode (  const char *  fileName, const char *  description, int  timeStep, int  measured = 0 )  [protected, virtual]

Read vectors per node for this dataset. If an error occurred, 0 is returned; otherwise 1. Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadTensorsPerNode (  const char *  fileName, const char *  description, int  timeStep )  [protected, virtual]

Read tensors per node for this dataset. If an error occurred, 0 is returned; otherwise 1. Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadScalarsPerElement (  const char *  fileName, const char *  description, int  timeStep, int  numberOfComponents = 1, int  component = 0 )  [protected, virtual]

Read scalars per element for this dataset. If an error occurred, 0 is returned; otherwise 1. If there will be more than one component in the scalars array, we assume that 0 is the first component added to the array. Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadVectorsPerElement (  const char *  fileName, const char *  description, int  timeStep )  [protected, virtual]

Read vectors per element for this dataset. If an error occurred, 0 is returned; otherwise 1. Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadTensorsPerElement (  const char *  fileName, const char *  description, int  timeStep )  [protected, virtual]

Read tensors per element for this dataset. If an error occurred, 0 is returned; otherwise 1. Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::CreateUnstructuredGridOutput (  int  partId, char  line[256], const char *  name )  [protected, virtual]

Read an unstructured part (partId) from the geometry file and create a vtkUnstructuredGrid output. Return 0 if EOF reached.

virtual int vtkEnSight6Reader::CreateStructuredGridOutput (  int  partId, char  line[256], const char *  name )  [protected, virtual]

Read a structured part from the geometry file and create a vtkStructuredGridOutput. Return 0 if EOF reached.

---

Member Data Documentation

int vtkEnSight6Reader::NumberOfUnstructuredPoints [protected]

Definition at line 130 of file vtkEnSight6Reader.h.

vtkPoints* vtkEnSight6Reader::UnstructuredPoints [protected]

Definition at line 131 of file vtkEnSight6Reader.h.

vtkIdTypeArray* vtkEnSight6Reader::UnstructuredNodeIds [protected]

Definition at line 132 of file vtkEnSight6Reader.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkEnSight6Reader.h

---
