vtkGenericEnSightReader Class Reference

#include <vtkGenericEnSightReader.h>

Inheritance diagram for vtkGenericEnSightReader:

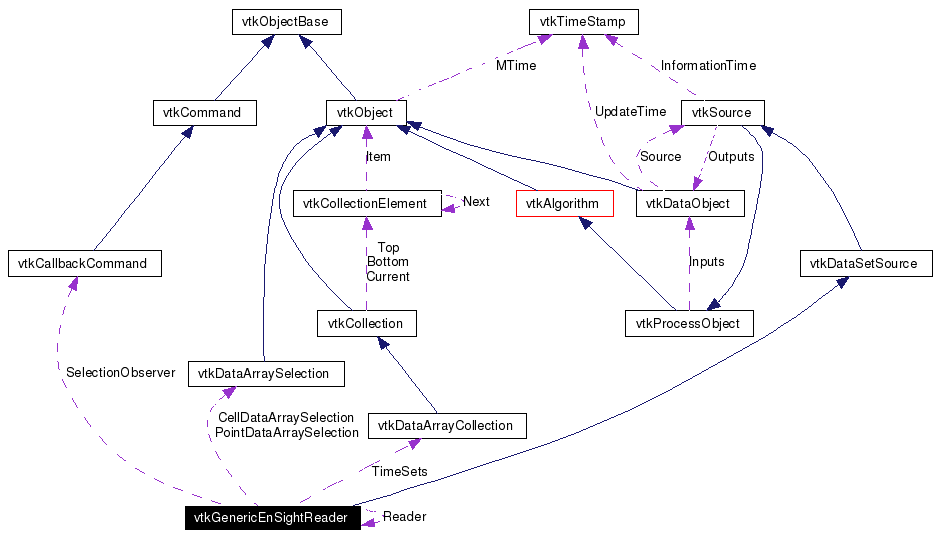

[legend]Collaboration diagram for vtkGenericEnSightReader:

[legend]List of all members.

Detailed Description

class to read any type of EnSight files

The class vtkGenericEnSightReader allows the user to read an EnSight data set without a priori knowledge of what type of EnSight data set it is.

Tests:: vtkGenericEnSightReader (Tests)

Member Typedef Documentation

typedef vtkDataSetSource vtkGenericEnSightReader::Superclass

Reimplemented from vtkDataSetSource.
Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, and vtkEnSightReader.
Definition at line 42 of file vtkGenericEnSightReader.h.

Member Enumeration Documentation

enum vtkGenericEnSightReader::FileTypes

Enumerator:

ENSIGHT_6

ENSIGHT_6_BINARY

ENSIGHT_GOLD

ENSIGHT_GOLD_BINARY

ENSIGHT_MASTER_SERVER

Definition at line 165 of file vtkGenericEnSightReader.h.

anonymous enum

Enumerator:

FILE_BIG_ENDIAN

FILE_LITTLE_ENDIAN

FILE_UNKNOWN_ENDIAN

Definition at line 187 of file vtkGenericEnSightReader.h.

Constructor & Destructor Documentation

vtkGenericEnSightReader::vtkGenericEnSightReader ( ) [protected]

vtkGenericEnSightReader::~vtkGenericEnSightReader ( ) [protected]

Member Function Documentation

static vtkGenericEnSightReader* vtkGenericEnSightReader::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkAlgorithm.
Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, and vtkEnSightMasterServerReader.

virtual const char* vtkGenericEnSightReader::GetClassName ( ) [virtual]

Reimplemented from vtkDataSetSource.
Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, and vtkEnSightReader.

static int vtkGenericEnSightReader::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkDataSetSource.
Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, and vtkEnSightReader.

virtual int vtkGenericEnSightReader::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkDataSetSource.
Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, and vtkEnSightReader.

static vtkGenericEnSightReader* vtkGenericEnSightReader::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataSetSource.
Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, and vtkEnSightReader.

void vtkGenericEnSightReader::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkDataSetSource.
Reimplemented in vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, and vtkEnSightReader.

void vtkGenericEnSightReader::SetCaseFileName ( const char * fileName )

Set/Get the Case file name.

virtual char* vtkGenericEnSightReader::GetCaseFileName ( ) [virtual]

virtual void vtkGenericEnSightReader::SetFilePath ( const char * ) [virtual]

Set/Get the file path.

virtual char* vtkGenericEnSightReader::GetFilePath ( ) [virtual]

Set/Get the file path.

virtual void vtkGenericEnSightReader::Update ( ) [virtual]

Bring object up-to-date before execution. Update() checks modified time against last execution time, and re-executes object if necessary.
Reimplemented from vtkSource.
Reimplemented in vtkEnSightReader.

virtual void vtkGenericEnSightReader::ExecuteInformation ( ) [virtual]

Reimplemented from vtkSource.
Reimplemented in vtkEnSightMasterServerReader, and vtkEnSightReader.

virtual int vtkGenericEnSightReader::GetNumberOfVariables ( ) [virtual]

Get the number of variables listed in the case file.

virtual int vtkGenericEnSightReader::GetNumberOfComplexVariables ( ) [virtual]

int vtkGenericEnSightReader::GetNumberOfVariables ( int type )

Get the number of variables of a particular type.

virtual int vtkGenericEnSightReader::GetNumberOfScalarsPerNode ( ) [virtual]

Get the number of variables of a particular type.

virtual int vtkGenericEnSightReader::GetNumberOfVectorsPerNode ( ) [virtual]

Get the number of variables of a particular type.

virtual int vtkGenericEnSightReader::GetNumberOfTensorsSymmPerNode ( ) [virtual]

Get the number of variables of a particular type.

virtual int vtkGenericEnSightReader::GetNumberOfScalarsPerElement ( ) [virtual]

Get the number of variables of a particular type.

virtual int vtkGenericEnSightReader::GetNumberOfVectorsPerElement ( ) [virtual]

Get the number of variables of a particular type.

virtual int vtkGenericEnSightReader::GetNumberOfTensorsSymmPerElement ( ) [virtual]

Get the number of variables of a particular type.

virtual int vtkGenericEnSightReader::GetNumberOfScalarsPerMeasuredNode ( ) [virtual]

Get the number of variables of a particular type.

virtual int vtkGenericEnSightReader::GetNumberOfVectorsPerMeasuredNode ( ) [virtual]

Get the number of variables of a particular type.

virtual int vtkGenericEnSightReader::GetNumberOfComplexScalarsPerNode ( ) [virtual]

Get the number of variables of a particular type.

virtual int vtkGenericEnSightReader::GetNumberOfComplexVectorsPerNode ( ) [virtual]

Get the number of variables of a particular type.

virtual int vtkGenericEnSightReader::GetNumberOfComplexScalarsPerElement ( ) [virtual]

Get the number of variables of a particular type.

virtual int vtkGenericEnSightReader::GetNumberOfComplexVectorsPerElement ( ) [virtual]

Get the number of variables of a particular type.

const char* vtkGenericEnSightReader::GetDescription ( int n )

Get the nth description for a non-complex variable.

const char* vtkGenericEnSightReader::GetComplexDescription ( int n )

Get the nth description for a complex variable.

const char* vtkGenericEnSightReader::GetDescription ( int n,

int type

)

Get the nth description of a particular variable type. Returns NULL if no variable of this type exists in this data set. SCALAR_PER_NODE = 0; VECTOR_PER_NODE = 1; TENSOR_SYMM_PER_NODE = 2; SCALAR_PER_ELEMENT = 3; VECTOR_PER_ELEMENT = 4; TENSOR_SYMM_PER_ELEMENT = 5; SCALAR_PER_MEASURED_NODE = 6; VECTOR_PER_MEASURED_NODE = 7; COMPLEX_SCALAR_PER_NODE = 8; COMPLEX_VECTOR_PER_NODE 9; COMPLEX_SCALAR_PER_ELEMENT = 10; COMPLEX_VECTOR_PER_ELEMENT = 11

int vtkGenericEnSightReader::GetVariableType ( int n )

Get the variable type of variable n.

int vtkGenericEnSightReader::GetComplexVariableType ( int n )

Get the nth description of a particular variable type. Returns NULL if no variable of this type exists in this data set. SCALAR_PER_NODE = 0; VECTOR_PER_NODE = 1; TENSOR_SYMM_PER_NODE = 2; SCALAR_PER_ELEMENT = 3; VECTOR_PER_ELEMENT = 4; TENSOR_SYMM_PER_ELEMENT = 5; SCALAR_PER_MEASURED_NODE = 6; VECTOR_PER_MEASURED_NODE = 7; COMPLEX_SCALAR_PER_NODE = 8; COMPLEX_VECTOR_PER_NODE 9; COMPLEX_SCALAR_PER_ELEMENT = 10; COMPLEX_VECTOR_PER_ELEMENT = 11

virtual void vtkGenericEnSightReader::SetTimeValue ( float value ) [virtual]

Set/Get the time value at which to get the value.

virtual float vtkGenericEnSightReader::GetTimeValue ( ) [virtual]

Set/Get the time value at which to get the value.

virtual float vtkGenericEnSightReader::GetMinimumTimeValue ( ) [virtual]

Get the minimum or maximum time value for this data set.

virtual float vtkGenericEnSightReader::GetMaximumTimeValue ( ) [virtual]

Get the minimum or maximum time value for this data set.

virtual vtkDataArrayCollection* vtkGenericEnSightReader::GetTimeSets ( ) [virtual]

Get the time values per time set

int vtkGenericEnSightReader::DetermineEnSightVersion ( )

Reads the FORMAT part of the case file to determine whether this is an EnSight6 or EnSightGold data set. Returns 0 if the format is EnSight6, 1 if it is EnSightGold, and -1 otherwise (meaning an error occurred).

virtual void vtkGenericEnSightReader::ReadAllVariablesOn ( ) [virtual]

Set/get the flag for whether to read all the variables

virtual void vtkGenericEnSightReader::ReadAllVariablesOff ( ) [virtual]

Reads the FORMAT part of the case file to determine whether this is an EnSight6 or EnSightGold data set. Returns 0 if the format is EnSight6, 1 if it is EnSightGold, and -1 otherwise (meaning an error occurred).

virtual void vtkGenericEnSightReader::SetReadAllVariables ( int ) [virtual]

Reads the FORMAT part of the case file to determine whether this is an EnSight6 or EnSightGold data set. Returns 0 if the format is EnSight6, 1 if it is EnSightGold, and -1 otherwise (meaning an error occurred).

virtual int vtkGenericEnSightReader::GetReadAllVariables ( ) [virtual]

Reads the FORMAT part of the case file to determine whether this is an EnSight6 or EnSightGold data set. Returns 0 if the format is EnSight6, 1 if it is EnSightGold, and -1 otherwise (meaning an error occurred).

virtual vtkDataArraySelection* vtkGenericEnSightReader::GetPointDataArraySelection ( ) [virtual]

Get the data array selection tables used to configure which data arrays are loaded by the reader.

virtual vtkDataArraySelection* vtkGenericEnSightReader::GetCellDataArraySelection ( ) [virtual]

Get the data array selection tables used to configure which data arrays are loaded by the reader.

int vtkGenericEnSightReader::GetNumberOfPointArrays ( )

Get the number of point or cell arrays available in the input.

int vtkGenericEnSightReader::GetNumberOfCellArrays ( )

Get the number of point or cell arrays available in the input.

const char* vtkGenericEnSightReader::GetPointArrayName ( int index )

Get the name of the point or cell array with the given index in the input.

const char* vtkGenericEnSightReader::GetCellArrayName ( int index )

Get the name of the point or cell array with the given index in the input.

int vtkGenericEnSightReader::GetPointArrayStatus ( const char * name )

Get/Set whether the point or cell array with the given name is to be read.

int vtkGenericEnSightReader::GetCellArrayStatus ( const char * name )

Get/Set whether the point or cell array with the given name is to be read.

void vtkGenericEnSightReader::SetPointArrayStatus ( const char * name,

int status

)

Get/Set whether the point or cell array with the given name is to be read.

void vtkGenericEnSightReader::SetCellArrayStatus ( const char * name,

int status

)

Get/Set whether the point or cell array with the given name is to be read.

void vtkGenericEnSightReader::SetByteOrderToBigEndian ( )

Set the byte order of the file (remember, more Unix workstations write big endian whereas PCs write little endian). Default is big endian (since most older PLOT3D files were written by workstations).

void vtkGenericEnSightReader::SetByteOrderToLittleEndian ( )

Set the byte order of the file (remember, more Unix workstations write big endian whereas PCs write little endian). Default is big endian (since most older PLOT3D files were written by workstations).

virtual void vtkGenericEnSightReader::SetByteOrder ( int ) [virtual]

Set the byte order of the file (remember, more Unix workstations write big endian whereas PCs write little endian). Default is big endian (since most older PLOT3D files were written by workstations).

virtual int vtkGenericEnSightReader::GetByteOrder ( ) [virtual]

Set the byte order of the file (remember, more Unix workstations write big endian whereas PCs write little endian). Default is big endian (since most older PLOT3D files were written by workstations).

const char* vtkGenericEnSightReader::GetByteOrderAsString ( )

Set the byte order of the file (remember, more Unix workstations write big endian whereas PCs write little endian). Default is big endian (since most older PLOT3D files were written by workstations).

void vtkGenericEnSightReader::Execute ( ) [protected, virtual]

This method is the old style execute method
Reimplemented from vtkSource.
Reimplemented in vtkEnSightMasterServerReader, and vtkEnSightReader.

int vtkGenericEnSightReader::ReadLine ( char result[256] ) [protected]

Internal function to read in a line up to 256 characters. Returns zero if there was an error.

int vtkGenericEnSightReader::ReadBinaryLine ( char result[80] ) [protected]

Internal function to read up to 80 characters from a binary file. Returns zero if there was an error.

int vtkGenericEnSightReader::ReadNextDataLine ( char result[256] ) [protected]

virtual void vtkGenericEnSightReader::SetGeometryFileName ( const char * ) [protected, virtual]

Set/Get the geometry file name.
Reimplemented in vtkEnSightGoldReader, and vtkEnSightReader.

virtual char* vtkGenericEnSightReader::GetGeometryFileName ( ) [protected, virtual]

Reimplemented in vtkEnSightGoldReader, and vtkEnSightReader.

void vtkGenericEnSightReader::AddVariableDescription ( const char * description ) [protected]

Add a variable description to the appropriate array.
Reimplemented in vtkEnSightReader.

void vtkGenericEnSightReader::AddComplexVariableDescription ( const char * description ) [protected]

Add a variable description to the appropriate array.

void vtkGenericEnSightReader::AddVariableType ( int variableType ) [protected]

Add a variable type to the appropriate array.

void vtkGenericEnSightReader::AddComplexVariableType ( int variableType ) [protected]

Add a variable type to the appropriate array.

void vtkGenericEnSightReader::ReplaceWildcards ( char * fileName,

int timeSet,

int fileSet

) [protected]

Replace the wildcards in the geometry file name with appropriate filename numbers as specified in the time set or file set.

void vtkGenericEnSightReader::ReplaceWildcardsHelper ( char * fileName,

int num

) [protected]

Replace the wildcards in the geometry file name with appropriate filename numbers as specified in the time set or file set.

static void vtkGenericEnSightReader::SelectionModifiedCallback ( vtkObject * caller,

unsigned long eid,

void * clientdata,

void * calldata

) [static, protected]

void vtkGenericEnSightReader::SelectionModified ( ) [protected]

char** vtkGenericEnSightReader::CreateStringArray ( int numStrings ) [protected]

void vtkGenericEnSightReader::DestroyStringArray ( int numStrings,

char ** strings

) [protected]

void vtkGenericEnSightReader::SetDataArraySelectionSetsFromVariables ( ) [protected]

void vtkGenericEnSightReader::SetDataArraySelectionSetsFromReader ( ) [protected]

void vtkGenericEnSightReader::SetReaderDataArraySelectionSetsFromSelf ( ) [protected]

virtual void vtkGenericEnSightReader::SetTimeSets ( vtkDataArrayCollection * ) [protected, virtual]

int vtkGenericEnSightReader::InsertNewPartId ( int partId ) [protected]

Member Data Documentation

istream* vtkGenericEnSightReader::IS [protected]

Definition at line 260 of file vtkGenericEnSightReader.h.

FILE* vtkGenericEnSightReader::IFile [protected]

Reimplemented in vtkEnSight6BinaryReader, and vtkEnSightGoldBinaryReader.
Definition at line 261 of file vtkGenericEnSightReader.h.

vtkGenericEnSightReader* vtkGenericEnSightReader::Reader [protected]

Definition at line 262 of file vtkGenericEnSightReader.h.

char* vtkGenericEnSightReader::CaseFileName [protected]

Definition at line 264 of file vtkGenericEnSightReader.h.

char* vtkGenericEnSightReader::GeometryFileName [protected]

Definition at line 265 of file vtkGenericEnSightReader.h.

char* vtkGenericEnSightReader::FilePath [protected]

Definition at line 266 of file vtkGenericEnSightReader.h.

int* vtkGenericEnSightReader::VariableTypes [protected]

Definition at line 269 of file vtkGenericEnSightReader.h.

int* vtkGenericEnSightReader::ComplexVariableTypes [protected]

Definition at line 270 of file vtkGenericEnSightReader.h.

char** vtkGenericEnSightReader::VariableDescriptions [protected]

Definition at line 273 of file vtkGenericEnSightReader.h.

char** vtkGenericEnSightReader::ComplexVariableDescriptions [protected]

Definition at line 274 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfVariables [protected]

Definition at line 276 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfComplexVariables [protected]

Definition at line 277 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfScalarsPerNode [protected]

Definition at line 280 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfVectorsPerNode [protected]

Definition at line 281 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfTensorsSymmPerNode [protected]

Definition at line 282 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfScalarsPerElement [protected]

Definition at line 283 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfVectorsPerElement [protected]

Definition at line 284 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfTensorsSymmPerElement [protected]

Definition at line 285 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfScalarsPerMeasuredNode [protected]

Definition at line 286 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfVectorsPerMeasuredNode [protected]

Definition at line 287 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfComplexScalarsPerNode [protected]

Definition at line 288 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfComplexVectorsPerNode [protected]

Definition at line 289 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfComplexScalarsPerElement [protected]

Definition at line 290 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::NumberOfComplexVectorsPerElement [protected]

Definition at line 291 of file vtkGenericEnSightReader.h.

float vtkGenericEnSightReader::TimeValue [protected]

Definition at line 293 of file vtkGenericEnSightReader.h.

float vtkGenericEnSightReader::MinimumTimeValue [protected]

Definition at line 294 of file vtkGenericEnSightReader.h.

float vtkGenericEnSightReader::MaximumTimeValue [protected]

Definition at line 295 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::TimeValueInitialized [protected]

Definition at line 298 of file vtkGenericEnSightReader.h.

vtkDataArrayCollection* vtkGenericEnSightReader::TimeSets [protected]

Definition at line 300 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::ReadAllVariables [protected]

Definition at line 303 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::ByteOrder [protected]

Definition at line 305 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::EnSightVersion [protected]

Definition at line 309 of file vtkGenericEnSightReader.h.

vtkDataArraySelection* vtkGenericEnSightReader::PointDataArraySelection [protected]

Definition at line 313 of file vtkGenericEnSightReader.h.

vtkDataArraySelection* vtkGenericEnSightReader::CellDataArraySelection [protected]

Definition at line 314 of file vtkGenericEnSightReader.h.

vtkCallbackCommand* vtkGenericEnSightReader::SelectionObserver [protected]

Definition at line 318 of file vtkGenericEnSightReader.h.

int vtkGenericEnSightReader::SelectionModifiedDoNotCallModified [protected]

Definition at line 322 of file vtkGenericEnSightReader.h.

TranslationTableType* vtkGenericEnSightReader::TranslationTable [protected]

Definition at line 329 of file vtkGenericEnSightReader.h.

The documentation for this class was generated from the following file:

dox/IO/vtkGenericEnSightReader.h

Generated on Mon Jan 21 23:45:45 2008 for VTK by

1.4.3-20050530


Public Types
typedef vtkDataSetSource	Superclass
enum	FileTypes { ENSIGHT_6 = 0, ENSIGHT_6_BINARY = 1, ENSIGHT_GOLD = 2, ENSIGHT_GOLD_BINARY = 3, ENSIGHT_MASTER_SERVER = 4 }
enum	{ FILE_BIG_ENDIAN = 0, FILE_LITTLE_ENDIAN = 1, FILE_UNKNOWN_ENDIAN = 2 }
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	Update ()
const char *	GetDescription (int n)
const char *	GetComplexDescription (int n)

void	PrintSelf (ostream &os, vtkIndent indent)
void	SetCaseFileName (const char *fileName)
virtual char *	GetCaseFileName ()

virtual void	SetFilePath (const char *)
virtual char *	GetFilePath ()

virtual void	ExecuteInformation ()
virtual int	GetNumberOfVariables ()
virtual int	GetNumberOfComplexVariables ()

int	GetNumberOfVariables (int type)
virtual int	GetNumberOfScalarsPerNode ()
virtual int	GetNumberOfVectorsPerNode ()
virtual int	GetNumberOfTensorsSymmPerNode ()
virtual int	GetNumberOfScalarsPerElement ()
virtual int	GetNumberOfVectorsPerElement ()
virtual int	GetNumberOfTensorsSymmPerElement ()
virtual int	GetNumberOfScalarsPerMeasuredNode ()
virtual int	GetNumberOfVectorsPerMeasuredNode ()
virtual int	GetNumberOfComplexScalarsPerNode ()
virtual int	GetNumberOfComplexVectorsPerNode ()
virtual int	GetNumberOfComplexScalarsPerElement ()
virtual int	GetNumberOfComplexVectorsPerElement ()

const char *	GetDescription (int n, int type)
int	GetVariableType (int n)
int	GetComplexVariableType (int n)

virtual void	SetTimeValue (float value)
virtual float	GetTimeValue ()

virtual float	GetMinimumTimeValue ()
virtual float	GetMaximumTimeValue ()

virtual vtkDataArrayCollection *	GetTimeSets ()

int	DetermineEnSightVersion ()
virtual void	ReadAllVariablesOn ()
virtual void	ReadAllVariablesOff ()
virtual void	SetReadAllVariables (int)
virtual int	GetReadAllVariables ()

virtual vtkDataArraySelection *	GetPointDataArraySelection ()
virtual vtkDataArraySelection *	GetCellDataArraySelection ()

int	GetNumberOfPointArrays ()
int	GetNumberOfCellArrays ()

const char *	GetPointArrayName (int index)
const char *	GetCellArrayName (int index)

int	GetPointArrayStatus (const char *name)
int	GetCellArrayStatus (const char *name)
void	SetPointArrayStatus (const char *name, int status)
void	SetCellArrayStatus (const char *name, int status)

void	SetByteOrderToBigEndian ()
void	SetByteOrderToLittleEndian ()
virtual void	SetByteOrder (int)
virtual int	GetByteOrder ()
const char *	GetByteOrderAsString ()
Static Public Member Functions
static vtkGenericEnSightReader *	New ()
static int	IsTypeOf (const char *type)
static vtkGenericEnSightReader *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkGenericEnSightReader ()
	~vtkGenericEnSightReader ()
void	Execute ()
int	ReadLine (char result[256])
int	ReadBinaryLine (char result[80])
void	SelectionModified ()
char **	CreateStringArray (int numStrings)
void	DestroyStringArray (int numStrings, char **strings)
void	SetDataArraySelectionSetsFromVariables ()
void	SetDataArraySelectionSetsFromReader ()
void	SetReaderDataArraySelectionSetsFromSelf ()
virtual void	SetTimeSets (vtkDataArrayCollection *)
int	InsertNewPartId (int partId)

int	ReadNextDataLine (char result[256])
virtual void	SetGeometryFileName (const char *)
virtual char *	GetGeometryFileName ()

void	AddVariableDescription (const char *description)
void	AddComplexVariableDescription (const char *description)

void	AddVariableType (int variableType)
void	AddComplexVariableType (int variableType)

void	ReplaceWildcards (char *fileName, int timeSet, int fileSet)
void	ReplaceWildcardsHelper (char *fileName, int num)
Static Protected Member Functions
static void	SelectionModifiedCallback (vtkObject caller, unsigned long eid, void clientdata, void *calldata)
Protected Attributes
istream *	IS
FILE *	IFile
vtkGenericEnSightReader *	Reader
char *	CaseFileName
char *	GeometryFileName
char *	FilePath
int *	VariableTypes
int *	ComplexVariableTypes
char **	VariableDescriptions
char **	ComplexVariableDescriptions
int	NumberOfVariables
int	NumberOfComplexVariables
int	NumberOfScalarsPerNode
int	NumberOfVectorsPerNode
int	NumberOfTensorsSymmPerNode
int	NumberOfScalarsPerElement
int	NumberOfVectorsPerElement
int	NumberOfTensorsSymmPerElement
int	NumberOfScalarsPerMeasuredNode
int	NumberOfVectorsPerMeasuredNode
int	NumberOfComplexScalarsPerNode
int	NumberOfComplexVectorsPerNode
int	NumberOfComplexScalarsPerElement
int	NumberOfComplexVectorsPerElement
float	TimeValue
float	MinimumTimeValue
float	MaximumTimeValue
int	TimeValueInitialized
vtkDataArrayCollection *	TimeSets
int	ReadAllVariables
int	ByteOrder
int	EnSightVersion
vtkDataArraySelection *	PointDataArraySelection
vtkDataArraySelection *	CellDataArraySelection
vtkCallbackCommand *	SelectionObserver
int	SelectionModifiedDoNotCallModified
TranslationTableType *	TranslationTable

vtkGenericEnSightReader Class Reference

Detailed Description

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
