vtkEnSightMasterServerReader Class Reference

#include <vtkEnSightMasterServerReader.h>

Inheritance diagram for vtkEnSightMasterServerReader:

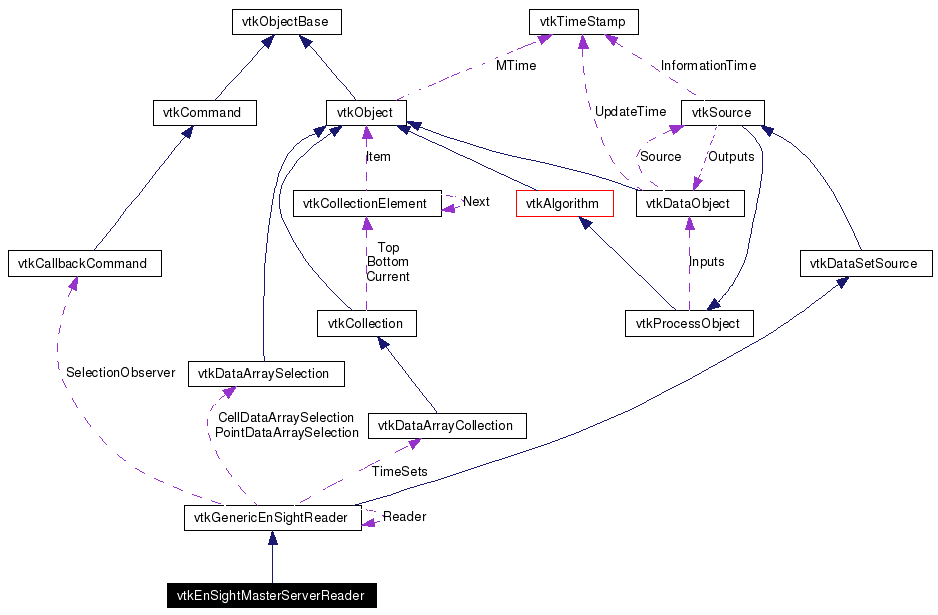

[legend]Collaboration diagram for vtkEnSightMasterServerReader:

[legend]List of all members.

---

Detailed Description

reader for compund EnSight files

Tests:

vtkEnSightMasterServerReader (Tests)

Definition at line 29 of file vtkEnSightMasterServerReader.h.

Public Types
typedef vtkGenericEnSightReader	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	DetermineFileName (int piece)
virtual char *	GetPieceCaseFileName ()
virtual void	SetCurrentPiece (int)
virtual int	GetCurrentPiece ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkEnSightMasterServerReader *	SafeDownCast (vtkObject *o)
static vtkEnSightMasterServerReader *	New ()
Protected Member Functions
	vtkEnSightMasterServerReader ()
	~vtkEnSightMasterServerReader ()
void	Execute ()
void	ExecuteInformation ()
virtual void	SetPieceCaseFileName (const char *)
Protected Attributes
char *	PieceCaseFileName
int	MaxNumberOfPieces
int	CurrentPiece

---

Member Typedef Documentation

typedef vtkGenericEnSightReader vtkEnSightMasterServerReader::Superclass

Reimplemented from vtkGenericEnSightReader. Definition at line 32 of file vtkEnSightMasterServerReader.h.

---

Constructor & Destructor Documentation

vtkEnSightMasterServerReader::vtkEnSightMasterServerReader (   )  [protected]

vtkEnSightMasterServerReader::~vtkEnSightMasterServerReader (   )  [protected]

---

Member Function Documentation

virtual const char* vtkEnSightMasterServerReader::GetClassName (   )  [virtual]

Reimplemented from vtkGenericEnSightReader.

static int vtkEnSightMasterServerReader::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkGenericEnSightReader.

virtual int vtkEnSightMasterServerReader::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkGenericEnSightReader.

static vtkEnSightMasterServerReader* vtkEnSightMasterServerReader::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkGenericEnSightReader.

void vtkEnSightMasterServerReader::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkGenericEnSightReader.

static vtkEnSightMasterServerReader* vtkEnSightMasterServerReader::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkGenericEnSightReader.

int vtkEnSightMasterServerReader::DetermineFileName (  int  piece  )

Determine which file should be read for piece

virtual char* vtkEnSightMasterServerReader::GetPieceCaseFileName (   )  [virtual]

Get the file name that will be read.

virtual void vtkEnSightMasterServerReader::SetCurrentPiece (  int   )  [virtual]

Set or get the current piece.

virtual int vtkEnSightMasterServerReader::GetCurrentPiece (   )  [virtual]

Set or get the current piece.

void vtkEnSightMasterServerReader::Execute (   )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkGenericEnSightReader.

void vtkEnSightMasterServerReader::ExecuteInformation (   )  [protected, virtual]

Reimplemented from vtkGenericEnSightReader.

virtual void vtkEnSightMasterServerReader::SetPieceCaseFileName (  const char *   )  [protected, virtual]

---

Member Data Documentation

char* vtkEnSightMasterServerReader::PieceCaseFileName [protected]

Definition at line 58 of file vtkEnSightMasterServerReader.h.

int vtkEnSightMasterServerReader::MaxNumberOfPieces [protected]

Definition at line 60 of file vtkEnSightMasterServerReader.h.

int vtkEnSightMasterServerReader::CurrentPiece [protected]

Definition at line 61 of file vtkEnSightMasterServerReader.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkEnSightMasterServerReader.h

---
