vtkExtractPolyDataGeometry Class Reference
#include <vtkExtractPolyDataGeometry.h>
Inheritance diagram for vtkExtractPolyDataGeometry:

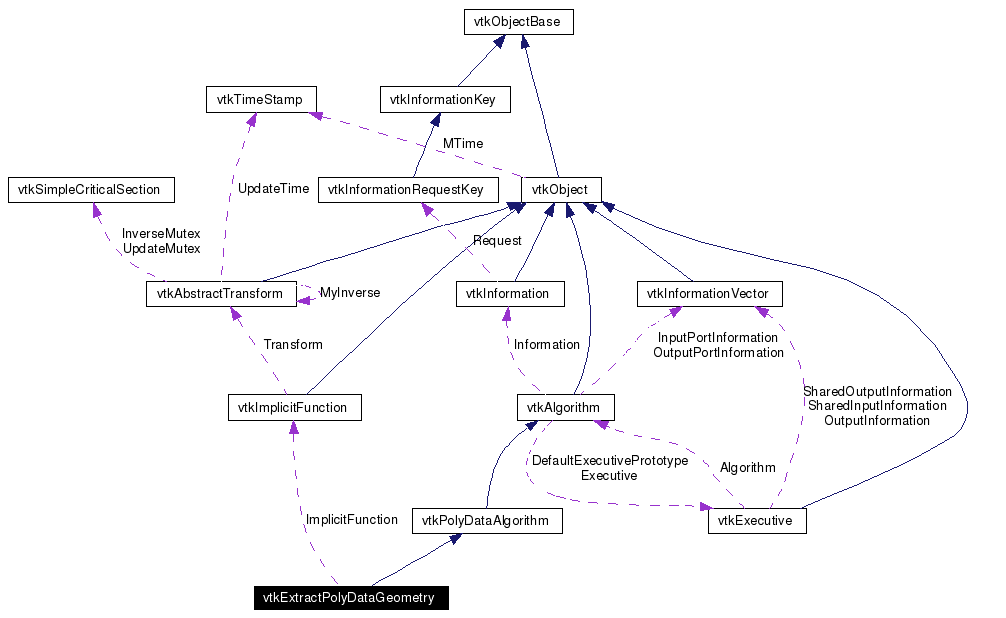

[legend]Collaboration diagram for vtkExtractPolyDataGeometry:
[legend]List of all members.
Detailed Description
extract vtkPolyData cells that lies either entirely inside or outside of a specified implicit function
vtkExtractPolyDataGeometry extracts from its input vtkPolyData all cells that are either completely inside or outside of a specified implicit function. This filter is specialized to vtkPolyData. On output the filter generates vtkPolyData.
To use this filter you must specify an implicit function. You must also specify whether to extract cells lying inside or outside of the implicit function. (The inside of an implicit function is the negative values region.) An option exists to extract cells that are neither inside nor outside (i.e., boundary).
A more general version of this filter is available for arbitrary vtkDataSet input (see vtkExtractGeometry).
- See also:
- vtkExtractGeometry vtkClipPolyData
- Tests:
- vtkExtractPolyDataGeometry (Tests)
Definition at line 47 of file vtkExtractPolyDataGeometry.h.
Member Typedef Documentation
Constructor & Destructor Documentation
| vtkExtractPolyDataGeometry::vtkExtractPolyDataGeometry |
( |
vtkImplicitFunction * |
f = NULL |
) |
[protected] |
|
| vtkExtractPolyDataGeometry::~vtkExtractPolyDataGeometry |
( |
|
) |
[protected] |
|
Member Function Documentation
| virtual const char* vtkExtractPolyDataGeometry::GetClassName |
( |
|
) |
[virtual] |
|
| static int vtkExtractPolyDataGeometry::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkPolyDataAlgorithm. |
| virtual int vtkExtractPolyDataGeometry::IsA |
( |
const char * |
type |
) |
[virtual] |
|
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkPolyDataAlgorithm. |
| void vtkExtractPolyDataGeometry::PrintSelf |
( |
ostream & |
os, |
|
|
vtkIndent |
indent |
|
) |
[virtual] |
|
|
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkPolyDataAlgorithm. |
| unsigned long vtkExtractPolyDataGeometry::GetMTime |
( |
|
) |
[virtual] |
|
|
|
Return the MTime taking into account changes to the implicit function
Reimplemented from vtkObject. |
| virtual void vtkExtractPolyDataGeometry::SetImplicitFunction |
( |
vtkImplicitFunction * |
|
) |
[virtual] |
|
|
|
Specify the implicit function for inside/outside checks. |
|
|
Return the MTime taking into account changes to the implicit function |
| virtual void vtkExtractPolyDataGeometry::SetExtractInside |
( |
int |
|
) |
[virtual] |
|
|
|
Boolean controls whether to extract cells that are inside of implicit function (ExtractInside == 1) or outside of implicit function (ExtractInside == 0). |
| virtual int vtkExtractPolyDataGeometry::GetExtractInside |
( |
|
) |
[virtual] |
|
|
|
Boolean controls whether to extract cells that are inside of implicit function (ExtractInside == 1) or outside of implicit function (ExtractInside == 0). |
| virtual void vtkExtractPolyDataGeometry::ExtractInsideOn |
( |
|
) |
[virtual] |
|
|
|
Boolean controls whether to extract cells that are inside of implicit function (ExtractInside == 1) or outside of implicit function (ExtractInside == 0). |
| virtual void vtkExtractPolyDataGeometry::ExtractInsideOff |
( |
|
) |
[virtual] |
|
|
|
Boolean controls whether to extract cells that are inside of implicit function (ExtractInside == 1) or outside of implicit function (ExtractInside == 0). |
| virtual void vtkExtractPolyDataGeometry::SetExtractBoundaryCells |
( |
int |
|
) |
[virtual] |
|
|
|
Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off. |
| virtual int vtkExtractPolyDataGeometry::GetExtractBoundaryCells |
( |
|
) |
[virtual] |
|
|
|
Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off. |
| virtual void vtkExtractPolyDataGeometry::ExtractBoundaryCellsOn |
( |
|
) |
[virtual] |
|
|
|
Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off. |
| virtual void vtkExtractPolyDataGeometry::ExtractBoundaryCellsOff |
( |
|
) |
[virtual] |
|
|
|
Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off. |
|
|
This is called by the superclass. This is the method you should override.
Reimplemented from vtkPolyDataAlgorithm. |
Member Data Documentation
The documentation for this class was generated from the following file:
