vtkGenericDataSet Class Reference

#include <vtkGenericDataSet.h>

Inheritance diagram for vtkGenericDataSet:

Inheritance graph
[legend]

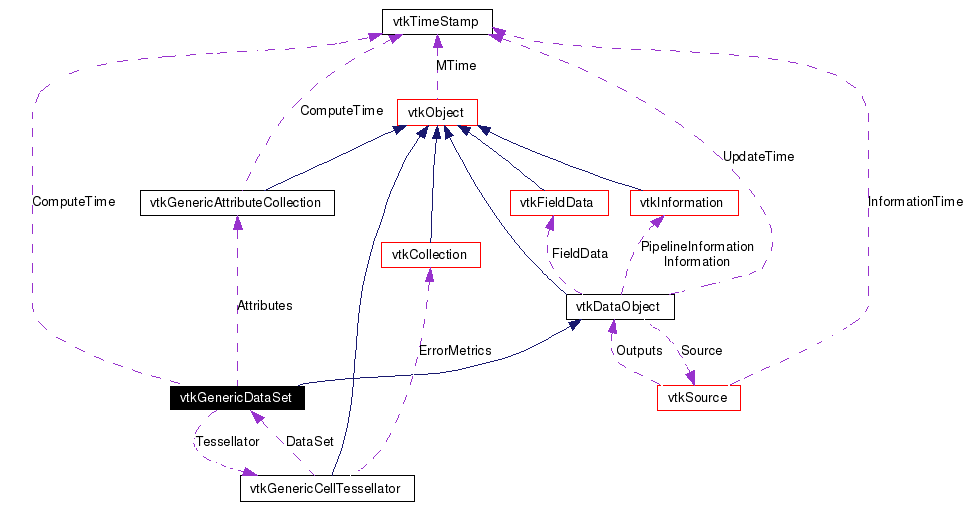

Collaboration diagram for vtkGenericDataSet:

Collaboration graph
[legend]
List of all members.

Detailed Description

defines dataset interface

In VTK, spatial-temporal data is defined in terms of a dataset. The dataset consists of geometry (e.g., points), topology (e.g., cells), and attributes (e.g., scalars, vectors, etc.) vtkGenericDataSet is an abstract class defining this abstraction.

Since vtkGenericDataSet provides a general interface to manipulate data, algorithms that process it tend to be slower than those specialized for a particular data type. For this reason, there are concrete, non-abstract subclasses that represent and provide access to data more efficiently. Note that filters to process this dataset type are currently found in the VTK/GenericFiltering/ subdirectory.

Unlike the vtkDataSet class, vtkGenericDataSet provides a more flexible interface including support for iterators. vtkGenericDataSet is also designed to interface VTK to external simulation packages without the penalty of copying memory (see VTK/GenericFiltering/README.html) for more information. Thus vtkGenericDataSet plays a central role in the adaptor framework.

Please note that this class introduces the concepts of "boundary cells". This refers to the boundaries of a cell (e.g., face of a tetrahedron) which may in turn be represented as a cell. Boundary cells are derivative topological features of cells, and are therefore never explicitly represented in the dataset. Often in visualization algorithms, looping over boundaries (edges or faces) is employed, while the actual dataset cells may not traversed. Thus there are methods to loop over these boundary cells.

Finally, as a point of clarification, points are not the same as vertices. Vertices refer to points, and points specify a position is space. Vertices are a type of 0-D cell. Also, the concept of a DOFNode, which is where coefficients for higher-order cells are kept, is a new concept introduced by the adaptor framework (see vtkGenericAdaptorCell for more information).

See also:
vtkGenericAdaptorCell vtkDataSet
Tests:
vtkGenericDataSet (Tests)

Definition at line 71 of file vtkGenericDataSet.h.
typedef vtkDataObject Superclass
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
static int IsTypeOf (const char *type)
static vtkGenericDataSetSafeDownCast (vtkObject *o)
virtual vtkIdType GetEstimatedSize ()=0
static vtkGenericDataSetGetData (vtkInformation *info)
static vtkGenericDataSetGetData (vtkInformationVector *v, int i=0)

Public Member Functions

virtual vtkIdType GetNumberOfPoints ()=0
virtual vtkIdType GetNumberOfCells (int dim=-1)=0
virtual int GetCellDimension ()=0
virtual void GetCellTypes (vtkCellTypes *types)
virtual unsigned long int GetMTime ()
virtual void ComputeBounds ()=0
virtual double * GetBounds ()
virtual void GetBounds (double bounds[6])
virtual double * GetCenter ()
virtual void GetCenter (double center[3])
virtual unsigned long GetActualMemorySize ()
int GetDataObjectType ()
virtual vtkGenericCellIteratorNewCellIterator (int dim=-1)=0
virtual vtkGenericCellIteratorNewBoundaryIterator (int dim=-1, int exteriorOnly=0)=0
virtual vtkGenericPointIteratorNewPointIterator ()=0
virtual int FindCell (double x[3], vtkGenericCellIterator *&cell, double tol2, int &subId, double pcoords[3])=0
virtual void FindPoint (double x[3], vtkGenericPointIterator *p)=0
virtual double GetLength ()
virtual vtkGenericAttributeCollectionGetAttributes ()
virtual void SetTessellator (vtkGenericCellTessellator *tessellator)
virtual vtkGenericCellTessellatorGetTessellator ()

Protected Member Functions

 vtkGenericDataSet ()
virtual ~vtkGenericDataSet ()

Protected Attributes

vtkGenericAttributeCollectionAttributes
vtkGenericCellTessellatorTessellator
double Bounds [6]
double Center [3]
vtkTimeStamp ComputeTime


Member Typedef Documentation

typedef vtkDataObject vtkGenericDataSet::Superclass


Standard VTK type and print macros.

Reimplemented from vtkDataObject.

Reimplemented in vtkBridgeDataSet.

Definition at line 76 of file vtkGenericDataSet.h.


Constructor & Destructor Documentation

vtkGenericDataSet::vtkGenericDataSet  )  [protected]


Constructor with uninitialized bounds (1,-1, 1,-1, 1,-1), empty attribute collection and default tessellator.

virtual vtkGenericDataSet::~vtkGenericDataSet  )  [protected, virtual]



Member Function Documentation

virtual const char* vtkGenericDataSet::GetClassName  )  [virtual]


Standard VTK type and print macros.

Reimplemented from vtkDataObject.

Reimplemented in vtkBridgeDataSet.

static int vtkGenericDataSet::IsTypeOf const char *  type  )  [static]


Standard VTK type and print macros.

Reimplemented from vtkDataObject.

Reimplemented in vtkBridgeDataSet.

virtual int vtkGenericDataSet::IsA const char *  type  )  [virtual]


Standard VTK type and print macros.

Reimplemented from vtkDataObject.

Reimplemented in vtkBridgeDataSet.

static vtkGenericDataSet* vtkGenericDataSet::SafeDownCast vtkObject o  )  [static]


Standard VTK type and print macros.

Reimplemented from vtkDataObject.

Reimplemented in vtkBridgeDataSet.

void vtkGenericDataSet::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Standard VTK type and print macros.

Reimplemented from vtkDataObject.

Reimplemented in vtkBridgeDataSet.

virtual vtkIdType vtkGenericDataSet::GetNumberOfPoints  )  [pure virtual]


Return the number of points composing the dataset. See NewPointIterator() for more details.

Postcondition:
positive_result: result>=0

Implemented in vtkBridgeDataSet.

virtual vtkIdType vtkGenericDataSet::GetNumberOfCells int  dim = -1  )  [pure virtual]


Return the number of cells that explicitly define the dataset. See NewCellIterator() for more details.

Precondition:
valid_dim_range: (dim>=-1) && (dim<=3)
Postcondition:
positive_result: result>=0

Implemented in vtkBridgeDataSet.

virtual int vtkGenericDataSet::GetCellDimension  )  [pure virtual]


Return -1 if the dataset is explicitly defined by cells of varying dimensions or if there are no cells. If the dataset is explicitly defined by cells of a unique dimension, return this dimension.

Postcondition:
valid_range: (result>=-1) && (result<=3)

Implemented in vtkBridgeDataSet.

virtual void vtkGenericDataSet::GetCellTypes vtkCellTypes types  )  [virtual]


Get a list of types of cells in a dataset. The list consists of an array of types (not necessarily in any order), with a single entry per type. For example a dataset 5 triangles, 3 lines, and 100 hexahedra would result a list of three entries, corresponding to the types VTK_TRIANGLE, VTK_LINE, and VTK_HEXAHEDRON. THIS METHOD IS THREAD SAFE IF FIRST CALLED FROM A SINGLE THREAD AND THE DATASET IS NOT MODIFIED

Precondition:
types_exist: types!=0

Reimplemented in vtkBridgeDataSet.

virtual vtkGenericCellIterator* vtkGenericDataSet::NewCellIterator int  dim = -1  )  [pure virtual]


Return an iterator to traverse cells of dimension `dim' (or all dimensions if -1) that explicitly define the dataset. For instance, it will return only tetrahedra if the mesh is defined by tetrahedra. If the mesh is composed of two parts, one with tetrahedra and another part with triangles, it will return both, but will not return the boundary edges and vertices of these cells. The user is responsible for deleting the iterator.

Precondition:
valid_dim_range: (dim>=-1) && (dim<=3)
Postcondition:
result_exists: result!=0

Implemented in vtkBridgeDataSet.

virtual vtkGenericCellIterator* vtkGenericDataSet::NewBoundaryIterator int  dim = -1,
int  exteriorOnly = 0
[pure virtual]


Return an iterator to traverse cell boundaries of dimension `dim' (or all dimensions if -1) of the dataset. If `exteriorOnly' is true, only the exterior cell boundaries of the dataset will be returned, otherwise it will return exterior and interior cell boundaries. The user is responsible for deleting the iterator.

Precondition:
valid_dim_range: (dim>=-1) && (dim<=2)
Postcondition:
result_exists: result!=0

Implemented in vtkBridgeDataSet.

virtual vtkGenericPointIterator* vtkGenericDataSet::NewPointIterator  )  [pure virtual]


Return an iterator to traverse the points composing the dataset; they can be points that define a cell or isolated. The user is responsible for deleting the iterator.

Postcondition:
result_exists: result!=0

Implemented in vtkBridgeDataSet.

virtual int vtkGenericDataSet::FindCell double  x[3],
vtkGenericCellIterator *&  cell,
double  tol2,
int &  subId,
double  pcoords[3]
[pure virtual]


Locate the closest cell to position `x' (global coordinates) with respect to a tolerance squared `tol2' and an initial guess `cell' (if valid). The result consists in the `cell', the `subId' of the sub-cell (0 if primary cell), the parametric coordinates `pcoord' of the position. It returns whether the position is inside the cell or not (boolean). Tolerance is used to control how close the point is to be considered "in" the cell. THIS METHOD IS NOT THREAD SAFE.

Precondition:
not_empty: GetNumberOfCells()>0

cell_exists: cell!=0

positive_tolerance: tol2>0

Implemented in vtkBridgeDataSet.

virtual void vtkGenericDataSet::FindPoint double  x[3],
vtkGenericPointIterator p
[pure virtual]


Locate the closest point `p' to position `x' (global coordinates).

Precondition:
not_empty: GetNumberOfPoints()>0

p_exists: p!=0

Implemented in vtkBridgeDataSet.

virtual unsigned long int vtkGenericDataSet::GetMTime  )  [virtual]


Datasets are composite objects and need to check each part for their modified time.

Reimplemented from vtkDataObject.

Reimplemented in vtkBridgeDataSet.

virtual void vtkGenericDataSet::ComputeBounds  )  [pure virtual]


Compute the geometry bounding box.

Implemented in vtkBridgeDataSet.

virtual double* vtkGenericDataSet::GetBounds  )  [virtual]


Return a pointer to the geometry bounding box in the form (xmin,xmax, ymin,ymax, zmin,zmax). The return value is VOLATILE.

Postcondition:
result_exists: result!=0

virtual void vtkGenericDataSet::GetBounds double  bounds[6]  )  [virtual]


Return the geometry bounding box in global coordinates in the form (xmin,xmax, ymin,ymax, zmin,zmax) in the `bounds' array.

virtual double* vtkGenericDataSet::GetCenter  )  [virtual]


Get the center of the bounding box in global coordinates. The return value is VOLATILE.

Postcondition:
result_exists: result!=0

virtual void vtkGenericDataSet::GetCenter double  center[3]  )  [virtual]


Get the center of the bounding box in global coordinates.

virtual double vtkGenericDataSet::GetLength  )  [virtual]


Return the length of the diagonal of the bounding box.

Postcondition:
positive_result: result>=0

virtual vtkGenericAttributeCollection* vtkGenericDataSet::GetAttributes  )  [virtual]


Get the collection of attributes associated with this dataset.

virtual void vtkGenericDataSet::SetTessellator vtkGenericCellTessellator tessellator  )  [virtual]


Set/Get a cell tessellator if cells must be tessellated during processing.

Precondition:
tessellator_exists: tessellator!=0

virtual vtkGenericCellTessellator* vtkGenericDataSet::GetTessellator  )  [virtual]


Set/Get a cell tessellator if cells must be tessellated during processing.

Precondition:
tessellator_exists: tessellator!=0

virtual unsigned long vtkGenericDataSet::GetActualMemorySize  )  [virtual]


Actual size of the data in kilobytes; only valid after the pipeline has updated. It is guaranteed to be greater than or equal to the memory required to represent the data.

Reimplemented from vtkDataObject.

int vtkGenericDataSet::GetDataObjectType  )  [virtual]


Return the type of data object.

Reimplemented from vtkDataObject.

virtual vtkIdType vtkGenericDataSet::GetEstimatedSize  )  [pure virtual]


Estimated size needed after tessellation (or special operation)

Implemented in vtkBridgeDataSet.

static vtkGenericDataSet* vtkGenericDataSet::GetData vtkInformation info  )  [static]


Retrieve an instance of this class from an information object.

Reimplemented from vtkDataObject.

static vtkGenericDataSet* vtkGenericDataSet::GetData vtkInformationVector v,
int  i = 0
[static]


Estimated size needed after tessellation (or special operation)

Reimplemented from vtkDataObject.


Member Data Documentation

vtkGenericAttributeCollection* vtkGenericDataSet::Attributes [protected]


Definition at line 219 of file vtkGenericDataSet.h.

vtkGenericCellTessellator* vtkGenericDataSet::Tessellator [protected]


Definition at line 222 of file vtkGenericDataSet.h.

double vtkGenericDataSet::Bounds[6] [protected]


Definition at line 224 of file vtkGenericDataSet.h.

double vtkGenericDataSet::Center[3] [protected]


Definition at line 225 of file vtkGenericDataSet.h.

vtkTimeStamp vtkGenericDataSet::ComputeTime [protected]


Definition at line 226 of file vtkGenericDataSet.h.


The documentation for this class was generated from the following file:
