vtkImageAppendComponents Class Reference

#include <vtkImageAppendComponents.h>

Inheritance diagram for vtkImageAppendComponents:

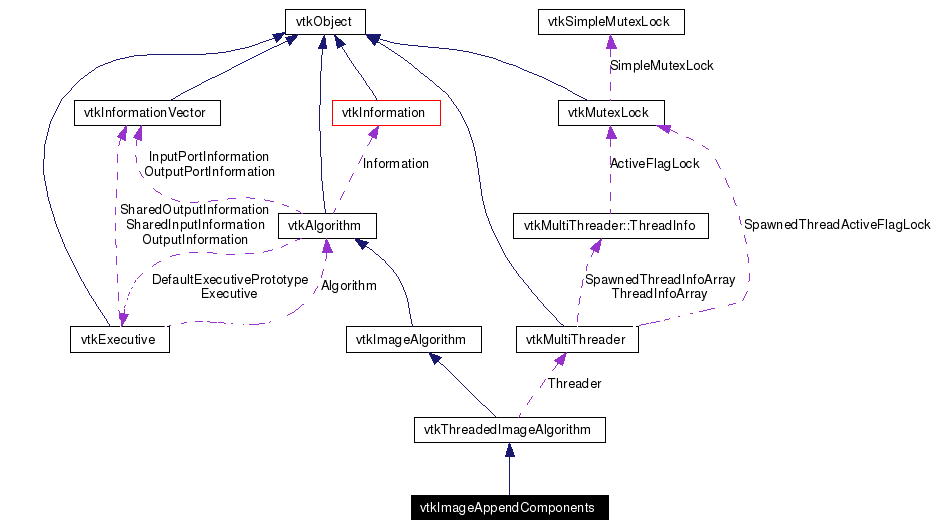

[legend]Collaboration diagram for vtkImageAppendComponents:

[legend]List of all members.

---

Detailed Description

Collects components from two inputs into one output.

vtkImageAppendComponents takes the components from two inputs and merges them into one output. If Input1 has M components, and Input2 has N components, the output will have M+N components with input1 components coming first.

Tests:

vtkImageAppendComponents (Tests)

Definition at line 34 of file vtkImageAppendComponents.h.

void	SetInput (int num, vtkDataObject *input)
void	SetInput (vtkDataObject *input)
static vtkImageAppendComponents *	SafeDownCast (vtkObject *o)
Public Types
typedef vtkThreadedImageAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
int	GetNumberOfInputs ()
vtkDataObject *	GetInput (int num)
vtkDataObject *	GetInput ()
Static Public Member Functions
static vtkImageAppendComponents *	New ()
static int	IsTypeOf (const char *type)
Protected Member Functions
	vtkImageAppendComponents ()
	~vtkImageAppendComponents ()
virtual int	RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
void	ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int ext[6], int id)
virtual int	FillInputPortInformation (int, vtkInformation *)

---

Member Typedef Documentation

typedef vtkThreadedImageAlgorithm vtkImageAppendComponents::Superclass

Reimplemented from vtkThreadedImageAlgorithm. Definition at line 38 of file vtkImageAppendComponents.h.

---

Constructor & Destructor Documentation

vtkImageAppendComponents::vtkImageAppendComponents (   )  [inline, protected]

Definition at line 62 of file vtkImageAppendComponents.h.

vtkImageAppendComponents::~vtkImageAppendComponents (   )  [inline, protected]

Definition at line 63 of file vtkImageAppendComponents.h.

---

Member Function Documentation

static vtkImageAppendComponents* vtkImageAppendComponents::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkAlgorithm.

virtual const char* vtkImageAppendComponents::GetClassName (   )  [virtual]

Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageAppendComponents::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageAppendComponents::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageAppendComponents* vtkImageAppendComponents::SafeDownCast (  vtkObject *  o  )  [static]

Set an Input of this filter. This method is only for support of old-style pipeline connections. When writing new code you should use vtkAlgorithm::AddInputConnection(0, data). Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageAppendComponents::SetInput (  int  num, vtkDataObject *  input )

Set an Input of this filter. This method is only for support of old-style pipeline connections. When writing new code you should use vtkAlgorithm::AddInputConnection(0, data). Reimplemented from vtkImageAlgorithm.

void vtkImageAppendComponents::SetInput (  vtkDataObject *  input  )  [inline]

Set an Input of this filter. This method is only for support of old-style pipeline connections. When writing new code you should use vtkAlgorithm::AddInputConnection(0, data). Reimplemented from vtkImageAlgorithm. Definition at line 45 of file vtkImageAppendComponents.h. References vtkImageAlgorithm::SetInput().

vtkDataObject* vtkImageAppendComponents::GetInput (  int  num  )

Get one input to this filter. This method is only for support of old-style pipeline connections. When writing new code you should use vtkAlgorithm::GetInputConnection(0, num). Reimplemented from vtkImageAlgorithm.

vtkDataObject* vtkImageAppendComponents::GetInput (   )  [inline]

Get one input to this filter. This method is only for support of old-style pipeline connections. When writing new code you should use vtkAlgorithm::GetInputConnection(0, num). Reimplemented from vtkImageAlgorithm. Definition at line 53 of file vtkImageAppendComponents.h. References vtkImageAlgorithm::GetInput().

int vtkImageAppendComponents::GetNumberOfInputs (   )  [inline]

Get the number of inputs to this filter. This method is only for support of old-style pipeline connections. When writing new code you should use vtkAlgorithm::GetNumberOfInputConnections(0). Definition at line 59 of file vtkImageAppendComponents.h. References vtkAlgorithm::GetNumberOfInputConnections().

virtual int vtkImageAppendComponents::RequestInformation (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

Reimplemented from vtkImageAlgorithm.

void vtkImageAppendComponents::ThreadedRequestData (  vtkInformation *  request, vtkInformationVector **  inputVector, vtkInformationVector *  outputVector, vtkImageData ***  inData, vtkImageData **  outData, int  ext[6], int  id )  [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageAppendComponents::FillInputPortInformation (  int  , vtkInformation *  )  [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkImageAlgorithm.

---

The documentation for this class was generated from the following file:

• dox/Imaging/vtkImageAppendComponents.h

---
