vtkThreadedImageAlgorithm Class Reference

#include <vtkThreadedImageAlgorithm.h>

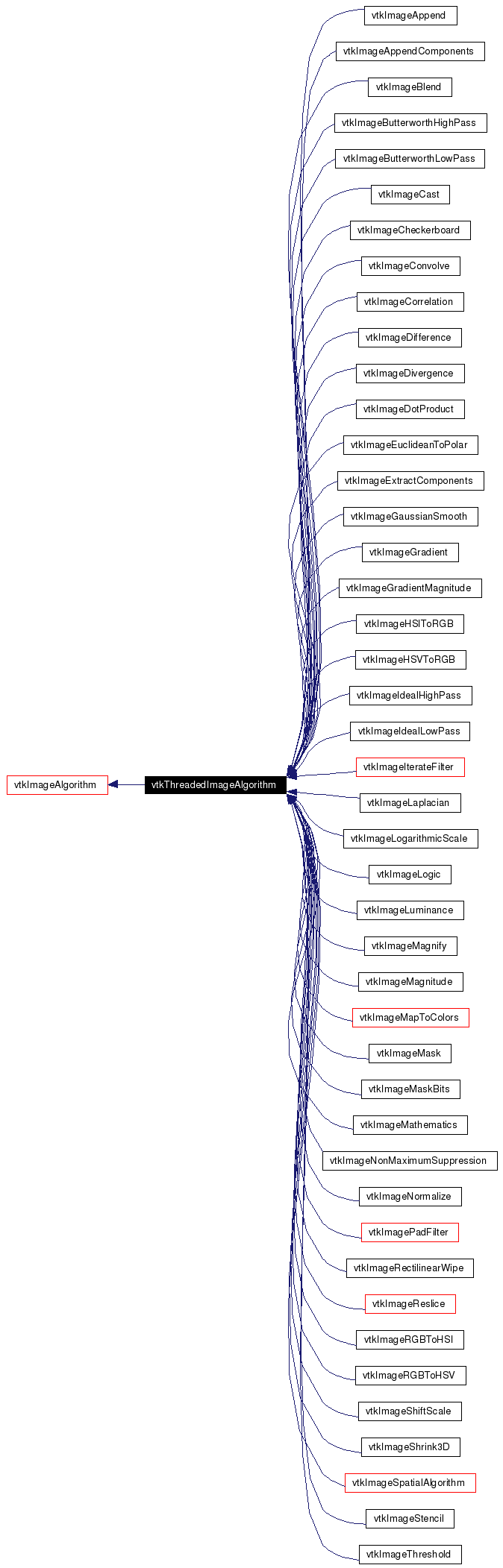

Inheritance diagram for vtkThreadedImageAlgorithm:

Inheritance graph
[legend]

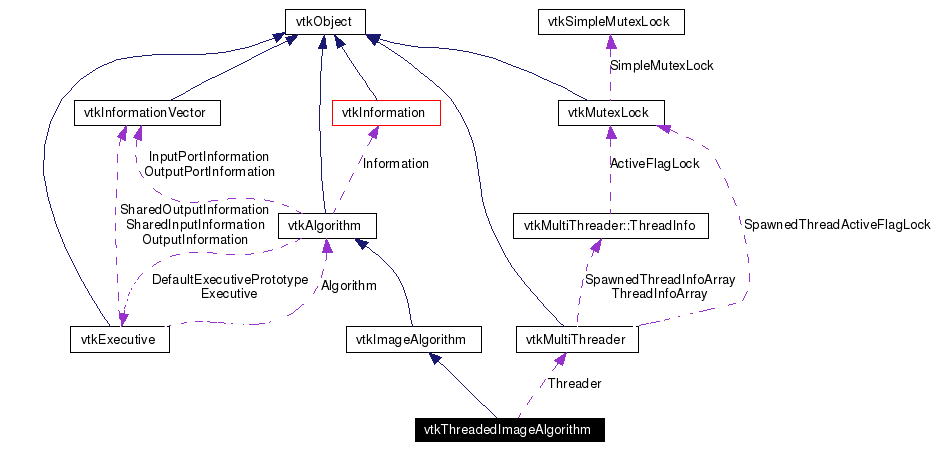

Collaboration diagram for vtkThreadedImageAlgorithm:

Collaboration graph
[legend]
List of all members.

Detailed Description

Definition at line 35 of file vtkThreadedImageAlgorithm.h.

Public Types

typedef vtkImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int extent[6], int threadId)
virtual void ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int extent[6], int threadId)
virtual void SetNumberOfThreads (int)
virtual int GetNumberOfThreads ()
virtual int SplitExtent (int splitExt[6], int startExt[6], int num, int total)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkThreadedImageAlgorithmSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkThreadedImageAlgorithm ()
 ~vtkThreadedImageAlgorithm ()
virtual int RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)

Protected Attributes

vtkMultiThreaderThreader
int NumberOfThreads


Member Typedef Documentation

typedef vtkImageAlgorithm vtkThreadedImageAlgorithm::Superclass


Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, and vtkImageWrapPad.

Definition at line 38 of file vtkThreadedImageAlgorithm.h.


Constructor & Destructor Documentation

vtkThreadedImageAlgorithm::vtkThreadedImageAlgorithm  )  [protected]


vtkThreadedImageAlgorithm::~vtkThreadedImageAlgorithm  )  [protected]



Member Function Documentation

virtual const char* vtkThreadedImageAlgorithm::GetClassName  )  [virtual]


Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, and vtkImageWrapPad.

static int vtkThreadedImageAlgorithm::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, and vtkImageWrapPad.

virtual int vtkThreadedImageAlgorithm::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, and vtkImageWrapPad.

static vtkThreadedImageAlgorithm* vtkThreadedImageAlgorithm::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, and vtkImageWrapPad.

void vtkThreadedImageAlgorithm::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCast, vtkImageCheckerboard, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFlip, vtkImageGaussianSmooth, vtkImageGradient, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageMagnify, vtkImageMapToColors, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageNonMaximumSuppression, vtkImagePadFilter, vtkImagePermute, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageResample, vtkImageReslice, vtkImageRGBToHSI, vtkImageRGBToHSV, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialAlgorithm, vtkImageStencil, vtkImageThreshold, and vtkImageVariance3D.

virtual void vtkThreadedImageAlgorithm::ThreadedRequestData vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  threadId
[virtual]


If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented in vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCheckerboard, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageDifference, vtkImageDilateErode3D, vtkImageDotProduct, vtkImageGaussianSmooth, vtkImageGradient, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageLaplacian, vtkImageLogic, vtkImageMagnify, vtkImageMapToColors, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNonMaximumSuppression, vtkImageRange3D, vtkImageRectilinearWipe, vtkImageReslice, vtkImageShiftScale, vtkImageShrink3D, vtkImageSobel2D, vtkImageSobel3D, vtkImageStencil, vtkImageThreshold, vtkImageVariance3D, and vtkImageWrapPad.

virtual void vtkThreadedImageAlgorithm::ThreadedExecute vtkImageData inData,
vtkImageData outData,
int  extent[6],
int  threadId
[virtual]


Reimplemented in vtkImageCast, vtkImageDivergence, vtkImageEuclideanToPolar, vtkImageExtractComponents, vtkImageFFT, vtkImageFourierCenter, vtkImageGradientMagnitude, vtkImageHSIToRGB, vtkImageHSVToRGB, vtkImageLogarithmicScale, vtkImageLuminance, vtkImageMagnitude, vtkImageMaskBits, vtkImageNormalize, vtkImageRFFT, vtkImageRGBToHSI, vtkImageRGBToHSV, and vtkImageSkeleton2D.

virtual void vtkThreadedImageAlgorithm::SetNumberOfThreads int   )  [virtual]


Get/Set the number of threads to create when rendering

virtual int vtkThreadedImageAlgorithm::GetNumberOfThreads  )  [virtual]


virtual int vtkThreadedImageAlgorithm::SplitExtent int  splitExt[6],
int  startExt[6],
int  num,
int  total
[virtual]


Putting this here until I merge graphics and imaging streaming.

Reimplemented in vtkImageEuclideanDistance, vtkImageFFT, and vtkImageRFFT.

virtual int vtkThreadedImageAlgorithm::RequestData vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
[protected, virtual]


This is called by the superclass. This is the method you should override.

Reimplemented from vtkImageAlgorithm.

Reimplemented in vtkImageBlend, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageDilateErode3D, vtkImageIterateFilter, vtkImageMapToColors, vtkImageMapToWindowLevelColors, vtkImageRange3D, and vtkImageVariance3D.


Member Data Documentation

vtkMultiThreader* vtkThreadedImageAlgorithm::Threader [protected]


Definition at line 75 of file vtkThreadedImageAlgorithm.h.

int vtkThreadedImageAlgorithm::NumberOfThreads [protected]


Definition at line 76 of file vtkThreadedImageAlgorithm.h.


The documentation for this class was generated from the following file:
