vtkImageButterworthHighPass Class Reference

#include <vtkImageButterworthHighPass.h>

Inheritance diagram for vtkImageButterworthHighPass:

Inheritance graph
[legend]

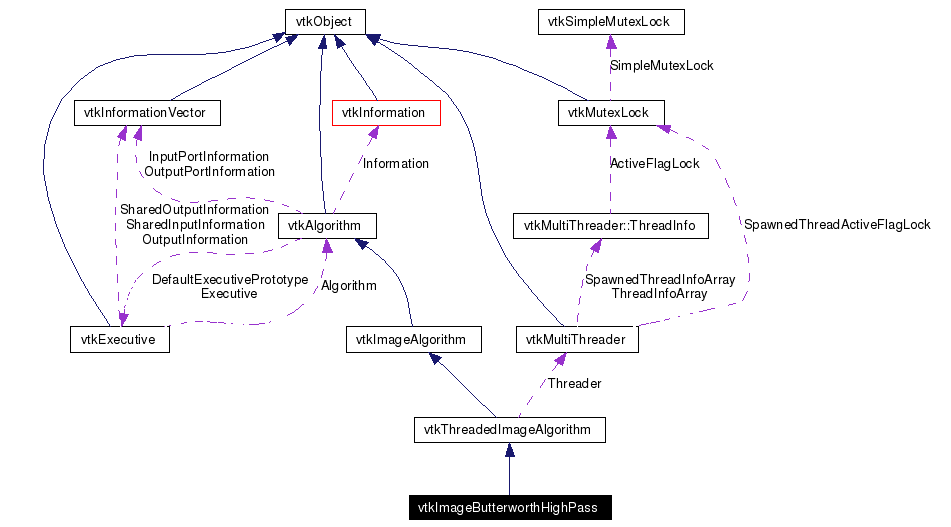

Collaboration diagram for vtkImageButterworthHighPass:

Collaboration graph
[legend]
List of all members.

Detailed Description

Frequency domain high pass.

This filter only works on an image after it has been converted to frequency domain by a vtkImageFFT filter. A vtkImageRFFT filter can be used to convert the output back into the spatial domain. vtkImageButterworthHighPass the frequency components around 0 are attenuated. Input and output are in doubles, with two components (complex numbers). out(i, j) = 1 / (1 + pow(CutOff/Freq(i,j), 2*Order));

See also:
vtkImageButterworthLowPass
Tests:
vtkImageButterworthHighPass (Tests)

Definition at line 39 of file vtkImageButterworthHighPass.h.

Public Types

typedef vtkThreadedImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetCutOff (double, double, double)
virtual void SetCutOff (double[3])
void SetCutOff (double v)
void SetXCutOff (double v)
void SetYCutOff (double v)
void SetZCutOff (double v)
virtual double * GetCutOff ()
virtual void GetCutOff (double &, double &, double &)
virtual void GetCutOff (double[3])
double GetXCutOff ()
double GetYCutOff ()
double GetZCutOff ()
virtual void SetOrder (int)
virtual int GetOrder ()

Static Public Member Functions

static vtkImageButterworthHighPassNew ()
static int IsTypeOf (const char *type)
static vtkImageButterworthHighPassSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageButterworthHighPass ()
 ~vtkImageButterworthHighPass ()
void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int outExt[6], int id)

Protected Attributes

int Order
double CutOff [3]


Member Typedef Documentation

typedef vtkThreadedImageAlgorithm vtkImageButterworthHighPass::Superclass


Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 43 of file vtkImageButterworthHighPass.h.


Constructor & Destructor Documentation

vtkImageButterworthHighPass::vtkImageButterworthHighPass  )  [protected]


vtkImageButterworthHighPass::~vtkImageButterworthHighPass  )  [inline, protected]


Definition at line 69 of file vtkImageButterworthHighPass.h.


Member Function Documentation

static vtkImageButterworthHighPass* vtkImageButterworthHighPass::New  )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageButterworthHighPass::GetClassName  )  [virtual]


Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageButterworthHighPass::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageButterworthHighPass::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageButterworthHighPass* vtkImageButterworthHighPass::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageButterworthHighPass::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

virtual void vtkImageButterworthHighPass::SetCutOff double  ,
double  ,
double
[virtual]


Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual void vtkImageButterworthHighPass::SetCutOff double  [3]  )  [virtual]


void vtkImageButterworthHighPass::SetCutOff double  v  )  [inline]


Definition at line 51 of file vtkImageButterworthHighPass.h.

void vtkImageButterworthHighPass::SetXCutOff double  v  )


void vtkImageButterworthHighPass::SetYCutOff double  v  )


void vtkImageButterworthHighPass::SetZCutOff double  v  )


virtual double* vtkImageButterworthHighPass::GetCutOff  )  [virtual]


virtual void vtkImageButterworthHighPass::GetCutOff double &  ,
double &  ,
double &
[virtual]


virtual void vtkImageButterworthHighPass::GetCutOff double  [3]  )  [virtual]


double vtkImageButterworthHighPass::GetXCutOff  )  [inline]


Definition at line 56 of file vtkImageButterworthHighPass.h.

double vtkImageButterworthHighPass::GetYCutOff  )  [inline]


Definition at line 57 of file vtkImageButterworthHighPass.h.

double vtkImageButterworthHighPass::GetZCutOff  )  [inline]


Definition at line 58 of file vtkImageButterworthHighPass.h.

virtual void vtkImageButterworthHighPass::SetOrder int   )  [virtual]


The order determines sharpness of the cutoff curve.

virtual int vtkImageButterworthHighPass::GetOrder  )  [virtual]


The order determines sharpness of the cutoff curve.

void vtkImageButterworthHighPass::ThreadedRequestData vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  outExt[6],
int  id
[protected, virtual]


If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.


Member Data Documentation

int vtkImageButterworthHighPass::Order [protected]


Definition at line 69 of file vtkImageButterworthHighPass.h.

double vtkImageButterworthHighPass::CutOff[3] [protected]


Definition at line 72 of file vtkImageButterworthHighPass.h.
