vtkImageContinuousDilate3D Class Reference

#include <vtkImageContinuousDilate3D.h>

Inheritance diagram for vtkImageContinuousDilate3D:

Inheritance graph
[legend]

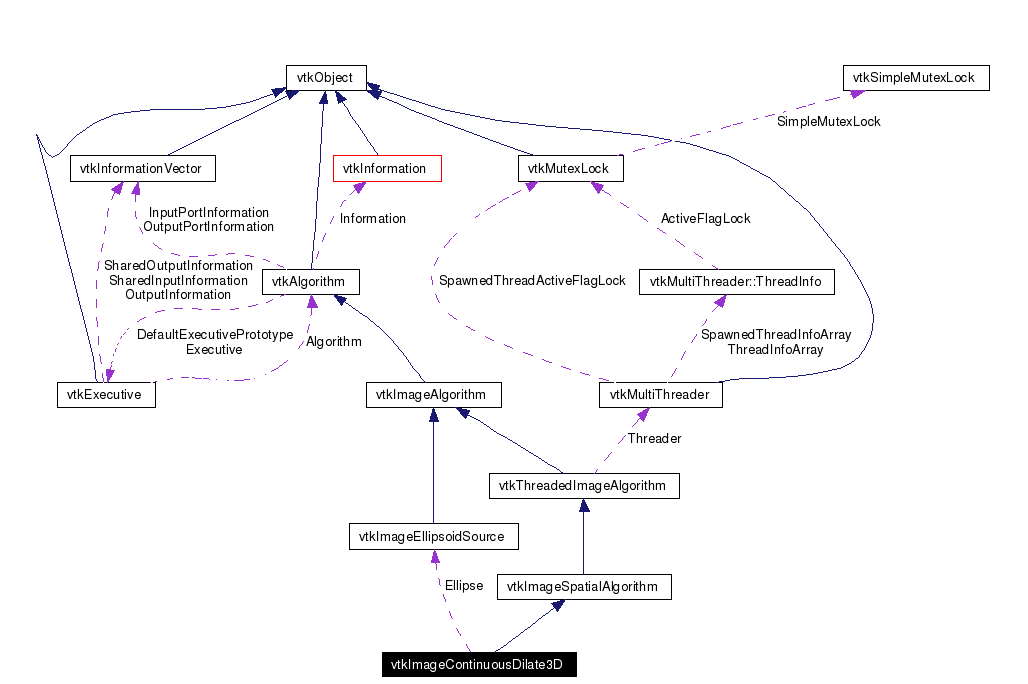

Collaboration diagram for vtkImageContinuousDilate3D:

Collaboration graph
[legend]
List of all members.

Detailed Description

Dilate implemented as a maximum.

vtkImageContinuousDilate3D replaces a pixel with the maximum over an ellipsoidal neighborhood. If KernelSize of an axis is 1, no processing is done on that axis.

Tests:
vtkImageContinuousDilate3D (Tests)

Definition at line 34 of file vtkImageContinuousDilate3D.h.
typedef vtkImageSpatialAlgorithm Superclass
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
static vtkImageContinuousDilate3DNew ()
static int IsTypeOf (const char *type)
static vtkImageContinuousDilate3DSafeDownCast (vtkObject *o)

Public Member Functions

void SetKernelSize (int size0, int size1, int size2)

Protected Member Functions

 vtkImageContinuousDilate3D ()
 ~vtkImageContinuousDilate3D ()
void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int extent[6], int id)
virtual int RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)

Protected Attributes

vtkImageEllipsoidSourceEllipse


Member Typedef Documentation

typedef vtkImageSpatialAlgorithm vtkImageContinuousDilate3D::Superclass


Reimplemented from vtkImageSpatialAlgorithm.

Definition at line 42 of file vtkImageContinuousDilate3D.h.


Constructor & Destructor Documentation

vtkImageContinuousDilate3D::vtkImageContinuousDilate3D  )  [protected]


vtkImageContinuousDilate3D::~vtkImageContinuousDilate3D  )  [protected]



Member Function Documentation

static vtkImageContinuousDilate3D* vtkImageContinuousDilate3D::New  )  [static]


Construct an instance of vtkImageContinuousDilate3D filter. By default zero values are dilated.

Reimplemented from vtkImageSpatialAlgorithm.

virtual const char* vtkImageContinuousDilate3D::GetClassName  )  [virtual]


Reimplemented from vtkImageSpatialAlgorithm.

static int vtkImageContinuousDilate3D::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageSpatialAlgorithm.

virtual int vtkImageContinuousDilate3D::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageSpatialAlgorithm.

static vtkImageContinuousDilate3D* vtkImageContinuousDilate3D::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkImageSpatialAlgorithm.

void vtkImageContinuousDilate3D::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageSpatialAlgorithm.

void vtkImageContinuousDilate3D::SetKernelSize int  size0,
int  size1,
int  size2


This method sets the size of the neighborhood. It also sets the default middle of the neighborhood and computes the elliptical foot print.

void vtkImageContinuousDilate3D::ThreadedRequestData vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  id
[protected, virtual]


If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageContinuousDilate3D::RequestData vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
[protected, virtual]


This is called by the superclass. This is the method you should override.

Reimplemented from vtkThreadedImageAlgorithm.


Member Data Documentation

vtkImageEllipsoidSource* vtkImageContinuousDilate3D::Ellipse [protected]


Definition at line 55 of file vtkImageContinuousDilate3D.h.


The documentation for this class was generated from the following file:
