vtkImageConvolve Class Reference

#include <vtkImageConvolve.h>

Inheritance diagram for vtkImageConvolve:

Inheritance graph

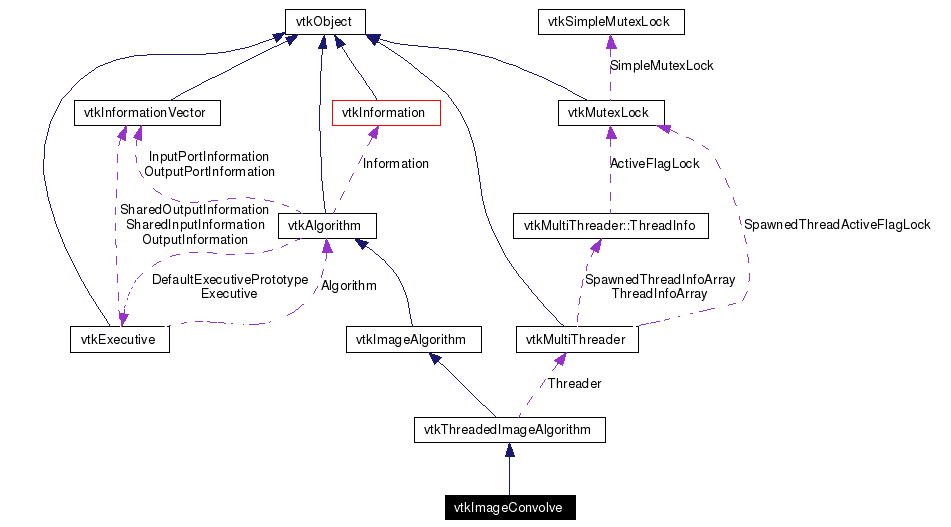

Collaboration diagram for vtkImageConvolve:

Collaboration graph
List of all members.

Detailed Description

Convolution of an image with a kernel.

vtkImageConvolve convolves the image with a 3D NxNxN kernel or a 2D NxN kernal. The output image is cropped to the same size as the input.

vtkImageConvolve (Tests)

Definition at line 31 of file vtkImageConvolve.h.
typedef vtkThreadedImageAlgorithm Superclass
virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
static vtkImageConvolveNew ()
static int IsTypeOf (const char *type)
static vtkImageConvolveSafeDownCast (vtkObject *o)

Public Member Functions

double * GetKernel7x7 ()
void GetKernel7x7 (double kernel[49])
void SetKernel3x3x3 (const double kernel[27])
void SetKernel5x5x5 (double kernel[125])
double * GetKernel5x5x5 ()
void GetKernel5x5x5 (double kernel[125])
double * GetKernel7x7x7 ()
void GetKernel7x7x7 (double kernel[343])
virtual int * GetKernelSize ()
virtual void GetKernelSize (int &, int &, int &)
virtual void GetKernelSize (int[3])
void SetKernel3x3 (const double kernel[9])
void SetKernel5x5 (const double kernel[25])
void SetKernel7x7 (double kernel[49])
double * GetKernel3x3 ()
void GetKernel3x3 (double kernel[9])
double * GetKernel5x5 ()
void GetKernel5x5 (double kernel[25])
void SetKernel7x7x7 (double kernel[343])
double * GetKernel3x3x3 ()
void GetKernel3x3x3 (double kernel[27])

Protected Member Functions

 vtkImageConvolve ()
 ~vtkImageConvolve ()
void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int outExt[6], int id)
void GetKernel (double *kernel)
double * GetKernel ()
void SetKernel (const double *kernel, int sizeX, int sizeY, int sizeZ)

Protected Attributes

int KernelSize [3]
double Kernel [343]

Member Typedef Documentation

typedef vtkThreadedImageAlgorithm vtkImageConvolve::Superclass

Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 37 of file vtkImageConvolve.h.

Constructor & Destructor Documentation

vtkImageConvolve::vtkImageConvolve  )  [protected]

vtkImageConvolve::~vtkImageConvolve  )  [protected]

Member Function Documentation

static vtkImageConvolve* vtkImageConvolve::New  )  [static]

Construct an instance of vtkImageConvolve filter.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageConvolve::GetClassName  )  [virtual]

Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageConvolve::IsTypeOf const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageConvolve::IsA const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageConvolve* vtkImageConvolve::SafeDownCast vtkObject o  )  [static]

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageConvolve::PrintSelf ostream &  os,
vtkIndent  indent

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int* vtkImageConvolve::GetKernelSize  )  [virtual]

Get the kernel size

virtual void vtkImageConvolve::GetKernelSize int &  ,
int &  ,
int &

Get the kernel size

virtual void vtkImageConvolve::GetKernelSize int  [3]  )  [virtual]

Get the kernel size

void vtkImageConvolve::SetKernel3x3 const double  kernel[9]  )

Set the kernel to be a given 3x3 or 5x5 or 7x7 kernel.

void vtkImageConvolve::SetKernel5x5 const double  kernel[25]  )

Set the kernel to be a given 3x3 or 5x5 or 7x7 kernel.

void vtkImageConvolve::SetKernel7x7 double  kernel[49]  )

double* vtkImageConvolve::GetKernel3x3  )

Return an array that contains the kernel.

void vtkImageConvolve::GetKernel3x3 double  kernel[9]  )

double* vtkImageConvolve::GetKernel5x5  )

void vtkImageConvolve::GetKernel5x5 double  kernel[25]  )

double* vtkImageConvolve::GetKernel7x7  )

void vtkImageConvolve::GetKernel7x7 double  kernel[49]  )

void vtkImageConvolve::SetKernel3x3x3 const double  kernel[27]  )

Set the kernel to be a 3x3x3 or 5x5x5 or 7x7x7 kernel.

void vtkImageConvolve::SetKernel5x5x5 double  kernel[125]  )

void vtkImageConvolve::SetKernel7x7x7 double  kernel[343]  )

double* vtkImageConvolve::GetKernel3x3x3  )

Return an array that contains the kernel

void vtkImageConvolve::GetKernel3x3x3 double  kernel[27]  )

double* vtkImageConvolve::GetKernel5x5x5  )

void vtkImageConvolve::GetKernel5x5x5 double  kernel[125]  )

double* vtkImageConvolve::GetKernel7x7x7  )

void vtkImageConvolve::GetKernel7x7x7 double  kernel[343]  )

void vtkImageConvolve::ThreadedRequestData vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  outExt[6],
int  id
[protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageConvolve::GetKernel double *  kernel  )  [protected]

double* vtkImageConvolve::GetKernel  )  [protected]

void vtkImageConvolve::SetKernel const double *  kernel,
int  sizeX,
int  sizeY,
int  sizeZ

Member Data Documentation

int vtkImageConvolve::KernelSize[3] [protected]

Definition at line 102 of file vtkImageConvolve.h.

double vtkImageConvolve::Kernel[343] [protected]

Definition at line 103 of file vtkImageConvolve.h.

The documentation for this class was generated from the following file:
