vtkImageCorrelation Class Reference

#include <vtkImageCorrelation.h>

Inheritance diagram for vtkImageCorrelation:

Inheritance graph
[legend]

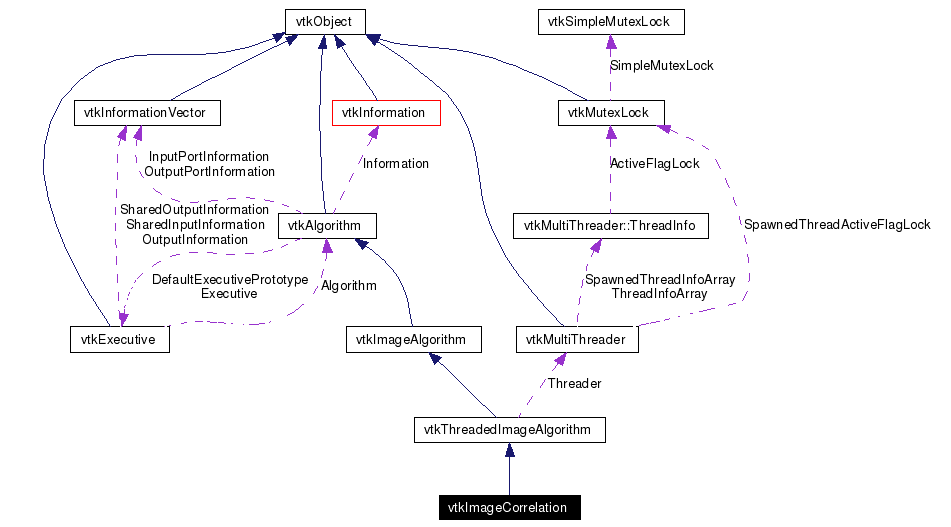

Collaboration diagram for vtkImageCorrelation:

Collaboration graph
[legend]
List of all members.

Detailed Description

Correlation imageof the two inputs.

vtkImageCorrelation finds the correlation between two data sets. SetDimensionality determines whether the Correlation will be 3D, 2D or 1D. The default is a 2D Correlation. The Output type will be double. The output size will match the size of the first input. The second input is considered the correlation kernel.

Tests:
vtkImageCorrelation (Tests)

Definition at line 36 of file vtkImageCorrelation.h.

Public Types

typedef vtkThreadedImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetDimensionality (int)
virtual int GetDimensionality ()
virtual void SetInput1 (vtkDataObject *in)
virtual void SetInput2 (vtkDataObject *in)

Static Public Member Functions

static vtkImageCorrelationNew ()
static int IsTypeOf (const char *type)
static vtkImageCorrelationSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageCorrelation ()
 ~vtkImageCorrelation ()
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int extent[6], int threadId)

Protected Attributes

int Dimensionality


Member Typedef Documentation

typedef vtkThreadedImageAlgorithm vtkImageCorrelation::Superclass


Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 40 of file vtkImageCorrelation.h.


Constructor & Destructor Documentation

vtkImageCorrelation::vtkImageCorrelation  )  [protected]


vtkImageCorrelation::~vtkImageCorrelation  )  [inline, protected]


Definition at line 57 of file vtkImageCorrelation.h.


Member Function Documentation

static vtkImageCorrelation* vtkImageCorrelation::New  )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageCorrelation::GetClassName  )  [virtual]


Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageCorrelation::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageCorrelation::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageCorrelation* vtkImageCorrelation::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageCorrelation::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

virtual void vtkImageCorrelation::SetDimensionality int   )  [virtual]


Determines how the input is interpreted (set of 2d slices ...)

virtual int vtkImageCorrelation::GetDimensionality  )  [virtual]


virtual void vtkImageCorrelation::SetInput1 vtkDataObject in  )  [inline, virtual]


Set the two inputs to this filter

Definition at line 51 of file vtkImageCorrelation.h.

References vtkImageAlgorithm::SetInput().

virtual void vtkImageCorrelation::SetInput2 vtkDataObject in  )  [inline, virtual]


Set the two inputs to this filter

Definition at line 52 of file vtkImageCorrelation.h.

References vtkImageAlgorithm::SetInput().

virtual int vtkImageCorrelation::RequestInformation vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
[protected, virtual]


Reimplemented from vtkImageAlgorithm.

virtual int vtkImageCorrelation::RequestUpdateExtent vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
[protected, virtual]


Reimplemented from vtkImageAlgorithm.

virtual void vtkImageCorrelation::ThreadedRequestData vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  threadId
[protected, virtual]


If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.


Member Data Documentation

int vtkImageCorrelation::Dimensionality [protected]


Definition at line 57 of file vtkImageCorrelation.h.


The documentation for this class was generated from the following file:
