vtkImageDotProduct Class Reference

#include <vtkImageDotProduct.h>

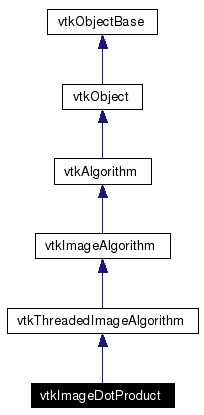

Inheritance diagram for vtkImageDotProduct:

Inheritance graph
[legend]

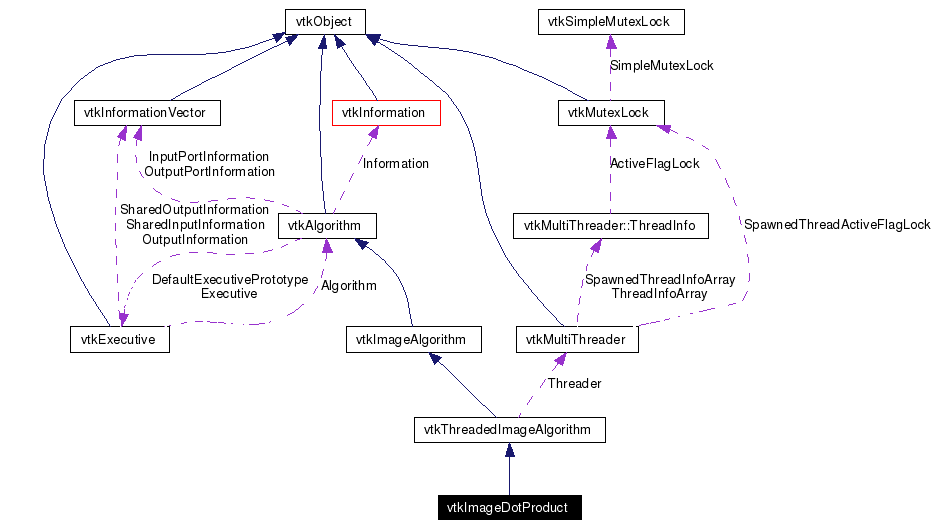

Collaboration diagram for vtkImageDotProduct:

Collaboration graph
[legend]
List of all members.

Detailed Description

Dot product of two vector images.

vtkImageDotProduct interprets the scalar components of two images as vectors and takes the dot product vector by vector (pixel by pixel).

Tests:
vtkImageDotProduct (Tests)

Definition at line 32 of file vtkImageDotProduct.h.
virtual void SetInput1 (vtkDataObject *in)
virtual void SetInput2 (vtkDataObject *in)
static vtkImageDotProductSafeDownCast (vtkObject *o)

Public Types

typedef vtkThreadedImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)

Static Public Member Functions

static vtkImageDotProductNew ()
static int IsTypeOf (const char *type)

Protected Member Functions

 vtkImageDotProduct ()
 ~vtkImageDotProduct ()
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int extent[6], int threadId)


Member Typedef Documentation

typedef vtkThreadedImageAlgorithm vtkImageDotProduct::Superclass


Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 36 of file vtkImageDotProduct.h.


Constructor & Destructor Documentation

vtkImageDotProduct::vtkImageDotProduct  )  [protected]


vtkImageDotProduct::~vtkImageDotProduct  )  [inline, protected]


Definition at line 46 of file vtkImageDotProduct.h.


Member Function Documentation

static vtkImageDotProduct* vtkImageDotProduct::New  )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageDotProduct::GetClassName  )  [virtual]


Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageDotProduct::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageDotProduct::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageDotProduct* vtkImageDotProduct::SafeDownCast vtkObject o  )  [static]


Set the two inputs to this filter

Reimplemented from vtkThreadedImageAlgorithm.

virtual void vtkImageDotProduct::SetInput1 vtkDataObject in  )  [inline, virtual]


Set the two inputs to this filter

Definition at line 40 of file vtkImageDotProduct.h.

References vtkImageAlgorithm::SetInput().

virtual void vtkImageDotProduct::SetInput2 vtkDataObject in  )  [inline, virtual]


Set the two inputs to this filter

Definition at line 41 of file vtkImageDotProduct.h.

References vtkImageAlgorithm::SetInput().

virtual int vtkImageDotProduct::RequestInformation vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
[protected, virtual]


Reimplemented from vtkImageAlgorithm.

virtual void vtkImageDotProduct::ThreadedRequestData vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  threadId
[protected, virtual]


If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.


The documentation for this class was generated from the following file:
