vtkImageLogarithmicScale Class Reference

#include <vtkImageLogarithmicScale.h>

Inheritance diagram for vtkImageLogarithmicScale:

Inheritance graph
[legend]

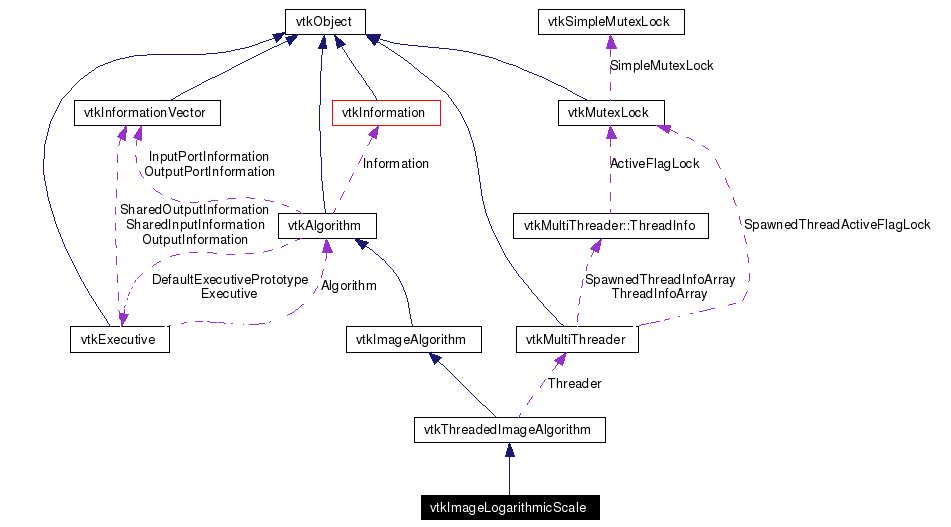

Collaboration diagram for vtkImageLogarithmicScale:

Collaboration graph
[legend]
List of all members.

Detailed Description

Passes each pixel through log function.

vtkImageLogarithmicScale passes each pixel through the function c*log(1+x). It also handles negative values with the function -c*log(1-x).

Tests:
vtkImageLogarithmicScale (Tests)

Definition at line 32 of file vtkImageLogarithmicScale.h.

Public Types

typedef vtkThreadedImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetConstant (double)
virtual double GetConstant ()

Static Public Member Functions

static vtkImageLogarithmicScaleNew ()
static int IsTypeOf (const char *type)
static vtkImageLogarithmicScaleSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageLogarithmicScale ()
 ~vtkImageLogarithmicScale ()
void ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int outExt[6], int id)

Protected Attributes

double Constant


Member Typedef Documentation

typedef vtkThreadedImageAlgorithm vtkImageLogarithmicScale::Superclass


Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 36 of file vtkImageLogarithmicScale.h.


Constructor & Destructor Documentation

vtkImageLogarithmicScale::vtkImageLogarithmicScale  )  [protected]


vtkImageLogarithmicScale::~vtkImageLogarithmicScale  )  [inline, protected]


Definition at line 47 of file vtkImageLogarithmicScale.h.


Member Function Documentation

static vtkImageLogarithmicScale* vtkImageLogarithmicScale::New  )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageLogarithmicScale::GetClassName  )  [virtual]


Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageLogarithmicScale::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageLogarithmicScale::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageLogarithmicScale* vtkImageLogarithmicScale::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageLogarithmicScale::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

virtual void vtkImageLogarithmicScale::SetConstant double   )  [virtual]


Set/Get the scale factor for the logarithmic function.

virtual double vtkImageLogarithmicScale::GetConstant  )  [virtual]


void vtkImageLogarithmicScale::ThreadedExecute vtkImageData inData,
vtkImageData outData,
int  outExt[6],
int  id
[protected, virtual]


Reimplemented from vtkThreadedImageAlgorithm.


Member Data Documentation

double vtkImageLogarithmicScale::Constant [protected]


Definition at line 47 of file vtkImageLogarithmicScale.h.


The documentation for this class was generated from the following file:
