vtkImageLogic Class Reference

#include <vtkImageLogic.h>

Inheritance diagram for vtkImageLogic:

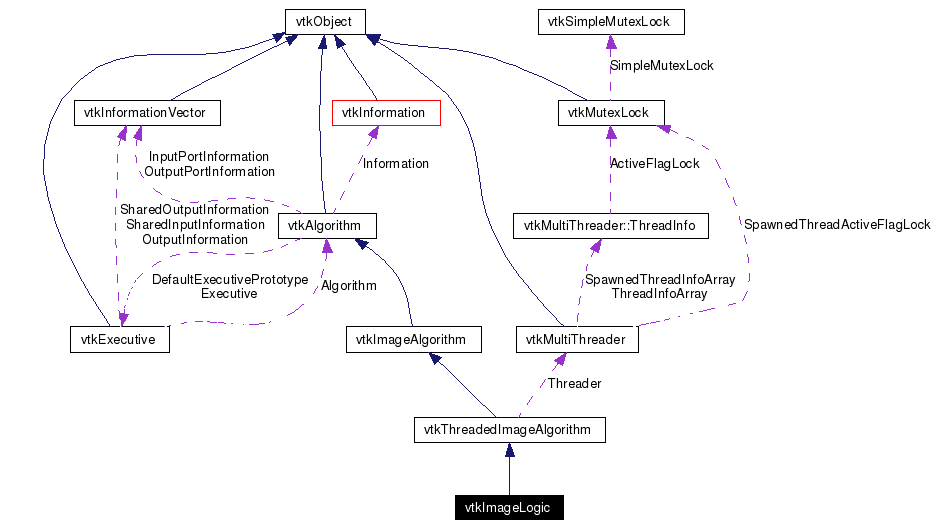

[legend]Collaboration diagram for vtkImageLogic:

[legend]List of all members.

---

Detailed Description

And, or, xor, nand, nor, not.

vtkImageLogic implements basic logic operations. SetOperation is used to select the filter's behavior. The filter can take two or one input. Inputs must have the same type.

Tests:

vtkImageLogic (Tests)

Definition at line 43 of file vtkImageLogic.h.

Public Types
typedef vtkThreadedImageAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	SetInput1 (vtkDataObject *input)
virtual void	SetInput2 (vtkDataObject *input)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetOperation (int)
virtual int	GetOperation ()
void	SetOperationToAnd ()
void	SetOperationToOr ()
void	SetOperationToXor ()
void	SetOperationToNand ()
void	SetOperationToNor ()
void	SetOperationToNot ()
virtual void	SetOutputTrueValue (double)
virtual double	GetOutputTrueValue ()
Static Public Member Functions
static vtkImageLogic *	New ()
static int	IsTypeOf (const char *type)
static vtkImageLogic *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageLogic ()
	~vtkImageLogic ()
void	ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int ext[6], int id)
Protected Attributes
int	Operation
double	OutputTrueValue

---

Member Typedef Documentation

typedef vtkThreadedImageAlgorithm vtkImageLogic::Superclass

Reimplemented from vtkThreadedImageAlgorithm. Definition at line 47 of file vtkImageLogic.h.

---

Constructor & Destructor Documentation

vtkImageLogic::vtkImageLogic (   )  [protected]

vtkImageLogic::~vtkImageLogic (   )  [inline, protected]

Definition at line 76 of file vtkImageLogic.h.

---

Member Function Documentation

static vtkImageLogic* vtkImageLogic::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkAlgorithm.

virtual const char* vtkImageLogic::GetClassName (   )  [virtual]

Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageLogic::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageLogic::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageLogic* vtkImageLogic::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageLogic::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkThreadedImageAlgorithm.

virtual void vtkImageLogic::SetOperation (  int   )  [virtual]

Set/Get the Operation to perform.

virtual int vtkImageLogic::GetOperation (   )  [virtual]

void vtkImageLogic::SetOperationToAnd (   )  [inline]

Definition at line 54 of file vtkImageLogic.h. References VTK_AND.

void vtkImageLogic::SetOperationToOr (   )  [inline]

Definition at line 55 of file vtkImageLogic.h. References VTK_OR.

void vtkImageLogic::SetOperationToXor (   )  [inline]

Definition at line 56 of file vtkImageLogic.h. References VTK_XOR.

void vtkImageLogic::SetOperationToNand (   )  [inline]

Definition at line 57 of file vtkImageLogic.h. References VTK_NAND.

void vtkImageLogic::SetOperationToNor (   )  [inline]

Definition at line 58 of file vtkImageLogic.h. References VTK_NOR.

void vtkImageLogic::SetOperationToNot (   )  [inline]

Definition at line 59 of file vtkImageLogic.h. References VTK_NOT.

virtual void vtkImageLogic::SetOutputTrueValue (  double   )  [virtual]

Set the value to use for true in the output.

virtual double vtkImageLogic::GetOutputTrueValue (   )  [virtual]

Set the value to use for true in the output.

virtual void vtkImageLogic::SetInput1 (  vtkDataObject *  input  )  [inline, virtual]

Set the Input1 of this filter. Definition at line 69 of file vtkImageLogic.h. References vtkImageAlgorithm::SetInput().

virtual void vtkImageLogic::SetInput2 (  vtkDataObject *  input  )  [inline, virtual]

Set the Input2 of this filter. Definition at line 72 of file vtkImageLogic.h. References vtkImageAlgorithm::SetInput().

void vtkImageLogic::ThreadedRequestData (  vtkInformation *  request, vtkInformationVector **  inputVector, vtkInformationVector *  outputVector, vtkImageData ***  inData, vtkImageData **  outData, int  ext[6], int  id )  [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented from vtkThreadedImageAlgorithm.

---

Member Data Documentation

int vtkImageLogic::Operation [protected]

Definition at line 76 of file vtkImageLogic.h.

double vtkImageLogic::OutputTrueValue [protected]

Definition at line 79 of file vtkImageLogic.h.

---

The documentation for this class was generated from the following file:

• dox/Imaging/vtkImageLogic.h

---
