#include <vtkImageMask.h>

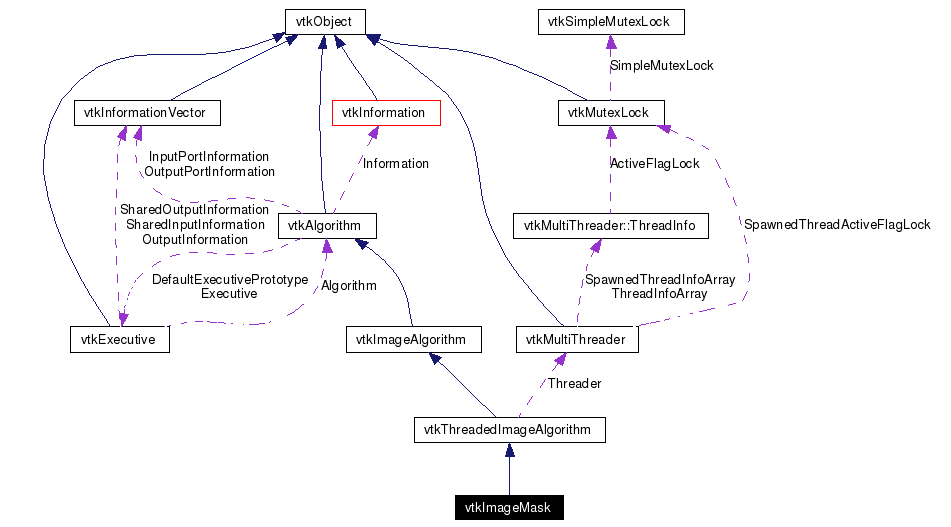

Inheritance diagram for vtkImageMask:
vtkImageMask combines a mask with an image. Non zero mask implies the output pixel will be the same as the image. If a mask pixel is zero, the the output pixel is set to "MaskedValue". The filter also has the option to pass the mask through a boolean not operation before processing the image. This reverses the passed and replaced pixels. The two inputs should have the same "WholeExtent". The mask input should be unsigned char, and the image scalar type is the same as the output scalar type.
Definition at line 38 of file vtkImageMask.h.
Public Types | |
| typedef vtkThreadedImageAlgorithm | Superclass |
Public Member Functions | |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
| void | SetImageInput (vtkImageData *in) |
| void | PrintSelf (ostream &os, vtkIndent indent) |
| void | SetMaskedOutputValue (int num, double *v) |
| void | SetMaskedOutputValue (double v) |
| void | SetMaskedOutputValue (double v1, double v2) |
| void | SetMaskedOutputValue (double v1, double v2, double v3) |
| double * | GetMaskedOutputValue () |
| int | GetMaskedOutputValueLength () |
| virtual void | SetMaskAlpha (double) |
| virtual double | GetMaskAlpha () |
| void | SetMaskInput (vtkImageData *in) |
| virtual void | SetNotMask (int) |
| virtual int | GetNotMask () |
| virtual void | NotMaskOn () |
| virtual void | NotMaskOff () |
| virtual void | SetInput1 (vtkDataObject *in) |
| virtual void | SetInput2 (vtkDataObject *in) |
Static Public Member Functions | |
| static vtkImageMask * | New () |
| static int | IsTypeOf (const char *type) |
| static vtkImageMask * | SafeDownCast (vtkObject *o) |
Protected Member Functions | |
| vtkImageMask () | |
| ~vtkImageMask () | |
| virtual int | RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *) |
| virtual void | ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int extent[6], int threadId) |
Protected Attributes | |
| double * | MaskedOutputValue |
| int | MaskedOutputValueLength |
| int | NotMask |
| double | MaskAlpha |
|
|
Reimplemented from vtkThreadedImageAlgorithm. Definition at line 42 of file vtkImageMask.h. |
|
|
|
|
|
|
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkAlgorithm. |
|
|
Reimplemented from vtkThreadedImageAlgorithm. |
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkThreadedImageAlgorithm. |
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkThreadedImageAlgorithm. |
|
|
Reimplemented from vtkThreadedImageAlgorithm. |
|
||||||||||||
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkThreadedImageAlgorithm. |
|
||||||||||||
|
SetGet the value of the output pixel replaced by mask. |
|
|
Definition at line 48 of file vtkImageMask.h. |
|
||||||||||||
|
Definition at line 49 of file vtkImageMask.h. |
|
||||||||||||||||
|
Definition at line 51 of file vtkImageMask.h. |
|
|
Definition at line 53 of file vtkImageMask.h. |
|
|
Definition at line 54 of file vtkImageMask.h. |
|
|
Set/Get the alpha blending value for the mask The input image is assumed to be at alpha = 1.0 and the mask image uses this alpha to blend using an over operator. |
|
|
Set/Get the alpha blending value for the mask The input image is assumed to be at alpha = 1.0 and the mask image uses this alpha to blend using an over operator. |
|
|
Set the input to be masked. |
|
|
Set the mask to be used. |
|
|
When Not Mask is on, the mask is passed through a boolean not before it is used to mask the image. The effect is to pass the pixels where the input mask is zero, and replace the pixels where the input value is non zero. |
|
|
Set the mask to be used. |
|
|
Set the mask to be used. |
|
|
Set the mask to be used. |
|
|
Set the two inputs to this filter Definition at line 83 of file vtkImageMask.h. References vtkImageAlgorithm::SetInput(). |
|
|
Set the two inputs to this filter Definition at line 84 of file vtkImageMask.h. References vtkImageAlgorithm::SetInput(). |
|
||||||||||||||||
|
Reimplemented from vtkImageAlgorithm. |
|
||||||||||||||||||||||||||||||||
|
If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented from vtkThreadedImageAlgorithm. |
|
|
Definition at line 91 of file vtkImageMask.h. |
|
|
Definition at line 92 of file vtkImageMask.h. |
|
|
Definition at line 93 of file vtkImageMask.h. |
|
|
Definition at line 94 of file vtkImageMask.h. |
