vtkImageMathematics Class Reference

#include <vtkImageMathematics.h>

Inheritance diagram for vtkImageMathematics:

Inheritance graph
[legend]

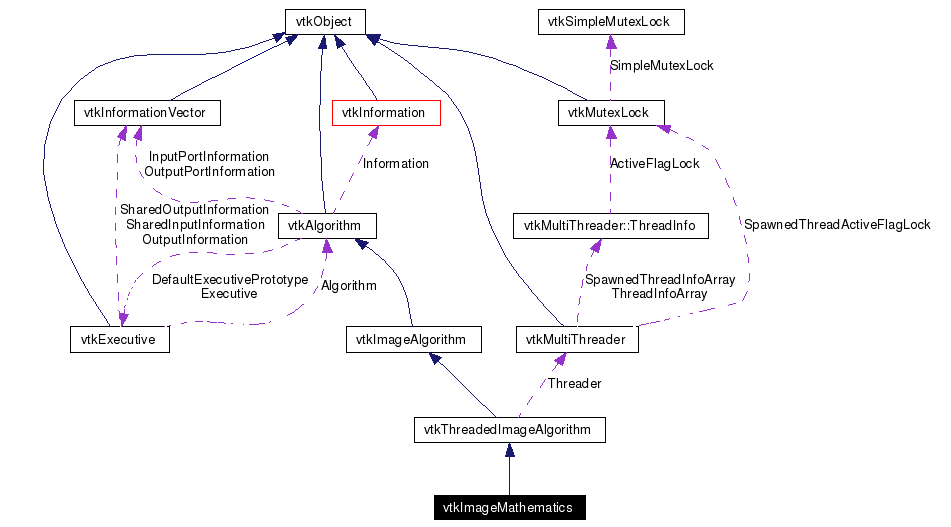

Collaboration diagram for vtkImageMathematics:

Collaboration graph
[legend]
List of all members.

Detailed Description

Add, subtract, multiply, divide, invert, sin, cos, exp, log.

vtkImageMathematics implements basic mathematic operations SetOperation is used to select the filters behavior. The filter can take two or one input.

Tests:
vtkImageMathematics (Tests)

Definition at line 55 of file vtkImageMathematics.h.

Public Types

typedef vtkThreadedImageAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void SetOperationToInvert ()
void SetOperationToSin ()
void SetOperationToCos ()
void SetOperationToExp ()
void SetOperationToLog ()
void SetOperationToAbsoluteValue ()
void SetOperationToSquare ()
void SetOperationToSquareRoot ()
void SetOperationToMin ()
void SetOperationToMax ()
void SetOperationToATAN ()
void SetOperationToATAN2 ()
void SetOperationToMultiplyByK ()
void SetOperationToAddConstant ()
void SetOperationToReplaceCByK ()
virtual void SetConstantK (double)
virtual double GetConstantK ()
virtual void SetConstantC (double)
virtual double GetConstantC ()
virtual void SetDivideByZeroToC (int)
virtual int GetDivideByZeroToC ()
virtual void DivideByZeroToCOn ()
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetOperation (int)
virtual int GetOperation ()
void SetOperationToAdd ()
void SetOperationToSubtract ()
void SetOperationToMultiply ()
void SetOperationToDivide ()
void SetOperationToConjugate ()
void SetOperationToComplexMultiply ()
virtual void DivideByZeroToCOff ()
virtual void SetInput1 (vtkDataObject *in)
virtual void SetInput2 (vtkDataObject *in)

Static Public Member Functions

static vtkImageMathematicsNew ()
static int IsTypeOf (const char *type)
static vtkImageMathematicsSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageMathematics ()
 ~vtkImageMathematics ()
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int extent[6], int threadId)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

int Operation
double ConstantK
double ConstantC
int DivideByZeroToC


Member Typedef Documentation

typedef vtkThreadedImageAlgorithm vtkImageMathematics::Superclass


Reimplemented from vtkThreadedImageAlgorithm.

Definition at line 59 of file vtkImageMathematics.h.


Constructor & Destructor Documentation

vtkImageMathematics::vtkImageMathematics  )  [protected]


vtkImageMathematics::~vtkImageMathematics  )  [inline, protected]


Definition at line 109 of file vtkImageMathematics.h.


Member Function Documentation

static vtkImageMathematics* vtkImageMathematics::New  )  [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkImageMathematics::GetClassName  )  [virtual]


Reimplemented from vtkThreadedImageAlgorithm.

static int vtkImageMathematics::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageMathematics::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkThreadedImageAlgorithm.

static vtkImageMathematics* vtkImageMathematics::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkThreadedImageAlgorithm.

void vtkImageMathematics::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkThreadedImageAlgorithm.

virtual void vtkImageMathematics::SetOperation int   )  [virtual]


Set/Get the Operation to perform.

virtual int vtkImageMathematics::GetOperation  )  [virtual]


void vtkImageMathematics::SetOperationToAdd  )  [inline]


Definition at line 66 of file vtkImageMathematics.h.

References VTK_ADD.

void vtkImageMathematics::SetOperationToSubtract  )  [inline]


Definition at line 67 of file vtkImageMathematics.h.

References VTK_SUBTRACT.

void vtkImageMathematics::SetOperationToMultiply  )  [inline]


Definition at line 68 of file vtkImageMathematics.h.

References VTK_MULTIPLY.

void vtkImageMathematics::SetOperationToDivide  )  [inline]


Definition at line 69 of file vtkImageMathematics.h.

References VTK_DIVIDE.

void vtkImageMathematics::SetOperationToConjugate  )  [inline]


Definition at line 70 of file vtkImageMathematics.h.

References VTK_CONJUGATE.

void vtkImageMathematics::SetOperationToComplexMultiply  )  [inline]


Definition at line 71 of file vtkImageMathematics.h.

References VTK_COMPLEX_MULTIPLY.

void vtkImageMathematics::SetOperationToInvert  )  [inline]


Definition at line 75 of file vtkImageMathematics.h.

References VTK_INVERT.

void vtkImageMathematics::SetOperationToSin  )  [inline]


Definition at line 76 of file vtkImageMathematics.h.

References VTK_SIN.

void vtkImageMathematics::SetOperationToCos  )  [inline]


Definition at line 77 of file vtkImageMathematics.h.

References VTK_COS.

void vtkImageMathematics::SetOperationToExp  )  [inline]


Definition at line 78 of file vtkImageMathematics.h.

References VTK_EXP.

void vtkImageMathematics::SetOperationToLog  )  [inline]


Definition at line 79 of file vtkImageMathematics.h.

References VTK_LOG.

void vtkImageMathematics::SetOperationToAbsoluteValue  )  [inline]


Definition at line 80 of file vtkImageMathematics.h.

References VTK_ABS.

void vtkImageMathematics::SetOperationToSquare  )  [inline]


Definition at line 81 of file vtkImageMathematics.h.

References VTK_SQR.

void vtkImageMathematics::SetOperationToSquareRoot  )  [inline]


Definition at line 82 of file vtkImageMathematics.h.

References VTK_SQRT.

void vtkImageMathematics::SetOperationToMin  )  [inline]


Definition at line 83 of file vtkImageMathematics.h.

References VTK_MIN.

void vtkImageMathematics::SetOperationToMax  )  [inline]


Definition at line 84 of file vtkImageMathematics.h.

References VTK_MAX.

void vtkImageMathematics::SetOperationToATAN  )  [inline]


Definition at line 86 of file vtkImageMathematics.h.

References VTK_ATAN.

void vtkImageMathematics::SetOperationToATAN2  )  [inline]


Definition at line 87 of file vtkImageMathematics.h.

References VTK_ATAN2.

void vtkImageMathematics::SetOperationToMultiplyByK  )  [inline]


Definition at line 88 of file vtkImageMathematics.h.

References VTK_MULTIPLYBYK.

void vtkImageMathematics::SetOperationToAddConstant  )  [inline]


Definition at line 89 of file vtkImageMathematics.h.

References VTK_ADDC.

void vtkImageMathematics::SetOperationToReplaceCByK  )  [inline]


Definition at line 90 of file vtkImageMathematics.h.

References VTK_REPLACECBYK.

virtual void vtkImageMathematics::SetConstantK double   )  [virtual]


virtual double vtkImageMathematics::GetConstantK  )  [virtual]


virtual void vtkImageMathematics::SetConstantC double   )  [virtual]


virtual double vtkImageMathematics::GetConstantC  )  [virtual]


virtual void vtkImageMathematics::SetDivideByZeroToC int   )  [virtual]


virtual int vtkImageMathematics::GetDivideByZeroToC  )  [virtual]


virtual void vtkImageMathematics::DivideByZeroToCOn  )  [virtual]


virtual void vtkImageMathematics::DivideByZeroToCOff  )  [virtual]


virtual void vtkImageMathematics::SetInput1 vtkDataObject in  )  [inline, virtual]


Set the two inputs to this filter

Definition at line 103 of file vtkImageMathematics.h.

References vtkImageAlgorithm::SetInput().

virtual void vtkImageMathematics::SetInput2 vtkDataObject in  )  [inline, virtual]


Definition at line 104 of file vtkImageMathematics.h.

References vtkImageAlgorithm::SetInput().

virtual int vtkImageMathematics::RequestInformation vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
[protected, virtual]


Reimplemented from vtkImageAlgorithm.

virtual void vtkImageMathematics::ThreadedRequestData vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  threadId
[protected, virtual]


If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageMathematics::FillInputPortInformation int  port,
vtkInformation info
[protected, virtual]


Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkImageAlgorithm.


Member Data Documentation

int vtkImageMathematics::Operation [protected]


Definition at line 109 of file vtkImageMathematics.h.

double vtkImageMathematics::ConstantK [protected]


Definition at line 112 of file vtkImageMathematics.h.

double vtkImageMathematics::ConstantC [protected]


Definition at line 113 of file vtkImageMathematics.h.

int vtkImageMathematics::DivideByZeroToC [protected]


Definition at line 114 of file vtkImageMathematics.h.


The documentation for this class was generated from the following file:
