vtkImageMirrorPad Class Reference

#include <vtkImageMirrorPad.h>

Inheritance diagram for vtkImageMirrorPad:

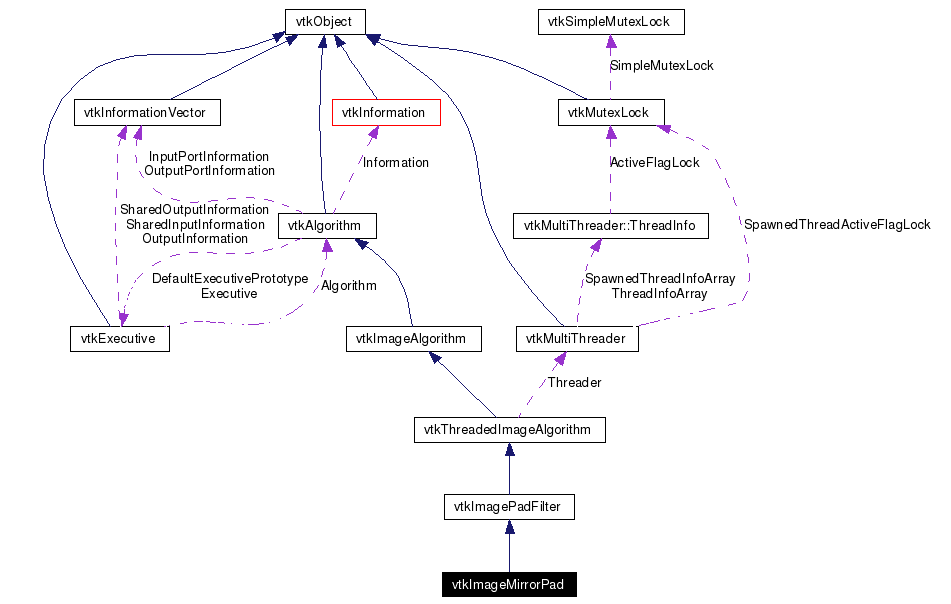

[legend]Collaboration diagram for vtkImageMirrorPad:

[legend]List of all members.

---

Detailed Description

Extra pixels are filled by mirror images.

vtkImageMirrorPad makes an image larger by filling extra pixels with a mirror image of the original image (mirror at image boundaries).

Tests:

vtkImageMirrorPad (Tests)

Definition at line 31 of file vtkImageMirrorPad.h.

Public Types
typedef vtkImagePadFilter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
Static Public Member Functions
static vtkImageMirrorPad *	New ()
static int	IsTypeOf (const char *type)
static vtkImageMirrorPad *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageMirrorPad ()
	~vtkImageMirrorPad ()
void	ComputeInputUpdateExtent (int inExt[6], int outExt[6], int wExt[6])
void	ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int ext[6], int id)

---

Member Typedef Documentation

typedef vtkImagePadFilter vtkImageMirrorPad::Superclass

Reimplemented from vtkImagePadFilter. Definition at line 35 of file vtkImageMirrorPad.h.

---

Constructor & Destructor Documentation

vtkImageMirrorPad::vtkImageMirrorPad (   )  [inline, protected]

Definition at line 38 of file vtkImageMirrorPad.h.

vtkImageMirrorPad::~vtkImageMirrorPad (   )  [inline, protected]

Definition at line 39 of file vtkImageMirrorPad.h.

---

Member Function Documentation

static vtkImageMirrorPad* vtkImageMirrorPad::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkImagePadFilter.

virtual const char* vtkImageMirrorPad::GetClassName (   )  [virtual]

Reimplemented from vtkImagePadFilter.

static int vtkImageMirrorPad::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImagePadFilter.

virtual int vtkImageMirrorPad::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImagePadFilter.

static vtkImageMirrorPad* vtkImageMirrorPad::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkImagePadFilter.

void vtkImageMirrorPad::ComputeInputUpdateExtent (  int  inExt[6], int  outExt[6], int  wExt[6] )  [protected, virtual]

Reimplemented from vtkImagePadFilter.

void vtkImageMirrorPad::ThreadedRequestData (  vtkInformation *  request, vtkInformationVector **  inputVector, vtkInformationVector *  outputVector, vtkImageData ***  inData, vtkImageData **  outData, int  ext[6], int  id )  [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented from vtkThreadedImageAlgorithm.

---

The documentation for this class was generated from the following file:

• dox/Imaging/vtkImageMirrorPad.h

---
