vtkImageMultipleInputOutputFilter Class Reference

#include <vtkImageMultipleInputOutputFilter.h>

Inheritance diagram for vtkImageMultipleInputOutputFilter:

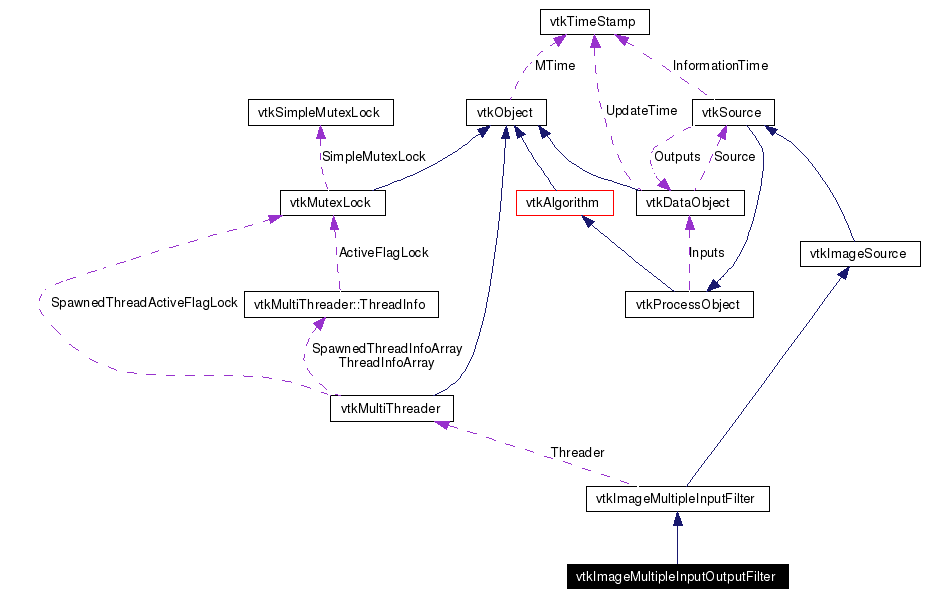

[legend]Collaboration diagram for vtkImageMultipleInputOutputFilter:

[legend]List of all members.

---

Detailed Description

Generic filter that has N inputs.

vtkImageMultipleInputOutputFilter is a super class for filters that have any number of inputs. Steaming is not available in this class yet.

See also:

vtkImageToImageFilter vtkImageInPlaceFilter vtkImageTwoInputFilter

Definition at line 32 of file vtkImageMultipleInputOutputFilter.h.

Public Types
typedef vtkImageMultipleInputFilter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkImageData *	GetOutput (int num)
vtkImageData *	GetOutput ()
virtual void	ThreadedExecute (vtkImageData **inDatas, vtkImageData **outDatas, int extent[6], int threadId)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkImageMultipleInputOutputFilter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageMultipleInputOutputFilter ()
	~vtkImageMultipleInputOutputFilter ()
void	ComputeInputUpdateExtents (vtkDataObject *output)
virtual void	ComputeInputUpdateExtent (int inExt[6], int outExt[6], int whichInput)
void	ExecuteData (vtkDataObject *out)
virtual void	ThreadedExecute (vtkImageData **inDatas, vtkImageData *outData, int extent[6], int threadId)
virtual void	ExecuteInformation (vtkImageData **, vtkImageData *)
void	ExecuteInformation ()
virtual void	ExecuteInformation (vtkImageData **, vtkImageData **)

---

Member Typedef Documentation

typedef vtkImageMultipleInputFilter vtkImageMultipleInputOutputFilter::Superclass

Reimplemented from vtkImageMultipleInputFilter. Definition at line 35 of file vtkImageMultipleInputOutputFilter.h.

---

Constructor & Destructor Documentation

vtkImageMultipleInputOutputFilter::vtkImageMultipleInputOutputFilter (   )  [protected]

vtkImageMultipleInputOutputFilter::~vtkImageMultipleInputOutputFilter (   )  [protected]

---

Member Function Documentation

virtual const char* vtkImageMultipleInputOutputFilter::GetClassName (   )  [virtual]

Reimplemented from vtkImageMultipleInputFilter.

static int vtkImageMultipleInputOutputFilter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageMultipleInputFilter.

virtual int vtkImageMultipleInputOutputFilter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageMultipleInputFilter.

static vtkImageMultipleInputOutputFilter* vtkImageMultipleInputOutputFilter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkImageMultipleInputFilter.

void vtkImageMultipleInputOutputFilter::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageMultipleInputFilter.

vtkImageData* vtkImageMultipleInputOutputFilter::GetOutput (  int  num  )

Get one input to this filter. Reimplemented from vtkImageSource.

vtkImageData* vtkImageMultipleInputOutputFilter::GetOutput (   )

Reimplemented from vtkImageSource.

virtual void vtkImageMultipleInputOutputFilter::ThreadedExecute (  vtkImageData **  inDatas, vtkImageData **  outDatas, int  extent[6], int  threadId )  [virtual]

The execute method created by the subclass. This is kept public instead of protected since it is called from a non-member thread function.

void vtkImageMultipleInputOutputFilter::ComputeInputUpdateExtents (  vtkDataObject *  output  )  [protected, virtual]

What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses. Reimplemented from vtkImageMultipleInputFilter.

virtual void vtkImageMultipleInputOutputFilter::ComputeInputUpdateExtent (  int  inExt[6], int  outExt[6], int  whichInput )  [protected, virtual]

Reimplemented from vtkImageMultipleInputFilter.

void vtkImageMultipleInputOutputFilter::ExecuteData (  vtkDataObject *  out  )  [protected, virtual]

This method is the one that should be used by subclasses, right now the default implementation is to call the backwards compatibility method Reimplemented from vtkImageMultipleInputFilter.

virtual void vtkImageMultipleInputOutputFilter::ThreadedExecute (  vtkImageData **  inDatas, vtkImageData *  outData, int  extent[6], int  threadId )  [protected, virtual]

The execute method created by the subclass. This is kept public instead of protected since it is called from a non-member thread function. Reimplemented from vtkImageMultipleInputFilter.

virtual void vtkImageMultipleInputOutputFilter::ExecuteInformation (  vtkImageData **  , vtkImageData *  )  [inline, protected, virtual]

Reimplemented from vtkImageMultipleInputFilter. Definition at line 70 of file vtkImageMultipleInputOutputFilter.h.

void vtkImageMultipleInputOutputFilter::ExecuteInformation (   )  [protected, virtual]

Reimplemented from vtkImageMultipleInputFilter.

virtual void vtkImageMultipleInputOutputFilter::ExecuteInformation (  vtkImageData **  , vtkImageData **  )  [inline, protected, virtual]

Definition at line 75 of file vtkImageMultipleInputOutputFilter.h.

---

The documentation for this class was generated from the following file:

• dox/Filtering/vtkImageMultipleInputOutputFilter.h

---
