vtkImageRange3D Class Reference

#include <vtkImageRange3D.h>

Inheritance diagram for vtkImageRange3D:

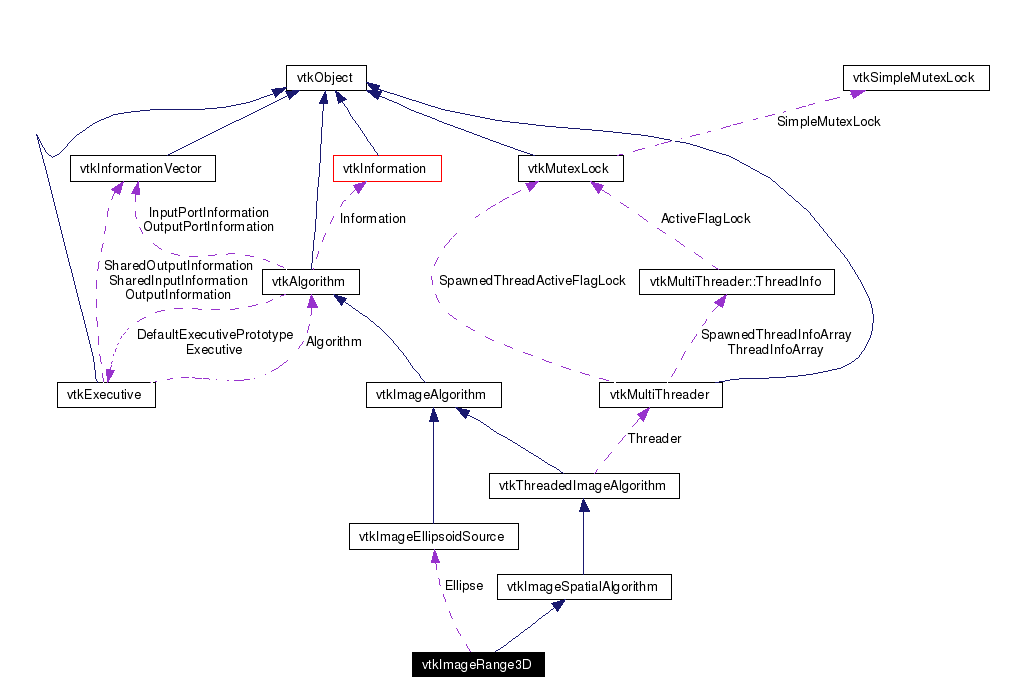

[legend]Collaboration diagram for vtkImageRange3D:

[legend]List of all members.

---

Detailed Description

Max - min of a circular neighborhood.

vtkImageRange3D replaces a pixel with the maximum minus minimum over an ellipsoidal neighborhood. If KernelSize of an axis is 1, no processing is done on that axis.

Tests:

vtkImageRange3D (Tests)

Definition at line 34 of file vtkImageRange3D.h.

Public Types
typedef vtkImageSpatialAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetKernelSize (int size0, int size1, int size2)
Static Public Member Functions
static vtkImageRange3D *	New ()
static int	IsTypeOf (const char *type)
static vtkImageRange3D *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageRange3D ()
	~vtkImageRange3D ()
virtual int	RequestInformation (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
void	ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int extent[6], int id)
virtual int	RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
Protected Attributes
vtkImageEllipsoidSource *	Ellipse

---

Member Typedef Documentation

typedef vtkImageSpatialAlgorithm vtkImageRange3D::Superclass

Reimplemented from vtkImageSpatialAlgorithm. Definition at line 38 of file vtkImageRange3D.h.

---

Constructor & Destructor Documentation

vtkImageRange3D::vtkImageRange3D (   )  [protected]

vtkImageRange3D::~vtkImageRange3D (   )  [protected]

---

Member Function Documentation

static vtkImageRange3D* vtkImageRange3D::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkImageSpatialAlgorithm.

virtual const char* vtkImageRange3D::GetClassName (   )  [virtual]

Reimplemented from vtkImageSpatialAlgorithm.

static int vtkImageRange3D::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageSpatialAlgorithm.

virtual int vtkImageRange3D::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageSpatialAlgorithm.

static vtkImageRange3D* vtkImageRange3D::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkImageSpatialAlgorithm.

void vtkImageRange3D::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageSpatialAlgorithm.

void vtkImageRange3D::SetKernelSize (  int  size0, int  size1, int  size2 )

This method sets the size of the neighborhood. It also sets the default middle of the neighborhood and computes the elliptical foot print.

virtual int vtkImageRange3D::RequestInformation (  vtkInformation *  request, vtkInformationVector **  inputVector, vtkInformationVector *  outputVector )  [protected, virtual]

Reimplemented from vtkImageSpatialAlgorithm.

void vtkImageRange3D::ThreadedRequestData (  vtkInformation *  request, vtkInformationVector **  inputVector, vtkInformationVector *  outputVector, vtkImageData ***  inData, vtkImageData **  outData, int  extent[6], int  id )  [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageRange3D::RequestData (  vtkInformation *  request, vtkInformationVector **  inputVector, vtkInformationVector *  outputVector )  [protected, virtual]

This is called by the superclass. This is the method you should override. Reimplemented from vtkThreadedImageAlgorithm.

---

Member Data Documentation

vtkImageEllipsoidSource* vtkImageRange3D::Ellipse [protected]

Definition at line 50 of file vtkImageRange3D.h.

---

The documentation for this class was generated from the following file:

• dox/Imaging/vtkImageRange3D.h

---
