vtkImageViewer Class Reference

#include <vtkImageViewer.h>

Inheritance diagram for vtkImageViewer:

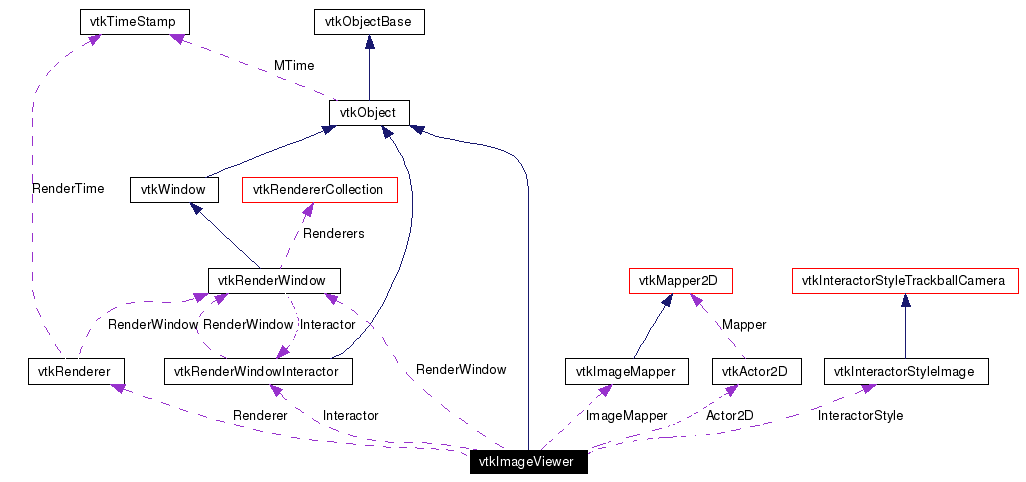

[legend]Collaboration diagram for vtkImageViewer:

[legend]List of all members.

---

Detailed Description

Display a 2d image.

vtkImageViewer is a convenience class for displaying a 2d image. It packages up the functionality found in vtkRenderWindow, vtkRenderer, vtkActor2D and vtkImageMapper into a single easy to use class. Behind the scenes these four classes are actually used to to provide the required functionality. vtkImageViewer is simply a wrapper around them.

See also:

vtkRenderWindow vtkRenderer vtkImageMapper vtkActor2D

Examples:

vtkImageViewer (Examples)

Tests:

vtkImageViewer (Tests)

Definition at line 44 of file vtkImageViewer.h.

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
char *	GetWindowName ()
virtual void	Render (void)
void	SetInput (vtkImageData *in)
vtkImageData *	GetInput ()
virtual void	SetInputConnection (vtkAlgorithmOutput *input)
int	GetWholeZMin ()
int	GetWholeZMax ()
int	GetZSlice ()
void	SetZSlice (int s)
double	GetColorWindow ()
double	GetColorLevel ()
void	SetColorWindow (double s)
void	SetColorLevel (double s)
void	SetDisplayId (void *a)
void	SetWindowId (void *a)
void	SetParentId (void *a)
int	GetGrayScaleHint ()
void	SetGrayScaleHint (int vtkNotUsed(a))
void	GrayScaleHintOn ()
void	GrayScaleHintOff ()
int *	GetPosition ()
void	SetPosition (int a, int b)
virtual void	SetPosition (int a[2])
int *	GetSize ()
void	SetSize (int a, int b)
virtual void	SetSize (int a[2])
virtual vtkRenderWindow *	GetRenderWindow ()
virtual vtkRenderer *	GetRenderer ()
virtual vtkImageMapper *	GetImageMapper ()
virtual vtkActor2D *	GetActor2D ()
void	SetupInteractor (vtkRenderWindowInteractor *)
void	SetOffScreenRendering (int)
int	GetOffScreenRendering ()
void	OffScreenRenderingOn ()
void	OffScreenRenderingOff ()
Static Public Member Functions
static vtkImageViewer *	New ()
static int	IsTypeOf (const char *type)
static vtkImageViewer *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageViewer ()
	~vtkImageViewer ()
Protected Attributes
vtkRenderWindow *	RenderWindow
vtkRenderer *	Renderer
vtkImageMapper *	ImageMapper
vtkActor2D *	Actor2D
int	FirstRender
vtkRenderWindowInteractor *	Interactor
vtkInteractorStyleImage *	InteractorStyle

---

Member Typedef Documentation

typedef vtkObject vtkImageViewer::Superclass

Reimplemented from vtkObject. Definition at line 49 of file vtkImageViewer.h.

---

Constructor & Destructor Documentation

vtkImageViewer::vtkImageViewer (   )  [protected]

vtkImageViewer::~vtkImageViewer (   )  [protected]

---

Member Function Documentation

static vtkImageViewer* vtkImageViewer::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject.

virtual const char* vtkImageViewer::GetClassName (   )  [virtual]

Reimplemented from vtkObject.

static int vtkImageViewer::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkObject.

virtual int vtkImageViewer::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkObject.

static vtkImageViewer* vtkImageViewer::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkObject.

void vtkImageViewer::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkObject.

char* vtkImageViewer::GetWindowName (   )  [inline]

Get name of rendering window Definition at line 53 of file vtkImageViewer.h.

virtual void vtkImageViewer::Render (  void   )  [virtual]

Render the resulting image.

void vtkImageViewer::SetInput (  vtkImageData *  in  )  [inline]

Set/Get the input to the viewer. Definition at line 60 of file vtkImageViewer.h.

vtkImageData* vtkImageViewer::GetInput (   )  [inline]

Render the resulting image. Definition at line 61 of file vtkImageViewer.h.

virtual void vtkImageViewer::SetInputConnection (  vtkAlgorithmOutput *  input  )  [inline, virtual]

Render the resulting image. Definition at line 62 of file vtkImageViewer.h.

int vtkImageViewer::GetWholeZMin (   )  [inline]

What is the possible Min/ Max z slices available. Definition at line 68 of file vtkImageViewer.h.

int vtkImageViewer::GetWholeZMax (   )  [inline]

What is the possible Min/ Max z slices available. Definition at line 69 of file vtkImageViewer.h.

int vtkImageViewer::GetZSlice (   )  [inline]

Set/Get the current Z Slice to display Definition at line 74 of file vtkImageViewer.h.

void vtkImageViewer::SetZSlice (  int  s  )  [inline]

Set/Get the current Z Slice to display Definition at line 75 of file vtkImageViewer.h.

double vtkImageViewer::GetColorWindow (   )  [inline]

Sets window/level for mapping pixels to colors. Definition at line 80 of file vtkImageViewer.h.

double vtkImageViewer::GetColorLevel (   )  [inline]

Sets window/level for mapping pixels to colors. Definition at line 81 of file vtkImageViewer.h.

void vtkImageViewer::SetColorWindow (  double  s  )  [inline]

Sets window/level for mapping pixels to colors. Definition at line 82 of file vtkImageViewer.h.

void vtkImageViewer::SetColorLevel (  double  s  )  [inline]

Sets window/level for mapping pixels to colors. Definition at line 83 of file vtkImageViewer.h.

void vtkImageViewer::SetDisplayId (  void *  a  )  [inline]

These are here for using a tk window. Definition at line 88 of file vtkImageViewer.h.

void vtkImageViewer::SetWindowId (  void *  a  )  [inline]

These are here for using a tk window. Definition at line 89 of file vtkImageViewer.h.

void vtkImageViewer::SetParentId (  void *  a  )  [inline]

These are here for using a tk window. Definition at line 90 of file vtkImageViewer.h.

int vtkImageViewer::GetGrayScaleHint (   )

By default this is a color viewer. GrayScaleHintOn will improve the appearance of gray scale images on some systems.

void vtkImageViewer::SetGrayScaleHint (  int   vtkNotUsed(a)  )

By default this is a color viewer. GrayScaleHintOn will improve the appearance of gray scale images on some systems.

void vtkImageViewer::GrayScaleHintOn (   )

By default this is a color viewer. GrayScaleHintOn will improve the appearance of gray scale images on some systems.

void vtkImageViewer::GrayScaleHintOff (   )

By default this is a color viewer. GrayScaleHintOn will improve the appearance of gray scale images on some systems.

int* vtkImageViewer::GetPosition (   )  [inline]

Set/Get the position in screen coordinates of the rendering window. Definition at line 104 of file vtkImageViewer.h.

void vtkImageViewer::SetPosition (  int  a, int  b )  [inline]

Set/Get the position in screen coordinates of the rendering window. Definition at line 105 of file vtkImageViewer.h.

virtual void vtkImageViewer::SetPosition (  int  a[2]  )  [virtual]

Set/Get the position in screen coordinates of the rendering window.

int* vtkImageViewer::GetSize (   )  [inline]

Set/Get the size of the window in screen coordinates. Definition at line 111 of file vtkImageViewer.h.

void vtkImageViewer::SetSize (  int  a, int  b )  [inline]

Set/Get the size of the window in screen coordinates. Definition at line 112 of file vtkImageViewer.h.

virtual void vtkImageViewer::SetSize (  int  a[2]  )  [virtual]

Set/Get the size of the window in screen coordinates.

virtual vtkRenderWindow* vtkImageViewer::GetRenderWindow (   )  [virtual]

Get the internal objects

virtual vtkRenderer* vtkImageViewer::GetRenderer (   )  [virtual]

Get the internal objects

virtual vtkImageMapper* vtkImageViewer::GetImageMapper (   )  [virtual]

Get the internal objects

virtual vtkActor2D* vtkImageViewer::GetActor2D (   )  [virtual]

Get the internal objects

void vtkImageViewer::SetupInteractor (  vtkRenderWindowInteractor *   )

Create and attach an interactor for this window

void vtkImageViewer::SetOffScreenRendering (  int   )

Create a window in memory instead of on the screen. This may not be supported for every type of window and on some windows you may need to invoke this prior to the first render.

int vtkImageViewer::GetOffScreenRendering (   )

Create and attach an interactor for this window

void vtkImageViewer::OffScreenRenderingOn (   )

Create and attach an interactor for this window

void vtkImageViewer::OffScreenRenderingOff (   )

Create and attach an interactor for this window

---

Member Data Documentation

vtkRenderWindow* vtkImageViewer::RenderWindow [protected]

Definition at line 141 of file vtkImageViewer.h.

vtkRenderer* vtkImageViewer::Renderer [protected]

Definition at line 142 of file vtkImageViewer.h.

vtkImageMapper* vtkImageViewer::ImageMapper [protected]

Definition at line 143 of file vtkImageViewer.h.

vtkActor2D* vtkImageViewer::Actor2D [protected]

Definition at line 144 of file vtkImageViewer.h.

int vtkImageViewer::FirstRender [protected]

Definition at line 145 of file vtkImageViewer.h.

vtkRenderWindowInteractor* vtkImageViewer::Interactor [protected]

Definition at line 146 of file vtkImageViewer.h.

vtkInteractorStyleImage* vtkImageViewer::InteractorStyle [protected]

Definition at line 147 of file vtkImageViewer.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkImageViewer.h

---
