vtkRenderer Class Reference

#include <vtkRenderer.h>

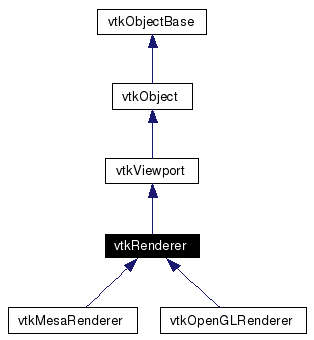

Inheritance diagram for vtkRenderer:

Inheritance graph
[legend]

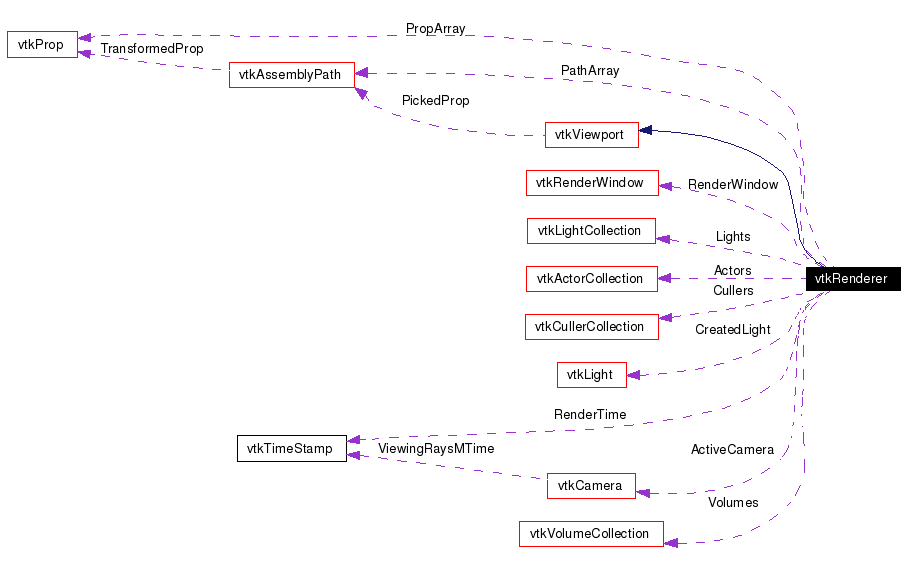

Collaboration diagram for vtkRenderer:

Collaboration graph
[legend]
List of all members.

Detailed Description

abstract specification for renderers

vtkRenderer provides an abstract specification for renderers. A renderer is an object that controls the rendering process for objects. Rendering is the process of converting geometry, a specification for lights, and a camera view into an image. vtkRenderer also performs coordinate transformation between world coordinates, view coordinates (the computer graphics rendering coordinate system), and display coordinates (the actual screen coordinates on the display device). Certain advanced rendering features such as two-sided lighting can also be controlled.

See also:
vtkRenderWindow vtkActor vtkCamera vtkLight vtkVolume
Events:
vtkCommand::StartEvent vtkCommand::ResetCameraEvent vtkCommand::ResetCameraClippingRangeEvent vtkCommand::EndEvent
Examples:
vtkRenderer (Examples)
Tests:
vtkRenderer (Tests)

Definition at line 58 of file vtkRenderer.h.
void AddActor (vtkProp *p)
void AddVolume (vtkProp *p)
void RemoveActor (vtkProp *p)
void RemoveVolume (vtkProp *p)
static vtkRendererNew ()

Public Types

typedef vtkViewport Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void AddLight (vtkLight *)
void RemoveLight (vtkLight *)
vtkLightCollectionGetLights ()
void CreateLight (void)
virtual int UpdateLightsGeometryToFollowCamera (void)
vtkVolumeCollectionGetVolumes ()
vtkActorCollectionGetActors ()
void SetActiveCamera (vtkCamera *)
vtkCameraGetActiveCamera ()
void AddCuller (vtkCuller *)
void RemoveCuller (vtkCuller *)
virtual double GetTimeFactor ()
virtual void Render ()
virtual void DeviceRender ()=0
virtual void Clear ()
int VisibleActorCount ()
int VisibleVolumeCount ()
void ComputeVisiblePropBounds (double bounds[6])
double * ComputeVisiblePropBounds ()
void ResetCamera ()
int Transparent ()
virtual void WorldToView (double &wx, double &wy, double &wz)
double GetZ (int x, int y)
vtkAssemblyPathPickProp (double selectionX, double selectionY)
virtual void StereoMidpoint ()
double GetTiledAspectRatio ()
virtual vtkLightMakeLight ()
virtual int GetTwoSidedLighting ()
virtual void SetTwoSidedLighting (int)
virtual void TwoSidedLightingOn ()
virtual void TwoSidedLightingOff ()
virtual void SetLightFollowCamera (int)
virtual int GetLightFollowCamera ()
virtual void LightFollowCameraOn ()
virtual void LightFollowCameraOff ()
virtual int GetAutomaticLightCreation ()
virtual void SetAutomaticLightCreation (int)
virtual void AutomaticLightCreationOn ()
virtual void AutomaticLightCreationOff ()
virtual vtkCameraMakeCamera ()
virtual void SetErase (int)
virtual int GetErase ()
virtual void EraseOn ()
virtual void EraseOff ()
vtkCullerCollectionGetCullers ()
virtual void SetAmbient (double, double, double)
virtual void SetAmbient (double[3])
virtual double * GetAmbient ()
virtual void GetAmbient (double data[3])
virtual void SetAllocatedRenderTime (double)
virtual double GetAllocatedRenderTime ()
void ResetCameraClippingRange ()
void ResetCameraClippingRange (double bounds[6])
void ResetCameraClippingRange (double xmin, double xmax, double ymin, double ymax, double zmin, double zmax)
virtual void SetNearClippingPlaneTolerance (double)
virtual double GetNearClippingPlaneTolerance ()
void ResetCamera (double bounds[6])
void ResetCamera (double xmin, double xmax, double ymin, double ymax, double zmin, double zmax)
void SetRenderWindow (vtkRenderWindow *)
vtkRenderWindowGetRenderWindow ()
virtual vtkWindowGetVTKWindow ()
virtual void SetBackingStore (int)
virtual int GetBackingStore ()
virtual void BackingStoreOn ()
virtual void BackingStoreOff ()
virtual void SetInteractive (int)
virtual int GetInteractive ()
virtual void InteractiveOn ()
virtual void InteractiveOff ()
virtual void SetLayer (int)
virtual int GetLayer ()
void WorldToView ()
void ViewToWorld ()
virtual void ViewToWorld (double &wx, double &wy, double &wz)
unsigned long GetMTime ()
virtual double GetLastRenderTimeInSeconds ()
virtual int GetNumberOfPropsRendered ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkRendererSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkRenderer ()
 ~vtkRenderer ()
virtual void PickRender (vtkPropCollection *props)
virtual void PickGeometry ()
void AllocateTime ()
virtual int UpdateGeometry (void)
virtual int UpdateCamera (void)
virtual int UpdateLightGeometry (void)
virtual int UpdateLights (void)
vtkCameraGetActiveCameraAndEventuallyReset ()

Protected Attributes

vtkCameraActiveCamera
vtkLightCreatedLight
vtkLightCollectionLights
vtkCullerCollectionCullers
vtkActorCollectionActors
vtkVolumeCollectionVolumes
double Ambient [3]
vtkRenderWindowRenderWindow
double AllocatedRenderTime
double TimeFactor
int TwoSidedLighting
int AutomaticLightCreation
int BackingStore
unsigned char * BackingImage
int BackingStoreSize [2]
vtkTimeStamp RenderTime
double LastRenderTimeInSeconds
int LightFollowCamera
int NumberOfPropsRendered
vtkProp ** PropArray
int PropArrayCount
vtkAssemblyPath ** PathArray
int PathArrayCount
int Interactive
int Layer
double ComputedVisiblePropBounds [6]
double NearClippingPlaneTolerance
int Erase


Member Typedef Documentation

typedef vtkViewport vtkRenderer::Superclass


Reimplemented from vtkViewport.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

Definition at line 61 of file vtkRenderer.h.


Constructor & Destructor Documentation

vtkRenderer::vtkRenderer  )  [protected]


vtkRenderer::~vtkRenderer  )  [protected]



Member Function Documentation

virtual const char* vtkRenderer::GetClassName  )  [virtual]


Reimplemented from vtkViewport.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

static int vtkRenderer::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkViewport.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

virtual int vtkRenderer::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkViewport.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

static vtkRenderer* vtkRenderer::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkViewport.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

void vtkRenderer::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkViewport.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

static vtkRenderer* vtkRenderer::New  )  [static]


Create a vtkRenderer with a black background, a white ambient light, two-sided lighting turned on, a viewport of (0,0,1,1), and backface culling turned off.

Reimplemented from vtkObject.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

void vtkRenderer::AddActor vtkProp p  )


Add/Remove different types of props to the renderer. These methods are all synonyms to AddViewProp and RemoveViewProp. They are here for convenience and backwards compatibility.

void vtkRenderer::AddVolume vtkProp p  )


Add/Remove different types of props to the renderer. These methods are all synonyms to AddViewProp and RemoveViewProp. They are here for convenience and backwards compatibility.

void vtkRenderer::RemoveActor vtkProp p  )


Add/Remove different types of props to the renderer. These methods are all synonyms to AddViewProp and RemoveViewProp. They are here for convenience and backwards compatibility.

void vtkRenderer::RemoveVolume vtkProp p  )


Add/Remove different types of props to the renderer. These methods are all synonyms to AddViewProp and RemoveViewProp. They are here for convenience and backwards compatibility.

void vtkRenderer::AddLight vtkLight  )


Add a light to the list of lights.

void vtkRenderer::RemoveLight vtkLight  )


Remove a light from the list of lights.

vtkLightCollection * vtkRenderer::GetLights  )  [inline]


Return the collection of lights.

Definition at line 452 of file vtkRenderer.h.

References Lights.

void vtkRenderer::CreateLight void   )


Create and add a light to renderer.

virtual vtkLight* vtkRenderer::MakeLight  )  [virtual]


Create a new Light sutible for use with this type of Renderer. For example, a vtkMesaRenderer should create a vtkMesaLight in this function. The default is to just call vtkLight::New.

Reimplemented in vtkMesaRenderer.

virtual int vtkRenderer::GetTwoSidedLighting  )  [virtual]


Turn on/off two-sided lighting of surfaces. If two-sided lighting is off, then only the side of the surface facing the light(s) will be lit, and the other side dark. If two-sided lighting on, both sides of the surface will be lit.

virtual void vtkRenderer::SetTwoSidedLighting int   )  [virtual]


Create a new Light sutible for use with this type of Renderer. For example, a vtkMesaRenderer should create a vtkMesaLight in this function. The default is to just call vtkLight::New.

virtual void vtkRenderer::TwoSidedLightingOn  )  [virtual]


Create a new Light sutible for use with this type of Renderer. For example, a vtkMesaRenderer should create a vtkMesaLight in this function. The default is to just call vtkLight::New.

virtual void vtkRenderer::TwoSidedLightingOff  )  [virtual]


Create a new Light sutible for use with this type of Renderer. For example, a vtkMesaRenderer should create a vtkMesaLight in this function. The default is to just call vtkLight::New.

virtual void vtkRenderer::SetLightFollowCamera int   )  [virtual]


Turn on/off the automatic repositioning of lights as the camera moves. If LightFollowCamera is on, lights that are designated as Headlights or CameraLights will be adjusted to move with this renderer's camera. If LightFollowCamera is off, the lights will not be adjusted. (Note: In previous versions of vtk, this light-tracking functionality was part of the interactors, not the renderer. For backwards compatibility, the older, more limited interactor behavior is enabled by default. To disable this mode, turn the interactor's LightFollowCamera flag OFF, and leave the renderer's LightFollowCamera flag ON.)

virtual int vtkRenderer::GetLightFollowCamera  )  [virtual]


Turn on/off the automatic repositioning of lights as the camera moves. If LightFollowCamera is on, lights that are designated as Headlights or CameraLights will be adjusted to move with this renderer's camera. If LightFollowCamera is off, the lights will not be adjusted. (Note: In previous versions of vtk, this light-tracking functionality was part of the interactors, not the renderer. For backwards compatibility, the older, more limited interactor behavior is enabled by default. To disable this mode, turn the interactor's LightFollowCamera flag OFF, and leave the renderer's LightFollowCamera flag ON.)

virtual void vtkRenderer::LightFollowCameraOn  )  [virtual]


Turn on/off the automatic repositioning of lights as the camera moves. If LightFollowCamera is on, lights that are designated as Headlights or CameraLights will be adjusted to move with this renderer's camera. If LightFollowCamera is off, the lights will not be adjusted. (Note: In previous versions of vtk, this light-tracking functionality was part of the interactors, not the renderer. For backwards compatibility, the older, more limited interactor behavior is enabled by default. To disable this mode, turn the interactor's LightFollowCamera flag OFF, and leave the renderer's LightFollowCamera flag ON.)

virtual void vtkRenderer::LightFollowCameraOff  )  [virtual]


Turn on/off the automatic repositioning of lights as the camera moves. If LightFollowCamera is on, lights that are designated as Headlights or CameraLights will be adjusted to move with this renderer's camera. If LightFollowCamera is off, the lights will not be adjusted. (Note: In previous versions of vtk, this light-tracking functionality was part of the interactors, not the renderer. For backwards compatibility, the older, more limited interactor behavior is enabled by default. To disable this mode, turn the interactor's LightFollowCamera flag OFF, and leave the renderer's LightFollowCamera flag ON.)

virtual int vtkRenderer::GetAutomaticLightCreation  )  [virtual]


Turn on/off a flag which disables the automatic light creation capability. Normally in VTK if no lights are associated with the renderer, then a light is automatically created. However, in special circumstances this feature is undesirable, so the following boolean is provided to disable automatic light creation. (Turn AutomaticLightCreation off if you do not want lights to be created.)

virtual void vtkRenderer::SetAutomaticLightCreation int   )  [virtual]


Turn on/off a flag which disables the automatic light creation capability. Normally in VTK if no lights are associated with the renderer, then a light is automatically created. However, in special circumstances this feature is undesirable, so the following boolean is provided to disable automatic light creation. (Turn AutomaticLightCreation off if you do not want lights to be created.)

virtual void vtkRenderer::AutomaticLightCreationOn  )  [virtual]


Turn on/off a flag which disables the automatic light creation capability. Normally in VTK if no lights are associated with the renderer, then a light is automatically created. However, in special circumstances this feature is undesirable, so the following boolean is provided to disable automatic light creation. (Turn AutomaticLightCreation off if you do not want lights to be created.)

virtual void vtkRenderer::AutomaticLightCreationOff  )  [virtual]


Turn on/off a flag which disables the automatic light creation capability. Normally in VTK if no lights are associated with the renderer, then a light is automatically created. However, in special circumstances this feature is undesirable, so the following boolean is provided to disable automatic light creation. (Turn AutomaticLightCreation off if you do not want lights to be created.)

virtual int vtkRenderer::UpdateLightsGeometryToFollowCamera void   )  [virtual]


Ask the lights in the scene that are not in world space (for instance, Headlights or CameraLights that are attached to the camera) to update their geometry to match the active camera.

vtkVolumeCollection* vtkRenderer::GetVolumes  )


Return the collection of volumes.

vtkActorCollection* vtkRenderer::GetActors  )


Return any actors in this renderer.

void vtkRenderer::SetActiveCamera vtkCamera  )


Specify the camera to use for this renderer.

vtkCamera* vtkRenderer::GetActiveCamera  )


Get the current camera. If there is not camera assigned to the renderer already, a new one is created automatically. This does *not* reset the camera.

virtual vtkCamera* vtkRenderer::MakeCamera  )  [virtual]


Create a new Camera sutible for use with this type of Renderer. For example, a vtkMesaRenderer should create a vtkMesaCamera in this function. The default is to just call vtkCamera::New.

Reimplemented in vtkMesaRenderer.

virtual void vtkRenderer::SetErase int   )  [virtual]


When this flag is off, the renderer will not erase the background or the Zbuffer. It is used to have overlapping renderers. Both the RenderWindow Erase and Render Erase must be on for the camera to clear the renderer. By default, Erase is on.

virtual int vtkRenderer::GetErase  )  [virtual]


Create a new Camera sutible for use with this type of Renderer. For example, a vtkMesaRenderer should create a vtkMesaCamera in this function. The default is to just call vtkCamera::New.

virtual void vtkRenderer::EraseOn  )  [virtual]


Create a new Camera sutible for use with this type of Renderer. For example, a vtkMesaRenderer should create a vtkMesaCamera in this function. The default is to just call vtkCamera::New.

virtual void vtkRenderer::EraseOff  )  [virtual]


Create a new Camera sutible for use with this type of Renderer. For example, a vtkMesaRenderer should create a vtkMesaCamera in this function. The default is to just call vtkCamera::New.

void vtkRenderer::AddCuller vtkCuller  )


Add an culler to the list of cullers.

void vtkRenderer::RemoveCuller vtkCuller  )


Remove an actor from the list of cullers.

vtkCullerCollection * vtkRenderer::GetCullers  )  [inline]


Return the collection of cullers.

Definition at line 457 of file vtkRenderer.h.

References Cullers.

virtual void vtkRenderer::SetAmbient double  ,
double  ,
double
[virtual]


Set the intensity of ambient lighting.

virtual void vtkRenderer::SetAmbient double  [3]  )  [virtual]


Return the collection of cullers.

virtual double* vtkRenderer::GetAmbient  )  [virtual]


Return the collection of cullers.

virtual void vtkRenderer::GetAmbient double  data[3]  )  [virtual]


Return the collection of cullers.

virtual void vtkRenderer::SetAllocatedRenderTime double   )  [virtual]


Set/Get the amount of time this renderer is allowed to spend rendering its scene. This is used by vtkLODActor's.

virtual double vtkRenderer::GetAllocatedRenderTime  )  [virtual]


Set/Get the amount of time this renderer is allowed to spend rendering its scene. This is used by vtkLODActor's.

virtual double vtkRenderer::GetTimeFactor  )  [virtual]


Get the ratio between allocated time and actual render time. TimeFactor has been taken out of the render process. It is still computed in case someone finds it useful. It may be taken away in the future.

virtual void vtkRenderer::Render  )  [virtual]


Create an image. This is a superclass method which will in turn call the DeviceRender method of Subclasses of vtkRenderer

virtual void vtkRenderer::DeviceRender  )  [pure virtual]


Create an image. Subclasses of vtkRenderer must implement this method.

Implemented in vtkMesaRenderer, and vtkOpenGLRenderer.

virtual void vtkRenderer::Clear void   )  [inline, virtual]


Clear the image to the background color.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

Definition at line 205 of file vtkRenderer.h.

int vtkRenderer::VisibleActorCount  )


Returns the number of visible actors.

int vtkRenderer::VisibleVolumeCount  )


Returns the number of visible volumes.

void vtkRenderer::ComputeVisiblePropBounds double  bounds[6]  )


Compute the bounding box of all the visible props Used in ResetCamera() and ResetCameraClippingRange()

double* vtkRenderer::ComputeVisiblePropBounds  )


Wrapper-friendly version of ComputeVisiblePropBounds

void vtkRenderer::ResetCameraClippingRange  )


Reset the camera clipping range based on the bounds of the visible actors. This ensures that no props are cut off

void vtkRenderer::ResetCameraClippingRange double  bounds[6]  )


Reset the camera clipping range based on a bounding box. This method is called from ResetCameraClippingRange()

void vtkRenderer::ResetCameraClippingRange double  xmin,
double  xmax,
double  ymin,
double  ymax,
double  zmin,
double  zmax


Reset the camera clipping range based on the bounds of the visible actors. This ensures that no props are cut off

virtual void vtkRenderer::SetNearClippingPlaneTolerance double   )  [virtual]


Specify tolerance for near clipping plane distance to the camera as a percentage of the far clipping plane distance. By default this will be set to 0.01 for 16 bit zbuffers and 0.001 for higher depth z buffers

virtual double vtkRenderer::GetNearClippingPlaneTolerance  )  [virtual]


Specify tolerance for near clipping plane distance to the camera as a percentage of the far clipping plane distance. By default this will be set to 0.01 for 16 bit zbuffers and 0.001 for higher depth z buffers

void vtkRenderer::ResetCamera  )


Automatically set up the camera based on the visible actors. The camera will reposition itself to view the center point of the actors, and move along its initial view plane normal (i.e., vector defined from camera position to focal point) so that all of the actors can be seen.

void vtkRenderer::ResetCamera double  bounds[6]  )


Automatically set up the camera based on a specified bounding box (xmin,xmax, ymin,ymax, zmin,zmax). Camera will reposition itself so that its focal point is the center of the bounding box, and adjust its distance and position to preserve its initial view plane normal (i.e., vector defined from camera position to focal point). Note: is the view plane is parallel to the view up axis, the view up axis will be reset to one of the three coordinate axes.

void vtkRenderer::ResetCamera double  xmin,
double  xmax,
double  ymin,
double  ymax,
double  zmin,
double  zmax


Alternative version of ResetCamera(bounds[6]);

void vtkRenderer::SetRenderWindow vtkRenderWindow  )


Specify the rendering window in which to draw. This is automatically set when the renderer is created by MakeRenderer. The user probably shouldn't ever need to call this method.

vtkRenderWindow* vtkRenderer::GetRenderWindow  )  [inline]


Specify the rendering window in which to draw. This is automatically set when the renderer is created by MakeRenderer. The user probably shouldn't ever need to call this method.

Definition at line 269 of file vtkRenderer.h.

virtual vtkWindow* vtkRenderer::GetVTKWindow  )  [virtual]


Specify the rendering window in which to draw. This is automatically set when the renderer is created by MakeRenderer. The user probably shouldn't ever need to call this method.

Implements vtkViewport.

virtual void vtkRenderer::SetBackingStore int   )  [virtual]


Turn on/off using backing store. This may cause the re-rendering time to be slightly slower when the view changes. But it is much faster when the image has not changed, such as during an expose event.

virtual int vtkRenderer::GetBackingStore  )  [virtual]


Turn on/off using backing store. This may cause the re-rendering time to be slightly slower when the view changes. But it is much faster when the image has not changed, such as during an expose event.

virtual void vtkRenderer::BackingStoreOn  )  [virtual]


Turn on/off using backing store. This may cause the re-rendering time to be slightly slower when the view changes. But it is much faster when the image has not changed, such as during an expose event.

virtual void vtkRenderer::BackingStoreOff  )  [virtual]


Turn on/off using backing store. This may cause the re-rendering time to be slightly slower when the view changes. But it is much faster when the image has not changed, such as during an expose event.

virtual void vtkRenderer::SetInteractive int   )  [virtual]


Turn on/off interactive status. An interactive renderer is one that can receive events from an interactor. Should only be set if there are multiple renderers in the same section of the viewport.

virtual int vtkRenderer::GetInteractive  )  [virtual]


Turn on/off interactive status. An interactive renderer is one that can receive events from an interactor. Should only be set if there are multiple renderers in the same section of the viewport.

virtual void vtkRenderer::InteractiveOn  )  [virtual]


Turn on/off interactive status. An interactive renderer is one that can receive events from an interactor. Should only be set if there are multiple renderers in the same section of the viewport.

virtual void vtkRenderer::InteractiveOff  )  [virtual]


Turn on/off interactive status. An interactive renderer is one that can receive events from an interactor. Should only be set if there are multiple renderers in the same section of the viewport.

virtual void vtkRenderer::SetLayer int   )  [virtual]


Set/Get the layer that this renderer belongs to. This is only used if there are layered renderers.

virtual int vtkRenderer::GetLayer  )  [virtual]


Set/Get the layer that this renderer belongs to. This is only used if there are layered renderers.

int vtkRenderer::Transparent  )


Returns a boolean indicating if this renderer is transparent. It is transparent if it is not in the deepest layer of its render window.

void vtkRenderer::WorldToView  )  [virtual]


Convert world point coordinates to view coordinates.

Reimplemented from vtkViewport.

void vtkRenderer::ViewToWorld  )  [virtual]


Convert view point coordinates to world coordinates.

Reimplemented from vtkViewport.

virtual void vtkRenderer::ViewToWorld double &  wx,
double &  wy,
double &  wz
[virtual]


Convert world point coordinates to view coordinates.

Reimplemented from vtkViewport.

virtual void vtkRenderer::WorldToView double &  wx,
double &  wy,
double &  wz
[virtual]


Convert world point coordinates to view coordinates.

Reimplemented from vtkViewport.

double vtkRenderer::GetZ int  x,
int  y


Given a pixel location, return the Z value. The z value is normalized (0,1) between the front and back clipping planes.

unsigned long vtkRenderer::GetMTime  )  [virtual]


Return the MTime of the renderer also considering its ivars.

Reimplemented from vtkObject.

virtual double vtkRenderer::GetLastRenderTimeInSeconds  )  [virtual]


Get the time required, in seconds, for the last Render call.

virtual int vtkRenderer::GetNumberOfPropsRendered  )  [virtual]


Should be used internally only during a render Get the number of props that were rendered using a RenderOpaqueGeometry or RenderTranslucentGeometry call. This is used to know if something is in the frame buffer.

vtkAssemblyPath* vtkRenderer::PickProp double  selectionX,
double  selectionY
[virtual]


Return the prop (via a vtkAssemblyPath) that has the highest z value at the given x, y position in the viewport. Basically, the top most prop that renders the pixel at selectionX, selectionY will be returned. If nothing was picked then NULL is returned. This method selects from the renderers Prop list.

Implements vtkViewport.

virtual void vtkRenderer::StereoMidpoint  )  [inline, virtual]


Do anything necessary between rendering the left and right viewpoints in a stereo render. Doesn't do anything except in the derived vtkIceTRenderer in ParaView.

Definition at line 344 of file vtkRenderer.h.

double vtkRenderer::GetTiledAspectRatio  )


Compute the aspect ratio of this renderer for the current tile. When tiled displays are used the aspect ratio of the renderer for a given tile may be diferent that the aspect ratio of the renderer when rendered in it entirity

virtual void vtkRenderer::PickRender vtkPropCollection props  )  [protected, virtual]


virtual void vtkRenderer::PickGeometry  )  [protected, virtual]


void vtkRenderer::AllocateTime  )  [protected]


virtual int vtkRenderer::UpdateGeometry void   )  [protected, virtual]


Ask all props to update and draw any opaque and translucent geometry. This includes both vtkActors and vtkVolumes Returns the number of props that rendered geometry.

virtual int vtkRenderer::UpdateCamera void   )  [protected, virtual]


Ask the active camera to do whatever it needs to do prior to rendering. Creates a camera if none found active.

virtual int vtkRenderer::UpdateLightGeometry void   )  [protected, virtual]


Update the geometry of the lights in the scene that are not in world space (for instance, Headlights or CameraLights that are attached to the camera).

virtual int vtkRenderer::UpdateLights void   )  [inline, protected, virtual]


Ask all lights to load themselves into rendering pipeline. This method will return the actual number of lights that were on.

Reimplemented in vtkMesaRenderer, and vtkOpenGLRenderer.

Definition at line 441 of file vtkRenderer.h.

vtkCamera* vtkRenderer::GetActiveCameraAndEventuallyReset  )  [protected]


Get the current camera and eventually reset it if it gets created automatically (see GetActiveCamera). This is mainly used internally.


Member Data Documentation

vtkCamera* vtkRenderer::ActiveCamera [protected]


Definition at line 360 of file vtkRenderer.h.

vtkLight* vtkRenderer::CreatedLight [protected]


Definition at line 361 of file vtkRenderer.h.

vtkLightCollection* vtkRenderer::Lights [protected]


Definition at line 363 of file vtkRenderer.h.

Referenced by GetLights().

vtkCullerCollection* vtkRenderer::Cullers [protected]


Definition at line 364 of file vtkRenderer.h.

Referenced by GetCullers().

vtkActorCollection* vtkRenderer::Actors [protected]


Definition at line 366 of file vtkRenderer.h.

vtkVolumeCollection* vtkRenderer::Volumes [protected]


Definition at line 367 of file vtkRenderer.h.

double vtkRenderer::Ambient[3] [protected]


Definition at line 369 of file vtkRenderer.h.

vtkRenderWindow* vtkRenderer::RenderWindow [protected]


Definition at line 370 of file vtkRenderer.h.

double vtkRenderer::AllocatedRenderTime [protected]


Definition at line 371 of file vtkRenderer.h.

double vtkRenderer::TimeFactor [protected]


Definition at line 372 of file vtkRenderer.h.

int vtkRenderer::TwoSidedLighting [protected]


Definition at line 373 of file vtkRenderer.h.

int vtkRenderer::AutomaticLightCreation [protected]


Definition at line 374 of file vtkRenderer.h.

int vtkRenderer::BackingStore [protected]


Definition at line 375 of file vtkRenderer.h.

unsigned char* vtkRenderer::BackingImage [protected]


Definition at line 376 of file vtkRenderer.h.

int vtkRenderer::BackingStoreSize[2] [protected]


Definition at line 377 of file vtkRenderer.h.

vtkTimeStamp vtkRenderer::RenderTime [protected]


Definition at line 378 of file vtkRenderer.h.

double vtkRenderer::LastRenderTimeInSeconds [protected]


Definition at line 380 of file vtkRenderer.h.

int vtkRenderer::LightFollowCamera [protected]


Definition at line 382 of file vtkRenderer.h.

int vtkRenderer::NumberOfPropsRendered [protected]


Definition at line 389 of file vtkRenderer.h.

vtkProp** vtkRenderer::PropArray [protected]


Definition at line 393 of file vtkRenderer.h.

int vtkRenderer::PropArrayCount [protected]


Definition at line 394 of file vtkRenderer.h.

vtkAssemblyPath** vtkRenderer::PathArray [protected]


Definition at line 397 of file vtkRenderer.h.

int vtkRenderer::PathArrayCount [protected]


Definition at line 398 of file vtkRenderer.h.

int vtkRenderer::Interactive [protected]


Definition at line 402 of file vtkRenderer.h.

int vtkRenderer::Layer [protected]


Definition at line 406 of file vtkRenderer.h.

double vtkRenderer::ComputedVisiblePropBounds[6] [protected]


Definition at line 410 of file vtkRenderer.h.

double vtkRenderer::NearClippingPlaneTolerance [protected]


Specifies the minimum distance of the near clipping plane as a percentage of the far clipping plane distance. Values below this threshold are clipped to NearClippingPlaneTolerance*range[1]. Note that values which are too small may cause problems on systems with low z-buffer resolution.

Definition at line 417 of file vtkRenderer.h.

int vtkRenderer::Erase [protected]


When this flag is off, the renderer will not erase the background or the Zbuffer. It is used to have overlapping renderers. Both the RenderWindow Erase and Render Erase must be on for the camera to clear the renderer. By default, Erase is on.

Definition at line 423 of file vtkRenderer.h.


The documentation for this class was generated from the following file:
Generated on Tue Jan 22 00:14:04 2008 for VTK by  doxygen 1.4.3-20050530
