vtkImageWrapPad Class Reference

#include <vtkImageWrapPad.h>

Inheritance diagram for vtkImageWrapPad:

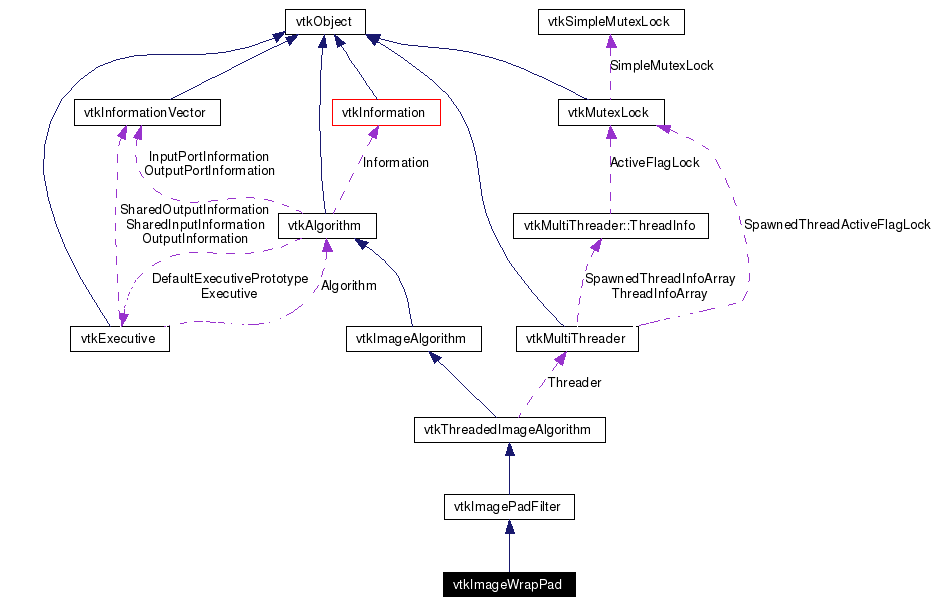

[legend]Collaboration diagram for vtkImageWrapPad:

[legend]List of all members.

---

Detailed Description

Makes an image larger by wrapping existing data.

vtkImageWrapPad performs a modulo operation on the output pixel index to determine the source input index. The new image extent of the output has to be specified. Input has to be the same scalar type as output.

Tests:

vtkImageWrapPad (Tests)

Definition at line 36 of file vtkImageWrapPad.h.

Public Types
typedef vtkImagePadFilter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
Static Public Member Functions
static vtkImageWrapPad *	New ()
static int	IsTypeOf (const char *type)
static vtkImageWrapPad *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageWrapPad ()
	~vtkImageWrapPad ()
void	ComputeInputUpdateExtent (int inExt[6], int outExt[6], int wExt[6])
void	ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int ext[6], int id)

---

Member Typedef Documentation

typedef vtkImagePadFilter vtkImageWrapPad::Superclass

Reimplemented from vtkImagePadFilter. Definition at line 40 of file vtkImageWrapPad.h.

---

Constructor & Destructor Documentation

vtkImageWrapPad::vtkImageWrapPad (   )  [inline, protected]

Definition at line 43 of file vtkImageWrapPad.h.

vtkImageWrapPad::~vtkImageWrapPad (   )  [inline, protected]

Definition at line 44 of file vtkImageWrapPad.h.

---

Member Function Documentation

static vtkImageWrapPad* vtkImageWrapPad::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkImagePadFilter.

virtual const char* vtkImageWrapPad::GetClassName (   )  [virtual]

Reimplemented from vtkImagePadFilter.

static int vtkImageWrapPad::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImagePadFilter.

virtual int vtkImageWrapPad::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImagePadFilter.

static vtkImageWrapPad* vtkImageWrapPad::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkImagePadFilter.

void vtkImageWrapPad::ComputeInputUpdateExtent (  int  inExt[6], int  outExt[6], int  wExt[6] )  [protected, virtual]

Reimplemented from vtkImagePadFilter.

void vtkImageWrapPad::ThreadedRequestData (  vtkInformation *  request, vtkInformationVector **  inputVector, vtkInformationVector *  outputVector, vtkImageData ***  inData, vtkImageData **  outData, int  ext[6], int  id )  [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented from vtkThreadedImageAlgorithm.

---

The documentation for this class was generated from the following file:

• dox/Imaging/vtkImageWrapPad.h

---
