#include <vtkMesaRenderWindow.h>

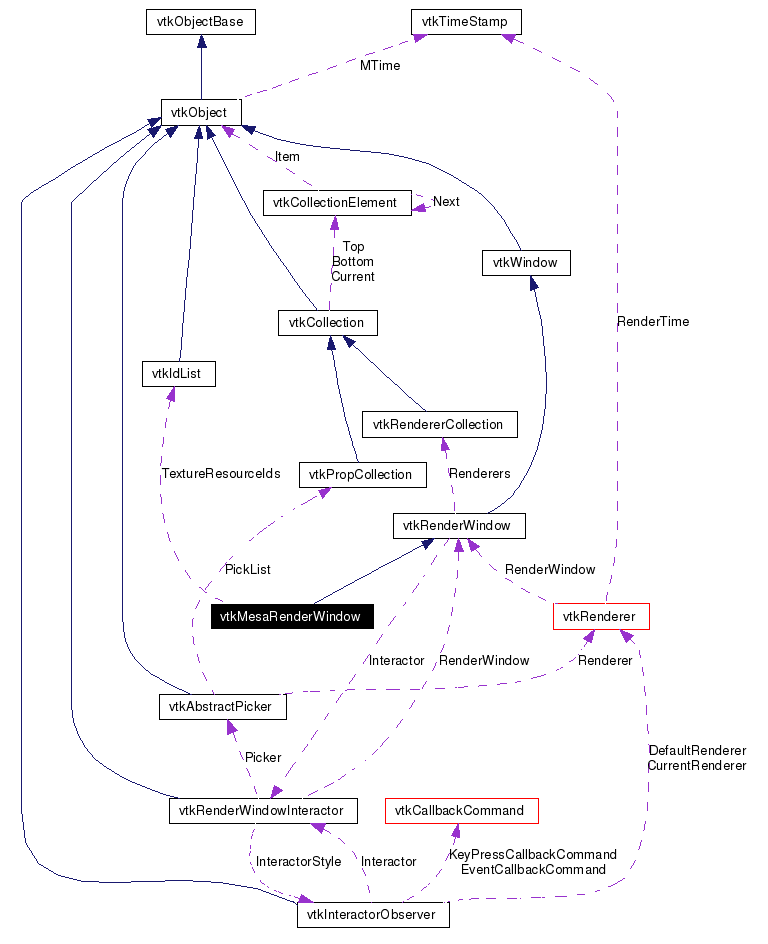

Inheritance diagram for vtkMesaRenderWindow:
vtkMesaRenderWindow is a concrete implementation of the abstract class vtkRenderWindow. It uses the mangle openGL namespace mgl, so Mesa render windows can be created in the same program as openGL render windows.
Definition at line 33 of file vtkMesaRenderWindow.h.
void | PrintSelf (ostream &os, vtkIndent indent) |
static void | SetGlobalMaximumNumberOfMultiSamples (int val) |
static int | GetGlobalMaximumNumberOfMultiSamples () |
Public Types | |
typedef vtkRenderWindow | Superclass |
Public Member Functions | |
virtual const char * | GetClassName () |
virtual int | IsA (const char *type) |
void | MakeCurrent ()=0 |
void | RegisterTextureResource (GLuint id) |
int | GetDepthBufferSize () |
virtual void | OpenGLInit () |
virtual void | SetMultiSamples (int) |
virtual int | GetMultiSamples () |
virtual void | StereoUpdate () |
virtual unsigned char * | GetPixelData (int x, int y, int x2, int y2, int front) |
virtual int | GetPixelData (int x, int y, int x2, int y2, int front, vtkUnsignedCharArray *) |
virtual int | SetPixelData (int x, int y, int x2, int y2, unsigned char *, int front) |
virtual int | SetPixelData (int x, int y, int x2, int y2, vtkUnsignedCharArray *, int front) |
virtual float * | GetRGBAPixelData (int x, int y, int x2, int y2, int front) |
virtual int | GetRGBAPixelData (int x, int y, int x2, int y2, int front, vtkFloatArray *data) |
virtual int | SetRGBAPixelData (int x, int y, int x2, int y2, float *, int front, int blend=0) |
virtual int | SetRGBAPixelData (int x, int y, int x2, int y2, vtkFloatArray *, int front, int blend=0) |
virtual void | ReleaseRGBAPixelData (float *data) |
virtual unsigned char * | GetRGBACharPixelData (int x, int y, int x2, int y2, int front) |
virtual int | GetRGBACharPixelData (int x, int y, int x2, int y2, int front, vtkUnsignedCharArray *data) |
virtual int | SetRGBACharPixelData (int x, int y, int x2, int y2, unsigned char *, int front, int blend=0) |
virtual int | SetRGBACharPixelData (int x, int y, int x2, int y2, vtkUnsignedCharArray *, int front, int blend=0) |
virtual float * | GetZbufferData (int x1, int y1, int x2, int y2) |
virtual int | GetZbufferData (int x1, int y1, int x2, int y2, float *buffer) |
virtual int | GetZbufferData (int x1, int y1, int x2, int y2, vtkFloatArray *z) |
virtual int | SetZbufferData (int x1, int y1, int x2, int y2, float *buffer) |
virtual int | SetZbufferData (int x1, int y1, int x2, int y2, vtkFloatArray *buffer) |
Static Public Member Functions | |
static int | IsTypeOf (const char *type) |
static vtkMesaRenderWindow * | SafeDownCast (vtkObject *o) |
Protected Member Functions | |
vtkMesaRenderWindow () | |
~vtkMesaRenderWindow () | |
int | GetPixelData (int x, int y, int x2, int y2, int front, unsigned char *data) |
int | GetRGBAPixelData (int x, int y, int x2, int y2, int front, float *data) |
int | GetRGBACharPixelData (int x, int y, int x2, int y2, int front, unsigned char *data) |
Protected Attributes | |
int | MultiSamples |
long | OldMonitorSetting |
vtkIdList * | TextureResourceIds |
|
Reimplemented from vtkRenderWindow. Reimplemented in vtkXMesaRenderWindow. Definition at line 40 of file vtkMesaRenderWindow.h. |
|
|
|
|
|
Reimplemented from vtkRenderWindow. Reimplemented in vtkXMesaRenderWindow. |
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkRenderWindow. Reimplemented in vtkXMesaRenderWindow. |
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkRenderWindow. Reimplemented in vtkXMesaRenderWindow. |
|
Reimplemented from vtkRenderWindow. Reimplemented in vtkXMesaRenderWindow. |
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkRenderWindow. Reimplemented in vtkXMesaRenderWindow. |
|
Set/Get the maximum number of multisamples |
|
|
|
Set / Get the number of multisamples to use for hardware antialiasing. |
|
Set / Get the number of multisamples to use for hardware antialiasing. |
|
Update system if needed due to stereo rendering. Reimplemented from vtkRenderWindow. |
|
Set/Get the pixel data of an image, transmitted as RGBRGB... Implements vtkWindow. |
|
Update system if needed due to stereo rendering. Implements vtkWindow. |
|
Update system if needed due to stereo rendering. Implements vtkRenderWindow. |
|
Update system if needed due to stereo rendering. Implements vtkRenderWindow. |
|
Set/Get the pixel data of an image, transmitted as RGBARGBA... Implements vtkRenderWindow. |
|
Set/Get the pixel data of an image, transmitted as RGBARGBA... Implements vtkRenderWindow. |
|
Set/Get the pixel data of an image, transmitted as RGBARGBA... Implements vtkRenderWindow. |
|
Set/Get the pixel data of an image, transmitted as RGBARGBA... Implements vtkRenderWindow. |
|
Set/Get the pixel data of an image, transmitted as RGBARGBA... Implements vtkRenderWindow. |
|
Set/Get the pixel data of an image, transmitted as RGBARGBA... Implements vtkRenderWindow. |
|
Set/Get the pixel data of an image, transmitted as RGBARGBA... Implements vtkRenderWindow. |
|
Set/Get the pixel data of an image, transmitted as RGBARGBA... Implements vtkRenderWindow. |
|
Set/Get the pixel data of an image, transmitted as RGBARGBA... Implements vtkRenderWindow. |
|
Set/Get the zbuffer data from an image Implements vtkRenderWindow. |
|
Set/Get the zbuffer data from an image Implements vtkRenderWindow. |
|
Set/Get the zbuffer data from an image Implements vtkRenderWindow. |
|
Set/Get the zbuffer data from an image Implements vtkRenderWindow. |
|
Set/Get the zbuffer data from an image Implements vtkRenderWindow. |
|
Make this window the current Mesa context. Implements vtkRenderWindow. Implemented in vtkXMesaRenderWindow. |
|
Register a texture name with this render window. |
|
Get the size of the depth buffer. Implements vtkRenderWindow. |
|
Initialize OpenGL for this window. |
|
|
|
|
|
|
|
Definition at line 36 of file vtkMesaRenderWindow.h. |
|
Definition at line 37 of file vtkMesaRenderWindow.h. |
|
Definition at line 118 of file vtkMesaRenderWindow.h. |
