vtkXMesaRenderWindow Class Reference

#include <vtkXMesaRenderWindow.h>

Inheritance diagram for vtkXMesaRenderWindow:

Inheritance graph
[legend]

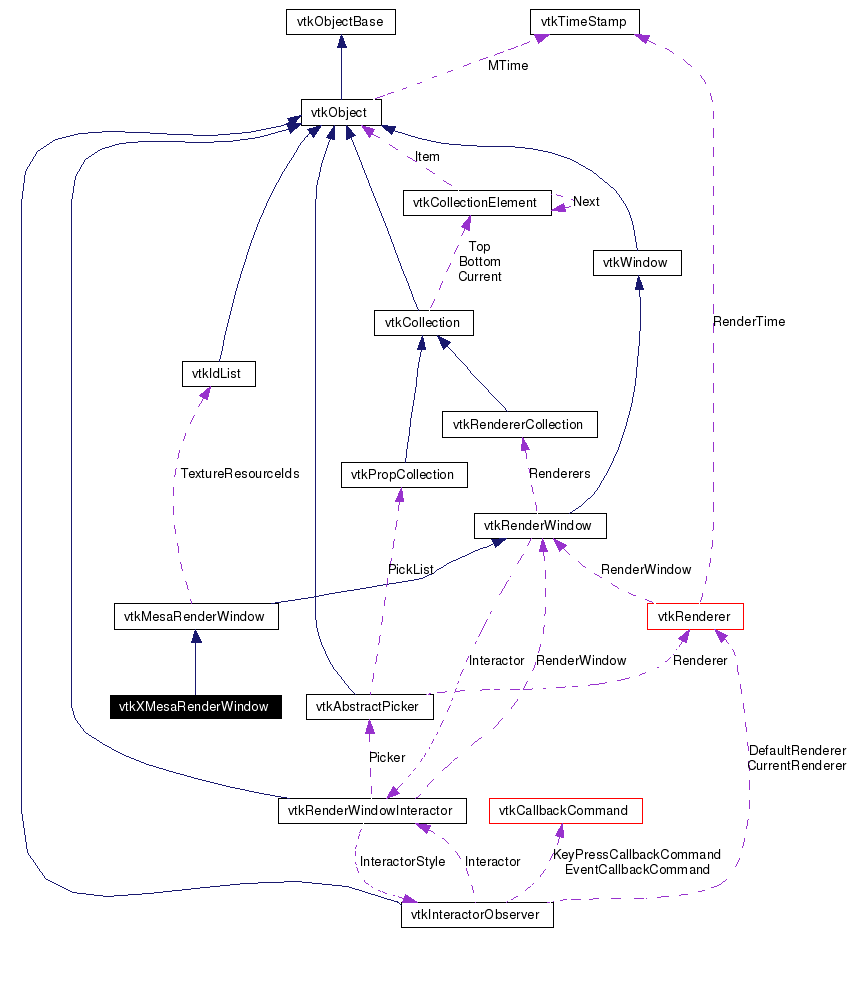

Collaboration diagram for vtkXMesaRenderWindow:

Collaboration graph
[legend]
List of all members.

Detailed Description

Mesa rendering window.

vtkXMesaRenderWindow is a concrete implementation of the abstract class vtkRenderWindow. vtkOpenGLRenderer interfaces to the OpenGL graphics library. Application programmers should normally use vtkRenderWindow instead of the OpenGL specific version.

Examples:
vtkXMesaRenderWindow (Examples)
Tests:
vtkXMesaRenderWindow (Tests)

Definition at line 40 of file vtkXMesaRenderWindow.h.

Public Types

typedef vtkMesaRenderWindow Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void Start (void)
virtual void Frame (void)
virtual void WindowInitialize (void)
virtual void Initialize (void)
virtual void Finalize (void)
virtual void SetFullScreen (int)
virtual void WindowRemap (void)
virtual void SetStereoCapableWindow (int capable)
void MakeCurrent ()
void SetForceMakeCurrent ()
const char * ReportCapabilities ()
int SupportsOpenGL ()
virtual int * GetScreenSize ()
virtual int * GetPosition ()
virtual void SetCurrentCursor (int)
virtual int GetEventPending ()
void SetWindowInfo (char *info)
void SetNextWindowInfo (char *)
void SetParentInfo (char *info)
void Render ()
void SetOffScreenRendering (int i)
virtual void PrefFullScreen (void)
virtual void SetSize (int, int)
virtual void SetSize (int a[2])
virtual Colormap GetDesiredColormap ()
virtual Visual * GetDesiredVisual ()
virtual XVisualInfo * GetDesiredVisualInfo ()
virtual int GetDesiredDepth ()
int IsDirect ()
virtual void * GetGenericDisplayId ()
virtual void * GetGenericWindowId ()
virtual void * GetGenericParentId ()
virtual void * GetGenericContext ()
virtual void * GetGenericDrawable ()
Display * GetDisplayId ()
void SetDisplayId (Display *)
void SetDisplayId (void *)
Window GetParentId ()
void SetParentId (Window)
void SetParentId (void *)
Window GetWindowId ()
void SetWindowId (Window)
void SetWindowId (void *)
void SetNextWindowId (Window)
void SetNextWindowId (void *)
void SetWindowName (const char *)
void SetPosition (int, int)
void SetPosition (int a[2])
void HideCursor ()
void ShowCursor ()

Static Public Member Functions

static vtkXMesaRenderWindowNew ()
static int IsTypeOf (const char *type)
static vtkXMesaRenderWindowSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkXMesaRenderWindow ()
 ~vtkXMesaRenderWindow ()

Protected Attributes

vtkXMesaRenderWindowInternal * Internal
Window ParentId
Window WindowId
Window NextWindowId
Display * DisplayId
Colormap ColorMap
int OwnWindow
int OwnDisplay
int ScreenSize [2]
int CursorHidden
int ForceMakeCurrent
int UsingHardware
char * Capabilities
Cursor XCArrow
Cursor XCSizeAll
Cursor XCSizeNS
Cursor XCSizeWE
Cursor XCSizeNE
Cursor XCSizeNW
Cursor XCSizeSE
Cursor XCSizeSW


Member Typedef Documentation

typedef vtkMesaRenderWindow vtkXMesaRenderWindow::Superclass


Reimplemented from vtkMesaRenderWindow.

Definition at line 44 of file vtkXMesaRenderWindow.h.


Constructor & Destructor Documentation

vtkXMesaRenderWindow::vtkXMesaRenderWindow  )  [protected]


vtkXMesaRenderWindow::~vtkXMesaRenderWindow  )  [protected]



Member Function Documentation

static vtkXMesaRenderWindow* vtkXMesaRenderWindow::New  )  [static]


Construct an instance of vtkRenderWindow with its screen size set to 300x300, borders turned on, positioned at (0,0), double buffering turned on.

Reimplemented from vtkRenderWindow.

virtual const char* vtkXMesaRenderWindow::GetClassName  )  [virtual]


Reimplemented from vtkMesaRenderWindow.

static int vtkXMesaRenderWindow::IsTypeOf const char *  type  )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMesaRenderWindow.

virtual int vtkXMesaRenderWindow::IsA const char *  type  )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMesaRenderWindow.

static vtkXMesaRenderWindow* vtkXMesaRenderWindow::SafeDownCast vtkObject o  )  [static]


Reimplemented from vtkMesaRenderWindow.

void vtkXMesaRenderWindow::PrintSelf ostream &  os,
vtkIndent  indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkMesaRenderWindow.

virtual void vtkXMesaRenderWindow::Start void   )  [virtual]


Begin the rendering process.

Implements vtkRenderWindow.

virtual void vtkXMesaRenderWindow::Frame void   )  [virtual]


End the rendering process and display the image.

Implements vtkRenderWindow.

virtual void vtkXMesaRenderWindow::WindowInitialize void   )  [virtual]


Initialize the window for rendering.

virtual void vtkXMesaRenderWindow::Initialize void   )  [virtual]


Initialize the rendering window.

virtual void vtkXMesaRenderWindow::Finalize void   )  [virtual]


Shut-down all resources initialized by Initialize()

Implements vtkRenderWindow.

virtual void vtkXMesaRenderWindow::SetFullScreen int   )  [virtual]


Change the window to fill the entire screen.

Implements vtkRenderWindow.

virtual void vtkXMesaRenderWindow::WindowRemap void   )  [virtual]


Resize the window.

Implements vtkRenderWindow.

virtual void vtkXMesaRenderWindow::PrefFullScreen void   )  [virtual]


Set the preferred window size to full screen.

virtual void vtkXMesaRenderWindow::SetSize int  ,
int
[virtual]


Specify the size of the rendering window.

Reimplemented from vtkWindow.

virtual void vtkXMesaRenderWindow::SetSize int  a[2]  )  [inline, virtual]


Set the preferred window size to full screen.

Reimplemented from vtkWindow.

Definition at line 74 of file vtkXMesaRenderWindow.h.

References vtkWindow::SetSize().

virtual Colormap vtkXMesaRenderWindow::GetDesiredColormap  )  [virtual]


Get the X properties of an ideal rendering window.

virtual Visual* vtkXMesaRenderWindow::GetDesiredVisual  )  [virtual]


Get the X properties of an ideal rendering window.

virtual XVisualInfo* vtkXMesaRenderWindow::GetDesiredVisualInfo  )  [virtual]


Get the X properties of an ideal rendering window.

virtual int vtkXMesaRenderWindow::GetDesiredDepth  )  [virtual]


Get the X properties of an ideal rendering window.

virtual void vtkXMesaRenderWindow::SetStereoCapableWindow int  capable  )  [virtual]


Prescribe that the window be created in a stereo-capable mode. This method must be called before the window is realized. This method overrides the superclass method since this class can actually check whether the window has been realized yet.

Reimplemented from vtkRenderWindow.

void vtkXMesaRenderWindow::MakeCurrent  )  [virtual]


Make this window the current OpenGL context.

Implements vtkMesaRenderWindow.

void vtkXMesaRenderWindow::SetForceMakeCurrent  )  [virtual]


If called, allow MakeCurrent() to skip cache-check when called. MakeCurrent() reverts to original behavior of cache-checking on the next render.

Reimplemented from vtkRenderWindow.

const char* vtkXMesaRenderWindow::ReportCapabilities  )  [virtual]


Get report of capabilities for the render window

Reimplemented from vtkRenderWindow.

int vtkXMesaRenderWindow::SupportsOpenGL  )  [virtual]


Does this render window support OpenGL? 0-false, 1-true

Reimplemented from vtkRenderWindow.

int vtkXMesaRenderWindow::IsDirect  )  [virtual]


Is this render window using hardware acceleration? 0-false, 1-true

Reimplemented from vtkRenderWindow.

virtual void* vtkXMesaRenderWindow::GetGenericDisplayId  )  [inline, virtual]


Xwindow get set functions

Implements vtkRenderWindow.

Definition at line 110 of file vtkXMesaRenderWindow.h.

virtual void* vtkXMesaRenderWindow::GetGenericWindowId  )  [virtual]


Is this render window using hardware acceleration? 0-false, 1-true

Implements vtkRenderWindow.

virtual void* vtkXMesaRenderWindow::GetGenericParentId  )  [inline, virtual]


Is this render window using hardware acceleration? 0-false, 1-true

Implements vtkRenderWindow.

Definition at line 112 of file vtkXMesaRenderWindow.h.

virtual void* vtkXMesaRenderWindow::GetGenericContext  )  [virtual]


Is this render window using hardware acceleration? 0-false, 1-true

Implements vtkRenderWindow.

virtual void* vtkXMesaRenderWindow::GetGenericDrawable  )  [inline, virtual]


Is this render window using hardware acceleration? 0-false, 1-true

Implements vtkRenderWindow.

Definition at line 114 of file vtkXMesaRenderWindow.h.

virtual int* vtkXMesaRenderWindow::GetScreenSize  )  [virtual]


Get the size of the screen in pixels

Implements vtkWindow.

virtual int* vtkXMesaRenderWindow::GetPosition  )  [virtual]


Get the position in screen coordinates (pixels) of the window.

Reimplemented from vtkWindow.

Display* vtkXMesaRenderWindow::GetDisplayId  )


Get this RenderWindow's X display id.

void vtkXMesaRenderWindow::SetDisplayId Display *   )


Set the X display id for this RenderWindow to use to a pre-existing X display id.

void vtkXMesaRenderWindow::SetDisplayId void *   )  [virtual]


Get this RenderWindow's X display id.

Implements vtkRenderWindow.

Window vtkXMesaRenderWindow::GetParentId  )


Get this RenderWindow's parent X window id.

void vtkXMesaRenderWindow::SetParentId Window   )


Sets the parent of the window that WILL BE created.

void vtkXMesaRenderWindow::SetParentId void *   )  [virtual]


Get this RenderWindow's parent X window id.

Implements vtkRenderWindow.

Window vtkXMesaRenderWindow::GetWindowId  )


Get this RenderWindow's X window id.

void vtkXMesaRenderWindow::SetWindowId Window   )


Set this RenderWindow's X window id to a pre-existing window.

void vtkXMesaRenderWindow::SetWindowId void *   )  [virtual]


Get this RenderWindow's X window id.

Implements vtkRenderWindow.

void vtkXMesaRenderWindow::SetNextWindowId Window   )


Specify the X window id to use if a WindowRemap is done.

void vtkXMesaRenderWindow::SetNextWindowId void *   )  [virtual]


Specify the X window id to use if a WindowRemap is done.

Implements vtkRenderWindow.

void vtkXMesaRenderWindow::SetWindowName const char *   )  [virtual]


Specify the X window id to use if a WindowRemap is done.

Reimplemented from vtkWindow.

void vtkXMesaRenderWindow::SetPosition int  ,
int
[virtual]


Move the window to a new position on the display.

Reimplemented from vtkWindow.

void vtkXMesaRenderWindow::SetPosition int  a[2]  )  [inline, virtual]


Move the window to a new position on the display.

Reimplemented from vtkWindow.

Definition at line 161 of file vtkXMesaRenderWindow.h.

References vtkWindow::SetPosition().

void vtkXMesaRenderWindow::HideCursor  )  [virtual]


Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.

Implements vtkRenderWindow.

void vtkXMesaRenderWindow::ShowCursor  )  [virtual]


Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.

Implements vtkRenderWindow.

virtual void vtkXMesaRenderWindow::SetCurrentCursor int   )  [virtual]


Change the shape of the cursor

Reimplemented from vtkRenderWindow.

virtual int vtkXMesaRenderWindow::GetEventPending  )  [virtual]


Get the properties available at runtime that would result in the best Xwindow for 3D rendering.

Implements vtkRenderWindow.

void vtkXMesaRenderWindow::SetWindowInfo char *  info  )  [virtual]


Set this RenderWindow's X window id to a pre-existing window.

Implements vtkRenderWindow.

void vtkXMesaRenderWindow::SetNextWindowInfo char *   )  [virtual]


This Method detects loops of RenderWindow<->Interactor, so objects are freed properly.

Implements vtkRenderWindow.

void vtkXMesaRenderWindow::SetParentInfo char *  info  )  [virtual]


Sets the X window id of the window that WILL BE created.

Implements vtkRenderWindow.

void vtkXMesaRenderWindow::Render  )  [virtual]


This computes the size of the render window before calling the supper classes render

Reimplemented from vtkRenderWindow.

void vtkXMesaRenderWindow::SetOffScreenRendering int  i  )  [virtual]


Render without displaying the window.

Reimplemented from vtkWindow.


Member Data Documentation

vtkXMesaRenderWindowInternal* vtkXMesaRenderWindow::Internal [protected]


Definition at line 197 of file vtkXMesaRenderWindow.h.

Window vtkXMesaRenderWindow::ParentId [protected]


Definition at line 199 of file vtkXMesaRenderWindow.h.

Window vtkXMesaRenderWindow::WindowId [protected]


Definition at line 200 of file vtkXMesaRenderWindow.h.

Window vtkXMesaRenderWindow::NextWindowId [protected]


Definition at line 201 of file vtkXMesaRenderWindow.h.

Display* vtkXMesaRenderWindow::DisplayId [protected]


Definition at line 202 of file vtkXMesaRenderWindow.h.

Colormap vtkXMesaRenderWindow::ColorMap [protected]


Definition at line 203 of file vtkXMesaRenderWindow.h.

int vtkXMesaRenderWindow::OwnWindow [protected]


Definition at line 204 of file vtkXMesaRenderWindow.h.

int vtkXMesaRenderWindow::OwnDisplay [protected]


Definition at line 205 of file vtkXMesaRenderWindow.h.

int vtkXMesaRenderWindow::ScreenSize[2] [protected]


Definition at line 206 of file vtkXMesaRenderWindow.h.

int vtkXMesaRenderWindow::CursorHidden [protected]


Definition at line 207 of file vtkXMesaRenderWindow.h.

int vtkXMesaRenderWindow::ForceMakeCurrent [protected]


Definition at line 208 of file vtkXMesaRenderWindow.h.

int vtkXMesaRenderWindow::UsingHardware [protected]


Definition at line 209 of file vtkXMesaRenderWindow.h.

char* vtkXMesaRenderWindow::Capabilities [protected]


Definition at line 210 of file vtkXMesaRenderWindow.h.

Cursor vtkXMesaRenderWindow::XCArrow [protected]


Definition at line 213 of file vtkXMesaRenderWindow.h.

Cursor vtkXMesaRenderWindow::XCSizeAll [protected]


Definition at line 214 of file vtkXMesaRenderWindow.h.

Cursor vtkXMesaRenderWindow::XCSizeNS [protected]


Definition at line 215 of file vtkXMesaRenderWindow.h.

Cursor vtkXMesaRenderWindow::XCSizeWE [protected]


Definition at line 216 of file vtkXMesaRenderWindow.h.

Cursor vtkXMesaRenderWindow::XCSizeNE [protected]


Definition at line 217 of file vtkXMesaRenderWindow.h.

Cursor vtkXMesaRenderWindow::XCSizeNW [protected]


Definition at line 218 of file vtkXMesaRenderWindow.h.

Cursor vtkXMesaRenderWindow::XCSizeSE [protected]


Definition at line 219 of file vtkXMesaRenderWindow.h.

Cursor vtkXMesaRenderWindow::XCSizeSW [protected]


Definition at line 220 of file vtkXMesaRenderWindow.h.


The documentation for this class was generated from the following file:
Generated on Tue Jan 22 00:32:00 2008 for VTK by  doxygen 1.4.3-20050530
