vtkProgrammableSource Class Reference
#include <vtkProgrammableSource.h>
Inheritance diagram for vtkProgrammableSource:

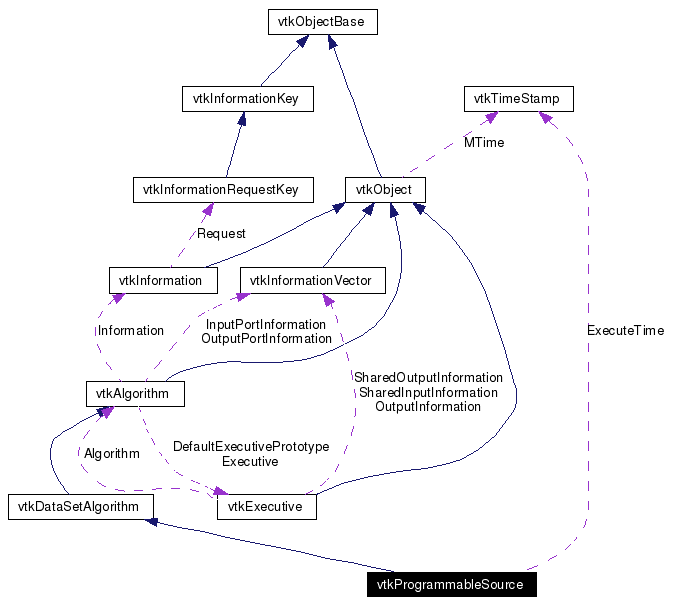

[legend]Collaboration diagram for vtkProgrammableSource:
[legend]List of all members.
Detailed Description
generate source dataset via a user-specified function
vtkProgrammableSource is a source object that is programmable by the user. To use this object, you must specify a function that creates the output. It is possible to generate an output dataset of any (concrete) type; it is up to the function to properly initialize and define the output. Typically, you use one of the methods to get a concrete output type (e.g., GetPolyDataOutput() or GetStructuredPointsOutput()), and then manipulate the output in the user-specified function.
Example use of this include writing a function to read a data file or interface to another system. (You might want to do this in favor of deriving a new class.) Another important use of this class is that it allows users of interpreters (e.g., Tcl or Java) the ability to write source objects without having to recompile C++ code or generate new libraries.
- See also:
- vtkProgrammableFilter vtkProgrammableAttributeDataFilter vtkProgrammableDataObjectSource
- Examples:
- vtkProgrammableSource (Examples)
- Tests:
- vtkProgrammableSource (Tests)
Definition at line 54 of file vtkProgrammableSource.h.
Member Typedef Documentation
Constructor & Destructor Documentation
| vtkProgrammableSource::vtkProgrammableSource |
( |
|
) |
[protected] |
|
| vtkProgrammableSource::~vtkProgrammableSource |
( |
|
) |
[protected] |
|
Member Function Documentation
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkDataSetAlgorithm. |
| virtual const char* vtkProgrammableSource::GetClassName |
( |
|
) |
[virtual] |
|
| static int vtkProgrammableSource::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkDataSetAlgorithm. |
| virtual int vtkProgrammableSource::IsA |
( |
const char * |
type |
) |
[virtual] |
|
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkDataSetAlgorithm. |
| void vtkProgrammableSource::SetExecuteMethod |
( |
void(*)(void *) |
f, |
|
|
void * |
arg |
|
) |
|
|
|
|
Specify the function to use to generate the source data. Note that the function takes a single (void *) argument. |
| void vtkProgrammableSource::SetExecuteMethodArgDelete |
( |
void(*)(void *) |
f |
) |
|
|
|
|
Set the arg delete method. This is used to free user memory. |
| void vtkProgrammableSource::SetRequestInformationMethod |
( |
void(*)(void *) |
f |
) |
|
|
|
|
Specify the function to use to fill in information about the source data. |
| vtkPolyData* vtkProgrammableSource::GetPolyDataOutput |
( |
|
) |
|
|
|
|
Get the output as a concrete type. This method is typically used by the writer of the source function to get the output as a particular type (i.e., it essentially does type casting). It is the users responsibility to know the correct type of the output data.
Reimplemented from vtkDataSetAlgorithm. |
|
|
This is called by the superclass. This is the method you should override.
Reimplemented from vtkDataSetAlgorithm. |
|
|
This is called by the superclass. This is the method you should override.
Reimplemented from vtkDataSetAlgorithm. |
|
|
This is called by the superclass. This is the method you should override.
Reimplemented from vtkDataSetAlgorithm. |
Member Data Documentation
The documentation for this class was generated from the following file:
