vtkPyramid Class Reference

#include <vtkPyramid.h>

Inheritance diagram for vtkPyramid:

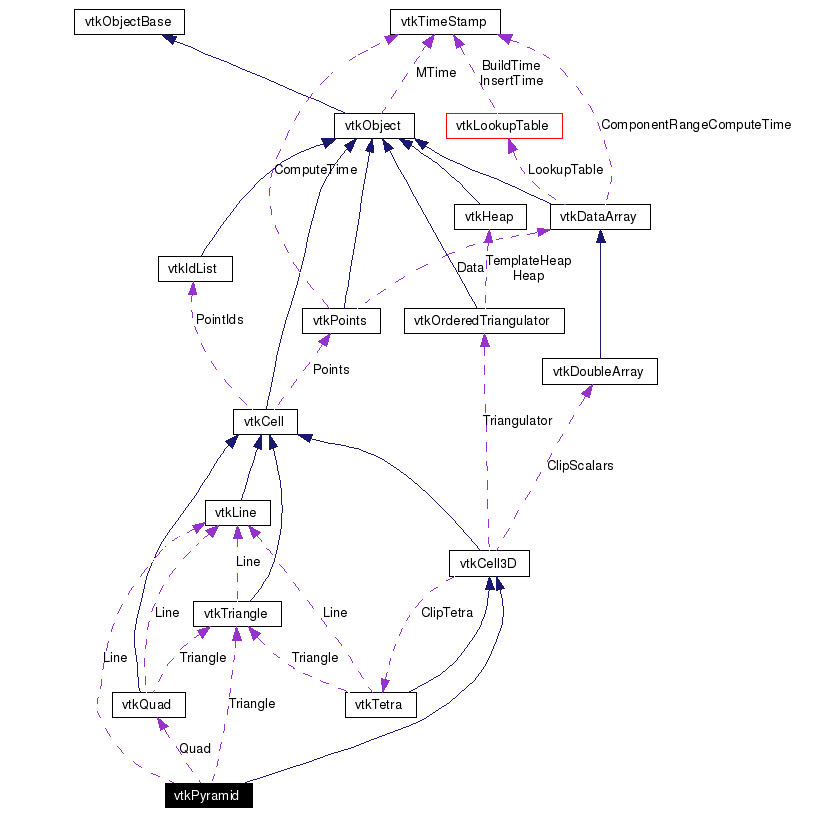

[legend]Collaboration diagram for vtkPyramid:

[legend]List of all members.

Detailed Description

a 3D cell that represents a linear pyramid

vtkPyramid is a concrete implementation of vtkCell to represent a 3D pyramid. A pyramid consists of a rectangular base with four triangular faces. vtkPyramid uses the standard isoparametric shape functions for a linear pyramid. The pyramid is defined by the five points (0-4) where (0,1,2,3) is the base of the pyramid which, using the right hand rule, forms a quadrilaterial whose normal points in the direction of the pyramid apex at vertex #4.

See also:: vtkConvexPointSet vtkHexahedron vtkTetra vtkVoxel vtkWedge

Examples:: vtkPyramid (Examples)

Tests:: vtkPyramid (Tests)

Definition at line 46 of file vtkPyramid.h.

int GetParametricCenter (double pcoords[3])

int JacobianInverse (double pcoords[3], double **inverse, double derivs[15])

static void InterpolationFunctions (double pcoords[3], double weights[5])

static void InterpolationDerivs (double pcoords[3], double derivs[15])

static int * GetEdgeArray (int edgeId)

static int * GetFaceArray (int faceId)

Public Types

typedef vtkCell3D Superclass

Public Member Functions

virtual const char * GetClassName ()

virtual int IsA (const char *type)

void PrintSelf (ostream &os, vtkIndent indent)

virtual void GetEdgePoints (int edgeId, int *&pts)

virtual void GetFacePoints (int faceId, int *&pts)

int GetCellType ()

int GetCellDimension ()

int GetNumberOfEdges ()

int GetNumberOfFaces ()

vtkCell * GetEdge (int edgeId)

vtkCell * GetFace (int faceId)

int CellBoundary (int subId, double pcoords[3], vtkIdList *pts)

void Contour (double value, vtkDataArray *cellScalars, vtkPointLocator *locator, vtkCellArray *verts, vtkCellArray *lines, vtkCellArray *polys, vtkPointData *inPd, vtkPointData *outPd, vtkCellData *inCd, vtkIdType cellId, vtkCellData *outCd)

int EvaluatePosition (double x[3], double *closestPoint, int &subId, double pcoords[3], double &dist2, double *weights)

void EvaluateLocation (int &subId, double pcoords[3], double x[3], double *weights)

int IntersectWithLine (double p1[3], double p2[3], double tol, double &t, double x[3], double pcoords[3], int &subId)

int Triangulate (int index, vtkIdList *ptIds, vtkPoints *pts)

void Derivatives (int subId, double pcoords[3], double *values, int dim, double *derivs)

virtual double * GetParametricCoords ()

Static Public Member Functions

static vtkPyramid * New ()

static int IsTypeOf (const char *type)

static vtkPyramid * SafeDownCast (vtkObject *o)

Protected Member Functions

vtkPyramid ()

~vtkPyramid ()

Protected Attributes

vtkLine * Line

vtkTriangle * Triangle

vtkQuad * Quad

Member Typedef Documentation

typedef vtkCell3D vtkPyramid::Superclass

Reimplemented from vtkCell3D.
Definition at line 50 of file vtkPyramid.h.

Constructor & Destructor Documentation

vtkPyramid::vtkPyramid ( ) [protected]

vtkPyramid::~vtkPyramid ( ) [protected]

Member Function Documentation

static vtkPyramid* vtkPyramid::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject.

virtual const char* vtkPyramid::GetClassName ( ) [virtual]

Reimplemented from vtkCell3D.

static int vtkPyramid::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkCell3D.

virtual int vtkPyramid::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkCell3D.

static vtkPyramid* vtkPyramid::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkCell3D.

void vtkPyramid::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkCell3D.

virtual void vtkPyramid::GetEdgePoints ( int edgeId,

int *& pts

) [virtual]

See vtkCell3D API for description of these methods.
Implements vtkCell3D.

virtual void vtkPyramid::GetFacePoints ( int faceId,

int *& pts

) [virtual]

Get the list of vertices that define a face. The list is terminated with a negative number. Note that the vertices are 0-offset; that is, they refer to the ids of the cell, not the point ids of the mesh that the cell belongs to. The faceId must range between 0<=faceId<this->GetNumberOfFaces().
Implements vtkCell3D.

int vtkPyramid::GetCellType ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Implements vtkCell.
Definition at line 61 of file vtkPyramid.h.
References VTK_PYRAMID.

int vtkPyramid::GetCellDimension ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell3D.
Definition at line 62 of file vtkPyramid.h.

int vtkPyramid::GetNumberOfEdges ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Implements vtkCell.
Definition at line 63 of file vtkPyramid.h.

int vtkPyramid::GetNumberOfFaces ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Implements vtkCell.
Definition at line 64 of file vtkPyramid.h.

vtkCell* vtkPyramid::GetEdge ( int edgeId ) [virtual]

See the vtkCell API for descriptions of these methods.
Implements vtkCell.

vtkCell* vtkPyramid::GetFace ( int faceId ) [virtual]

See the vtkCell API for descriptions of these methods.
Implements vtkCell.

int vtkPyramid::CellBoundary ( int subId,

double pcoords[3],

vtkIdList * pts

) [virtual]

See the vtkCell API for descriptions of these methods.
Implements vtkCell.

void vtkPyramid::Contour ( double value,

vtkDataArray * cellScalars,

vtkPointLocator * locator,

vtkCellArray * verts,

vtkCellArray * lines,

vtkCellArray * polys,

vtkPointData * inPd,

vtkPointData * outPd,

vtkCellData * inCd,

vtkIdType cellId,

vtkCellData * outCd

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell3D.

int vtkPyramid::EvaluatePosition ( double x[3],

double * closestPoint,

int & subId,

double pcoords[3],

double & dist2,

double * weights

) [virtual]

See the vtkCell API for descriptions of these methods.
Implements vtkCell.

void vtkPyramid::EvaluateLocation ( int & subId,

double pcoords[3],

double x[3],

double * weights

) [virtual]

See the vtkCell API for descriptions of these methods.
Implements vtkCell.

int vtkPyramid::IntersectWithLine ( double p1[3],

double p2[3],

double tol,

double & t,

double x[3],

double pcoords[3],

int & subId

) [virtual]

See the vtkCell API for descriptions of these methods.
Implements vtkCell.

int vtkPyramid::Triangulate ( int index,

vtkIdList * ptIds,

vtkPoints * pts

) [virtual]

See the vtkCell API for descriptions of these methods.
Implements vtkCell.

void vtkPyramid::Derivatives ( int subId,

double pcoords[3],

double * values,

int dim,

double * derivs

) [virtual]

See the vtkCell API for descriptions of these methods.
Implements vtkCell.

virtual double* vtkPyramid::GetParametricCoords ( ) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

int vtkPyramid::GetParametricCenter ( double pcoords[3] ) [inline, virtual]

Return the center of the pyramid in parametric coordinates.
Reimplemented from vtkCell.
Definition at line 113 of file vtkPyramid.h.

static void vtkPyramid::InterpolationFunctions ( double pcoords[3],

double weights[5]

) [static]

Pyramid specific methods for computing interpolation functions and derivatives.

static void vtkPyramid::InterpolationDerivs ( double pcoords[3],

double derivs[15]

) [static]

Return the center of the pyramid in parametric coordinates.

int vtkPyramid::JacobianInverse ( double pcoords[3],

double ** inverse,

double derivs[15]

)

Return the center of the pyramid in parametric coordinates.

static int* vtkPyramid::GetEdgeArray ( int edgeId ) [static]

Return the center of the pyramid in parametric coordinates.

static int* vtkPyramid::GetFaceArray ( int faceId ) [static]

Return the center of the pyramid in parametric coordinates.

Member Data Documentation

vtkLine* vtkPyramid::Line [protected]

Definition at line 103 of file vtkPyramid.h.

vtkTriangle* vtkPyramid::Triangle [protected]

Definition at line 104 of file vtkPyramid.h.

vtkQuad* vtkPyramid::Quad [protected]

Definition at line 105 of file vtkPyramid.h.

The documentation for this class was generated from the following file:

dox/Filtering/vtkPyramid.h
