vtkRectilinearGridOutlineFilter Class Reference

#include <vtkRectilinearGridOutlineFilter.h>

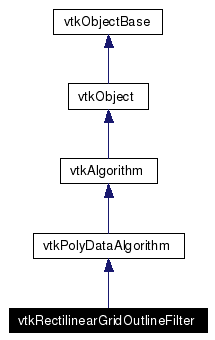

Inheritance diagram for vtkRectilinearGridOutlineFilter:

Inheritance graph

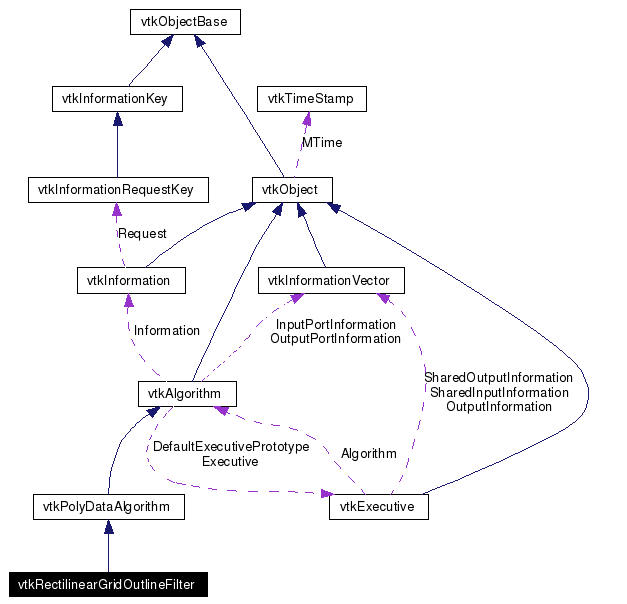

Collaboration diagram for vtkRectilinearGridOutlineFilter:

Collaboration graph
List of all members.

Detailed Description

create wireframe outline for a rectilinear grid.

vtkRectilinearGridOutlineFilter works in parallel. There is no reason. to use this filter if you are not breaking the processing into pieces. With one piece you can simply use vtkOutlineFilter. This filter ignores internal edges when the extent is not the whole extent.

vtkRectilinearGridOutlineFilter (Tests)

Definition at line 32 of file vtkRectilinearGridOutlineFilter.h.

Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)

Static Public Member Functions

static vtkRectilinearGridOutlineFilterNew ()
static int IsTypeOf (const char *type)
static vtkRectilinearGridOutlineFilterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkRectilinearGridOutlineFilter ()
 ~vtkRectilinearGridOutlineFilter ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkRectilinearGridOutlineFilter::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 36 of file vtkRectilinearGridOutlineFilter.h.

Constructor & Destructor Documentation

vtkRectilinearGridOutlineFilter::vtkRectilinearGridOutlineFilter  )  [inline, protected]

Definition at line 40 of file vtkRectilinearGridOutlineFilter.h.

vtkRectilinearGridOutlineFilter::~vtkRectilinearGridOutlineFilter  )  [inline, protected]

Definition at line 41 of file vtkRectilinearGridOutlineFilter.h.

Member Function Documentation

static vtkRectilinearGridOutlineFilter* vtkRectilinearGridOutlineFilter::New  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkRectilinearGridOutlineFilter::GetClassName  )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkRectilinearGridOutlineFilter::IsTypeOf const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkRectilinearGridOutlineFilter::IsA const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkRectilinearGridOutlineFilter* vtkRectilinearGridOutlineFilter::SafeDownCast vtkObject o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkRectilinearGridOutlineFilter::PrintSelf ostream &  os,
vtkIndent  indent

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkRectilinearGridOutlineFilter::RequestData vtkInformation ,
vtkInformationVector **  ,
[protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkRectilinearGridOutlineFilter::RequestInformation vtkInformation ,
vtkInformationVector **  ,
[protected, virtual]

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkRectilinearGridOutlineFilter::FillInputPortInformation int  port,
vtkInformation info
[protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.

The documentation for this class was generated from the following file:
