vtkRectilinearSynchronizedTemplates Class Reference

#include <vtkRectilinearSynchronizedTemplates.h>

Inheritance diagram for vtkRectilinearSynchronizedTemplates:

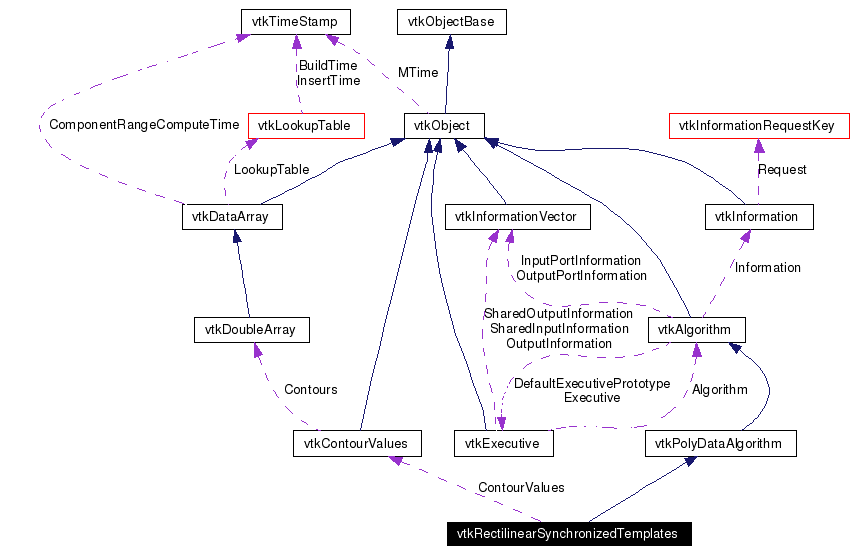

[legend]Collaboration diagram for vtkRectilinearSynchronizedTemplates:

[legend]List of all members.

---

Detailed Description

generate isosurface from rectilinear grid

vtkRectilinearSynchronizedTemplates is a 3D implementation (for rectilinear grids) of the synchronized template algorithm. Note that vtkContourFilter will automatically use this class when appropriate.

Warning:

This filter is specialized to rectilinear grids.

See also:

vtkContourFilter vtkSynchronizedTemplates2D vtkSynchronizedTemplates3D

Tests:

vtkRectilinearSynchronizedTemplates (Tests)

Definition at line 43 of file vtkRectilinearSynchronizedTemplates.h.

Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetValue (int i, double value)
double	GetValue (int i)
unsigned long int	GetMTime ()
virtual void	SetComputeNormals (int)
virtual int	GetComputeNormals ()
virtual void	ComputeNormalsOn ()
virtual void	ComputeNormalsOff ()
virtual void	SetComputeGradients (int)
virtual int	GetComputeGradients ()
virtual void	ComputeGradientsOn ()
virtual void	ComputeGradientsOff ()
virtual void	SetComputeScalars (int)
virtual int	GetComputeScalars ()
virtual void	ComputeScalarsOn ()
virtual void	ComputeScalarsOff ()
double *	GetValues ()
void	GetValues (double *contourValues)
void	SetNumberOfContours (int number)
int	GetNumberOfContours ()
void	GenerateValues (int numContours, double range[2])
void	GenerateValues (int numContours, double rangeStart, double rangeEnd)
int *	GetExecuteExtent ()
virtual void	SetArrayComponent (int)
virtual int	GetArrayComponent ()
void	ComputeSpacing (vtkRectilinearGrid *data, int i, int j, int k, int extent[6], double spacing[6])
Static Public Member Functions
static vtkRectilinearSynchronizedTemplates *	New ()
static int	IsTypeOf (const char *type)
static vtkRectilinearSynchronizedTemplates *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkRectilinearSynchronizedTemplates ()
	~vtkRectilinearSynchronizedTemplates ()
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	FillInputPortInformation (int port, vtkInformation *info)
void *	GetScalarsForExtent (vtkDataArray *array, int extent[6], vtkRectilinearGrid *input)
Protected Attributes
int	ComputeNormals
int	ComputeGradients
int	ComputeScalars
vtkContourValues *	ContourValues
int	ExecuteExtent [6]
int	ArrayComponent

---

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkRectilinearSynchronizedTemplates::Superclass

Reimplemented from vtkPolyDataAlgorithm. Definition at line 48 of file vtkRectilinearSynchronizedTemplates.h.

---

Constructor & Destructor Documentation

vtkRectilinearSynchronizedTemplates::vtkRectilinearSynchronizedTemplates (   )  [protected]

vtkRectilinearSynchronizedTemplates::~vtkRectilinearSynchronizedTemplates (   )  [protected]

---

Member Function Documentation

static vtkRectilinearSynchronizedTemplates* vtkRectilinearSynchronizedTemplates::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkPolyDataAlgorithm.

virtual const char* vtkRectilinearSynchronizedTemplates::GetClassName (   )  [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkRectilinearSynchronizedTemplates::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkRectilinearSynchronizedTemplates::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataAlgorithm.

static vtkRectilinearSynchronizedTemplates* vtkRectilinearSynchronizedTemplates::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkRectilinearSynchronizedTemplates::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkPolyDataAlgorithm.

unsigned long int vtkRectilinearSynchronizedTemplates::GetMTime (   )  [virtual]

Because we delegate to vtkContourValues Reimplemented from vtkObject.

virtual void vtkRectilinearSynchronizedTemplates::SetComputeNormals (  int   )  [virtual]

Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual int vtkRectilinearSynchronizedTemplates::GetComputeNormals (   )  [virtual]

Because we delegate to vtkContourValues

virtual void vtkRectilinearSynchronizedTemplates::ComputeNormalsOn (   )  [virtual]

Because we delegate to vtkContourValues

virtual void vtkRectilinearSynchronizedTemplates::ComputeNormalsOff (   )  [virtual]

Because we delegate to vtkContourValues

virtual void vtkRectilinearSynchronizedTemplates::SetComputeGradients (  int   )  [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual int vtkRectilinearSynchronizedTemplates::GetComputeGradients (   )  [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkRectilinearSynchronizedTemplates::ComputeGradientsOn (   )  [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkRectilinearSynchronizedTemplates::ComputeGradientsOff (   )  [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkRectilinearSynchronizedTemplates::SetComputeScalars (  int   )  [virtual]

Set/Get the computation of scalars.

virtual int vtkRectilinearSynchronizedTemplates::GetComputeScalars (   )  [virtual]

Set/Get the computation of scalars.

virtual void vtkRectilinearSynchronizedTemplates::ComputeScalarsOn (   )  [virtual]

Set/Get the computation of scalars.

virtual void vtkRectilinearSynchronizedTemplates::ComputeScalarsOff (   )  [virtual]

Set/Get the computation of scalars.

void vtkRectilinearSynchronizedTemplates::SetValue (  int  i, double  value )  [inline]

Set a particular contour value at contour number i. The index i ranges between 0<=i<NumberOfContours. Definition at line 85 of file vtkRectilinearSynchronizedTemplates.h.

double vtkRectilinearSynchronizedTemplates::GetValue (  int  i  )  [inline]

Get the ith contour value. Definition at line 88 of file vtkRectilinearSynchronizedTemplates.h.

double* vtkRectilinearSynchronizedTemplates::GetValues (   )  [inline]

Get a pointer to an array of contour values. There will be GetNumberOfContours() values in the list. Definition at line 92 of file vtkRectilinearSynchronizedTemplates.h.

void vtkRectilinearSynchronizedTemplates::GetValues (  double *  contourValues  )  [inline]

Fill a supplied list with contour values. There will be GetNumberOfContours() values in the list. Make sure you allocate enough memory to hold the list. Definition at line 98 of file vtkRectilinearSynchronizedTemplates.h.

void vtkRectilinearSynchronizedTemplates::SetNumberOfContours (  int  number  )  [inline]

Set the number of contours to place into the list. You only really need to use this method to reduce list size. The method SetValue() will automatically increase list size as needed. Definition at line 106 of file vtkRectilinearSynchronizedTemplates.h.

int vtkRectilinearSynchronizedTemplates::GetNumberOfContours (   )  [inline]

Get the number of contours in the list of contour values. Definition at line 112 of file vtkRectilinearSynchronizedTemplates.h.

void vtkRectilinearSynchronizedTemplates::GenerateValues (  int  numContours, double  range[2] )  [inline]

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values. Definition at line 119 of file vtkRectilinearSynchronizedTemplates.h.

void vtkRectilinearSynchronizedTemplates::GenerateValues (  int  numContours, double  rangeStart, double  rangeEnd )  [inline]

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values. Definition at line 126 of file vtkRectilinearSynchronizedTemplates.h.

int* vtkRectilinearSynchronizedTemplates::GetExecuteExtent (   )  [inline]

Needed by templated functions. Definition at line 131 of file vtkRectilinearSynchronizedTemplates.h.

virtual void vtkRectilinearSynchronizedTemplates::SetArrayComponent (  int   )  [virtual]

Set/get which component of the scalar array to contour on; defaults to 0.

virtual int vtkRectilinearSynchronizedTemplates::GetArrayComponent (   )  [virtual]

Needed by templated functions.

void vtkRectilinearSynchronizedTemplates::ComputeSpacing (  vtkRectilinearGrid *  data, int  i, int  j, int  k, int  extent[6], double  spacing[6] )

Compute the spacing between this point and its 6 neighbors. This method needs to be public so it can be accessed from a templated function.

virtual int vtkRectilinearSynchronizedTemplates::RequestData (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

This is called by the superclass. This is the method you should override. Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkRectilinearSynchronizedTemplates::RequestUpdateExtent (  vtkInformation *  , vtkInformationVector **  , vtkInformationVector *  )  [protected, virtual]

This is called by the superclass. This is the method you should override. Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkRectilinearSynchronizedTemplates::FillInputPortInformation (  int  port, vtkInformation *  info )  [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkPolyDataAlgorithm.

void* vtkRectilinearSynchronizedTemplates::GetScalarsForExtent (  vtkDataArray *  array, int  extent[6], vtkRectilinearGrid *  input )  [protected]

---

Member Data Documentation

int vtkRectilinearSynchronizedTemplates::ComputeNormals [protected]

Definition at line 152 of file vtkRectilinearSynchronizedTemplates.h.

int vtkRectilinearSynchronizedTemplates::ComputeGradients [protected]

Definition at line 153 of file vtkRectilinearSynchronizedTemplates.h.

int vtkRectilinearSynchronizedTemplates::ComputeScalars [protected]

Definition at line 154 of file vtkRectilinearSynchronizedTemplates.h.

vtkContourValues* vtkRectilinearSynchronizedTemplates::ContourValues [protected]

Definition at line 155 of file vtkRectilinearSynchronizedTemplates.h.

int vtkRectilinearSynchronizedTemplates::ExecuteExtent[6] [protected]

Definition at line 161 of file vtkRectilinearSynchronizedTemplates.h.

int vtkRectilinearSynchronizedTemplates::ArrayComponent [protected]

Definition at line 163 of file vtkRectilinearSynchronizedTemplates.h.

---

The documentation for this class was generated from the following file:

• dox/Graphics/vtkRectilinearSynchronizedTemplates.h

---
