vtkStructuredGridWriter Class Reference

#include <vtkStructuredGridWriter.h>

Inheritance diagram for vtkStructuredGridWriter:

Inheritance graph

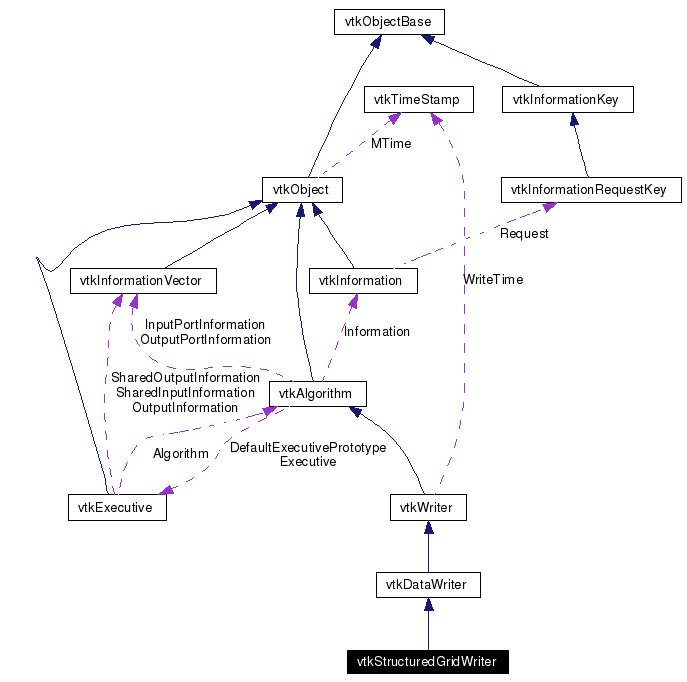

Collaboration diagram for vtkStructuredGridWriter:

Collaboration graph
List of all members.

Detailed Description

write vtk structured grid data file

vtkStructuredGridWriter is a source object that writes ASCII or binary structured grid data files in vtk format. See text for format details.

Binary files written on one system may not be readable on other systems.
vtkStructuredGridWriter (Tests)

Definition at line 35 of file vtkStructuredGridWriter.h.

Public Types

typedef vtkDataWriter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkStructuredGridGetInput ()
vtkStructuredGridGetInput (int port)

Static Public Member Functions

static vtkStructuredGridWriterNew ()
static int IsTypeOf (const char *type)
static vtkStructuredGridWriterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkStructuredGridWriter ()
 ~vtkStructuredGridWriter ()
void WriteData ()
int WriteBlanking (ostream *fp, vtkStructuredGrid *ds)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Member Typedef Documentation

typedef vtkDataWriter vtkStructuredGridWriter::Superclass

Reimplemented from vtkDataWriter.

Definition at line 39 of file vtkStructuredGridWriter.h.

Constructor & Destructor Documentation

vtkStructuredGridWriter::vtkStructuredGridWriter  )  [inline, protected]

Definition at line 49 of file vtkStructuredGridWriter.h.

vtkStructuredGridWriter::~vtkStructuredGridWriter  )  [inline, protected]

Definition at line 50 of file vtkStructuredGridWriter.h.

Member Function Documentation

static vtkStructuredGridWriter* vtkStructuredGridWriter::New  )  [static]

Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates.

Reimplemented from vtkDataWriter.

virtual const char* vtkStructuredGridWriter::GetClassName  )  [virtual]

Reimplemented from vtkDataWriter.

static int vtkStructuredGridWriter::IsTypeOf const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataWriter.

virtual int vtkStructuredGridWriter::IsA const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkDataWriter.

static vtkStructuredGridWriter* vtkStructuredGridWriter::SafeDownCast vtkObject o  )  [static]

Reimplemented from vtkDataWriter.

void vtkStructuredGridWriter::PrintSelf ostream &  os,
vtkIndent  indent

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataWriter.

vtkStructuredGrid* vtkStructuredGridWriter::GetInput  )

Get the input to this writer.

Reimplemented from vtkWriter.

vtkStructuredGrid* vtkStructuredGridWriter::GetInput int  port  )

Reimplemented from vtkWriter.

void vtkStructuredGridWriter::WriteData  )  [protected, virtual]

Reimplemented from vtkDataWriter.

int vtkStructuredGridWriter::WriteBlanking ostream *  fp,
vtkStructuredGrid ds

virtual int vtkStructuredGridWriter::FillInputPortInformation int  port,
vtkInformation info
[protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

The documentation for this class was generated from the following file:
