vtkXMLRectilinearGridWriter Class Reference

#include <vtkXMLRectilinearGridWriter.h>

Inheritance diagram for vtkXMLRectilinearGridWriter:

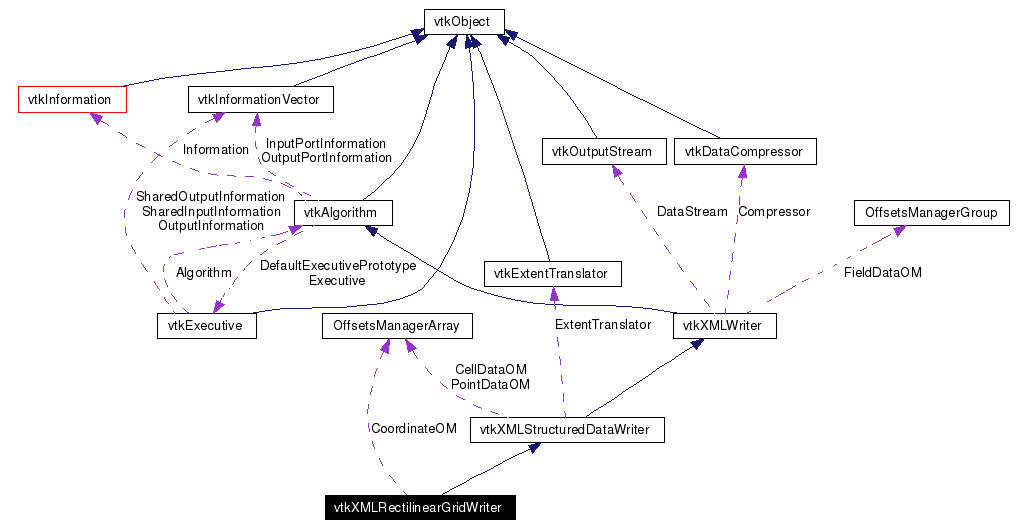

[legend]Collaboration diagram for vtkXMLRectilinearGridWriter:

[legend]List of all members.

---

Detailed Description

Write VTK XML RectilinearGrid files.

vtkXMLRectilinearGridWriter writes the VTK XML RectilinearGrid file format. One rectilinear grid input can be written into one file in any number of streamed pieces. The standard extension for this writer's file format is "vtr". This writer is also used to write a single piece of the parallel file format.

See also:

vtkXMLPRectilinearGridWriter

Tests:

vtkXMLRectilinearGridWriter (Tests)

Definition at line 38 of file vtkXMLRectilinearGridWriter.h.

Public Types
typedef vtkXMLStructuredDataWriter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
const char *	GetDefaultFileExtension ()
void	PrintSelf (ostream &os, vtkIndent indent)
vtkRectilinearGrid *	GetInput ()
Static Public Member Functions
static vtkXMLRectilinearGridWriter *	New ()
static int	IsTypeOf (const char *type)
static vtkXMLRectilinearGridWriter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkXMLRectilinearGridWriter ()
	~vtkXMLRectilinearGridWriter ()
virtual int	FillInputPortInformation (int port, vtkInformation *info)
int	WriteAppendedMode (vtkIndent indent)
void	WriteAppendedPiece (int index, vtkIndent indent)
void	WriteAppendedPieceData (int index)
void	WriteInlinePiece (vtkIndent indent)
void	GetInputExtent (int *extent)
const char *	GetDataSetName ()
vtkDataArray *	CreateExactCoordinates (vtkDataArray *a, int xyz)
void	CalculateSuperclassFraction (float *fractions)
virtual void	AllocatePositionArrays ()
virtual void	DeletePositionArrays ()
Protected Attributes
OffsetsManagerArray *	CoordinateOM

---

Member Typedef Documentation

typedef vtkXMLStructuredDataWriter vtkXMLRectilinearGridWriter::Superclass

Reimplemented from vtkXMLStructuredDataWriter. Definition at line 42 of file vtkXMLRectilinearGridWriter.h.

---

Constructor & Destructor Documentation

vtkXMLRectilinearGridWriter::vtkXMLRectilinearGridWriter (   )  [protected]

vtkXMLRectilinearGridWriter::~vtkXMLRectilinearGridWriter (   )  [protected]

---

Member Function Documentation

static vtkXMLRectilinearGridWriter* vtkXMLRectilinearGridWriter::New (   )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkAlgorithm.

virtual const char* vtkXMLRectilinearGridWriter::GetClassName (   )  [virtual]

Reimplemented from vtkXMLStructuredDataWriter.

static int vtkXMLRectilinearGridWriter::IsTypeOf (  const char *  type  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkXMLStructuredDataWriter.

virtual int vtkXMLRectilinearGridWriter::IsA (  const char *  type  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkXMLStructuredDataWriter.

static vtkXMLRectilinearGridWriter* vtkXMLRectilinearGridWriter::SafeDownCast (  vtkObject *  o  )  [static]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLRectilinearGridWriter::PrintSelf (  ostream &  os, vtkIndent  indent )  [virtual]

Enumerate big and little endian byte order settings. Reimplemented from vtkXMLStructuredDataWriter.

vtkRectilinearGrid* vtkXMLRectilinearGridWriter::GetInput (   )

Get/Set the writer's input. Reimplemented from vtkXMLWriter.

const char* vtkXMLRectilinearGridWriter::GetDefaultFileExtension (   )  [virtual]

Get the default file extension for files written by this writer. Implements vtkXMLWriter.

virtual int vtkXMLRectilinearGridWriter::FillInputPortInformation (  int  port, vtkInformation *  info )  [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle. Reimplemented from vtkAlgorithm.

int vtkXMLRectilinearGridWriter::WriteAppendedMode (  vtkIndent  indent  )  [protected]

void vtkXMLRectilinearGridWriter::WriteAppendedPiece (  int  index, vtkIndent  indent )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLRectilinearGridWriter::WriteAppendedPieceData (  int  index  )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLRectilinearGridWriter::WriteInlinePiece (  vtkIndent  indent  )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

void vtkXMLRectilinearGridWriter::GetInputExtent (  int *  extent  )  [protected, virtual]

Implements vtkXMLStructuredDataWriter.

const char* vtkXMLRectilinearGridWriter::GetDataSetName (   )  [protected, virtual]

Implements vtkXMLWriter.

vtkDataArray* vtkXMLRectilinearGridWriter::CreateExactCoordinates (  vtkDataArray *  a, int  xyz )  [protected, virtual]

Reimplemented from vtkXMLWriter.

void vtkXMLRectilinearGridWriter::CalculateSuperclassFraction (  float *  fractions  )  [protected]

virtual void vtkXMLRectilinearGridWriter::AllocatePositionArrays (   )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

virtual void vtkXMLRectilinearGridWriter::DeletePositionArrays (   )  [protected, virtual]

Reimplemented from vtkXMLStructuredDataWriter.

---

Member Data Documentation

OffsetsManagerArray* vtkXMLRectilinearGridWriter::CoordinateOM [protected]

Definition at line 72 of file vtkXMLRectilinearGridWriter.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkXMLRectilinearGridWriter.h

---
