vtkCarbonRenderWindow Class Reference

#include <vtkCarbonRenderWindow.h>

Inheritance diagram for vtkCarbonRenderWindow:

[legend]

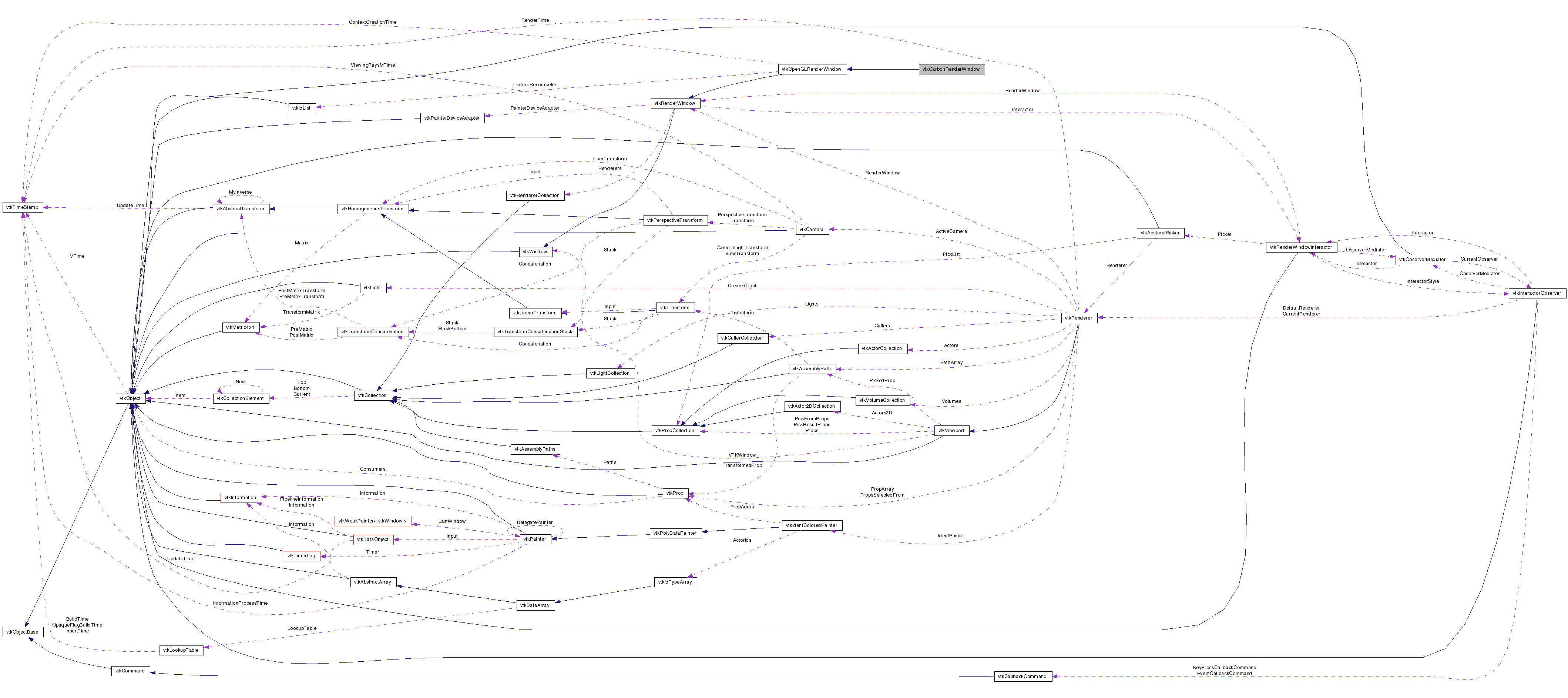

Collaboration diagram for vtkCarbonRenderWindow:

[legend]

List of all members.

Detailed Description

Carbon OpenGL rendering window.

vtkCarbonRenderWindow is a concrete implementation of the abstract class vtkOpenGLRenderWindow. It is only available on Mac OS X 10.3 and later. To use this class, build VTK with VTK_USE_CARBON turned ON. This class can be used only by 32 bit processes, as Carbon is unavailable in 64 bit. If you need 64 bit support, use vtkCocoaRenderWindow. vtkCarbonRenderWindow interfaces to the OpenGL graphics library using the Carbon AGL APIs.

See also:: vtkOpenGLRenderWindow vtkCocoaRenderWindow

Definition at line 57 of file vtkCarbonRenderWindow.h.


Public Types
typedef vtkOpenGLRenderWindow	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Start ()
void	Frame ()
virtual void	WindowConfigure ()
virtual void	WindowInitialize ()
virtual void	Initialize ()
virtual void	Finalize ()
void	SetOffScreenRendering (int)
virtual void	SetFullScreen (int)
virtual void	WindowRemap ()
virtual void	PrefFullScreen ()
virtual int *	GetSize ()
virtual int *	GetScreenSize ()
virtual int *	GetPosition ()
virtual void	SetWindowName (const char *)
void	SetWindowInfo (char *)
void	SetNextWindowInfo (char *)
virtual void *	GetGenericDisplayId ()
virtual void *	GetGenericWindowId ()
virtual void *	GetGenericParentId ()
virtual AGLContext	GetContextId ()
virtual void *	GetGenericContext ()
virtual void	SetDisplayId (void *)
virtual void *	GetGenericDrawable ()
void	SetParentInfo (char *)
virtual void	SetWindowId (HIViewRef)
virtual void	SetMultiSamples (int)
virtual int	GetMultiSamples ()
virtual void	SetStereoCapableWindow (int capable)
void	MakeCurrent ()
void	SetForceMakeCurrent ()
virtual int	GetEventPending ()
int	GetDepthBufferSize ()
void	UpdateSizeAndPosition (int xPos, int yPos, int xSize, int ySize)
void	UpdateGLRegion ()

virtual void	SetSize (int a[2])
virtual void	SetSize (int, int)

virtual void	SetPosition (int *)
virtual void	SetPosition (int, int)

virtual HIViewRef	GetWindowId ()
void	SetWindowId (void *foo)
void	SetNextWindowId (void *)

virtual void	SetParentId (HIViewRef)
void	SetParentId (void *foo)

void	SetRootWindow (WindowPtr win)
WindowPtr	GetRootWindow ()

void	HideCursor ()
void	ShowCursor ()
Static Public Member Functions
static vtkCarbonRenderWindow *	New ()
static int	IsTypeOf (const char *type)
static vtkCarbonRenderWindow *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkCarbonRenderWindow ()
	~vtkCarbonRenderWindow ()
void	InitializeApplication ()
void	CreateAWindow ()
void	DestroyWindow ()
void	CreateOffScreenWindow (int x, int y)
void	DestroyOffScreenWindow ()
void	ResizeOffScreenWindow (int x, int y)
Static Protected Member Functions
static OSStatus	RegionEventProcessor (EventHandlerCallRef er, EventRef event, void *)
Protected Attributes
vtkCarbonRenderWindowInternal *	Internal
int	ApplicationInitialized
GLint	aglAttributes [64]
AGLContext	ContextId
HIViewRef	WindowId
HIViewRef	ParentId
WindowPtr	RootWindow
int	OwnWindow
int	ScreenSize [2]
int	CursorHidden
int	ForceMakeCurrent
EventHandlerUPP	RegionEventHandlerUPP
EventHandlerRef	RegionEventHandler

Member Typedef Documentation

typedef vtkOpenGLRenderWindow vtkCarbonRenderWindow::Superclass

Reimplemented from vtkOpenGLRenderWindow.

Definition at line 61 of file vtkCarbonRenderWindow.h.

Constructor & Destructor Documentation

vtkCarbonRenderWindow::vtkCarbonRenderWindow ( ) [protected]

vtkCarbonRenderWindow::~vtkCarbonRenderWindow ( ) [protected]

Member Function Documentation

static vtkCarbonRenderWindow* vtkCarbonRenderWindow::New ( ) [static]

Construct an instance of vtkRenderWindow with its screen size set to 300x300, borders turned on, positioned at (0,0), double buffering turned on.

Reimplemented from vtkRenderWindow.

virtual const char* vtkCarbonRenderWindow::GetClassName ( ) [virtual]

Reimplemented from vtkOpenGLRenderWindow.

static int vtkCarbonRenderWindow::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkOpenGLRenderWindow.

virtual int vtkCarbonRenderWindow::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkOpenGLRenderWindow.

static vtkCarbonRenderWindow* vtkCarbonRenderWindow::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkOpenGLRenderWindow.

void vtkCarbonRenderWindow::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkOpenGLRenderWindow.

void vtkCarbonRenderWindow::Start ( ) [virtual]

Begin the rendering process.

virtual void vtkCarbonRenderWindow::SetSize	(	int	,
		int
	)			`[virtual]`

virtual void vtkCarbonRenderWindow::SetPosition	(	int	,
		int
	)			`[virtual]`

void vtkCarbonRenderWindow::UpdateSizeAndPosition	(	int	xPos,
		int	yPos,
		int	xSize,
		int	ySize
	)

static OSStatus vtkCarbonRenderWindow::RegionEventProcessor	(	EventHandlerCallRef	er,
		EventRef	event,
		void *
	)			`[static, protected]`

void vtkCarbonRenderWindow::CreateOffScreenWindow	(	int	x,
		int	y
	)			`[protected]`

void vtkCarbonRenderWindow::ResizeOffScreenWindow	(	int	x,
		int	y
	)			`[protected]`
