vtkPProbeFilter Class Reference

#include <vtkPProbeFilter.h>

Inheritance diagram for vtkPProbeFilter:

Inheritance graph
[legend]

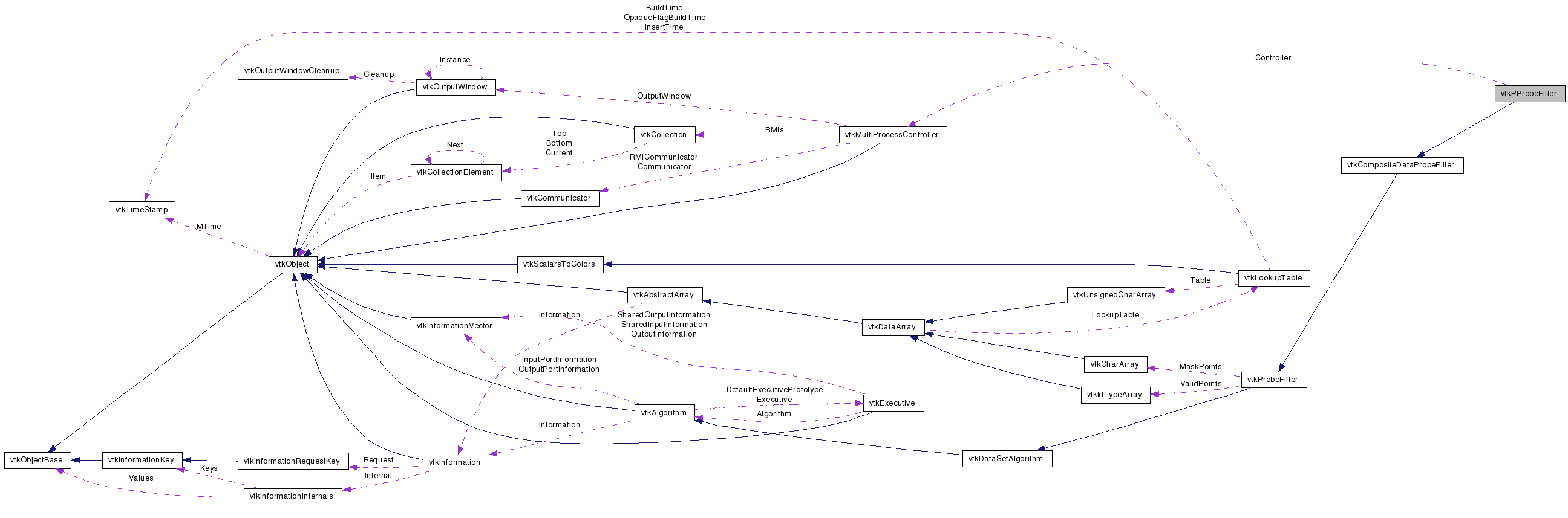

Collaboration diagram for vtkPProbeFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

probe dataset in parallel

Tests:
vtkPProbeFilter (Tests)

Definition at line 30 of file vtkPProbeFilter.h.


Public Types

typedef vtkCompositeDataProbeFilter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetController (vtkMultiProcessController *)
virtual vtkMultiProcessControllerGetController ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkPProbeFilterSafeDownCast (vtkObject *o)
static vtkPProbeFilterNew ()

Protected Types

enum  { PROBE_COMMUNICATION_TAG = 1970 }

Protected Member Functions

 vtkPProbeFilter ()
 ~vtkPProbeFilter ()
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

vtkMultiProcessControllerController

Member Typedef Documentation

Reimplemented from vtkCompositeDataProbeFilter.

Definition at line 33 of file vtkPProbeFilter.h.


Member Enumeration Documentation

anonymous enum [protected]

Enumerator:
PROBE_COMMUNICATION_TAG

Definition at line 49 of file vtkPProbeFilter.h.


Constructor & Destructor Documentation

vtkPProbeFilter::vtkPProbeFilter (  )  [protected]

vtkPProbeFilter::~vtkPProbeFilter (  )  [protected]


Member Function Documentation

virtual const char* vtkPProbeFilter::GetClassName (  )  [virtual]

Reimplemented from vtkCompositeDataProbeFilter.

static int vtkPProbeFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCompositeDataProbeFilter.

virtual int vtkPProbeFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCompositeDataProbeFilter.

static vtkPProbeFilter* vtkPProbeFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkCompositeDataProbeFilter.

void vtkPProbeFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCompositeDataProbeFilter.

static vtkPProbeFilter* vtkPProbeFilter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkCompositeDataProbeFilter.

virtual void vtkPProbeFilter::SetController ( vtkMultiProcessController  )  [virtual]

Set and get the controller.

virtual vtkMultiProcessController* vtkPProbeFilter::GetController (  )  [virtual]

Set and get the controller.

virtual int vtkPProbeFilter::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

Handle composite input.

Reimplemented from vtkCompositeDataProbeFilter.

virtual int vtkPProbeFilter::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called within ProcessRequest when a request asks for Information. Typically an algorithm provides whatever lightweight information about its output that it can here without doing any lengthy computations. This happens in the first pass of the pipeline execution.

Reimplemented from vtkProbeFilter.

virtual int vtkPProbeFilter::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

This is called within ProcessRequest when each filter in the pipeline decides what portion of its input is needed to create the portion of its output that the downstream filter asks for. This happens during the second pass in the pipeline execution process.

Reimplemented from vtkProbeFilter.

virtual int vtkPProbeFilter::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Change input information to accept composite datasets as the input which is probed into.

Reimplemented from vtkCompositeDataProbeFilter.


Member Data Documentation

Definition at line 60 of file vtkPProbeFilter.h.


The documentation for this class was generated from the following file:
